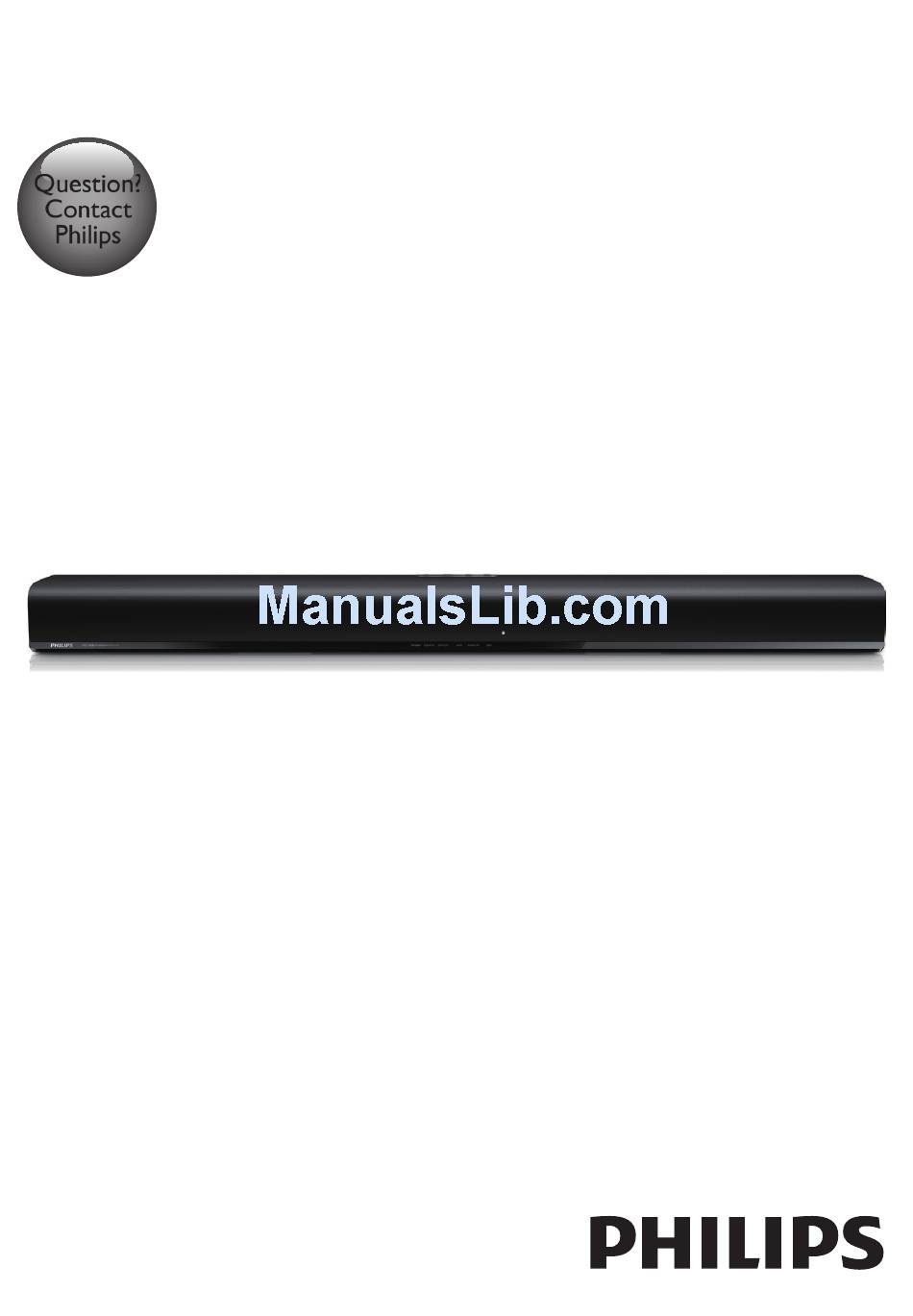

Page 1: User Manual
Always there to help you Register your product and get support at www.philips.com/support HTL1180B Question? Contact Philips User manual... -
Page 3: Table Of Contents
Contents 1 Important Help and support Safety Care for your product Care of the environment Compliance 2 Your SoundBar Main unit Remote control Connectors 3 Connect Placement Connect audio from TV and other devices 7 4 Use your SoundBar Adjust the volume Choose your sound MP3 player USB storage devices... -
Page 4: Important
Help and support outlet before lightning storms. • When you disconnect the power cord, always pull the plug, never the cable. For extensive online support, visit www.philips.com/support to: Risk of short circuit or fire! • download the user manual and the quick • For identification and supply ratings, see... -
Page 5: Care For Your Product
Risk of overheating! Care for your product • Never install this product in a confined space. Always leave a space of at least four Use only microfiber cloth to clean the product. inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product. Care of the environment Risk of contamination! •... -
Page 6: Compliance
2 Your SoundBar Compliance Congratulations on your purchase, and welcome to Philips! To fully benefit from This product complies with the radio the support that Philips offers, register your interference requirements of the European SoundBar at www.philips.com/welcome. Community. Main unit This section includes an overview of the main unit. -
Page 7: Remote Control
• AUDIO IN: Lights up when you switch • USB: Switch your audio source to the to audio input source (3.5mm jack). USB connection. • USB: Lights up you switch to USB c REPEAT source. Select or turn off repeat mode in USB mode. -
Page 8: Connectors
3 Connect Connectors This section includes an overview of the This section helps you connect your SoundBar connectors available on your SoundBar. to a TV and other devices. For information about the basic connections of your SoundBar and accessories, see the quick start guide. -
Page 9: Connect Audio From Tv And Other Devices
Using a coaxial cable, connect the Connect audio from TV and COAXIAL connector on your SoundBar other devices to the COAXIAL/DIGITAL OUT connector on the TV or other device. • The digital coaxial connector might be Play audio from TV or other devices through labeled DIGITAL AUDIO OUT. -
Page 10: Use Your Soundbar
Sound mode indicator or download the User Manual from • If surround mode is turned on, all the LED www.philips.com/support. indicators light up one by one, with all the • Switch the SoundBar to the correct source LED indicators on for three seconds. Finally for other devices. -
Page 11: Mp3 Player
Sound delay indicator USB storage devices • The more delay you change to, the more LED indicators light up. If you do not press Enjoy audio on a USB storage device, such as an the sound delay button for three seconds, MP3 player and USB flash memory, etc. -
Page 12: Auto Standby
3.0-3.5mm/0.12”-0.14” Update software 4mm/ 0.16” To continually improve the product, software upgrade may be offered. Visit ww.philips.com/ support to check if the latest software version >25mm/0.98” is available. See the illustration in the quick start guide on how to wall mount the SoundBar. -
Page 13: Product Specifications
6 Product Main unit specifications • Power supply: 100-240 V~, 50-60 Hz • Power consumption: 25 W • Standby power consumption: ≤ 0.5 W • Speaker impedance: 8 ohm (full range) Note • Speaker drivers: 4 x 54.5 mm (2") • Dimensions (W x H x D): •... -
Page 14: Troubleshooting
If you have problems using this product, check the following points before you request service. If you still have a problem, get support at www.philips.com/support. Main unit The buttons on the SoundBar do not work. • Disconnect the SoundBar from the power supply for a few minutes, then reconnect. - Page 15 Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
- Page 16 Specifications are subject to change without notice 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.
