Summary of Contents for Spartherm Fuora Q/R

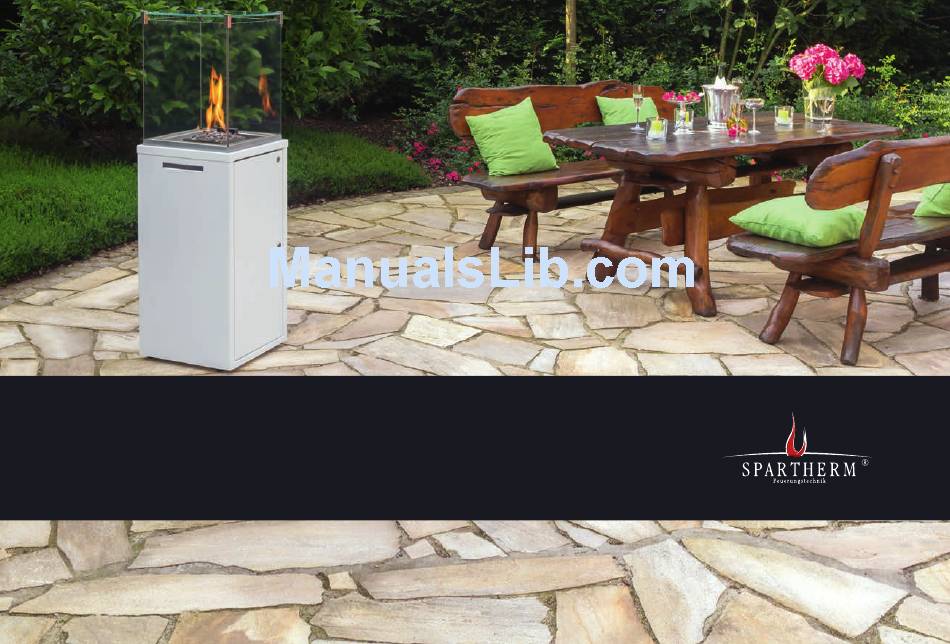

- Page 1 Operating Manual | Fuora Q/R Gas Outdoor Fireplace - For Use in Open Spaces.
- Page 2 PREFACE Dear customer, Thank you for choosing to buy a SPARTHERM product. We hope you enjoy the comfortable, cosy fire of your gas fireplace. Our products have been developed and produced according to the highest quality and safety requirements. For this reason, you can enjoy many years of trouble-free use, guaranteed.
-
Page 3: Table Of Contents
OVERVIEW OF THE OPERATING MANUAL // GAS OUTDOOR FIREPLACE 1. Warning 6. Gas cylinder adapter 6.1 Adapter for the connection 2. Installation instructions 2.1 Propane installation instructions 7. General warranty conditions 7.1 Area of application 3. Technical data 7.2 General information 7.3 Warranty period 4. -
Page 4: Warning
• If you install a (separate) device in which to place the gas cylinder, be 1. WARNING sure that the cylinder is well ventilated. Propane is heavier than air, and an accumulation of this gas can have dangerous consequences. If you •... -
Page 5: Propane Installation Instructions
Manufacturer Spartherm Feuerungstechnik GmbH 4. Check all of the connections for leaks. To do so, moisten all of the gas connections with soapy water or use a gas leak detection spray. If bubbles... -
Page 6: Safety Instructions
When igniting the burner, make sure that the valve of the gas cylinder is opened fully. Manufactured by Spartherm Feuerungstechnik GmbH WARNING: This gas fireplace is only suitable for propane. The unit is CE 0063 intended exclusively for outdoor use. -
Page 7: Commissioning The Unit
WARNING: Follow all the instructions (provided in the manual) regarding Note: The four cotter pins must always be used! gas leak detection before operating the unit. Never try to loosen the gas fitting when the unit is in use. WARNING: Do not use or store petrol or other flammable vapours or liquids near this or other units. -
Page 8: Switching The Unit On
5.1 SWITCHING THE UNIT ON 5.4 SWITCHING THE UNIT OFF 1. Turn the ignition knob on the gas control panel (Fig. 4) as far to the right 1. By turning the ignition knob to the right again (Fig. 4), you will shut off the gas as possible. -
Page 9: Removing The Glass Casing
6. GAS CYLINDER ADAPTER 5.6 REMOVING THE GLASS CASING The glass casing is fitted on the body and is secured on the sides with four Pressure reducer with a pressure steel lugs. (Fig. 9) relief valve The steel lugs are inserted through the coated body and are secured in the For commercial use in Germany. -
Page 10: General Warranty Conditions
– are subject to on-going quality control. Specialist knowledge is required when assembling and installing the Spartherm Feuerungstechnik GmbH is not obliged to satisfy any claim if product. The product must, therefore, only be installed and commissioned such documentation is not presented. -
Page 11: Elimination Of Defects / Repair
• technical modifications made to the appliance by persons other than the Damages and claims for compensation which are not the result of delivery qualified technical staff of a defective device from Spartherm Feuerungstechnik GmbH are excluded 7.6 ELIMINATION OF DEFECTS / REPAIR and are not part of this warranty promise. - Page 12 The global brand for your lounge Reg. no.: Product inspected by: Date: Month Year Your specialist dealer: Spartherm Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle Phone +49 (0) 5422 94 41-0 · Fax +49 (0) 5422 9441-14 · www.spartherm.com...
