AOpen AX4GER Easy Installation Manual

AOpen AX4GER Easy Installation Manual

Hide thumbs Also See for AX4GER:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual See also: Online Manual

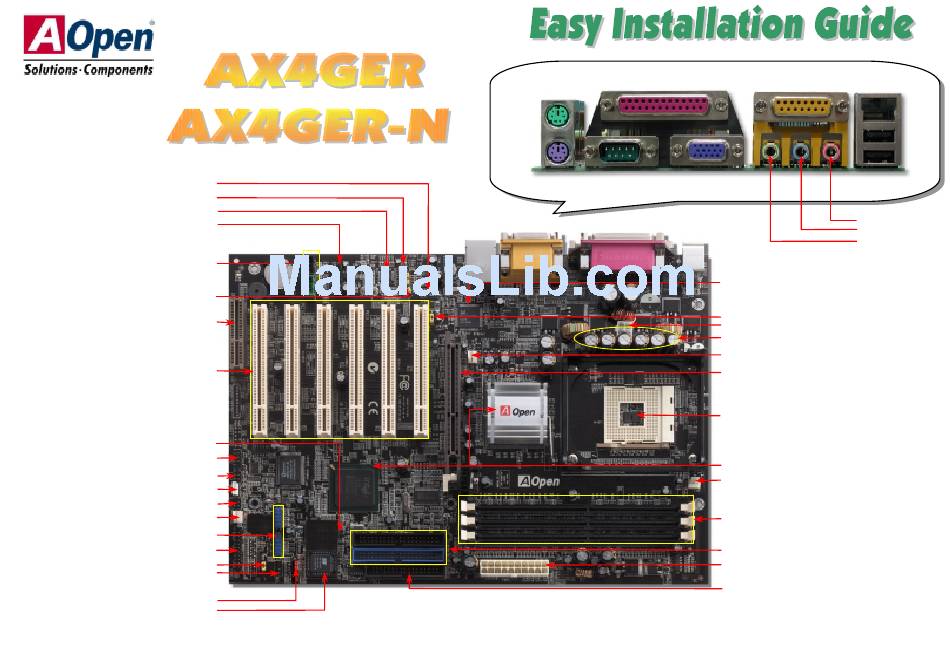

Resetable Fuse
Front Audio Connector
Onboard AC'97 CODEC
S/PDIF Connector
Green: AUX-IN Connector
Black: CD-IN Connector
JP28 Keyboard/Mouse Wakeup
Jumper
CNR Expansion Slot
32-bit PCI Expansion Slot x6
Case Open Connector
COM2 Connector
IrDA Connector
WOL (Wake on LAN) Connector
Dr. LED Connector
SYSFAN3 Connector
nd
rd
2
& 3
USB2.0 Connector
Front Panel Connector
JP1 Buzzer Jumper
WOM (Wake on Modem) Connector
JP14 CMOS Clear Jumper
4Mbit Flash ROM BIOS
(AOpen reserves the right to revise all the specifications and information contained in this documentation
which is subject to change without notice.)
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
COM 1 Port
VGA Port
PS/2 Keyboard
Connector
RJ45 10/100
LAN Jack
MIDI/Game Port
(For AX4GER-N)
USB2.0 Ports
MIC-In
Line-In
Speaker Out
RealTek RTL8100BL (For AX4GER-N)
JP13 LAN Enable/Disable Jumper
4-pin 12V. ATX Power Connector
3300
μ
F Low ESR Capacitors
SYSFAN2 Connector
AGP slot
(For 1.5V AGP card or ADD card)
478-pin CPU socket with Voltage and
Frequency Auto-detection that supports
®
®
Intel
Pentium
4 1.4~2.8GHz+ CPU
®
Intel
845GE chipset
CPUFAN1 Connector
184-pin DIMMx3 supports
DDR333/DDR266 Max. to 2GB
ATA/33/66/100 IDE Connector x2
ATX Power Connector
FDD Connector

Advertisement

Table of Contents
loading

Related Manuals for AOpen AX4GER

Summary of Contents for AOpen AX4GER

  • Page 1 ATX Power Connector WOM (Wake on Modem) Connector FDD Connector JP14 CMOS Clear Jumper 4Mbit Flash ROM BIOS (AOpen reserves the right to revise all the specifications and information contained in this documentation which is subject to change without notice.)

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.

  • Page 3: Connecting Front Panel Cable

    3. Installing CPU & System Fan 5. Setting CPU Voltage & Frequency Setting CPU Core Voltage Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you This motherboard supports CPU VID function. The CPU core voltage will be automatically can also plug it on SYSFAN2 or SYSFAN3 connector.

  • Page 4: Support Six Usb2.0 Connectors

    6. Support Six USB2.0 Connectors 8. Front Audio Connector This motherboard provides six USB2.0 connectors. Compared to traditional USB 1.0/1.1 If the housing has been designed with an audio port on the front panel, you’ll be able to with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps, which is 40 times connect onboard audio to front panel through this connector.
  • Page 5 10. S/PDIF Connector 12. 10/100 Mbps LAN onboard (For AX4GER-N) S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive The South Bridge ICH4 includes a fast Ethernet controller on chip. On the strength of quality through optical fiber and allows you to enjoy digital audio instead of analog. Normally there are...

  • Page 6: Bios Upgrade Under Windows Environment

    STRONGLY RECOMMENDED to close all the applications before you start the Installing driver for Win98/Win98 SE/Windows2000/Windows ME/Windows XP : upgrading. Download the new version of BIOS package zip file from AOpen official web site. ------------------------------------------------------------------- (ex: http://www.aopen.com) Ask you to select which driver you want to install, select "Driver from disk provided Unzip the download BIOS package (ex: WAX4GERN102.ZIP) with WinZip...

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX4GER-N is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://english.aopen.com.tw/tech/report/default.htm...

This manual is also suitable for:

Ax4ger-n
