Planet WAP-7500 Quick Intallation Manual

1. Product Package
 WAP-7500 x 1
 Mounting Kit x 1
 PoE Injector & Power cord x 1
 Grounding Wire with screw x 1
 Water Proof RJ-45 Connector Kit x 1
 Quick Installation Guide (QIG) x 1
 Product CD x 1
1. If any of them are not included or
damaged, please contact your
vendor for support.
2. Product CD contains Management
Note
Tool, Quick Installation Guide and User
Manual.
- 1 -
2. Installation Precautions
1. Users MUST use a proper and well-installed surge arrestor
and grounding kit with WAP-7500; otherwise, a random
lightening could easily cause fatal damage to WAP-7500.
EMD (Lightning) DAMAGE IS NOT COVERED UNDER
WARRANTY.
2. Make sure PoE is correctly connected to the RJ-45 port
on the WAP-7500 labeled PoE+Data. DO NOT CONNECT
TO THE PORT LABELED "Warning!! No POE", other-
wise the WAP-7500 will be severely damaged!
3. Users MUST power off the WAP-7500 first before
connecting the external antenna to it; otherwise, damage
might be caused to the WAP-7500 itself.
- 2 -
3. System Installation

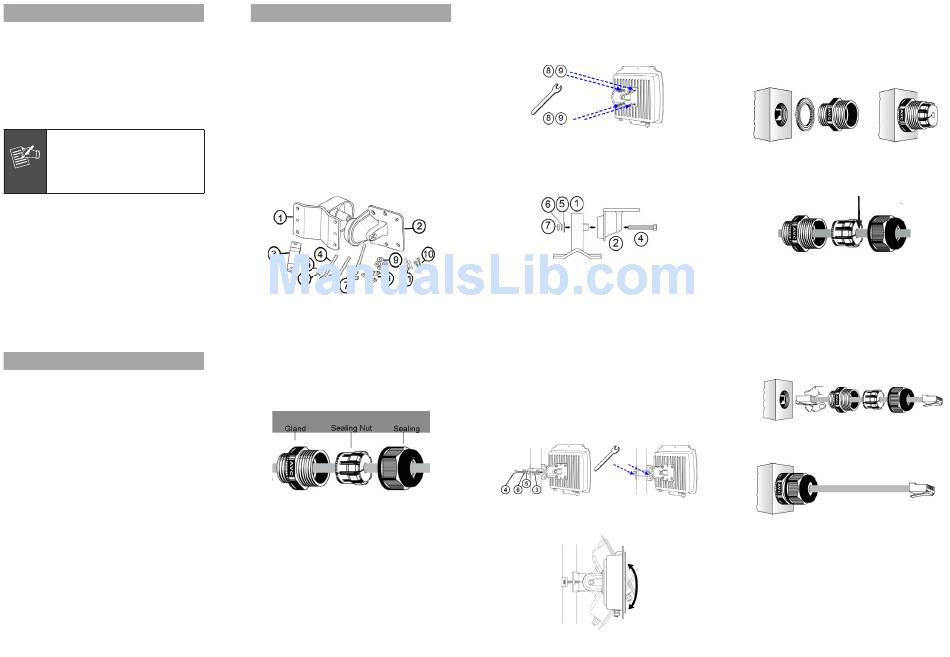

3.1 Mounting Kit
 Wall/Pole Mounting Bracket
1 T-Form Bracket x 1
2 Articulation Pole x 1
3 Pole Mount Bar x 1
 Fasteners
4 M8×80 Screw x 2, M8×90 Screw x 1
5 M8 Washer x 3
6 M8 Spring Washer x 3
7 M8 Nut x 1
local
8 M5×16 Screw x 4
9 M5 Washer x 4
10 Wood Screw (for Wall Mount) x 4
11 Wall/Gyprock Plug (for Wall Mount) x 4
- 3 -
3.2 Waterproof RJ-45 Connector Kit
 Gland x 1
 Sealing Nut x 1
 Sealing x 1
- 4 -
3.3 Assemble the Mounting Bracket
1. Place the main bracket into the seating and use a
spanner to fasten the bracket to the WAP-7500 with
M5×16 screws  and M5 washers  provided in the
hardware packets.
2. Assemble the main bracket by placing articulation pole
to the T-form bracket  via a M8×90  screw through
the insertion axe and fix with the M8 washer  , spring
washer  and M8 nut  .
- 5 -
3.4 Pole Mounting
1. Install the main bracket and the pole mount bar 
the top of the pole by securing the drill holes of the
pole mount bar to the main bracket ones and insert two
M8×80  screws, spring washers  and washers
through the drill holes and main bracket.
2. Fasten two M8×80 screws  and washers  through the
drill holes and main bracket with a spanner.
3. Adjust the antenna for appropriate tilt / vertical orienta-
tion.
- 6 -
3.5 Connect Up
Before installing the Ethernet cable with a waterproof RJ-45
connector, it is recommended that the Cat-5 RJ-45 coaxial
cable be used for the bridge to power injector connections.
1. To connect to the hole labeled PoE+Data, open the black
cover in advance by using a coin or a slotted screwdriver
and then screw in the body of the gland and tighten.

2. Slide the sealing nut to the RJ-45 cable from its middle
breach and then insert the sealing into the cable.
Slide the Sealing Nut from its Breach
- 7 -
3. Insert the RJ-45 connector and make sure that the
locking tab snaps home.
over

WAP-7500 RJ-45 Port
4. Screw the sealing on the gland and tighten.
- 8 -
