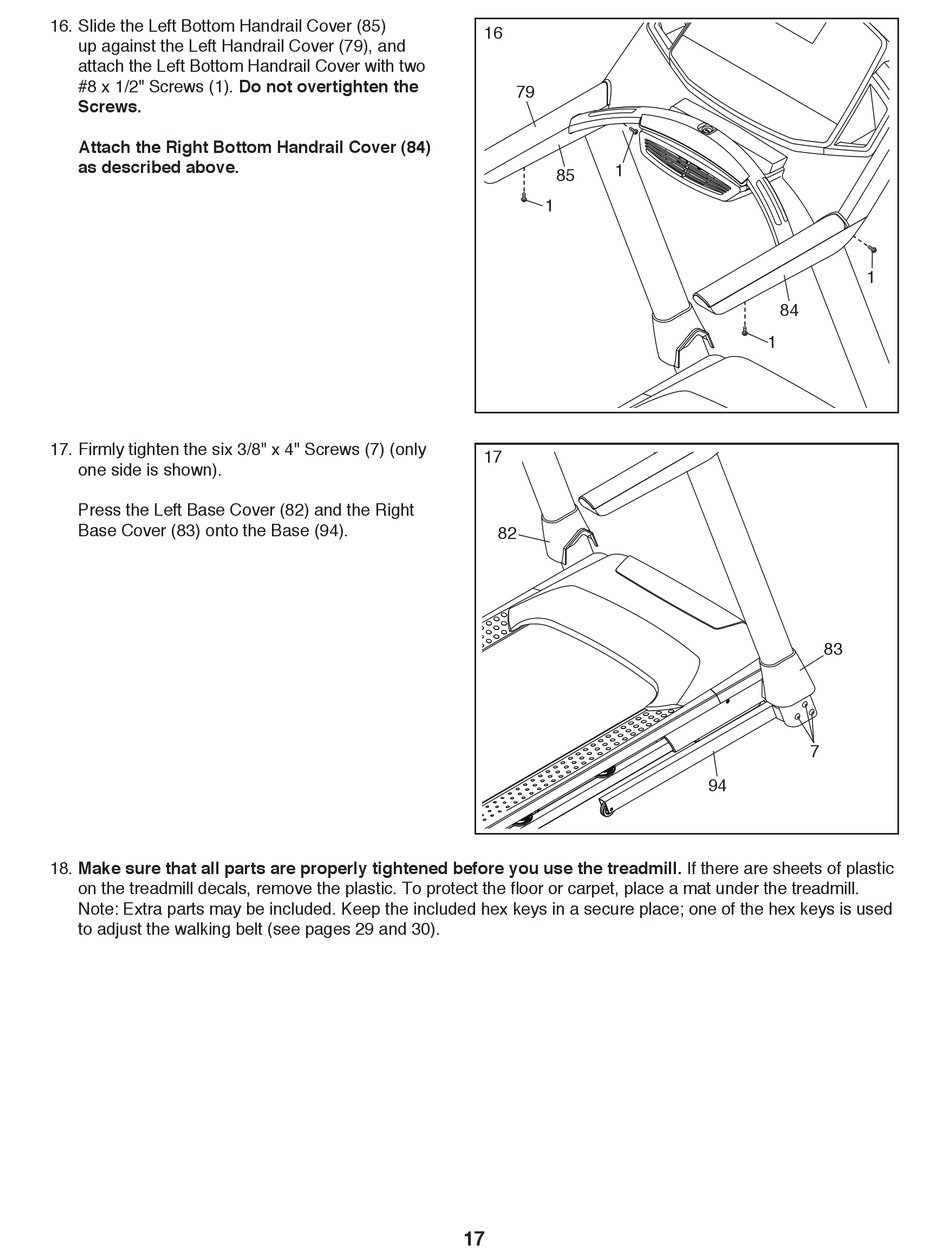

16. Slide the Left Bottom Handrail Cover (85)
up against the Left Handrail Cover (79), and
attach the Left Bottom Handrail Cover with two
#8 x 1/2" Screws (1). Do not overtighten the
Screws.
Attach the Right Bottom Handrail Cover (84)
as described above.
17. Firmly tighten the six 3/8" x 4" Screws (7) (only
one side is shown).
Press the Left Base Cover (82) and the Right
Base Cover (83) onto the Base (94).
18. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the  oor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex keys in a secure place; one of the hex keys is used
to adjust the walking belt (see pages 29 and 30).
16
79
1
85
1
17
82
17
1
84
1
83
7
94
