Meridian MF10 Specification Sheet

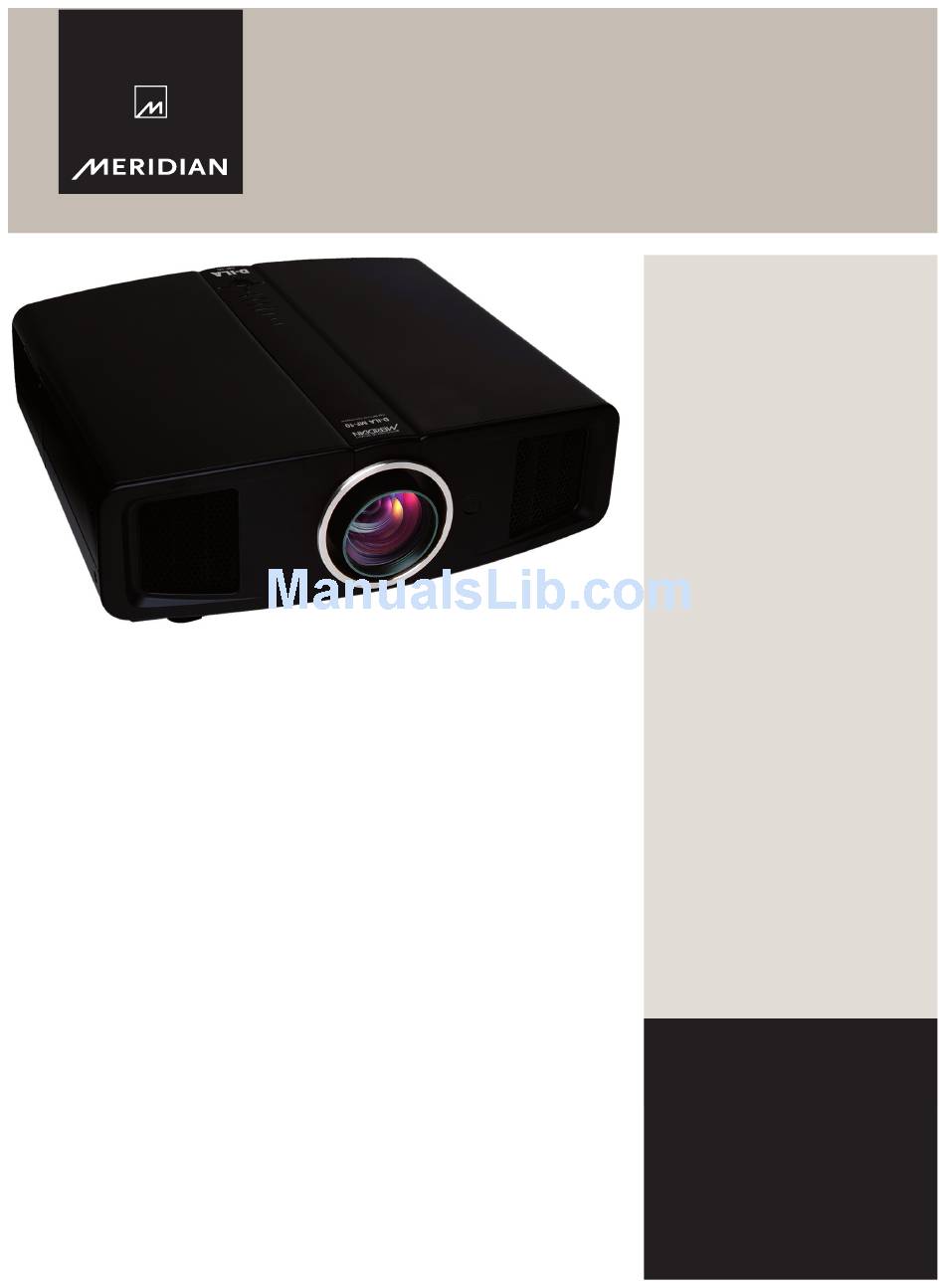

The Meridian MF10 digital projector
offers extraordinary black reproduction
capability, with 30,000:1 native contrast
ratio. It also features a brand new 0.7in
full high definition device and associ-
ated optical engine utilising advanced
D-ILA technology. The impressive
contrast ratio is obtained via the native
capabilities of the engine, without the
use of a dynamic iris, thus ensuring
true black reproduction without loss of
brightness.
D-ILA is a particularly advanced approach
to LCOS (Liquid Crystal On Silicon) display
technology which offers significant advances
over other display systems.
Unlike many other systems, which use a
single display element and a colour wheel,
which introduces flickering and other
artefacts such as colour dithering and
rainbow effects, the MF10 employs three
individually-tuned 1920 x 1080 pixel D-ILA
devices – one each for red, green and blue.
D-ILA devices achieve a significant reduction
in stray light by flattening the spaces
between pixels and using new, advanced
liquid crystals and orientation technologies.
The optical engine also employs wire grid
polarisers, which signficantly reduce light
scatter into the projection lens, further
contributing to improved contrast.
1080p High Definition Projector
In addition to a host of superb quality
features, each Meridian MF10 projector
is hand-tuned at our headquarters and
manufacturing facility near Cambridge,
England. Here, using specially-developed
test and calibration routines, we precisely
set gamma, colour temperature and
other parameters, allowing the MF10 to
dramatically exceed the performance of off-
the-shelf projectors.
Meridian has exclusive access to the inner
workings of D-ILA, and using special
software developed by William Phelps, we
are able to unlock the full potential of this
projector – particularly the ability to calibrate
the individual Red, Green and Blue colour
look-up tables (LUTs) that determine exact
colour levels for each pixel.
With full access to the projector's processing
system, we can perform a full calibration
procedure, optimising not only gamma but
also colour/grey scale, ensuring more natural
colour and minimum artefacts. In addition,
we provide the highest degree of accuracy
with all available gamma selections. No other
company or process has access to these
capabilities.
Superior colour rendition is made possible
by an unusually broad colour space – the
MF10's colour rendering system exceeds the
gamut of competing systems (see over).
MF10
Product highlights
Native 30,000:1 contrast and
wire-grid polarisation deliver true
blacks without an iris
Three 0.7in full-HD D-ILA chips
for smooth, flicker-free, cinema-
quality high-resolution images
Exclusive calibration process
employs software developed
for Meridian by William
Phelps, dramatically improving
performance
High performance 2x zoom lens
80% vertical and 34% horizontal
lens shift for easier installation
True full-spec 1080p (1920 X
1080) High Definition
Dimensioned drawing and
RS232 code documents available
separately.
