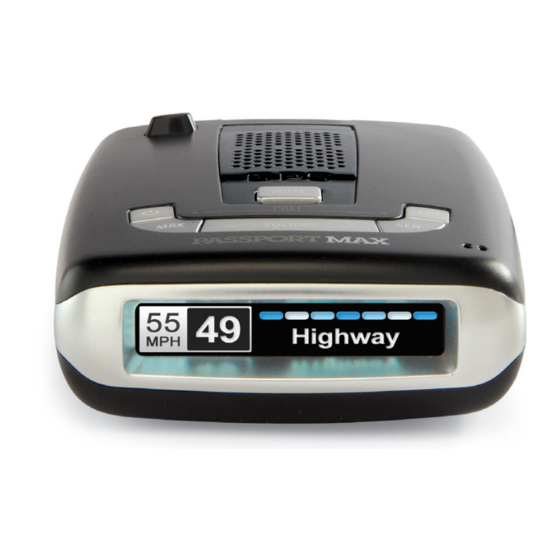

Escort Passport Max Quick Refence

Settings & Preferences
Upon the initial power up, PASSPORT Max International will ask you to select your preferred language.
– +
Press the VOLUME button to scan through available languages.
Press the SEN button once to select language.
Press the SEN button a second time to confi rm language.
NOTE: Selecting Language during the fi rst startup will automatically select radar and laser band defaults for that market.
Press MRK to go from Press VOLUME + or – to change
one category to the next your setting within a category
User Mode Advanced* Access and customize all Settings and Preferences
Novice Access and customize units and display color, (all other Settings are set to
factory defaults)
NOTE: Switch back to advance mode to view all Preferences
Pilot Scan Bar* Scanning Bar with Full Word
Full Word Full Word: Auto, Auto NoX, or Highway
Display Color Blue*/Green/Red/Amber Set color to match your vehicle's dash display
Speed Display On* Displays current speed
Off Displays battery voltage
Cruise Alert Off / 20-160 KPH Off ers double beep alert tones below specifi ed speed
20 KPH*
Over Speed Off / 20-160 KPH Reminds you when you exceed a specifi ed speed up to 160 KPM
110 KPH*
Meter Mode Standard* Single band with bar graph of signal strength
Spec Single band with numeric frequency
Expert Multiple bands with bar graph of signal strengths
Simple Simple messages replace bands:
Caution (if traveling below cruise alert limit)
Slow Down (if traveling above cruise alert limit)
Tones Standard* Standard ESCORT alert tones
Mild Mild doorbell chime alert tones
AutoMute On* / Off Automatically reduces audio during alert
AutoLearn On / Off * Automatically stores and locks out false alarms
Units English/Metric* Units for distance and speed
Language English*/SPN/RN/CHN Language for voice and text
Voice On* / Off Voice announcements
GPS Filter On* / Off Enables GPS-powered features
AutoPower Off Power turns on or off depending on your vehicle's ignition type (constant
power or switched)
1 Hour Powers off automatically after 1 hour
NOTE: AutoPower only
2 Hours Powers off automatically after 2 hours
works with constant
4 Hours* Powers off automatically after 4 hours
power ignition
8 Hour Powers off automatically after 8 hours
NOTE: If auto power is on, the display screen goes blank after 30
minutes to save screen life. Display screen will turn on automatically
after you reach 10 KPH
6
41376_Max Int Quick Reference.indd 1-4
Band Enables On / Off * Default Settings: International*. Customize the bands you
want to monitor.
NOTE: During Startup is the only time PASSPORT Max International
automatically sets radar bands for diff erent market using your choice
of language.
Press SEN to go from one Press VOLUME + or – to change
band category to the next your setting within a category
X Band On / Off * Freq: 10.475 -10.575 GHz
K Band On* / Off Freq: 23.950 -24.250 GHz includes Iskra 1/2 and K Pulse
NOTE: Includes Iskra and K Pulse detection. When K Band is off you can
select separate segments of the band to turn on or off
K1 On* / Off Freq: 23.950-24.109 GHz
K2 On* / Off Freq: 24.110-24.174 GHz
K3 On* / Off Freq: 24.175-24.250 GHz
Strelka Band On / Off * Strelka Detection Freq: 24.150-24.160 GHz Std Meter bar.
NOTE: Exceptions for
Band Default Settings: MultaRadar CD Band On* / Off MultaRadar CD detection Freq: 24.080-24.120 GHz.
• English and Spanish markets use Ka Band On* / Off Freq: 33.400-36.000 Ghz NOTE: When Ka Band is off , you can select separate
Standard Default Settings. segments of the band to turn on or off
KaN1 On / Off * Freq: 33.400-33.700 GHz
• Russian market bands use Default KaN2 On / Off * Freq: 33.700-33.900 GHz
Settings with Strelka On and the KaN3 On* / Off Freq: 33.900-34.200 GHz
KaN4 On* / Off Freq: 34.200-34.400 GHz
entire Ka Band Off .
KaN5 On / Off * Freq: 34.400-34.600 GHz
• China market bands use Default KaN6 On* / Off Freq: 34.600-34.800 GHz
Settings with entire Ka Band On. KaN7 On / Off * Freq: 34.800-35.400 GHz
KaN8 On* / Off Freq: 35.400-35.600 GHz
KaN9 On / Off * Freq: 35.600-35.800 GHz
KaN10 On / Off * Freq: 35.800-36.000 GHz
Laser On* / Off All laser guns 5- 40 KHz, Polyscan, Amata, and Tru-Cam
Marker Enable On* / Off Other, Red Light Camera, Red and Speed Camera, and Average speed
cams. Unit will be loaded with EU, AU-NZ, and China
DEFENDER database
Modifi ed Customize the types of locations you want to mark for future reference
Press SEN to go from one Press VOLUME + or – to change
marker category to the next your setting within a category
Other On* /Off Other location
Redlight On* / Off Red light camera
Red & Speed On* / Off Red light & speed camera
Speed Cam On* / Off Speed camera
Speed Trp On* / Off Speed trap
Avg Speed Cam On* / Off Speed camera
HOV Lane On* / Off High Occupancy Lane Camera
Clear Locations Marked Clear all user Marked locations. Press SEN button to confi rm
Lockouts Clear all lockouts. Press SEN button to confi rm
Defender Clear all DEFENDER data. Press SEN button to confi rm
Format Clear DEFENDER database, all markers, and all lockouts
Press SEN button to confi rm
*Default Setting
7
Contact Us
Visit EscortRadar.com/manuals for the
PASSPORT Max International Owner's Manual.
To view serial number and software revision
www.escortradar.com/
press MRK and MUTE while powering on the
detector.
dealer-locator
To restore PASSPORT Max International to
its original factory Settings, press and hold
SEN and BRT while turning the power on. A Designed in the USA. Manufactured in Canada.
"Restored" message will display, acknowledging
ESCORT Inc.
the reset.
5440 West Chester Road
West Chester OH 45069
Software Updates
PASSPORT's red light, speed camera, and ©2014 ESCORT Inc. Escort®, Passport® Max, Defender®, AFR®, TrueLock™,
SmartShield®, SpecDisplay™, AutoSensitivity™, ExpertMeter™ and
average speed camera database is easily
Cincinnati Microwave are trademarks of ESCORT Inc. Manufactured in
updated using our exclusive detector software
Canada. Features, specifi cations and prices subject to change without
notice.
tools found on our web site. Firmware, or the
FCC NOTE: Modifi cations not expressly approved by the manufacturer
operating software for the detector, can also be
could void the user's FCC granted authority to operate the equipment.
updated using these tools.
FCC ID: QKLM5MAX
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
In order to have access to these updates,
interference, and (2) this device must accept any interference received
you must register your PASSPORT at
including interference that may cause undesired operation.
www.EscortRadar.com/productregistration/
Once registered, you will receive email
notifi cations that updates are now available
for your fi rmware. Update monthly for the latest
DEFENDER database. To handle your software
and DEFENDER updates you need to connect
your PASSPORT Max International to a computer
fi rst. You can connect Max to a computer via
USB/USB Mini B cable.
8
