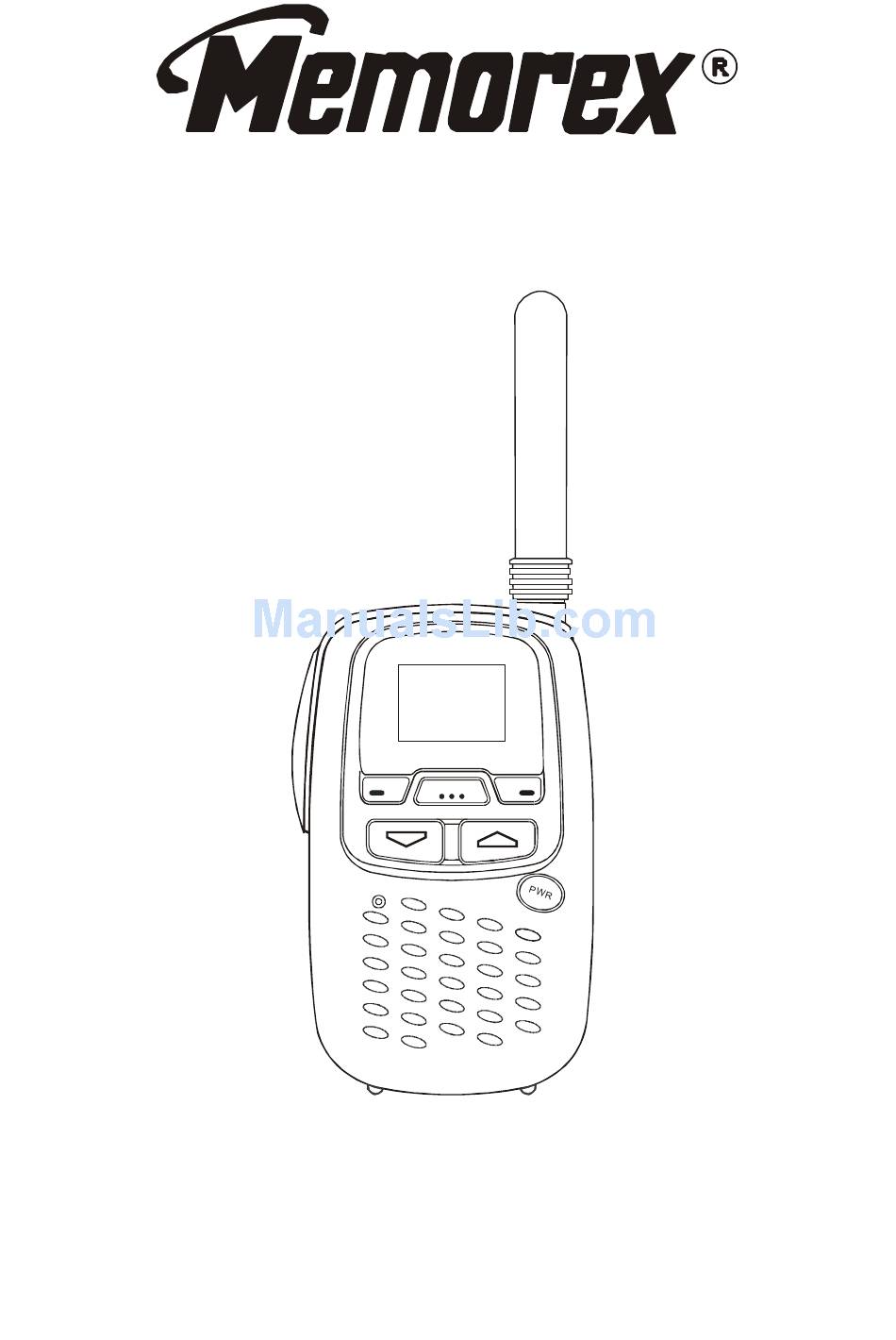

- Page 1 MK 1700A 14 CHANNEL FAMILY RADIO SYSTEM CALL ENTER MENU BEFORE OPERATING THIS PRODUCT PLEASE READ THESE INSTRUCTIONS COMPLETELY...
-
Page 2: Table Of Contents
CONTENTS FCC Warmings...1 Features...1 Precaution...1 Unpacking...1 Controls and Indicators...2 Install Batteries...3 To Turn On or Turn Off The Unit...4 To Transmit...4 To Adjust Volume Control...4 To Select Channel...4 To Send Call Tone...5 To Lock Control Keys...5 To Turn On or OFF Beep...5 To Turm On or OFF VOX...6 Frequency Range...7 General Specifications...8... -
Page 3: Fcc Warmings
FCC WARNINGS This device complies with part 15 of the FCC rules, operation is subject to the condition that this device does not cause harmful interference. Features No Air Time Fees and No License Required Up to 2 miles range 14 Channel Build-in VOX Function(Optional) Muti-function LED Display... -
Page 4: Controls And Indicators
Controls and Indicators 1. Earphone/Microphone jack 2. Transmission/Reception indicator 3. PTT button 4. MONITOR button 5. ENTER/LOCK button 6. UP/DOWN buttons 7. Microphone 8. POWER button 9. MENU button 10. CALL button 11. Power Saver mode indicator 12. LED display 13. -
Page 5: Install Batteries
Operation Install Batteries Pull lock tab down and lift door up (towards you) to remove battery cover. Insert four polarity markings. Note : When batteries are low or need charging the BATTERY LOW “L” will blink. Replace all batteries with new alka- line batteries. -
Page 6: To Turn On Or Turn Off The Unit
To Turn On The Unit or To Turn Off The Unit Press the POWER switch for more than 1 second. Auto Battery Power Saver The unit has a special circuit designed to extend battery life. If there are no transmissions within 5 seconds, the unit will auto- matically switch to battery save mode. -
Page 7: To Send Call Tone
Automatic Channel Scan Press and hold the UP or DOWN button to search signals. When the unit catches a strong signal , scan will stop for 5 sec- onds. If you want to stop at that channel, press the PTT or ENTER but- ton. -
Page 8: To Turm On Or Off Vox
To Turn On or Off VOX with the built-in micro- phone This feature enables you to disable the built-in microphone in VOX when you use the unit under noisy environment. 1. To disable the built-in microphone, press the MENU and EN- TER buttons simultaneously. -
Page 9: Frequency Range
Frequency Range The FRS 80 unit represents one of the most advanced FM two- way radios used. FRS Channel Channel Frequency In MHz 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 467.5625 467.5875 467.6125 467.6375 467.6625 467.6875 467.7125... -
Page 10: General Specifications
General Specifications A. Frequency CH = 14 Channels within 462 -467 MHz. B. Receiver 1. Sensitivity For 12 dB signal 2. Max. audio output @ 10% THD 3. Max. S/N ratio @ 1mV RF input 4. Squelch Sens 5. Audio frequency resp. @ 300 Hz @ 3000 Hz 6.
