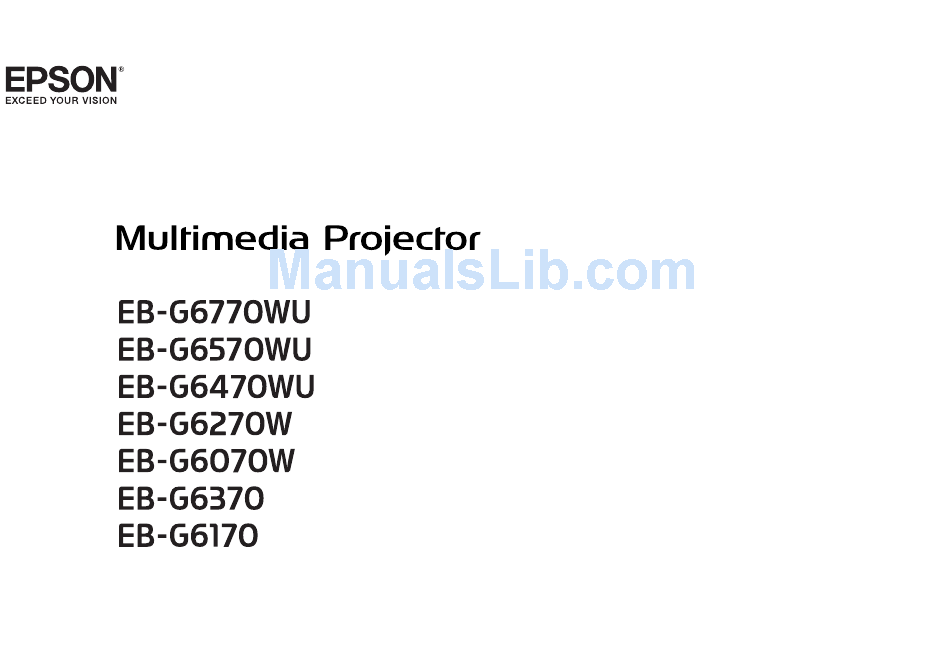

  • Page 1 User's Guide...

  • Page 2: Notations Used In This Guide

    Notations Used in This Guide • Safety indications The documentation and the projector use graphical symbols to show how to use the projector safely. Please understand and respect these caution symbols in order to avoid injury to persons or property. Warning This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
  • Page 3 Contact your local dealer or the nearest address provided in the "Optional Accessories" p.172 Epson Projector Contact List. Epson Projector Contact List • If you use adhesives on the ceiling mount fixing points to prevent the screws from loosening, or if you use things such as lubricants or oils on the projector, the projector case may crack causing it to fall from its ceiling mount.
  • Page 4 Safety Warning and Cautions Warning Attention • Do not install the projector in a location that is subject to vibration or • Be careful when handling the power cord. Otherwise, it could cause a fire or shock. electric shock. Note the following when handling the power cord. •...
  • Page 5 Safety Warning and Cautions Attention Attention • When projecting with the projector tilted, do not tilt it at more than the • Make sure there is a gap as shown in the following illustration between the specified angle. This may cause malfunctions or accidents to occur. wall and the air exhaust vent and the air intake vent.
  • Page 6 Safety Warning and Cautions • We recommend setting the focus, zoom, and lens shift at least Warning and Cautions on Usage 30 minutes after you start the projection, because images are not stable right after turning on the projector. Warning •...
  • Page 7 Safety Warning and Cautions Notes on Transporting Caution Do not place objects that may become warped or otherwise affected by heat There are many glass parts and precision components inside the projector. near the air exhaust vent and do not put your face or hands near the vent To prevent damage due to impacts when transporting, handle the projector while projection is in progress.

  • Page 8: Table Of Contents

    Contents Setting the remote control ID ........35 Notations Used in This Guide .
  • Page 9 Contents Frame Interpolation (EB-G6770WU/EB-G6570WU/EB-G6470WU only) ..62 Remote control button lock ........86 Projecting 3D images .
  • Page 10 Contents Cleaning the Lens ..........141 Troubleshooting Cleaning the Air Filter .
  • Page 11 Long throw zoom lens ELPLL06 ....... . . 178 Projection Distance (For EB-G6370/EB-G6170) ......179 Standard zoom lens ELPLS07 .

  • Page 12: Introduction

    Introduction This chapter explains the names for each part.

  • Page 13: Part Names And Functions

    Part Names and Functions The illustrations in this guide are for projectors with the standard zoom lens ELPLS07. Name Function Air exhaust vent Exhaust vent for air used to cool the projector internally. Warning Front/Top Do not look into the vents. If the lamp explodes, gases may escape and small fragments of glass may be scattered which could cause an injury.

  • Page 14: Rear

    Part Names and Functions Name Function Rear Wireless LAN indicator Indicates the access status to the optional wireless LAN unit. s "Optional Accessories" p.172 Takes in air to cool the projector internally. Air intake vent (air filter) s "Cleaning the Air Filter" p.141 Outputs audio.

  • Page 15: Interface

    Part Names and Functions Name Function Interface S-Video port For S-video signals from video sources. Outputs audio from the currently projected image to an Audio Out port external speaker. Outputs to an external monitor the analog signal from the Monitor Out port computer connected to the Computer port or the BNC port.

  • Page 16: Base

    Part Names and Functions Name Function Base Screw holes to fix the Screw holes to fix the cable cover in place. cable cover s "Attaching the Cable Cover" p.47 Pass a commercially available wire lock through here and Security cable lock it in place.
  • Page 17 Part Names and Functions Name Function Name Function • Displays the Control Panel Lock screen allowing you to • Stops the current function. [Esc] button [ ]/[ ] buttons make settings to lock the control panel buttons. • If pressed when the Configuration menu is displayed, it s "Restricting Operation"...

  • Page 18: Remote Control

    Part Names and Functions Name Function Remote Control Turns the projector on. ] button [t] button Turns the projector off. Change input buttons Changes to images from each input port. s "Switching to the Target Image by Remote Control" p.50 The [SDI] button is not available for this projector.
  • Page 19 Part Names and Functions Name Function Name Function [Split] button Each time the button is pressed, the image changes [Help] button Displays and closes the Help screen which shows you how between projecting two images simultaneously by to deal with problems if they occur. splitting the projected screen, or projecting one image as s "Using the Help"...

  • Page 20: Replacing The Remote Control Batteries

    Part Names and Functions You can perform the following operations by simply pressing one of the Name Function buttons on the remote control. Indicator A light is emitted when outputting remote control signals. Operation Settings Outputs remote control signals. Remote control light- emitting area Reverse the projected image vertically.
  • Page 21 Part Names and Functions batteries. Have two AA size alkaline or manganese batteries ready. You Caution cannot use other batteries except for the AA size alkaline or manganese. Check the positions of the (+) and (-) marks inside the battery holder to ensure the batteries are inserted the correct way.

  • Page 22: Remote Control Operating Range

    Part Names and Functions Remote control operating range • To restrict reception of the operation signals from the remote control, set Remote Receiver. s Settings - Remote Receiver p.95 • You can make operations securely with the optional remote control cable set when you use multiple units of this projector in the same place or there are any obstacles around the remote receiver.

  • Page 23: Preparing The Projector

    Preparing the Projector This chapter explains how to install the projector and connect projection sources.

  • Page 24: Installing The Projector

    Installing the Projector Removing and Attaching the Projector Lens Unit Attaching Attention • Do not attach the lens unit when the projector's lens insertion section is facing up. Dust or dirt could enter the projector. • Only use the specified lens. See the following for a list of lenses that can be used with the projector.

  • Page 25: Removing

    Installing the Projector Removing Attention • Only remove the lens unit when necessary. If dust or dirt enter the projector, projection quality deteriorates and it could cause a malfunction. • Try not to touch the lens section with your hand or fingers. If fingerprints or oils are left on the surface of the lens, projection quality deteriorates.

  • Page 26: Installation Settings

    Installing the Projector Use the [ ][ ] buttons to set the projector's installation angle. Each time you press one of the buttons, the angle of tilt changes by 15 degrees. Set as close to the actual setup angle as possible. Pull the lens unit straight out as it is released.

  • Page 27: Changing The Direction Of The Image (Projection Mode)

    Installing the Projector When you have finished making settings, use the [ ] button to • You can change the setting as follows by pressing down the [A/V select Set, and then press the [ ] button. Mute] button on the remote control for about five seconds. FrontWFront/Ceiling RearWRear/Ceiling Changing the direction of the image (projection mode)

  • Page 28: Adjusting The Position Of The Image On The Projected Screen

    Select Display from Extended. • Make sure you install the applications EasyMP Network Projection and EasyMP Multi PC Projection from the EPSON Projector Select Screen Position from Screen. Software CD-ROM. When using older versions of the applications, images are not projected correctly. You can download the latest...

  • Page 29: Displaying A Test Pattern

    Installing the Projector Press the [ ][ ] buttons on the remote control or the [ ] button The Screen Position cannot be adjusted in the following situations. on the control panel to change the test pattern. • If you are using a WUXGA/WXGA projector and the Screen Type is set to 16:10 Using the remote control Using the control panel...

  • Page 30: Adjusting The Position Of The Projected Image (Lens Shift)

    Installing the Projector The ranges within which the image can be moved are shown below. The Top Menu Name Sub Menu/Items position of the projected image cannot be moved to both the horizontal and Settings Geometric Correction s p.51 vertical maximum values. Multi-Projection Extended EB-G6770WU/EB-G6570WU/EB-G6470WU/EB-G6270W/EB-G6070W...
  • Page 31 Installing the Projector EB-G6370/EB-G6170 Turn the vertical and horizontal lens shift dials on the projector to adjust the position of the projected image. Center of lens Projected image when lens shift is set in the center Maximum motion range: V x 57% When the horizontal direction is at the maximum value: V x 19% •...

  • Page 32: Adjusting The Image Size

    Installing the Projector When using the short throw zoom lens ELPLU01 Adjusting the Image Size Follow the steps below to adjust the focus when the lens is shifted up, down, left, or right using the lens shift function. Turn the zoom ring to adjust the size of the projected image. Turn the distortion ring anti-clockwise until it cannot go any further.

  • Page 33: Adjusting The Height Of The Projected Image (For Normal Installment)

    Installing the Projector Turn the focus ring to focus the entire screen. If the area around the lens axis is out of focus, fine-tune by turning the distortion ring. Adjusting the Height of the Projected Image (for Normal Installment) Extend or retract the front foot to make adjustments. You can adjust the position of the image by tilting the projector up to 10 degrees.

  • Page 34: Id Settings

    Installing the Projector Set the projector ID Press the [Menu] button while projecting. "Using the Configuration Menu" p.89 Select Multi-Projection from Extended. Select Projector ID, and then press the [ ] button. Select the ID you want to set, and then press the [ ] button.

  • Page 35: Checking The Projector Id

    Installing the Projector While holding the [ID] button, press a number button to select a Checking the projector ID number to match the ID of the projector you want to operate. During projection, press the [Help] button while holding down the [ID] "Checking the projector ID"...
  • Page 36 Installing the Projector Submenu Function • When you turn on the projector for the first time, the message "Do you want to set the time?" is displayed. When you select Yes, the Time Difference (UTC) Set the time difference from Coordinated screen from step 4 is displayed.

  • Page 37: Other Settings

    Installing the Projector Purpose Setting Methods Other Settings To turn off the power by pressing Set Standby Confirmation to Off. (Default value: the [t] button once. Settings related to basic operations s Extended - Display - Standby Confirmation p.96 Purpose Setting Methods To start/stop projection by turning Set Direct Power On to On.

  • Page 38: Settings Related To Display

    If no logo is registered, the To change the menu position. Change the settings of Menu Position. EPSON logo is displayed. s Extended - Display - Menu Position p.96 Display Background: Set the screen display with no image signal input.

  • Page 39: Connecting Equipment

    Connecting Equipment The port name, location, and connector orientation differ depending on the source being connected. Connecting a Computer To project images from a computer, connect the computer using one of the following methods. When using the supplied computer cable Connect the computer's display output port to the projector's Computer port.
  • Page 40 Connecting Equipment Computer Audio1 Audio2 HDMI HDMI OUT DisplayPort DisplayPort OUT • Change the audio output from Audio Settings. s Extended - A/V Settings - Audio Settings p.96 • If audio is not sent using an HDMI or DisplayPort cable, connect a commercially available audio cable to the Audio3 port to send the audio. Set HDMI Audio Output or DisplayPort Audio Output to Audio3.

  • Page 41: Connecting Image Sources

    Connecting Equipment Connecting Image Sources To project video images, connect to the projector using one of the following methods. When using a commercially available video cable Connect the video output port on the image source to the projector's Video port. You can output audio from the projector's speaker by connecting the audio output port on the image source to the projector's Audio-L/R port using a commercially available audio cable.
  • Page 42 Connecting Equipment Video Video AUDIO OUT (L,R) Audio-L/R S-Video S-Video AUDIO OUT (L,R) Audio-L/R Cb/Pb Cr/Pr Computer AUDIO OUT Audio1 Cb/Pb Cr/Pr BNC(R/Cr/Pr, G/Y, B/Cb/Pb) AUDIO OUT Audio2 HDMI OUT HDMI Attention • If the input source is on when you connect it to the projector, it could cause a malfunction. •...

  • Page 43: Connecting External Equipment

    Connecting Equipment • Change the audio output from Audio Settings. s Extended - A/V Settings - Audio Settings p.96 • If audio is not sent using an HDMI cable, connect a commercially available audio cable to the Audio3 port to send the audio. Set HDMI Audio Output to Audio3.

  • Page 44: Connecting A Lan Cable

    Connecting Equipment • Make the following settings to output image and audio even when the projector is in standby mode. Set Standby Mode to Communication On. s Extended - Standby Mode p.96 Set A/V Output to Always On. s Extended - A/V Settings - A/V Output p.96 •...
  • Page 45 Connecting Equipment "Optional Accessories" p.172 HDBaseT • Make sure you read the User's Guide supplied with the HDBaseT Transmitter carefully before use. • Use a category 5e or category 6 shielded LAN cable. • When connecting or disconnecting the LAN cable, make sure you turn off the power for the projector and the HDBaseT Transmitter. •...

  • Page 46: Installing The Wireless Lan Unit

    Connecting Equipment Install the Wireless LAN unit. Installing the Wireless LAN Unit Open the air filter cover. Slide the air filter cover operation knob, and open the air filter cover. Secure the stopper with a screw. Remove the stopper for the Wireless LAN unit. Close the air filter cover.

  • Page 47: Attaching The Cable Cover

    Connecting Equipment Attaching the Cable Cover By attaching the cable cover, you can hide the connected cables giving a nice, clean finish to the projector installation. (The illustrations are of a projector installed on a ceiling.) Attaching Bundle the cables together with a commercially available tie. Tighten the two screws on the cable cover.

  • Page 48: Basic Usage

    Basic Usage This chapter explains how to project and adjust images.

  • Page 49: Projecting Images

    Projecting Images • You can make settings so that images are projected from the same Automatically Detect Input Signals and Change input port the next time the projector is turned on. the Projected Image (Source Search) s Extended - Operation - Startup Source Search p.96 •...

  • Page 50: Switching To The Target Image By Remote Control

    Projecting Images • Press the [Volume] buttons on the remote control to adjust the volume. Switching to the Target Image by Remote Control ] Decreases the volume. ] Increases the volume. You can change directly to the target image by pressing the following Remote control buttons on the remote control.

  • Page 51: Adjusting Projected Images

    Adjusting Projected Images • Point correction Correcting Distortion in the Projected Image Corrects slight distortion which occurs partially, or adjusts the image position in an overlapping area when projecting from multiple projectors. You can correct keystone distortion in projected images using one of the "Point Correction"...

  • Page 52: Quick Corner

    Adjusting Projected Images Select Geometric Correction from Settings. Select Quick Corner, and then press the [ ] button. If the message "If this setting is changed, the image may be distorted." is displayed, press the [ ] button. Use the [ ], [ ], [ ], and [ ] buttons to select the corner you want to adjust, and then press the [...

  • Page 53: Arc Correction

    Adjusting Projected Images Use the [ ], [ ], [ ], and [ ] buttons to correct the position of the corner. When you press the [ ] button, the screen shown in step 4 that allows you to select the area to be corrected is displayed. If the message "Cannot adjust any further."...

  • Page 54: Point Correction

    Adjusting Projected Images When selecting a corner, you can adjust the two sides next to the Press the [Esc] button to return to the previous screen. corner. Repeat procedures from 4 to 6 as needed to adjust any remaining If the [Esc] button is pressed for approximately two seconds, parts.
  • Page 55 Adjusting Projected Images Press the [Menu] button while projecting. Select Geometric Correction from Settings. Select Point Correction, and then press the [ ] button. If the message "If this setting is changed, the image may be distorted." is displayed, press the [ ] button.

  • Page 56: Selecting The Projection Quality (Selecting Color Mode)

    Adjusting Projected Images Each time you press the [Color Mode] button, the Color Mode name is Selecting the Projection Quality (Selecting Color displayed on the screen and the Color Mode changes. Mode) Remote control You can easily obtain the optimum image quality simply by selecting the setting that best corresponds to your surroundings when projecting.

  • Page 57: Setting Auto Iris

    Adjusting Projected Images Press the [Menu] button to finish making settings. Setting Auto Iris By automatically setting the luminance according to the brightness of the Changing the Aspect Ratio of the Projected displayed image, it lets you enjoy deep and rich images. Image •...
  • Page 58 Adjusting Projected Images Aspect Mode Explanation Aspect Ratio of Input Signal Full Projects at the full size of the projected screen. 16:10 16:9 Projects by enlarging the input image to the full width of Auto or Normal Zoom the projected screen while retaining the aspect ratio. Areas that exceed the edges of the projected screen are not projected.
  • Page 59 Adjusting Projected Images EB-G6370/EB-G6170 Aspect Ratio of Input Signal 16:10 16:9 Screen type setting: 4:3 Zoom Aspect Ratio of Input Signal 16:10 16:9 Auto or Normal Native The image may differ depending on the resolution of the input signal. Screen type setting: 4:3...

  • Page 60: Adjusting The Image

    Adjusting Projected Images Aspect Ratio of Input Signal Adjusting the Image 16:10 16:9 Native Hue, Saturation, and Brightness adjustment The Hue, Saturation, and Brightness for each of the R (red), G (green), B (blue), C (cyan), M (magenta) and Y (yellow) color components can be The image may differ depending on the resolution of the input signal.
  • Page 61 Adjusting Projected Images When a larger value is selected, the dark areas of images become brighter, but the color saturation for lighter areas may become weaker. When a smaller value is selected, you can reduce the overall brightness of the image to make the image sharper.

  • Page 62: Frame Interpolation (Eb-G6770Wu/Eb-G6570Wu/Eb-G6470Wu Only)

    Adjusting Projected Images Frame Interpolation (EB-G6770WU/EB-G6570WU/EB-G6470WU only) The current and previous frames are used to create intermediate frames, You can select the level of interpolation: Low, Normal or High. Set to Off interpolating to produce smooth-moving images. You can resolve clumsy- if noise occurs after setting them.
  • Page 63 Adjusting Projected Images The following color modes are available when projecting 3D images. When projecting using the optional polarizers (ELPPL01), you can view images at their optimal color tint. • 3D Dynamic • 3D Presentation • 3D Theatre • 3D Multi-Projection This projector arranges the direction of polarizing projection for R (red), G (green), and B (blue).

  • Page 64: Useful Functions

    Useful Functions This chapter explains useful tips for giving presentations, and the Security functions.

  • Page 65: Multi-Projection Function

    Multi-Projection Function When projecting to a wide screen from multiple projectors, you can adjust • We recommend setting the focus, zoom, and lens shift at least the difference of brightness and color tone between each projected image to 30 minutes after you start the projection, because images are not create a seamless screen.

  • Page 66: Adjust The Edges Of The Images (Edge Blending)

    Multi-Projection Function Adjust the position of the projected image in the following order Adjusting the brightness of the lamp (starting from the adjustments that have larger corrections). Before performing edge blending, adjust so that the lamp brightness is the Projector's position (angle) same for each projector.
  • Page 67 Multi-Projection Function Turn on Edge Blending. Select Edge Blending, and then press the [ ] button. Select On, and then press the [ ] button. Press the [Esc] button. Display the guide. Select Guide Display, and then press the [ ] button.

  • Page 68: Adjusting To Match Colors

    Multi-Projection Function Press the [Menu] button while projecting. In Blend Range, adjust the range to be shaded. The value for when the overlapped range and the guide are in the same position is the best. Select Multi-Projection from Extended. Select Multi-screen, and then press the [ ] button.

  • Page 69: Scaling An Image (Scale)

    Multi-Projection Function Return to step 4 and adjust each level. Select Zoom Display or Full Display, and then press the [ ] button. To complete the adjustment, press the [Menu] button. Zoom Display: Adjusts according to the image currently displayed. Scaling an Image (Scale) A section of the image is cropped and displayed.
  • Page 70 Multi-Projection Function Adjust the scale. Select the adjustment method with the [ ] buttons, then adjust using the [ ][ ] buttons. - +: Enlarges or reduces an image horizontally and vertically at the same time. Scale Vertically: Enlarges or reduces an image vertically. Scale Horizontally: Enlarges or reduces an image horizontally.

  • Page 71: Projection Functions

    Projection Functions Operating procedures Projecting Two Images Simultaneously (Split Screen) Projecting on a split screen You can simultaneously project images from two sources on the right and Press the [Split] button on the remote control while projecting. left of the screen. The currently selected input source is projected on the left of the screen.
  • Page 72 Projection Functions Select each input source for Left and Right. Select Swap Screens, and then press the [ ] button. The projected images on the left and right are swapped. Switching the left and right image sizes Press the [Menu] button during split screen projection. Select Screen Size, and then press the [ ] button.

  • Page 73: Restrictions During Split Screen Projection

    Projection Functions The projected images will appear as shown below after setting the screen Select the audio you want to output, and then press the [ size. button. Equal Larger Left When you select Auto, audio is output for the largest screen. If the screens are the same size, audio is output for the screen on the left.

  • Page 74: Hiding The Image And Sound Temporarily (A/V Mute)

    Projection Functions • The user's logo is not displayed. Each time you press the [A/V Mute] button, A/V Mute turns on or off. Remote control Restriction relating to images • The default values for the Image menu are applied to the image on the right screen.

  • Page 75: Freezing The Image (Freeze)

    Projection Functions Freezing the Image (Freeze) When Freeze is activated on moving images, the frozen image continues to project on the screen, so you can project a moving image one frame at a time like a still photo. Also, you can perform operations such as changing between files during presentations from a computer without projecting any images if the Freeze function is activated beforehand.

  • Page 76: Saving A User's Logo

    Projection Functions Enlarge. • When User's Logo Protection from Password Protection is Remote control set to On, a message is displayed and the User's Logo cannot be changed. You can make changes after setting User's Logo [z] button: Expands the area each time Protection to Off.
  • Page 77 Projection Functions When you press the [ ] button and the message "Select this image?" is displayed, select Yes. Select the zoom factor from the zoom setting screen. When the message "Save this image as the User's Logo?" is displayed, select Yes. The image is saved.

  • Page 78: Memory Function

    Memory Function The settings for the image currently displayed are saved as a memory, allowing you to load them when necessary. Settings for the following menu items are saved in the memory. Top Menu Submenu All setting items Image Signal 3D Setup Progressive Frame Interpolation...
  • Page 79 Memory Function Function Explanation Rename Memory Changes the memory name. Select the memory name you want to change, and then press the [ button. Enter the memory name using the soft keyboard. s "Soft keyboard operations" p.102 When you have finished, move the cursor over Finish, and then press the [ ] button.

  • Page 80: Scheduling Function

    Scheduling Function You can schedule turning the projector power on/off and switching the input source, as events in the schedule. Registered events are executed automatically at the specified time on the specified dates or weekly. You can register up to 30 events. Warning Do not place flammable objects in front of the lens.

  • Page 81: Editing A Schedule

    Scheduling Function Select Save, and then press the [ ] button. To register additional schedules, repeat steps 3 to 5. Select Setup complete, and then select Yes to finish saving. A calendar is displayed on the Schedule Settings screen (the screen in step 3).
  • Page 82 Scheduling Function A repeat icon is displayed for periodic schedules. To delete all registered schedules, select Schedule Reset, and then select Yes. Select Setup complete, and then select Yes to delete the schedules. Perform editing from the menu displayed. Submenu Name Function On/Off Enable or disable the selected schedule.

  • Page 83: Security Functions

    Security Functions • User's Logo Protection The projector has the following enhanced security functions. Even if someone tries to change the User's Logo set by the owner of the • Password Protection projector, it cannot be changed. When User's Logo Protection is set to You can limit who can use the projector.

  • Page 84: Entering The Password

    Security Functions Remote control If Password Protection is already activated, you must enter the password. If the password is entered correctly, the Password Protection setting menu is displayed. s "Entering the password" p.84 Select the type of Password Protect you want to set, and then press the [ ] button.

  • Page 85: Restricting Operation

    "The projector's operation will be locked. Contact Epson as described in your documentation." s Settings - Control Panel Lock p.95 Epson Projector Contact List Select either Full Lock or Partial Lock according to your purpose.

  • Page 86: Remote Control Button Lock

    Security Functions Each time the [Help] button is pressed for at least 5 seconds, the remote You can release the control panel lock by one of the following control button lock turns on or off. two methods. • Use the remote control to set Control Panel Lock to Off Remote control from the configuration menu.

  • Page 87: Installing The Wire Lock

    Security Functions Installing the wire lock Pass an anti-theft wire lock through the installation point. See the documentation supplied with the wire lock for locking instructions.

  • Page 88: Configuration Menu

    Configuration Menu This chapter explains how to use the Configuration menu and its functions.

  • Page 89: Using The Configuration Menu

    Using the Configuration Menu This section explains how to use the Configuration menu. Select a submenu item. Although steps are explained using the remote control as an example, you can perform the same operations from the control panel. Check the guide under the menu for the available buttons and their operations.

  • Page 90: List Of Functions

    List of Functions Top Menu Name Submenu Name Items or Setting Values Configuration Menu Table Mosquito NR On and Off Settable items vary depending on the model being used and the image Video Range Auto, Normal, and Expanded signal and source being projected. Input Signal Auto, RGB, and Component Top Menu Name...

  • Page 91: Network Menu

    List of Functions Top Menu Name Submenu Name Items or Setting Values Top Menu Name Submenu Name Items or Setting Values User's Logo Reset Memory Projection Front, Front/Ceiling, Rear, and Rear/Ceiling Network menu Direction 0 Degree to 180 Degree to -15 Degree Top Menu Name Submenu Name...

  • Page 92: Image Menu

    On and Off (Adjustment is only possible when component video or Color Saturation composite video images are being input.) EPSON Message On and Off Broadcasting You can adjust the color saturation for the images. (Adjustment is possible when a component video signal is being Tint input.

  • Page 93: Signal Menu

    List of Functions Submenu Function Submenu Function Sharpness Standard: You can adjust the image sharpness. To make more- Reset You can reset all adjustment values for the Image menu to their detailed settings, select Advanced. default settings. See the following to return all menu items to their default settings.
  • Page 94 List of Functions Submenu Function Submenu Function Resolution (Only available when an analog RGB computer signal is being Noise Reduction (This cannot be set when Image Processing is set to Fast.) input.) Smoothes out the roughness in progressive images. There are Set to Auto to automatically identify the resolution of the input two modes.

  • Page 95: Settings Menu

    List of Functions Submenu Function Submenu Function Image Process- Changes settings for image processing. Geometric Cor- You can correct distortion. rection Fast: Images are displayed quicker. s "Correcting Distortion in the Projected Image" p.51 • H/V-Keystone: Fine: Images are displayed in higher quality. Adjust V-Keystone and H-Keystone to correct vertical DisplayPort EQ Adjusts the DisplayPort input signal level depending on the...

  • Page 96: Extended Menu

    List of Functions Submenu Function Extended Menu Remote Receiv- You can limit the reception of the operation signal from the remote control. When set to Off, you cannot perform any operations from the remote control. If you want to make operations from the remote control, hold down the [Menu] button on the remote control for at least 15 seconds to reset the setting to its default value.
  • Page 97 List of Functions Submenu Function Submenu Function s "Color Uniformity" p.150 Display You can make settings related to the projector's display. Menu Position: Select the position to display the menu on User's Logo You can change the user's logo that is displayed as a the projected screen.
  • Page 98 When Simple is selected, you can use off, command communication may be cut off. To stabilize the remote control provided with other Epson projectors to command communication, set this to Disabled. When set to operate this projector. This is useful if you want to use a...
  • Page 99 List of Functions Submenu Function Submenu Function A/V Settings A/V Output: (This item can be set only if Standby Mode is Standby Mode If you set Communication On, you can perform the set to Communication On.) Set this to Always On when following operations even if the projector is in standby the projector is in standby status and you want to output mode.

  • Page 100: Network Menu

    List of Functions Submenu Function Submenu Function Multi-Projection Make settings when projecting from multiple projectors. Reset You can reset all adjustment values for the Extended menu to their default settings. However, the following items are s "Multi-Projection Function" p.65 not reset. Brightness Level (not available for EB-G6470WU): When Screen Type, Screen Position, Projection, Direction, High the brightness of each lamp differs, set the lamp brightness...

  • Page 101: Notes On Operating The Network Menu

    List of Functions "Setting Password Protection" p.83 Submenu Function Network Config- The following menus are available for setting Network items. uration Basic, Wireless LAN, Security, Wired LAN, Administrator Settings, and Reset By using a Web browser of a computer connected to the projector on a network, you can set functions and control the projector.

  • Page 102: Soft Keyboard Operations

    List of Functions Yes: Saves the settings and exits the Network menu. • You cannot use colons (:) for Network menu items. No: Does not save the settings and exits the Network menu. • Except for SSID, you cannot use spaces for Network menu items. •...

  • Page 103: Wireless Lan Menu

    List of Functions "Installing the Wireless LAN Unit" p.46 Submenu Function Web Remote Set a password to use Web Remote. You can enter up to 8 single- Password byte alphanumeric characters. (* cannot be used.) Web Remote is a computer function that allows you to operate the projector by using the Web browser on a computer connected on a network.
  • Page 104 List of Functions Submenu Function Submenu Function Connection Set the connection mode to use when connecting the projector IP Address You can input the IP Address assigned to the projector. Mode and a computer via a wireless LAN. You can enter a number from 0 to 255 in each field of the address. If you select Quick, a small network is created automatically by However, the following IP addresses cannot be used.

  • Page 105: Security Menu

    List of Functions Search Access Point screen Security menu Detected access points are displayed in a list. When the Wireless LAN unit is installed, it is strongly recommended that you set security. Submenu Function Refresh Searches for the access point again. Indicates an already set access point.
  • Page 106 List of Functions When WPA/WPA2-PSK is selected Submenu Function Security You can select a type of security. • When Quick is selected Open: Security is not set. WPA2-PSK(AES) (only when SSID Auto Setting is set to On): Communication is performed using WPA2 security. Uses AES method for encryption.
  • Page 107 List of Functions When WPA/WPA2-EAP is selected Submenu Function User name Enter a user name to be used for authentication. You can enter up to 64 single-byte alphanumeric characters. If you select PEAP-TLS or EAP-TLS, the user name obtained automatically from the client certificate is displayed. You can change the user name if the authentication server requires another user name.

  • Page 108: Wired Lan Menu

    List of Functions Submenu Function Submenu Function Setting RADIUS Set to On to perform authentication of the server name during IP Address You can input the IP Address assigned to the projector. Server Name server certificate verification. By specifying the server name, you You can enter a number from 0 to 255 in each field of the address.

  • Page 109: Administrator Settings Menu

    List of Functions Administrator Settings menu Submenu Function Web Control Set a password to use when making settings and controlling the Password projector using Web Control. You can enter up to 8 single-byte alphanumeric characters. (* cannot be used.) Web Control is a function that allows you to set up and control the projector by using the Web browser on a computer connected on a network.
  • Page 110 Set this to On when connecting to the network using Bonjour. Bonjour See Apple's Web site for more information on the Bonjour service. http://www.apple.com/ You can switch the EPSON Message Broadcasting function to EPSON Message enable or disable. Broadcasting You can download Message Broadcasting and its Operation Guide from the following Web site.
  • Page 111 List of Functions Manage Certificates menu Submenu Function Email Address 1/ You can input the email address of the destination to send the Email Address 2/ notification email to. You can register up to three destinations. Email Address 3 You can enter up to 64 single-byte alphanumeric characters for the email addresses.

  • Page 112: Reset Menu

    List of Functions Submenu Function Submenu Function Web Server Cer- (This item can only be set when Secure HTTP is set to On.) Trap IP Address You can register up to two IP addresses for the SNMP trap tificate 1/Trap IP Ad- notification destination.

  • Page 113: Info Menu (Display Only)

    List of Functions Submenu Function To reset all of the Network settings, select Yes. Reset network Submenu Function settings. When you reset the network settings , the Passphrase, You can display the cumulative lamp Projector Info Lamp Hours Administrator Password and Manage Certificates menu settings operating time change back to their default values, and the certificates are When the lamp replacement time is...

  • Page 114: Reset Menu

    List of Functions Submenu Function Reset Menu Sync Info You can display the image signal information. This information may be needed if service is required. Status This is information about errors that have occurred on the projector. This information may be needed if service is required.

  • Page 115: Batch Setup

    Batch Setup Once the Configuration menu content has been set for one projector, you Setup Using a USB Flash Drive can use it to perform batch setup for multiple projectors (batch setup function). The batch setup function is only for projectors with the same This section explains how to perform batch setup using a USB flash drive.
  • Page 116 Batch Setup When the projector's indicators turn on as follows, release the [Esc] • Connect the USB flash drive directly to the projector. If the button. USB flash drive is connected to the projector through a USB hub, the settings may not be saved correctly. •...

  • Page 117: Reflecting Saved Settings To Other Projectors

    Batch Setup Reflecting saved settings to other projectors When writing completes normally, the projector enters standby Disconnect the power cord from the projector, and check that all status. of the projector's indicators have turned off. Connect the USB flash drive containing the saved batch setup file to the projector's wireless LAN unit port.
  • Page 118 Batch Setup While holding down the [Menu] on the remote control or the Caution control panel, connect the power cord to the projector. • Do not disconnect the power cord from the projector while the settings are being written. If the power cord is disconnected, the projector may not start correctly.

  • Page 119: When Setup Fails

    Stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Power: Orange - flashing fast...

  • Page 120: Troubleshooting

    Troubleshooting This chapter explains how to identify problems and what to do if a problem is found.

  • Page 121: Using The Help

    Using the Help If a problem occurs with the projector, the Help screen is displayed to assist Confirm the selection. you by pressing the [Help] button. You can solve problems by answering Remote control the questions. Press the [Help] button. The Help screen is displayed.

  • Page 122: Problem Solving

    Problem Solving If you are having a problem with the projector, first check the projector's indicators and refer to "Reading the Indicators" below. See the following if the indicators do not show clearly what the problem might be. "When the Indicators Provide No Help" p.126 Reading the Indicators The projector is provided with the following four indicators that indicate the operating status of the projector.
  • Page 123 If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List...
  • Page 124 Epson Projector Contact List. Epson Projector Contact List If the lamp is cracked: Contact your local dealer or the nearest address provided in the Epson Projector Contact List. (Images cannot be projected until the lamp is replaced.) Epson Projector Contact List When using at an altitude of 1,500 m or more, set High Altitude Mode to On.
  • Page 125 If the error continues after checking the points above, stop using the projector, remove the power plug from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Air Filter Notice "Time to clean the air filter.

  • Page 126: When The Indicators Provide No Help

    Problem Solving • The remote control does not work sp.134 When the Indicators Provide No Help • Nothing appears on the external monitor sp.135 If any of the following problems occur and the indicators do not offer a • I want to change the language for messages and menus sp.135 solution, refer to the pages given for each problem.

  • Page 127: Problems Relating To Images

    Problem Solving Problems Relating to Images No images appear Check Remedy Did you press the [ ] button on the remote control or the [t] Press the [ ] button on the remote control or the [t] button on the control panel to turn on the projector. button on the control panel? Are the indicators switched off? The power cord is not connected correctly or power is not being supplied.

  • Page 128: Projection Stops Automatically

    Problem Solving Check Remedy Are the contents of the moving image you are trying to project The projector may not be able to project copyright protected moving images that are being played back on a computer. copyright protected? For more details, see the user's guide supplied with the player. Projection stops automatically Check Remedy...

  • Page 129: Images Are Fuzzy, Out Of Focus, Or Distorted

    Problem Solving Check Remedy Are the image signals being output to the projector? If the image signals are only being output to the computer's LCD monitor or to the accessory monitor, you need to change the output to an external destination as well as the computer's own monitor. For some computer models, when (Only when projecting images from a laptop computer or a the image signals are output externally, they no longer appear on the LCD monitor or accessory monitor.

  • Page 130: The Image Is Truncated (Large) Or Small, The Aspect Is Not Suitable, Or The Image Has Been Reversed

    Problem Solving Check Remedy Are the cables connected correctly? Check that all the cables required for projection are securely connected. s "Connecting Equipment" p.39 Is an extension cable being used? If an extension cable is used, electrical interference may affect the signals. Use the cables supplied with the projector to check if the cables you are using may be causing the problem.

  • Page 131: Image Colors Are Not Right

    Problem Solving Check Remedy Is the image position adjusted correctly? (Only when projecting analog RGB signals input from the Computer port) Press the [Auto] button on the remote control or the [ ] button on the control panel to adjust the position. You can also adjust the position from the Configuration menu.

  • Page 132: Images Appear Dark

    Problem Solving Check Remedy Is the color adjustment set correctly? Adjust the Gamma, RGB, or RGBCMY setting from the Configuration menu. s Image - Advanced p.92 s "Adjusting the Image" p.60 Are the color saturation and tint adjusted correctly? Adjust the Color Saturation and Tint settings from the Configuration menu. (Only when projecting images from a video source) s Image - Color Saturation, Tint p.92...

  • Page 133: Other Problems

    Do the indicators turn on and off when the power cord is touched? There is probably a poor contact in the power cable, or the power cable may be defective. Reinsert the power cable. If this does not solve the problem, stop using the projector, disconnect the power cable from the electrical outlet, and contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List...

  • Page 134: The Remote Control Does Not Work

    Problem Solving Check Remedy Is the projector volume set to the minimum? Adjust the volume so that sound can be heard. s Settings - Volume p.95 s "Adjusting the Volume" p.50 Is the volume for the computer or from the image source set to the Adjust the volume so that sound can be heard.

  • Page 135: Nothing Appears On The External Monitor

    Problem Solving Check Remedy Does Remote Control Type match the remote control that you are Check the Remote Control Type on the configuration menu. using? s Extended - Operation - Remote Control Type p.96 Is the optional remote control cable connected to the projector's When the remote control cable is connected, the projector's remote receiver is disabled.

  • Page 136: The Authentication Setting Of Wireless Lan Fails

    Did a fatal abnormality occur and the projector come to a sudden When the projector comes to a sudden stop, email cannot be sent. stop? If the abnormal state continues, contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Is power being supplied to the projector? Check that your electrical outlet or power source is functioning correctly.

  • Page 137: Cannot Change Settings Using A Web Browser

    Problem Solving Cannot change settings using a Web browser Check Remedy Are the user ID and password correct? Enter "EPSONWEB" as the user ID. This cannot be changed. Enter the user ID even if the password setting is disabled. Enter the password you set in Web Control Password. The default password is "admin". Enter the following when you connect to the Administrator Settings menu and the Administrator Password is set.

  • Page 138: About Event Id

    0899 Other communication errors If restarting the projector or EasyMP Network Projection does not solve the problem, contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List 089A The EAP authentication type is not the same.
  • Page 139 About Event ID Event ID Cause Remedy 089D Key exchange failed.

  • Page 140: Maintenance

    Maintenance This chapter provides information on maintenance procedures to ensure the best level of performance from the projector for a long time to come.

  • Page 141: Cleaning

    Cleaning You should clean the projector if it becomes dirty or if the quality of Attention projected images starts to deteriorate. Do not rub the lens with harsh materials or subject the lens to shocks, as it can easily become damaged. Caution When cleaning, unplug the power cable from the electric outlet.
  • Page 142 Cleaning Open the air filter cover. With the front (the side with tabs) of the air filter facing down, tap the air filter four or five times to shake off the dust. Slide the air filter cover operation knob, and open the air filter cover.
  • Page 143 Cleaning Replace the air filter. Press until it clicks into place. Close the air filter cover. • If a message is frequently displayed, even after cleaning, it is time to replace the air filter. Replace it with a new air filter. s "Replacing the Air Filter"...

  • Page 144: Replacing Consumables

    You should always have a spare lamp unit ready in case it is needed. • We recommend the use of genuine EPSON spare lamps. The use of non- genuine lamps may affect projection quality and safety. Any damage or malfunction caused by the use of non-genuine lamps may not covered by Epson's warranty.

  • Page 145: How To Replace The Lamp

    Replacing Consumables Wait until the lamp has cooled down, then remove the projector's • We recommend that you clean the air filter whenever you replace lamp cover. the lamp. Loosen the Lamp cover fixing screw with the screwdriver supplied s "Cleaning the Air Filter" p.141 with the new lamp unit or a cross-head screwdriver, and then •...
  • Page 146 Tighten the two lamp fixing screws. If the Lamp is cracked, replace it with a new lamp, or contact your local dealer for further advice. Epson Projector Contact List Replace the lamp cover. Install the new lamp. Insert the lamp along the guide rail in the correct direction so that it...

  • Page 147: Resetting The Lamp Hours

    Replacing Consumables After you turn off the projector's power and the confirmation Attention buzzer beeps twice, disconnect the power cord. • Make sure you install the lamp and lamp cover securely. If the lamp cover is removed, the lamps turn off automatically as a safety precaution. If the lamp Open the air filter cover.
  • Page 148 Replacing Consumables Dispose of used air filters properly in accordance with your local regulations. Material of the frame part: Polypropylene Material of the filter part: Polypropylene Install the new air filter. Press until it clicks into place. Close the air filter cover.

  • Page 149: Image Maintenance

    Image Maintenance Panel Alignment Adjusts the pixel color shift for the LCD panel. You can adjust the pixels horizontally and vertically by 0.25 pixels within a range of ±1 pixel. • Image quality may decline after performing LCD alignment. • Images for pixels that extend beyond the edge of the projected screen are not displayed.

  • Page 150: Color Uniformity

    Image Maintenance Select a combination of R (red), G (green), and B (blue) for the grid color. R/G/B: Displays a combination all three colors; red, green and blue. The actual color of the grid is white. R/G: This is available when R is selected from Select Color. Displays a combination of two colors;...
  • Page 151 Image Maintenance Use the [ ], [ ], [ ], and [ ] buttons to select the area you want to adjust, and then press the [ ] button. If you select the center, the whole screen is adjusted. Adjust the outer areas first, and then adjust the whole screen.

  • Page 152: Adjusting The Lens Balance

    Remove the inner cap by pushing the two clips on the inner cap in the direction shown by the arrows. Special techniques are necessary to adjust the lens balance. Contact your local dealer or the nearest address provided in the Epson Projector Contact List. Warning When adjusting the lens balance, make sure you follow the steps in this User's Guide to prevent light from the projector from shining into your eyes.
  • Page 153 Image Maintenance Attention Use the following pattern to adjust the lens balance. Keep the screws in a safe place as you will need these when transporting the projector. Loosen the locking screws (three points) by 1/4 of a turn (45˚) with a ball point hexagonal wrench.
  • Page 154 Image Maintenance Press the [Test Pattern] button on the remote control or the [ button on the control panel to display the test pattern. Adjust the lens balance by turning the adjustment screws with the ball point hexagonal wrench. Loosen Tighten Repeat steps 11 to 15 to make further adjustments.
  • Page 155 Image Maintenance See step 4 to attach the inner cap, and then see step 3 to attach the cover. Attach the projector lens unit. Attention When performing the following operations, attach the fixing screws, and then tighten all screws to their initial positions. •...

  • Page 156: Appendix

    Appendix...

  • Page 157: Network Functions

    Network Functions • PIN Code Method This chapter explains the additional functions for networks. SSID and security are set automatically by inputting an 8-digit code that was assigned to the projector from the computer to the access point in advance. Make connection settings between the computer and the access Projecting with "Connect to a Network Projector"...

  • Page 158: Using The Quick Wireless Connection Usb Key

    Network Functions • The wireless LAN unit (ELPAP07) is connected to the projector. • The projector is setup to connect to the network using wireless LAN. "Wireless LAN menu" p.103 Turn on the projector, and then press the [LAN] button on the remote control.
  • Page 159 Network Functions When the message "Network information update complete. Remove the Quick Wireless Connection USB Key Adapter." is displayed, remove the Quick Wireless Connection USB Key. After removing the Quick Wireless Connection USB Key, reattach the wireless LAN unit. Connect the Quick Wireless Connection USB Key to the computer. From this point on, see the user's guide supplied with the Quick Wireless Connection USB Key.

  • Page 160: Monitoring And Controlling

    (when the power is off). EasyMP Monitor lets you carry out operations such as checking the status of multiple Epson projectors that are connected to a network at a computer s Extended - Standby Mode p.96...

  • Page 161: Setting Certificates

    Monitoring and Controlling Setting certificates If your Web browser is set up to connect via a proxy server, the Web Control screen cannot be displayed. To display Web Control, you need You can use a Web browser to set the certificate settings used for wireless to make settings so that a proxy server is not used for a connection.

  • Page 162: Secure Http Notes

    Monitoring and Controlling use this function to increase security between the projector and a Web Submenu Name Items or Setting Values browser. Web Server Certificate Refresh/Clear A certificate is used in communication using HTTPS protocol to certify Issued to reliability of the server. Create a server certificate to verify reliability from a Issued by Web browser, and install it on the projector.

  • Page 163: Using The Mail Notification Function To Report Problems

    Network host name Mail sender: Address for Address 1 Optional Organization Subject: EPSON Projector Required. Up to 32 alphanumeric characters Password Line 1: The projector name where the problem has occurred Line 2: The IP address set for the projector where the problem has occurred.

  • Page 164: Management Using Snmp

    Monitoring and Controlling • Lamp out • SNMP should be managed by a network administrator or someone • Internal temperature error who is familiar with the network. • To use the SNMP function to monitor the projector, you need to •...

  • Page 165: Esc/Vp21 Commands

    Monitoring and Controlling ESC/VP21 Commands You can control the projector from an external device using ESC/VP21. Command list When the power ON command is transmitted to the projector, the power turns on and it enters warm-up mode. When the projector's power has turned on, a colon ":"...

  • Page 166: Cable Layouts

    Add a Carriage Return (CR) code (0Dh) to the end of each command and transmit. For more details, contact your local dealer or the nearest address provided in the Epson Projector Contact List. Epson Projector Contact List Cable layouts <At the projector>...

  • Page 167: About Pjlink

    The projector complies with the PJLink Class1 standard established by the JBMIA. • Model name displayed for "Product name information query" You need to make network settings before you can use PJLink. See the EPSON G6770WU following for more information on network settings. EPSON G6570WU "Network Menu"...

  • Page 168: Operating A Projector From Your Computer

    Monitoring and Controlling • Monitoring and control with application software Enter the IP address of the projector in the address field of the ® ® You can use Crestron RoomView Express or Crestron RoomView Web browser, and press the Enter key on the keyboard. ®...
  • Page 169 Monitoring and Controlling Button Function Button Function A/V Mute Turns the video and audio on or off. Performs the same operation as the [ ] button on the s "Hiding the Image and Sound Temporarily (A/V remote control. Mute)" p.74 s "Remote Control"...
  • Page 170 Monitoring and Controlling Item Function DHCP Select the Enabled check box to use DHCP. You cannot enter an IP address if DHCP is enabled. IP Address Enter the IP address to assign to the currently connected projector. Enter a subnet mask for the currently connected Subnet Mask projector.
  • Page 171 Monitoring and Controlling Item Function New Password Enter the new password when changing the password to open the operation window. (The name can contain up to 26 single-byte alphanumeric characters.) Confirm Enter the same password as you entered in New Password.

  • Page 172: Optional Accessories And Consumables

    Component video cable ELPKC19 Special expertise is required to suspend the projector from a ceiling. Contact (3 m - for mini D-Sub 15-pin/RCA male your local dealer or the nearest address provided in the Epson Projector Use to connect a Component Video source.

  • Page 173: Consumables

    Optional Accessories and Consumables Consumables Lamp unit ELPLP76 Use as a replacement for used lamps. Air filter ELPAF43 Use as a replacement for used air filters.

  • Page 174: Screen Size And Projection Distance

    Screen Size and Projection Distance Unit: cm Projection Distance (For EB-G6770WU/EB- G6570WU/EB-G6470WU/EB-G6270W/EB-G6070W) 4:3 Screen Size Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 50" 102x76 154 - 280 -13 - +90 60" 122x91 185 - 337 -16 - +108 70"...

  • Page 175: Short Throw Zoom Lens Elplu01

    Screen Size and Projection Distance Unit: cm Unit: cm 16:10 Screen Size 16:9 Screen Size Minimum (Wide) to Vertical Lens Shift Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom Maximum (Tele) Top to Bottom 50" 108x67 135 - 247 -12 - +79 60"...

  • Page 176: Middle Throw Zoom Lens Elplm04

    Screen Size and Projection Distance Unit: cm Middle throw zoom lens ELPLM04 Unit: cm 4:3 Screen Size 50" 102x76 4:3 Screen Size Minimum (Wide) to Vertical Lens Shift 60" 122x91 Maximum (Tele) Top to Bottom 70" 142x107 50" 102x76 275 - 421 -13 - +90 80"...

  • Page 177: Middle Throw Zoom Lens Elplm05

    Screen Size and Projection Distance Unit: cm Unit: cm 16:10 Screen Size 16:9 Screen Size Minimum (Wide) to Vertical Lens Shift Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom Maximum (Tele) Top to Bottom 50" 108x67 242 - 371 -12 - +79 50"...

  • Page 178: Long Throw Zoom Lens Elpll06

    Screen Size and Projection Distance Unit: cm Long throw zoom lens ELPLL06 Unit: cm 16:10 Screen Size Minimum (Wide) to Vertical Lens Shift 4:3 Screen Size Maximum (Tele) Top to Bottom Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 50"...

  • Page 179: Projection Distance (For Eb-G6370/Eb-G6170)

    Screen Size and Projection Distance Unit: cm Projection Distance (For EB-G6370/EB-G6170) 4:3 Screen Size Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 30" 61x46 76 - 141 -3 - +49 40" 81x61 103 - 189 -5 - +66 50"...

  • Page 180: Short Throw Zoom Lens Elplu01

    Screen Size and Projection Distance 16:9 Screen Size 4:3 Screen Size Minimum (Wide) to Vertical Lens Shift Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom Maximum (Tele) Top to Bottom 250" 553x311 729 - 1313 -83 - +395 80"...

  • Page 181: Rear Projection Wide Lens Elplr03

    Screen Size and Projection Distance 16:9 Screen Size 16:10 Screen Size 50" 111x62 Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 60" 133x75 100" 215x135 141 - 170 -26 - +160 80" 177x100 150" 323x202 214 - 257 -39 - +241 100"...

  • Page 182: Middle Throw Zoom Lens Elplm05

    Screen Size and Projection Distance Unit: cm 4:3 Screen Size Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 16:10 Screen Size Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 80" 163x122 378 - 577 -9 - +131 38"...

  • Page 183: Long Throw Zoom Lens Elpll06

    Screen Size and Projection Distance 4:3 Screen Size 16:10 Screen Size Minimum (Wide) to Vertical Lens Shift Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom Maximum (Tele) Top to Bottom 300" 610x457 2162 - 3289 -35 - +492 100"...
  • Page 184 Screen Size and Projection Distance Unit: cm 16:10 Screen Size Minimum (Wide) to Vertical Lens Shift 16:9 Screen Size Maximum (Tele) Top to Bottom Minimum (Wide) to Vertical Lens Shift Maximum (Tele) Top to Bottom 283" 610x381 3242 - 4376 -73 - +454 37"...

  • Page 185: Supported Monitor Displays

    When the resolution of the input signals is larger than the projector's panel *1 Only compatible when Wide is selected as the Resolution from the resolution, the image quality may decline. Configuration menu. (This is not available for EB-G6370/EB-G6170.) *2 EB-G6770WU/EB-G6570WU/EB-G6470WU only. Only compatible when VESA CVT-RB (Reduced Blanking) signal is input.

  • Page 186: Input Signal From The Hdmi Port , Displayport, And Hdbaset *1

    *1 When an HDMI connection is made using the optional HDBaseT Transmitter. Signal Refresh Rate (Hz) Resolution (Dots) *2 DisplayPort input only 640x480 *3 This is not available for EB-G6370/EB-G6170. SVGA 800x600 *4 Only compatible when VESA CVT-RB (Reduced Blanking) signal is input. For 1024x768 EB-G6270W/EB-G6070W/EB-G6370/EB-G6170, HDMI input only.

  • Page 187: Specifications

    Specifications Projector General Specifications EB-G6770WU EB-G6570WU EB-G6470WU EB-G6270W EB-G6070W EB-G6370 EB-G6170 Product name Dimensions 505 (W) x 144 (H) x 382 (D) mm (not including raised section) 0.76" Wide 0.79" LCD panel size Display method Polysilicon TFT active matrix 2,304,000 pixels...
  • Page 188 Specifications Operating: 542 W Operating: 504 W Operating: 449 W Operating: 542 W Operating: 477 W Operating: 542 W Operating: 504 W 220 to 240 V Standby power Standby power Standby power Standby power Standby power Standby power Standby power consumption consumption consumption...
  • Page 189 Specifications EB-G6770WU EB-G6570WU EB-G6470WU EB-G6270W EB-G6070W EB-G6370 EB-G6170 Product name Mini D-Sub15-pin (female) blue Connec- Computer Port tors Stereo mini jack (3.5Ф) Audio1 port 5BNC (female) BNC port Stereo mini jack (3.5Ф) Audio2 port DisplayPort DisplayPort HDMI HDCP supported (Audio is only supported by PCM) HDMI port Stereo mini jack (3.5Ф)
  • Page 190 CPU Boards and Power Supplies used with Class B Personal Computers Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference Epson America, Inc. in a residential installation. This equipment generates, uses, and can radiate Located at:...

  • Page 191: Appearance

    Appearance Units: mm 18.6 252.5 Center of lens Distance from center of lens to suspension bracket fixing point...

  • Page 192: Glossary

    Control4 Simple Device Control4 SDDP is a technology developed by Control4 to allow Control4 control systems to acquire device information for the projector. Epson have implemented this protocol technology, and have provided a setting to enable the protocol function (ON). See the Control4 Web site for more Discovery Protocol (SDDP) details.
  • Page 193 Glossary A method for wireless LAN connection in which devices communicate through access points. Infrastructure mode Transmits information needed to create one screen by sending every other line, starting from the top of the image and working down to the bottom. Interlace Images are more likely to flicker because one frame is displayed every other line.

  • Page 194: General Notes

    7 operating system ® ® Microsoft Windows 8 operating system Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this ® ® Microsoft Windows 8.1 operating system product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or In this guide, the operating systems above are referred to as "Windows...

  • Page 195: Trademarks And Copyrights

    Other product names used herein are also for identification purposes only and may be OS X 10.9.x trademarks of their respective owners. Epson disclaims any and all rights in those marks. In this guide, the operating systems above are referred to as "Mac OS X ©SEIKO EPSON CORPORATION 2015.

  • Page 196: Index

    Index Display Background ........97 DisplayPort ........... 15 3D Setup ............94 CA certificate ..........111 Distance ............174 Ceiling ............97 Document Camera ........172 Ceiling mount fixing points ....... 16 Dynamic ............56 Certificates ..........161 A/V Mute ..........17, 74 Cleaning ............
  • Page 197 Index HDBaseT port ..........15 Manage Certificates menu ......111 PJLink ............167 HDBaseT Signal Quality ......114 Memory ............96 PJLink Password ........109 HDMI port ........... 15 Menu ............. 17 Port Number ..........110 Help function ..........121 Menu Position ..........
  • Page 198 Index Replacing batteries ........20 Source Search ......... 16, 49 Video port ............. 15 Reset All ............114 Specifications ..........187 Video Range ..........94 Reset Memory ..........114 Split Screen ........... 95 Video Signal ......... 94, 113 Reset menu ..........114 Split Screen Setup ........

This manual is also suitable for:

Eb-g6270wEb-g6470wuEb-g6570wuEb-g6770wuEb-g6370Eb-g6070w ... Show all

Table of Contents
