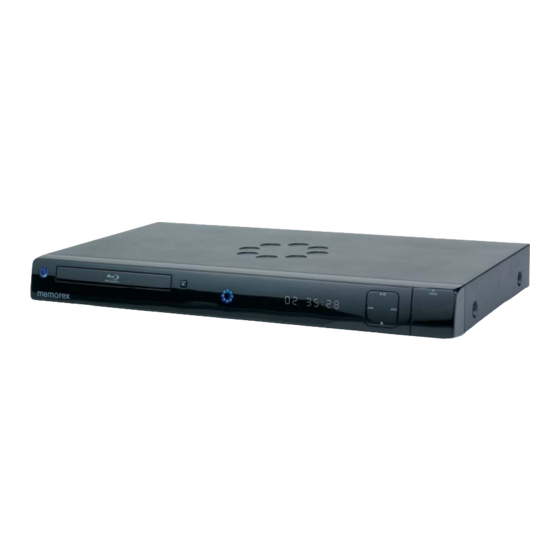

- Page 1 MVBD2520 Blu-Ray Player User Manual...
-
Page 2: Table Of Contents
Contents...1 Important Safety Instructions ...2 Features ...4 Precautions...5 Power Source ...5 Location of Controls ...6 • Front...6 • Rear ...6 • Remote ...7 Remote Control ...8 • Battery Installation ...8 • Effective Distance of the Remote Control Transmitter ...8 Connection...9 •... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This Caution Marking is located at the rear enclosure of the unit. The symbol for class II (Double Insulation) CAUTION:... - Page 4 IMPORTANT SAFETY INSTRUCTIONS (CONTINUED) Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4.
-
Page 5: Features
Firmware is software in the player that controls the unit’s microprocessor. The software (firmware) can be downloaded from www.memorex.com and then copied to a CD or DVD. The firmware can be updated from the CD/DVD only. We recommend updating to the latest firmware to enhance the product’s operation and/or add new features. -
Page 6: Precautions
NOTES ON HANDLING: • When shipping the player, always use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory. • Do not use volatile liquids, such as insect spray, near the player. -
Page 7: Location Of Controls
FRONT 1. POWER/STANDBY button 2. Disc Compartment 3. Open/Close Button 4. Power Indicator/Remote Sensor 5. Display 6. Skip (o) Button REAR 1. AC Power Jack 2. Ethernet Jack 3. HDMI Jack 4. Component Video (Y, Pb, Pr) Output Jacks 5. CVBS (Composite Video) Output Jack LOCATION OF CONTROLS 7. -
Page 8: Remote
LOCATION OF CONTROLS (CONTINUED) REMOTE POWER/STANDBY Button HDMI RESET Button Number (0–9) Buttons Red Button Green Button SETUP Button Navigation (√,®,†,π) Buttons RETURN Button Stop ( X ) Button 10. Play (®) Button 11. Skip (o) Button SEARCH/REVERSE √√ Button 13. -
Page 9: Remote Control
BATTERY INSTALLATION Follow these precautions when using batteries in this device: 1. Use only the size and type of batteries specified. 2. Be sure to follow the correct polarity when installing the batteries as indicated in the Battery Compartment. A reversed battery may cause damage to the device. -
Page 10: Connection
CONNECTING THE PLAYER TO A TV USING THE AUDIO/VIDEO OUTPUT JACKS NOTES: • If your TV has an HDMI input, connect the player with the HDMI cable for best results, otherwise use the Component or Video OUT jack on the player. •... -
Page 11: Connecting The Player To A Tv Using The Y/Pb/Pr Jacks
CONNECTING THE PLAYER TO A TV USING THE Y/Pb/Pr JACKS NOTES FOR CONNECTING TO A TV: • If your TV has an HDMI input, connect the player with the HDMI cable for best results, otherwise use the Component or Video OUT jack on the player. •... -
Page 12: Connecting The Player To A Tv Using The Hdmi Output Jack
CONNECTING THE PLAYER TO A TV USING THE HDMI OUTPUT JACK NOTES: • If your TV has an HDMI input, connect the player with the HDMI cable for best results, otherwise use the Component or Video OUT jack on the player. •... -
Page 13: Connecting The Player To A Tv And Receiver Using The Hdmi Output Jack
CONNECTING THE PLAYER TO A TV AND RECEIVER USING THE HDMI OUTPUT JACKS NOTES: • If your TV has an HDMI input, connect the player with the HDMI cable for best results, otherwise use the Component or Video OUT jack on the player. •... -
Page 14: Connecting The Player To A Tv Using A Dvi Cable
CONNECTING THE PLAYER TO A TV USING A DVI CABLE NOTES: • Set the TV’s TV/VIDEO button or switch to the VIDEO setting. • When connecting the Player, refer to the owner’s manual of the TV, as well as this manual. •... -
Page 15: Connecting The Player To A Home Theater System (Via Coaxial Or Optical Jack)
CONNECTING THE PLAYER TO A HOME THEATER SYSTEM (VIA COAXIAL OR OPTICAL JACK) NOTES: • When connecting the Player, refer to the owner’s manuals for the TV and the audio system, as well as this manual. • When connecting, make sure the power is off and all units are unplugged before making any connections. •... -
Page 16: Connecting The Player To The Network
CONNECTING TO THE NETWORK CONNECTING TO A LAN (To utilize BD-Live) By connecting this unit to a broadband connection, this unit can support the BD-Live feature offered on some movie titles. BD-Live offers additional interactive media and games that are associated with the movie title. 1. -
Page 17: Bd-Live
ENJOYING Bonus View and BD-Live Some BD-ROMS (labelled BD-Live) have bonus content and other data that can be downloaded to local storage for enjoyment as follows: 1. Turn the player off. 2. Connect the player to a network as described on the previous pages. 3. -
Page 18: About Discs
ABOUT DISCS The region/BD-ROM codes for this player are listed on the back of the player. See the following page for information regarding region/BD-ROM codes. PLAYABLE DISCS: The following discs can be played back on this player: When playing an MP3, the total number of files will appear in the display, and the TV screen will list the folders/tracks. MP3 is the abbreviation of “MPEG1 Audio Layer 3”. - Page 19 ABOUT DISCS (CONTINUED) DVD-R/RW This disc can be played in this player once it has been finalized by the recording unit. IMPORTANT: It is important that you read the manual that accompanies the disc, as there are features that are on the player that cannot be used with certain discs.
-
Page 20: Setup Menu
GENERAL SETUP MENU Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select GENERAL using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the General menu. -
Page 21: Video Setup Menu
VIDEO SETUP MENU Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select VIDEO using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Video menu. - Page 22 HDMI STILL MODE AUTO GENERAL SEAMLESS PLAY FIELD VIDEO BLACK LEVEL CONTROL FRAME AUDIO TV ASPECT LANGUAGE HDMI PARENTAL TV SYSTEM NETWORK Use this option when connected to HDMI to set the desired HDMI options. The options will be grayed out if not connected to HDMI.
-
Page 23: Audio Setup Menu
AUDIO SETUP MENU Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select AUDIO using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Audio menu. -
Page 24: Language Setup Menu
LANGUAGE SETUP MENU Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select LANGUAGE using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Language menu. -
Page 25: Parental Control Options
PARENTAL CONTROL OPTIONS SETTING DVD-VIDEO RATINGS Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select PARENTAL using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the General menu. - Page 26 SETTING BD-VIDEO AGE LIMIT Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select PARENTAL using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Parental menu.
- Page 27 SETTING PARENTAL PASSWORD Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select PARENTAL using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Parental menu.
-
Page 28: Network Setup Menu
NETWORK SETUP MENU Press the SETUP button 1 and the BD-Video Menu will appear. Select SETTING using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Main menu. Select NETWORK using the Navigation (π,†) buttons 2, then press the ENTER button 3 to enter the Network menu. - Page 29 AUDIO LANGUAGE PARENTAL NETWORK PROXY SERVER SETTINGS GENERAL VIDEO AUDIO LANGUAGE PARENTAL NETWORK Select the Network menu as shown above. Select NETWORK using the Navigation (π,†) buttons 1, then GENERAL VIDEO press the ENTER button 2. Select PROXY SERVER AUDIO SETTINGS using the Navigation (π,†) buttons 1 then press LANGUAGE PARENTAL...
-
Page 30: Basic Operation (General)
When “ ” appears while pressing a button, this means that the corresponding function cannot be performed either on the disc inserted, or in the selected mode. HDMI RESET When connected via the HDMI cable, press the HDMI reset button to reset the unit to 480p resolution. This is useful after changing the resolution to one that the TV does not view properly. -
Page 31: Bd/Dvd Operation
PLAYBACK OF A BLU-RAY DISC OR A STANDARD DVD Press the POWER/STANDBY button to turn on the unit. The POWER/STANDBY button will light blue. Press the OPEN/CLOSE button 1 to close the disc tray. “CLOSE” then “READING” will briefly appear on the screen. After loading, the menu screen of the disc should appear. -
Page 32: Skip
SKIP N/SKIP o Press the SKIP N button 1 to advance the disc to the beginning of the next chapter. Press the SKIP o button 2 to move the disc to the beginning of the previous chapter. PAUSE/STEP Press the PAUSE p button 1 to pause the picture. Repeatedly press the Navigation ®... -
Page 33: Disc Menu Button
DISC MENU BUTTON Press the DISC MENU button to go to the title menu. Depending on the disc, the Title Menu may not be available. TIME SEARCH Press the SEARCH button 1 once; the Time Search will appear. Select the time you would like to advance forward or backwards in minutes using the Navigation (π,†) buttons 2, then press the ENTER button 3;... -
Page 34: Skip Button
SKIP BUTTON Press the SKIP button to advance the disc 30 seconds. PIP (PICTURE IN PICTURE) Some BD discs have Picture in Picture capability. While viewing a disc (Blu-ray only) that has PIP capability, press the PIP button to view the picture in picture. Press again to disable. -
Page 35: Sub Menu Button
SUB MENU BUTTON When the SUB MENU button 1 is pressed, a sub menu appears. The content depends on the disc and will include DISC, PLAYBACK, VIDEO and AUDIO categories. Select a category using the Navigation (π,†) buttons 2, then press the ENTER button 3;... -
Page 36: Popup Menu
POPUP MENU Press the POPUP MENU button 1 to display the Pop Up menu while the BD disc is playing back. You can select various functions from this Pop Up menu. Use the Navigation (√,®,π,†) buttons 2 to select the desired option and press the ENTER button 3 to select it. -
Page 37: Cd Operation
PLAYBACK OF A CD Press the POWER/STANDBY button to turn on the unit. The POWER/STANDBY button will light blue. Press the OPEN/CLOSE button to close the disc tray. “CLOSE” then “READING” will appear briefly on the screen. After loading, Track 1 will automatically start playing. -
Page 38: Selecting Tracks/Files Using The Number Buttons
SELECTING TRACKS USING THE NUMBER BUTTONS Press the Number buttons 1 corresponding to the track number you would like to play, then press the ENTER button 2 and the unit will playback the desired track automatically. FORWARD®®/REVERSE √√ SEARCH During playback, press either the Search/FWD ®® 1 or Search/REV √√... -
Page 39: A-B Repeat Playback
A-B REPEAT PLAYBACK While playing back a CD, this unit can repeatedly play back a specific section. While in the Playback mode, press the Repeat A-B button to define where you want the section to start. Press the Repeat A-B button again to define where you would like the section to end;... -
Page 40: Data Cd/Usb/Sd Card Operation
PLAYBACK OF A DATA (PICTURE, AUDIO) DISC/USB/SD CARD Press the POWER/STANDBY button to turn on the unit. The POWER/STANDBY button will light blue. TO PLAY A DATA DISC: Insert a disc with data files. Data files can be audio files or pictures. See the specifications for details on the file formats allowed. -
Page 41: Mp3/Wma
DATA CD/USB/SD CARD OPERATION (CONTINUED) MP3/WMA After performing the four steps on page 39, select an MP3/WMA file using the Navigation (π,†) buttons 1. If the media contains more than one page, press the SKIP N 2/o 3 button to cycle through the pages. TO RETURN TO THE FILE/FOLDER MENU, simple press the DISC MENU button. -
Page 42: Photos (Jpeg)
DATA CD/USB/SD CARD OPERATION (CONTINUED) PHOTOS (JPEG) After performing the four steps on page 39, select a JPEG file using the Navigation (π,†) buttons 1. If the media contains more than one page, press the SKIP N 2/o 3 button to cycle through the pages. SLIDESHOW SETUP: Press the POPUP MENU button 1;... -
Page 43: Erasing Bd-Live Data
The Firmware can be updated with a CD or DVD only. Follow these steps to update the Firmware: 1. To obtain the latest version of the Firmware please visit our website at: www.memorex.com 2. Copy the Firmware to a CD or DVD. -
Page 44: Troubleshooting Guide
Check the following before requesting service: SYMPTOM GENERAL No power. Power on, but unit not functioning properly. No picture. No sound. Playback picture rolls. The playback picture is poor. The Search feature is not working. The picture is not fitting properly. The remote control is not working. - Page 45 The BD-Live server may be busy or may not be in service. Please try downloading your content again at another time. To update the Firmware please visit our website at: www.memorex.com FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE, PLEASE VISIT OUR WEBSITE AT: FOR CONSUMER REPLACEABLE PART(S), SEE PART NUMBER(S) ON PAGE 7, AND THEN CONTACT FOX INTERNATIONAL AT: 1-800-321-6993.
-
Page 46: Care And Maintenance
Caring for Discs • Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the disc. • Do not attach adhesive tape, stickers, etc. to the disc label. •... -
Page 47: Specifications
SPECIFICATIONS Power Requirements...AC120V, 60Hz Power Consumption...<25W (approx. 1W when set to Standby mode) Weight...9.3 Lbs Dimensions ...16.9 (W) x 9.8 (D) x 2.1 (H) inches Weight and dimensions are approximate. Operating Temperature ...5°C to 35°C Operating Humidity Range...10% to 75% (no condensation) Format Disc Support...BD (405nm), DVD (650nm), CD (780nm) Video Format...AVC (H.264), VC-1, MPEG-2...
