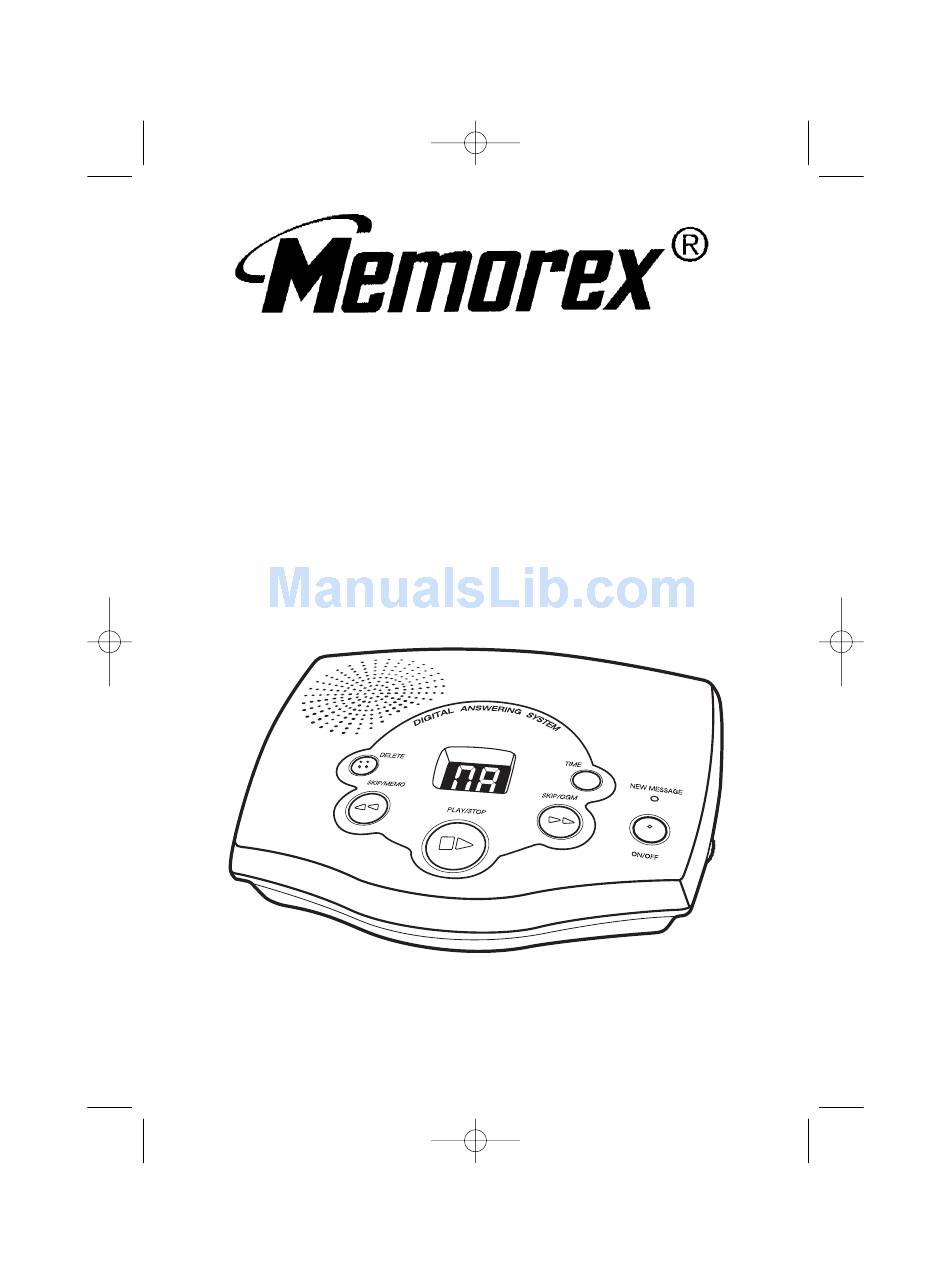

Page 1: Operating Instructions
MPH2089 O/M.QXD 9/4/01 10:30 AM DIGITAL ANSWERING MACHINE WITH DATE/TIME STAMP MODEL: MPH2089 BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY. OPERATING INSTRUCTIONS Page 21... -
Page 2: Surge Protectors
Lightning and power surges ARE NOT covered under warranty for this product. IMPORTANT: PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. Page 1... -
Page 3: Important Safety Instructions
MPH2089 O/M.QXD 9/4/01 10:30 AM IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. - Page 4 MPH2089 O/M.QXD 9/4/01 10:30 AM IMPORTANT SAFETY INSTRUCTIONS 1. If your local telephone exchange only accepts Pulse dialing, you may have to switch the Tone/Pulse switch to Tone to access certain services that require Tone signalling (such as home banking). After the initial line is connected to the number you are calling, switch the Tone/Pulse switch to Tone to access Tone signalling.
-
Page 5: Location Of Controls
MPH2089 O/M.QXD 9/4/01 10:30 AM Page 4 LOCATION OF CONTROLS 12 13 1. DELETE Button 2. SKIP➛➛/MEMO Button 3. PLAY/PAUSE Button 4. Display 5. Battery Compartment (Bottom of Unit) 6. DATA Jack (Rear of Unit) 7. LINE Jack (Rear of Unit) 8. -
Page 6: Installation
MPH2089 O/M.QXD 9/4/01 10:30 AM This section has been designed to provide a reference guide to help set up the unit. 1. Unpack and make sure all the items have been included: Base Unit, Power Adaptor and Telephone Line Cord. -
Page 7: Power Sources
MPH2089 O/M.QXD 9/4/01 10:30 AM POWER SOURCES AC Power Adapter To operate the unit using AC power, connect the AC adapter to the DC jack on the rear of the unit and to a wall outlet having 120V, 60Hz only. -
Page 8: Setting The Date/Time
MPH2089 O/M.QXD 9/4/01 10:30 AM SETTING THE DATE/TIME Press and hold the TIME button 2 seconds and the unit will announce the day of the week (i.e. Monday). Press the SKIP➛➛/MEMO button to decrease or the SKIP❿❿/OGM button button to increase until the present day of the week is heard. - Page 9 MPH2089 O/M.QXD 9/4/01 10:30 AM OPERATION (CONTINUED) RECORDING OGM (OUTGOING MESSAGE ) Recording an OGM allows the caller to hear the OGM and then be able to leave a message. Please note that there is an automatic message on this unit, recording a new OGM will disable this default message.
-
Page 10: Toll Saver
SETTING THE UNIT TO ON MODE (Incoming Messages will be recorded) When the answering machine is turned on, when a call is received the unit will play the OGM and then record a message. Make sure the OGM is recorded. -
Page 11: Screening Your Calls
MPH2089 O/M.QXD 9/4/01 10:30 AM OPERATION (CONTINUED) RECORDING/PLAYING A PERSONAL MEMO To record a personal memo which will be played the next time somebody retrieves the memos, press and hold the SKIP➛➛/MEMO button for approximately 2 seconds; a beep will sound. - Page 12 MPH2089 O/M.QXD 9/4/01 10:30 AM OPERATION (CONTINUED) PLAYING BACK INCOMING MESSAGES (ICMs) The NEW MESSAGE indicator will blink when the unit has recorded new messages and the display will show the total amount of messages. To hear messages, proceed as follows: Make sure the SPEAKER VOLUME control is adjusted as desired.
-
Page 13: Changing The Remote Code
MPH2089 O/M.QXD 9/4/01 10:30 AM OPERATION (CONTINUED) To stop playback, press the PLAY/STOP button and the unit will save the previous messages. NOTES: • After playing the ICMs, the unit will automatically reset to take new messages. • The maximum recording time for an ICM (Incoming Message) is 60 seconds. -
Page 14: Remote Operation
MPH2089 O/M.QXD 9/4/01 10:30 AM REMOTE OPERATION TURNING THE ANSWERING MACHINE OFF Call the answering machine from a separate line. After the OGM is played (press “*” to skip OGM), and the beep is heard, enter your remote code within 10 seconds. -
Page 15: Remotely Playing Incoming Messages (Icm's)
MPH2089 O/M.QXD 9/4/01 10:30 AM REMOTE OPERATION REMOTELY PLAYING INCOMING MESSAGES (ICM’S) Call the answering machine from a separate line. After the OGM is played (press “*” to skip OGM), and the beep is heard, enter your remote code within 10 seconds. -
Page 16: To Pause Playback
MPH2089 O/M.QXD 9/4/01 10:30 AM REMOTE OPERATION (CONTINUED) TO STOP PLAYBACK WHILE IN THE PLAY MENU: To stop playback, press the “7” pad. TO PAUSE PLAYBACK. WHILE IN THE PLAY MENU: To pause playback, press the “4” pad. To release pause, press the “4” pad again. -
Page 17: Erasing All Messages
MPH2089 O/M.QXD 9/4/01 10:30 AM REMOTE OPERATION (CONTINUED) ERASING ALL MESSAGES After the OGM is played, and the beep is heard, enter your remote code within 10 seconds. Press the “*” pad, followed by the “4” pad to erase all ICMs and memos. - Page 18 MPH2089 O/M.QXD 9/4/01 10:30 AM REMOTE OPERATION (CONTINUED) TO CHANGE THE REMOTE CODE (REMOTELY) After the OGM is played, and the beep is heard, enter your remote code within 10 seconds. STOP CALL: Press the “#” pad to stop the remote function.
- Page 19 MPH2089 O/M.QXD 9/4/01 10:30 AM CONVENIENT REMOTE ACCESS CARD For your convenience, cut out this card and keep it in your wallet as a reference guide when remotely calling your answering machine. IDLE MODE (No Messages Playing) Button Function Play OGM...
-
Page 20: Troubleshooting Guide
MPH2089 O/M.QXD 9/4/01 10:30 AM TROUBLESHOOTING GUIDE Before requesting service, please refer to the following chart and check for the symptom you are experiencing. SYMPTOM POSSIBLE CAUSE No Power. AC adaptor not con- nected to unit. AC adaptor not con- nected to the AC outlet. - Page 21 MPH2089 O/M.QXD 9/4/01 10:30 AM Page 20 Memcorp, Inc. Weston, FL Printed in Hong Kong Visit our website at www.memcorpinc.com...
