Sprint AIRAVE 2.5+ Setup Instructions

READ ME FIRST!
The AIRAVE 2.5+ you requested is enclosed. The AIRAVE
provides a boosted signal for your wireless voice and 3G
data services. It's like having your very own cell tower.
Before You Install Your AIRAVE
Check that all these components are in the box:
Mo bile
rk
Ne two
GP S
and
Bro adb

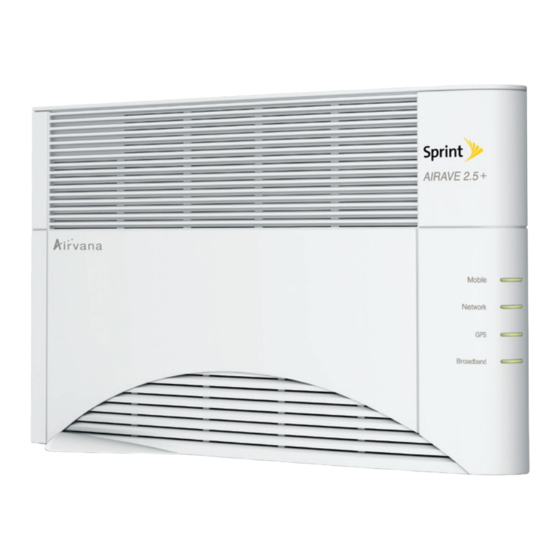

AIRAVE 2.5+
Printed Materials
Power Cord
Yellow Ethernet Cable
External GPS Antenna Cable
Note: You will also need a working electrical outlet and a
broadband connection (cable, DSL, etc.) to use this device.

Setup Instructions

Install Your AIRAVE
1. Disconnect all power on your
network, including your cable
or DSL modem and router.
2. Plug one end of the yellow Ethernet cable into your
broadband modem.
LAN 2
LAN 1
WAN
3
12VDC
AIRAVE
3. Connect the other end of the cable into the
yellow WAN port at the back of the AIRAVE.
4. Reconnect power to your cable or DSL
modem and wait about two minutes
for the modem to power up and
initialize.
5. Plug the power supply
connector into the
back of the AIRAVE.
12VDC
6. Plug the other end of
the power cord into an
available electrical outlet.
AIRAVE Technical Support: 1-866-556-7310
Connect the External GPS Antenna
1. Follow the diagram below to connect the antenna
1
to the AIRAVE.
2. Place the GPS antenna on a flat surface and next to a
closed window, if possible.
GPS Antenna Module
2
To Broadband
Modem
Place on Window Sill
Note: It may take up to 30 minutes for the GPS LED light to
4
become solid green.
Note: In large homes, the external GPS antenna can be used
LAN 1
to allow the AIRAVE to be placed
5
in a more central location,
WAN
allowing for more even coverage
throughout the house.
to Power
Supply
6
GPS
Reset
LAN 2
LAN 1
WAN
Mobile
Network
GPS
Broadband
12VDC
AIRAVE
