- Page 1 Instruction Manual AstroFinder Model 60: 60mm (2.4”) Altazimuth Refracting Telescope Meade Instruments Corporation 6001 OAK CANYON, IRVINE, CALIFORNIA 92618-5200 U.S.A. (949) 451-1450 FAX: (949) 451-1460 www.meade.com © 2002 Rev. B 0501...
- Page 2 Every AstroFinder telescope, spotting scope, and telescope accessory is warranted by Meade Instruments Corporation (“Meade”) to be free of defects in materials and workmanship for a period of ONE YEAR from the date of original purchase in the U.S.A. Meade will repair or replace a product, or part thereof, found by Meade to be defective, provided the defective part is returned to Meade, freight-prepaid, with proof of purchase.
-
Page 3: Table Of Contents

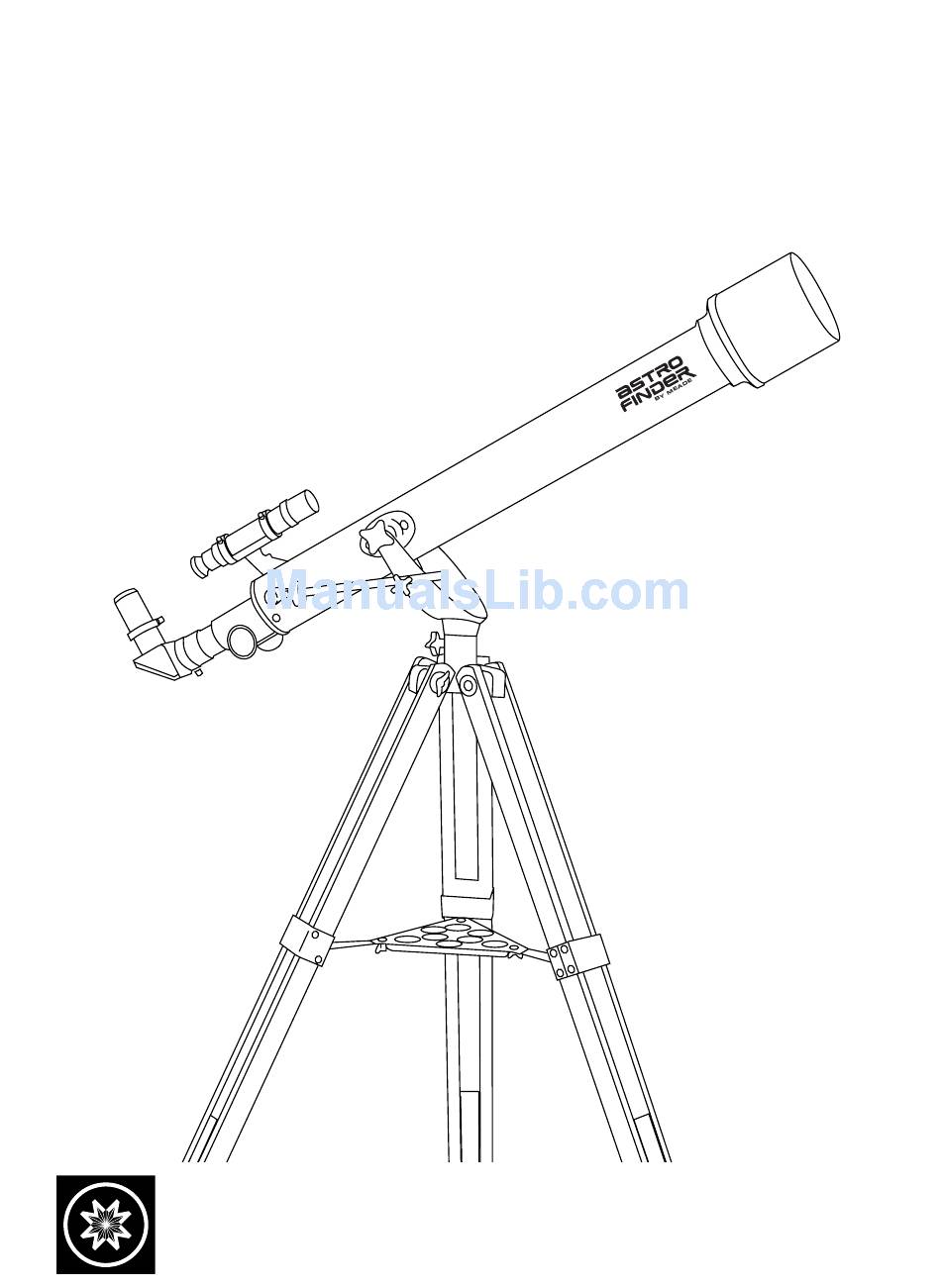

Using the Telescope ........ - Page 4 Figure 1: AstroFinder Model 60 Altazimuth Refracting Telescope 1. Eyepiece 2. Viewfinder 3. Viewfinder collimation screws 4. Optical tube assembly 5. Vertical lock knobs 6. Horizontal lock knob 7. Tripod legs 8. Leg brace supports 9. Accessory tray 10. Tripod-to-mount base attachment point 11.
-
Page 5: Introduction
This manual details the set-up, operation, specifications and optional accessories of the AstroFinder Model 60 altazimuth refracting telescope. Designed for both astronomical and terrestrial observing, the AstroFinder Model 60 will be your companion in exploring a universe of celestial and earthly objects. -
Page 6: Viewfinder Focusing And Alignment
PHYSICAL DAMAGE TO THE TELESCOPE ITSELF. 2. To center an object in the main telescope, first use the aligned viewfinder to find the object you wish to observe. If necessary, slightly loosen the vertical lock (5, Fig. 1) and the altitude rod lock knob (17, Fig. -
Page 7: Calculating Power
The power (magnification) at which a telescope is operating is calculated by dividing the focal length of the telescope by the focal length of the eyepiece. The focal length of the Model 60 telescope is identified on the focuser label as being 700mm (F = 700mm). The focal length of the eyepiece is usually identified on the top of the eyepiece barrel. -
Page 8: Maintenance
Mounting type ......Altazimuth OPTIONAL ACCESSORIES See your full-service Meade dealer or the Meade General Catalog for further details on any of these accessories.
