McIntosh REAR PANEL CONNECTIONS C2300 Datasheet

2
A
MAIN OUTPUTS
(Balanced) send
signals to a Power
Amplifier
MAIN OUTPUTS
send signals to a
Power Amplifier
Connect the C2300
power cord to a live
AC outlet. Refer to in-
formation on the back
panel of your C2300 to
determine the correct
voltage for your unit
Main Fuse holder,
refer to information on
the back panel of your
C2300 to determine
MAIN POWER
the correct fuse size
CONTROL Out-
and rating
put sends a turn-on
signal to a McIntosh
Component when the
C2300 is turned on
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

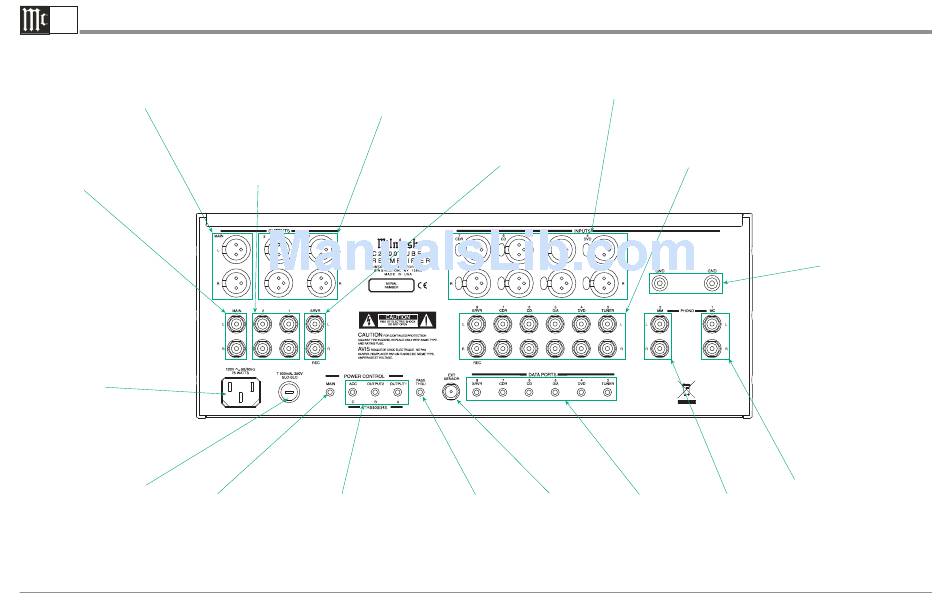

C2300 Rear Panel Connections
OUTPUTS 1 and 2 (Balanced) send
signals to Power Amplifiers and
are switched On/Off with the Front
Panel Output 1 and 2 Push-Buttons
or Remote Control Push-Buttons
OUTPUTS 1 and 2 send signals to
Power Amplifiers and are switched
On/Off with the Front Panel Output
1 and 2 Push-Buttons or Remote
Control Push-Buttons
POWER CONTROL ACC sends Turn-On signals
to McIntosh Source Components when the C2300
is On.
OUTPUT 2 and OUTPUT 1 send Turn-On signals
to McIntosh Power Amplifier(s) when activated.
POWER CONTROLS ACC, OUTPUT 2 and
OUTPUT 1 may be re-assigned as TRIGGERS
A - C to send Turn-On signals when a desired
Input Source is selected
CDR, CD, D/A and DVD IN-
PUTS (Balanced) accept high
level program source signals
SRVR OUT sends
signals to the input of
a recording device
PASSTHRU Power EXT SENSOR con-
Control Input receives nector permits the
a turn-on signal from connection of a Mc-
a McIntosh Home Intosh IR Sensor for
Theater Controller remote operation
Part No. 04106100
SRVR, CDR, CD, D/A, DVD and
TUNER INPUTS accept high
level program source signals
DATA PORTS send PHONO MM accepts
signals to McIntosh signals from a Mov-
Source Components ing Magnet Phono
to allow control with Cartridge
the C2300 Remote
Control
GND terminals
accept a ground
wire from a
turntable
PHONO MC accepts
the low level signals
from a Moving Coil
Phono Cartridge
