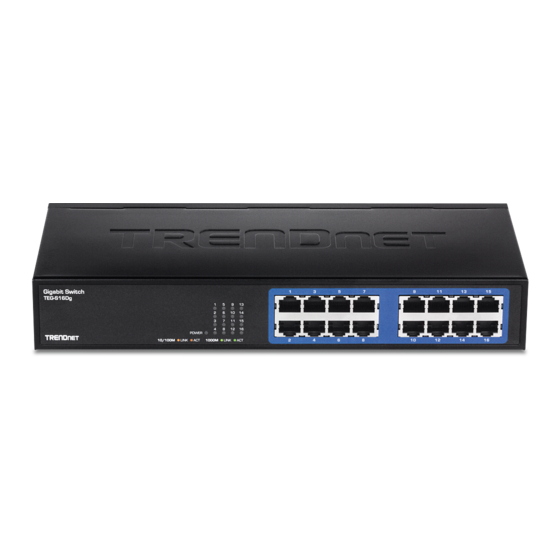

16-Port Gigabit Green Switch (TEG-S16Dg)
24-Port Gigabit Green Switch (TEG-S24Dg)
Ÿ Quick Installation Guide (1)
Ÿ Technical Specifications (3]
Ÿ Troubleshooting (4)
1.02

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TEG-S16Dg

Summary of Contents for TRENDnet TEG-S16Dg

  • Page 1 16-Port Gigabit Green Switch (TEG-S16Dg) 24-Port Gigabit Green Switch (TEG-S24Dg) Ÿ Quick Installation Guide (1) Ÿ Technical Specifications (3] Ÿ Troubleshooting (4) 1.02...

  • Page 2: Package Contents

    Ÿ Do not place heavy objects on the switch 2. Hardware Installation 1. Connect the Power Cord to the TEG-S16Dg/TEG-S24Dg and then to a power outlet. 2. Connect a Cat.5e or Cat.6 RJ-45 network cable from the computer to an...
  • Page 3 3. Move the power switch to the On position. 3. LEDs PWR (Power) Ÿ Green: Power is on Ÿ Not Illuminated: Power is off Link/ACT Ÿ Green (Solid): Link to a network device Ÿ Green (Blinking): Activity is occurring from the link Ÿ...

  • Page 4: Technical Specifications

    Technical Specifications Hardware TEG-S16Dg TEG-S24Dg Ÿ IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX Standards Ÿ IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control Ÿ IEEE 802.3az Energy Efficient Ethernet Ÿ Ethernet: Cat. 5, up to 100m Network Media Ÿ Fast Ethernet: Cat. 5 and 5e up to 100m Ÿ...

  • Page 5: Troubleshooting

    Troubleshooting 1. After connecting the Switch to a power outlet, the LEDs do not turn on. 1. Check the connection of the power cord to the TEG-S16Dg/TEG-S24Dg and the power outlet. 2. Check that the power outlet is receiving power.

  • Page 7: Limited Warranty

    TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
  • Page 8 ("LGPL"). Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of...
  • Page 9 TRENDnet 20675 Manhattan Place Torrance, CA 90501. USA Copyright ©2011. All Rights Reserved. TRENDnet.
