Summary of Contents for Kenwood KAC-6203
- Page 1 Internet store of PHONES (044) 360-7-130 294-0-130 autogoods (050) 336-0-130 597-0-130 (063) 788-0-130 SKYPE (067) 233-0-130 km-130 (068) 282-0-130 CAR RECEIVERS — Receivers • Media receivers and stations • Native receivers • CD/DVD changers • FM-modulators/USB adapters • Flash memory • Facia plates and adapters • Antennas • Accessories | CAR AUDIO —...
-
Page 2: Manual De Instruções

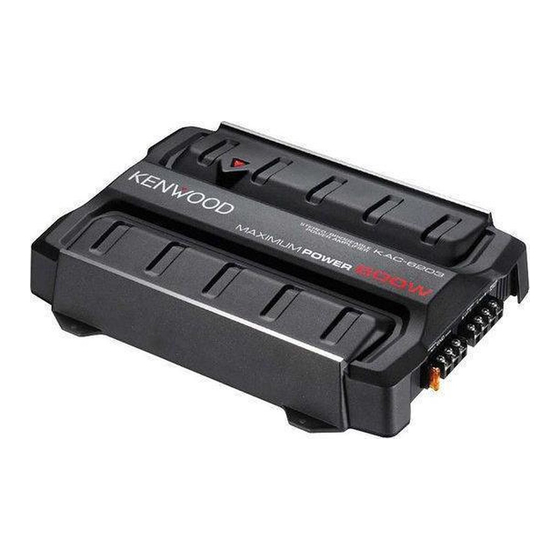

KAC-6203 STEREO/BRIDGEABLE POWER AMPLIFIER 7 page 2-13 INSTRUCTION MANUAL AMPLIFICATEUR DE PUISSANCE STEREO/COMPATIBLE 7 page 14-25 MODE D’EMPLOI STEREO-/ÜBERBRÜCKBARER LEISTUNGSVERSTÄRKER 7 Seite 26-37 BEDIENUNGSANLEITUNG STEREO/OVERBRUGBARE VERMOGENSVERSTERKER 7 blz 38-49 GEBRUIKSAANWIJZING AMPLIFICATORE DI POTENZA STEREO/COLLEGABILE 7 pagina 50-61 ISTRUZIONI PER L’USO ESTÉRO/AMPLIFICADOR DE POTENCIA CONECTABLE 7 página 62-73... -
Page 3: Safety Precautions
(Refer to page 5) NOTE Accessories • If you experience problems during installation, External Number of consult your Kenwood dealer. Part name View Items • If the unit does not seem to be working right, Self-tapping screws consult your Kenwood dealer. -
Page 4: Installation
Installation Self-tapping screw (ø4 × 16 mm) 330 mm 204 mm Ø4.6 Installation board, etc. (thickness : 15 mm or more) 2 CAUTION • Do not install in the below locations; (Unstable location, In a location that interferes with driving, In a location that gets wet, In a dusty location, In a place that gets hot, In a place that gets direct sunlight, In a location that gets hit by hot air) •... -
Page 5: Power Indicator
Controls / Indicator 1 FILTER switch 3 Power indicator This switch allow filtering of the speaker output When the power is turned on, the Power indicator signals. lights. • OFF position: If the Power indicator does not light when the power is turned on, the protection function may The original sound without filtering is output. - Page 6 ■ The protection function is activated in the following situations: This unit is equipped with a protection function for protecting this unit and your speakers from various accidents or problems that can occur. When the protection function is triggered, the Power indicator goes off and the amplifier stops operating.
-
Page 7: Speaker Output Terminals
Connection ■ Terminal names 5 6 7 4 Fuse (40 A) 9 LINE IN terminal 5 Battery terminal 0 Speaker level input terminals NOTE 6 Ground terminal • The genuine-accessory car stereo shall have a 7 Power control terminal maximum power output of no more than 40 W. Controls the unit ON/OFF. -
Page 8: Installation Procedure
■ Installation procedure ■ Wiring Since there are large variety of settings and • Take the battery wire for this unit directly from the connections possible according to applications, read battery. If it's connected to the vehicle’s wiring the instruction manual well to select the proper harness, it can cause blown fuses etc. - Page 9 Connection ■ RCA cable or Speaker level input connection (RCA cable Connections) RCA cable* CENTER UNIT (CD receiver, etc.) Power control wire (Blue/ White) Left input Right input Speaker level input cable (Speaker level input Connections) Genuine-accessory car Cable Color of the connector stereo White (No line output center unit...
- Page 10 * Commercially available parts ■ Speaker wire connection (Stereo Connections) Left speaker Lead terminal* Right speaker (Bridged Connections) Speaker (Bridged) ■ Power wire connection 5 6 7 Lead terminal* Terminal cover Power control wire Battery wire* Ground wire* Protective Fuse* Battery English Autogood products internet store http://130.com.ua...
-
Page 11: System Examples
System examples ■ 2-channel system Left speaker CENTER UNIT Right speaker ■ 2-channel + Subwoofer system ¡ Left speaker Right speaker CENTER UNIT Subwoofer (L + R) (Bridged) ™ ¡ ™ English Autogood products internet store http://130.com.ua... - Page 12 ■ Tri-mode Subwoofer (High pass) CENTER UNIT (L + R) (Bridged) ● Principle of Tri-mode Method of frequency band division using a coil and capacitor…in case of 6dB/oct. slope Coil (L): Passes low frequencies and blocks high frequencies. Crossover Frequency (Low pass) 0 dB Capacitor (C): Passes high frequencies and blocks low...
-
Page 13: Troubleshooting Guide
Troubleshooting Guide What might appear to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. PROBLEM POSSIBLE CAUSE SOLUTION No sound. • Input (or output) cables are •... -
Page 14: Specifications
Specifications Specifications subject to change without notice. Audio Section Max Power Output ..................................600 W Rated Power Output Normal (4 Ω) (DIN : 45324 , +B = 14.4V) ......................100 W × 2 Normal (2 Ω) (1 kHz, 1 % THD) ..........................150 W × 2 Bridged (4 Ω) (1 kHz, 1 % THD) .........................300 W ×...
