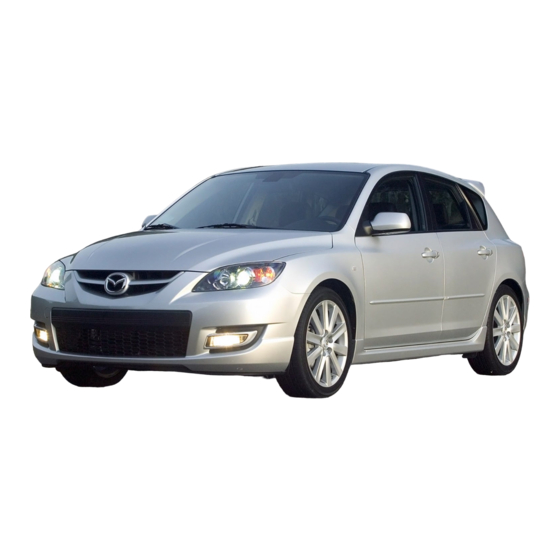

Mazda 2008 mazdaspeed3 automobile owner's manual

page of 394

/ 394
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Table of Contents

Chapters

Table of Contents

Summary of Contents for Mazda 2008 MazdaSpeed3

Page 3 Mazda product. Important Notes About This Manual Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
Page 4: How To Use This Manual
Illustrations complement the words of the manual to best explain how to enjoy your Mazda. By reading your manual, you can find out about the features, important safety information, and driving under various road conditions.
Page 5: Table Of Contents
Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts.
Page 7: Your Vehicle At A Glance
Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Dashboard and Interior Overview ... 1-2 Exterior Overview ... 1-4...
Page 8 Your Vehicle at a Glance Dashboard and Interior Overview Power window lock switch ... page 3-19 Power window switches ... page 3-18 Power door lock switch ... page 3-9 The equipment and installation position varies by vehicle *Refer to Navigation System at the separate manual (if equipped).
Page 9 Your Vehicle at a Glance Dashboard and Interior Overview Headlight leveling switch ... page 5-52 Dashboard illumination knob ... page 5-35 Lighting control/Turn signal ... page 5-50 Instrument cluster ... page 5-32 SRS air bags ... page 2-40 Cruise control switches ... page 5-19 Wiper and washer lever ...
Page 10: Exterior Overview
Your Vehicle at a Glance Exterior Overview 4 Door The equipment and installation position varies by vehicle...
Page 11 Your Vehicle at a Glance Exterior Overview Trunk lid ... page 3-14 Antenna ... page 6-15 Rear window defroster ... page 5-58 Power window ... page 3-18 Tires ... page 8-35 Fuel-filler lid ... page 3-20 Light bulbs ... page 8-39 Hood ...
Page 12 Your Vehicle at a Glance Exterior Overview 5 Door The equipment and installation position varies by vehicle...
Page 13 Your Vehicle at a Glance Exterior Overview Liftgate ... page 3-11 Rear window defroster ... page 5-58 Rear wiper blade ... page 8-30 Antenna ... page 6-15 Fuel-filler lid ... page 3-20 Power window ... page 3-18 Tires ... page 8-35 Light bulbs ...
Page 15: Essential Safety Equipment
Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Seats ... 2-2 Front Seats ... 2-2 Rear Seat ... 2-5 Seat Belt Systems ... 2-10 Seat Belt Precautions ... 2-10 Seat Belt (Except Center-Rear Position) ... 2-14 Front Seat Belt Pretensioner and Load Limiting Systems ...
Page 16 Such modifications could damage the supplemental restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or reinstall the front seats. Do not drive with damaged front seats: Driving with damaged front seats is dangerous.
Page 17 Always sit in a passenger seat properly with the seatback upright and feet on the floor: If your vehicle is equipped with front passenger seat weight sensors, sitting in the front passenger seat improperly out of position or with the seatback reclined too far while the vehicle is moving is dangerous as it can take off weight from the seat...
Page 18 Essential Safety Equipment Seats qHeight Adjustment (Driver's Seat) By moving the seat lever up or down, the seat bottom height can be adjusted. Down qLumbar Support Adjustment í (Driver's Seat) To adjust the lumbar support, pull the lever forward. í Some models.
Page 19 í qSeat Warmer The front seats are electrically heated. The ignition switch must be in the ON position. Press the switch to turn the seat warmer on or off. When the switch is in the ON position, the indicator light will come on. NOTE The seat temperature is regulated automatically by a thermostat.
Page 20 Essential Safety Equipment Seats Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving: Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on the folded seatback while the vehicle is moving is particularly dangerous.
Page 21 1. Unfasten the lap portion of the center- rear seat belt (page 2-19). CAUTION Always unfasten the lap portion of the belt before folding the rear-left seatback. Leaving the lap portion of the belt fastened could cause damage to the seat belt, buckle and seatback.
Page 22 Essential Safety Equipment Seats qRear Seatback Lock (4 Door) To lock or unlock a seatback, move the lever. NOTE The seatback locks are part of the trunk security system (page 3-15). qHead Restraint WARNING Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted:...
Page 23 Essential Safety Equipment Seats í qArmrest The rear armrest in the center of the rear seatback can be used (no occupant in the center seat) or placed upright. Armrest í Some models.
Page 24: Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts. All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when not in use.
Page 25 Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before they are used again.
Page 26 Essential Safety Equipment Seat Belt Systems CAUTION Belt retraction may become difficult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to “Cleaning the Lap/Shoulder Belt Webbing” (page 8-64). qPregnant Women and Persons with Serious Medical Conditions Pregnant women should always wear seat belts.
Page 27 Essential Safety Equipment Seat Belt Systems qAutomatic Locking Mode Always use the automatic locking mode to keep the child-restraint system from shifting to an unsafe position in the event of an accident. To enable seat belt automatic locking mode, pull it all the way out and connect it as instructed on the child-restraint system. It will retract down to the child-restraint system and stay locked on it.
Page 28 Essential Safety Equipment Seat Belt Systems Seat Belt (Except Center- Rear Position) NOTE When using the center-rear seat belt, refer to “Center-Rear Position Seat Belt” (page 2-19). qFastening the Seat Belt 1. Grasp the tongue. 2. Slowly pull out the lap/shoulder belt. 3.
Page 29 NOTE If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer. Essential Safety Equipment Seat Belt Systems qShoulder Belt Adjuster Adjust the height of the shoulder belt if the seat belt touches your neck, or if it crosses your arm instead of your shoulder.
Page 30 Even if the pretensioners have not fired, the load limiting function must be checked by an Authorized Mazda Dealer. 2-16 WARNING Wear seat belts only as recommended in this owner's manual:...
Page 31 If the seat belt pretensioners are not replaced, the risk of injury in a collision will increase. Always have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags after any collision. Expended seat belt pretensioners and air bags must be replaced after any collision which caused them to deploy.
Page 32 ON position. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not work in an accident. WARNING...
Page 33 Center-Rear Position Seat Belt (3-Point Type) Before using the center-rear lap/shoulder belt make sure tongue (A) and anchor buckle (B) are fastened. qFastening the Seat Belt 1. Grasp the tongue (C). 2. Slowly pull out the lap/shoulder belt. 3. Insert the tongue (C) into the buckle (D) until you hear a click.
Page 34 If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer. qUnfastening the Lap Portion of the Seat Belt Insert a small object such as a key in the anchor buckle (B) slot.
Page 35 When ordering an extender, only order one that provides the necessary additional length to fasten the seat belt properly. Please contact your Authorized Mazda Dealer for more information. Essential Safety Equipment Seat Belt Systems...
Page 36 Essential Safety Equipment Seat Belt Systems WARNING Do not use a seat belt extender unless it is necessary: Using a seat belt extender when not necessary is dangerous. The seat belt will be too long and not fit properly. In an accident, the seat belt will not provide adequate protection and you could be seriously injured.
Page 37 Minder NOTE The belt minder can be deactivated. Consult an Authorized Mazda Dealer to deactivate and restore the seat belt minder. Driver seated/Front passenger not seated The belt minder is a supplemental warning to the seat belt warning function.
Page 38 Essential Safety Equipment Seat Belt Systems Driver seated/Front passenger seated The seat belt warning function reminds the front passenger to fasten the seat belt according to the chart below. Vehicle speed Between 0 Condition km/h 12 mph) Seat belt (Driver) Seat belt (Passenger) Indicator...
Page 39: Child Restraint
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be properly restrained and child-restraint systems of all kinds are properly secured on the rear seats which are the best place for children.
Page 40 Essential Safety Equipment Child Restraint WARNING Use the correct size child-restraint system: For effective protection in vehicle accidents and sudden stops, a child must be properly restrained using a seat belt or child-restraint system depending on age and size. If not, the child could be seriously injured or even killed in an accident. Follow the manufacturer's instructions and always keep the child-restraint system buckled down: An unsecured child-restraint system is dangerous.
Page 41 Seating a child in a child-restraint system on the front passenger seat is dangerous: Vehicles equipped with front passenger seat weight sensors are also equipped with a front passenger air bag deactivation indicator light (page 2-33). Even with the front passenger seat weight sensors, if you must use the front passenger seat for children, seating a child in a child-restraint system on the front passenger seat under the following conditions increases the danger of the front passenger air bag deploying...
Page 42 NOTE Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seat. When using these anchors to secure a child-restraint system, refer to “LATCH Child-Restraint Systems” (page 2-35).
Page 43 Some child-restraint systems now come with tethers and therefore must be installed on the seats that take tethers to be effective. In your Mazda, tethered child-restraint systems can only be accommodated in the three positions on the rear seat.
Page 44 Essential Safety Equipment Child Restraint 4. Push the child-restraint system firmly into the vehicle seat. Be sure the belt retracts as snugly as possible. Clicking from the retractor will be heard during retraction if the system is in the automatic locking mode. If the belt does not lock the seat down tight, repeat this step.
Page 45 Tether strap position (5 Door outboard position) Forward Anchor bracket location (5 Door center position) Tether strap position (5 Door center position) Tether strap Use the tether and tether anchor only for a child-restraint system: Tether strap Always route the tether strap between the head restraint and the seatback (Except center position): Always attach the tether strap to the...
Page 46 NOTE To check if your front seats have side air bags: Mazda vehicles equipped with side air bag will have a “SRS AIRBAG” tag on the outboard shoulder of the front seats. To check if your vehicle has curtain air...
Page 47 Do not allow a child to lean over or against the side window of a vehicle with side and curtain air bags: It is dangerous to allow anyone to lean over or against the side window, the area of the front passenger seat, the front and rear window pillars and the roof edge along both sides from which the side and curtain air bags...
Page 48 If the indicator light does not illuminate after seating a child in a child-restraint system on the front passenger seat, seat a child in a child-restraint system on the rear seat and consult an Authorized Mazda Dealer as soon as possible.
Page 49 LATCH Child-Restraint Systems Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems in the rear seat. Both anchors must be used, otherwise the seat will bounce around and put the child in danger. Most LATCH child-restraint systems must also be used in conjunction with a tether to be effective.
Page 50 Essential Safety Equipment Child Restraint qChild-Restraint System Installation Procedure (Rear Outboard Seats) 1. Make sure the seatback is securely latched by pushing it back until it is fully locked. 2. Expand the area between the seat bottom and the seatback slightly to verify the locations of the LATCH lower anchors.
Page 51 Tether strap position (5 Door) Forward WARNING Use the tether and tether anchor only for a child-restraint system: Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or damage the tether or tether anchor and result in injury.
Page 52 Essential Safety Equipment Child Restraint WARNING Use the tether and tether anchor only for a child-restraint system: Using the tether or tether anchor to secure anything but a child-restraint system is dangerous. This could weaken or damage the tether or tether anchor and result in injury.
Page 53 Anchor bracket location (5 Door) Tether strap position (5 Door) Tether strap Essential Safety Equipment Child Restraint 2-39...
Page 54: Srs Air Bags
Essential Safety Equipment SRS Air Bags Supplemental Restraint Systems (SRS) Precautions The front and side supplemental restraint systems (SRS) include up to 6 air bags. Please verify which kinds of air bags are equipped on your vehicle by locating the SRS AIRBAG location indicators.
Page 55 WARNING Seat belts must be worn in air bag equipped vehicles: Depending only on the air bags for protection during an accident is dangerous. Alone, air bags may not prevent serious injuries. The appropriate air bags can be expected to inflate only in the first collision with frontal, near frontal or side forces that are at least moderate.
Page 56 Essential Safety Equipment SRS Air Bags Sit in the center of the seat and wear seat belts properly: Sitting too close to the side air bag modules or placing hands on them is extremely dangerous. The side air bags inflate with great force and speed directly out of the outboard side of the front seat and expand along the front door on the side the car is hit.
Page 57 Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.
Page 58 Essential Safety Equipment SRS Air Bags Supplemental Restraint System Components The supplemental restraint systems (SRS) have two basic subsystems: The air bag system with inflators and air bags. The electrical system with crash sensors and diagnostic module. The air bags are mounted in the following locations: The steering wheel hub The front passenger dashboard The outboard sides of the front seatbacks...
Page 59 Essential Safety Equipment SRS Air Bags qFront Air Bag System Components (10) (1) Driver seat slide position sensor (page 2-47) (2) Front seats (3) Front dual stage inflators and air bags (4) Front air bag sensor (5) Front passenger air bag deactivation indicator light (page 2-47) (6) Front seat belt pretensioner and load limiting systems (page 2-16) (7) Front passenger seat weight sensors (page 2-47) (8) Front passenger seat weight sensor control module...
Page 60 Essential Safety Equipment SRS Air Bags qSide and Curtain Air Bag System Components 4 Door 5 Door (1) Side and curtain inflators and air bags (2) Front seats (3) Crash sensors and diagnostic module (SAS unit) (4) Side crash sensor í...
Page 61 The front air bags will function only once. After that, the front air bags will not work again and must be replaced. Only an Authorized Mazda Dealer can replace the system components. The front, dual stage air bags control air bag inflation in two energy stages. During an impact of moderate severity the front air bags deploy with lesser energy, whereas during more severe impacts, they deploy with more energy.
Page 62 Essential Safety Equipment SRS Air Bags Front passenger seat weight sensors Vehicles equipped with front passenger seat weight sensors are also equipped with a front passenger air bag deactivation indicator light is also equipped (page 2-33). These sensors are located under both of the front passenger seat rails. These sensors determine the total seated weight on the front passenger seat.
Page 63 ON position and does not illuminate as indicated in the above chart, do not allow a child to sit in the front passenger seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work properly in an accident.
Page 64 Essential Safety Equipment SRS Air Bags WARNING Do not decrease the total seated weight on the passenger seat: When an adult or large child sits on the front passenger seat, decreasing the total seated weight on the front passenger seat from the total seated weight of approximately 42 kg (93 lb) required for air bag deployment is dangerous.
Page 65 Do not increase the total seated weight on the passenger seat: When an infant or small child sits on the front passenger seat, increasing the total seated weight on the front passenger seat from the total seated weight of approximately 30 kg (66 lb) is dangerous. The front passenger seat weight sensors will detect the increased total seated weight, which could result in the unexpected deployment of the front passenger front and side air bags and seat belt pretensioner system in an accident and may cause serious injury.
Page 66 The side and curtain air bags will function only once. After that, the side and curtain air bags will not work again and must be replaced. Only an Authorized Mazda Dealer can replace the systems. í...
Page 67 qAir Bag Activation/Deactivation NOTE If the front passenger seat weight sensors detect a total seated weight on the front passenger seat is less than approximately 42 kg (93 lb), the front passenger front and side air bags and seat belt pretensioner may not deploy (page 2-47), but the curtain air bags may deploy.
Page 68 Essential Safety Equipment SRS Air Bags Frontal offset impact to the vehicle may not provide the stopping force necessary for air bag deployment. Rear-ending or running under a truck's tail gate may not provide the stopping force necessary for air bag deployment. Non-activation of front air bags Front air bags will not normally inflate in the following cases:...
Page 69 Side impacts involving trees or poles can cause severe cosmetic damage but may not have enough impact force to activate the side and curtain air bags. Vehicle roll-over may not provide enough side force to deploy the side and curtain air bags. Side impacts with two-wheeled vehicles may not provide enough force to deploy the side and curtain air bags.
Page 70 ON position. If any of these occur, consult an Authorized Mazda Dealer as soon as possible. The system may not work in an accident. WARNING...
Page 71 Unless all safety procedures are followed, injury can result. Ask an Authorized Mazda Dealer how to safely dispose of an air bag or how to scrap an air bag equipped vehicle.
Page 72 If it becomes necessary to have the components or wiring system for the supplementary restraint system modified to accommodate a person with certain medical conditions in accordance with a certified physician, contact an Authorized Mazda Dealer, refer to “Customer Assistance (U.S.A.)” (page 9-2). 2-58...
Page 73: Knowing Your Mazda
Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts. Doors and Locks ... 3-2 Keys ... 3-2 Keyless Entry System Door Locks ... 3-8 Liftgate (5 Door) ... 3-11 Trunk Lid (4 Door) ... 3-14 Inside Trunk Release Lever (4 Door) ...
Page 74: Doors And Locks
Write down the code number and keep it in a separate safe and convenient place, but not in the vehicle. If your key is lost, consult your Authorized Mazda Dealer and have your code number ready. Key extend/retract method (Retractable type key)
Page 75: Keyless Entry System Í
To install a new battery, refer to Maintenance (page 3-5). Additional transmitters can be obtained at an Authorized Mazda Dealer. Up to 3 transmitters can be used with the keyless entry system per vehicle. Bring all transmitters to an Authorized Mazda Dealer when additional transmitters are required.
Page 76 Knowing Your Mazda Doors and Locks qTransmitter Integrated key type Lock button Operation indicator light Panic button Non-key type Lock button Unlock button Panic button NOTE (U.S.A.) This device complies with Part 15 of the FCC Rules. Operation is subject to the...
Page 77 Ø Insulate the plus and minus terminals of the battery using cellophane or equivalent tape. Ø Never disassemble. Ø Never throw the battery into fire and/or water. Ø Never deform or crush. Knowing Your Mazda...
Page 78 Knowing Your Mazda Doors and Locks Replacing the transmitter battery Integrated key type 1. Unfold the key (page 3-2). 2. Insert a small screwdriver into the slot and push the tab to remove the key from the transmitter. 3. Insert a small screwdriver into the slot and gently pry open the transmitter.
Page 79 Mazda Dealer. If your transmitter is lost or stolen, bring all remaining transmitters to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen transmitter inoperative. Radio equipment like this is governed by laws in the United States.
Page 80: Door Locks
Knowing Your Mazda Doors and Locks Door Locks WARNING Always take all children and pets with you or leave a responsible person with them: Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot weather, temperatures inside a vehicle can become high enough to cause brain damage or even death.
Page 81 With the key in the ignition switch, all doors and the liftgate will automatically unlock if they are locked using the power door locks with either front door open. í Some models. Knowing Your Mazda...
Page 82 Knowing Your Mazda Doors and Locks Locking, unlocking with key All doors and the liftgate lock automatically when the driver's door is locked with the key. All doors and the liftgate unlock when the driver's door is unlocked and the key is held in the unlock position for one second or longer.
Page 83: Liftgate (5 Door)
Unlocking with Door- Lock Switch The liftgate can be locked/unlocked by operating the door-lock switch, refer to Power Door Locks (page 3-9). qOpening and Closing the Liftgate Opening the liftgate Pull the handle and lift up the liftgate. Knowing Your Mazda 3-11...
Page 84 Lever After performing this emergency measure, have the vehicle inspected at an Authorized Mazda Dealer as soon as possible. Closing the liftgate Use both hands to push the liftgate down until the lock snaps shut. Do not slam it.
Page 85 Ø Do not allow cargo to interfere with the luggage compartment cover latch. This cover can be removed for more room. To do this, just unfasten the straps; then lift and pull it out. Latch Knowing Your Mazda Doors and Locks 3-13...
Page 86: Trunk Lid (4 Door)
Knowing Your Mazda Doors and Locks Trunk Lid (4 Door) WARNING Never allow a person to ride in the trunk: Allowing a person to ride in the trunk is dangerous. In addition, the person in the trunk could be seriously injured or killed during sudden braking or a collision.
Page 87 Trunk lock lever qTrunk Light The trunk light is on when the lid is open and off when it's closed. Knowing Your Mazda Unlock Lock 3-15...
Page 88: Inside Trunk Release Lever (4 Door)
Knowing Your Mazda Doors and Locks NOTE To prevent the battery from being discharged, do not leave the trunk open for a long period when the engine is not running. 3-16 Inside Trunk Release Lever (4 Door) Your vehicle is equipped with an inside...
Page 89 The lever is made of material that will glow for hours in the darkness of the trunk following a brief exposure to ambient light. The inside trunk release lever is located on the inside of the trunk lid. Knowing Your Mazda 3-17...
Page 90: Power Windows Í
Knowing Your Mazda Doors and Locks Power Windows The ignition switch must be in the ON position for the power windows to operate. WARNING Make sure the opening is clear before closing a window: Closing power windows are dangerous. A person's hands, head,...
Page 91 Front passenger's window Unless a passenger needs to operate a power window, keep the power window lock switch in the locked position: Knowing Your Mazda Doors and Locks WARNING Unintentional power window operation is dangerous. A person's hands, head, or neck could be caught by the window and result in serious injury.
Page 92: Fuel-Filler Lid And Cap
CAUTION Always use only a genuine Mazda fuel cap or an approved equivalent, available at an Authorized Mazda Dealer. The wrong cap can result in a serious malfunction of the fuel and emission control systems.
Page 93: Hood
(even after you have tightened the cap securely, driven, and restarted the engine several times), it may indicate a different problem. Contact an Authorized Mazda Dealer as soon as possible. Doors and Locks Hood WARNING Always check that the hood is closed...
Page 94 Knowing Your Mazda Doors and Locks 2. (Type A) Insert your hand into the hood opening and slide the hood latch to the left and lift the hood. (Type B) Insert your hand into the hood opening and slide the hood latch to the right and lift the hood.
Page 95: Moonroof Í
NOTE After washing your Mazda or after it rains, wipe the water off the moonroof before operating it to avoid water penetration which could cause rust and water damage to your headliner.
Page 96 Knowing Your Mazda Doors and Locks To close to the desired position, push the front of the tilt or slide switch. Open Close Close qSunshade The sunshade can be opened and closed by hand. The sunshade opens automatically when the moonroof is opened, but must be closed by hand.
Page 97: Security System
Ø Expose the key to high temperatures on places such as the dashboard or hood, under direct sunlight. Knowing Your Mazda Security System CAUTION When starting the engine do not allow the following, as the engine may not start due to the electronic signal from the ignition key not being transmitted correctly.
Page 98 If the security indicator light flashes continuously while you are driving, don't shut off the engine. Go to an Authorized Mazda Dealer and have it checked. If you shut off the engine while the light is flashing you won't be able to restart it.
Page 99: Theft-Deterrent System Í
Always keep a spare key, in case one is lost. If a key is lost, contact an Authorized Mazda Dealer as soon as possible. If you lose a key, an Authorized Mazda Dealer will reset the electronic codes of your remaining keys and immobilizer system.
Page 100 Authorized Mazda Dealer. qTheft-Deterrent Labels A label indicating that your vehicle is equipped with a Theft-Deterrent System is in the glove box. Mazda recommends that you affix it to the lower rear corner of a front door window.
Page 101: Steering Wheel And Mirrors
Power mirror The ignition switch must be in the ACC or ON position. To adjust: 1. Move the selector switch to the left or right to choose the left or right side mirror. Knowing Your Mazda 3-29...
Page 102 Knowing Your Mazda Steering Wheel and Mirrors 2. Depress the mirror switch in the appropriate direction. Selector switch Outside mirror Mirror switch After adjusting the mirror, lock the control by moving the selector switch to the middle position. Manual control mirror To adjust, move the mirror's control lever, just inside the door.
Page 103 Do not stack cargo or objects higher than the seatbacks: Cargo stacked higher than the seatbacks is dangerous. It can block your view in the rearview mirror, which might cause you to hit another car when changing lanes. Knowing Your Mazda Day/Night lever Night 3-31...
Page 104 3-32...
Page 105: Before Driving Your Mazda
Before Driving Your Mazda Important information about driving your Mazda. Fuel and Engine Exhaust Precautions ... 4-2 Fuel Requirements ... 4-2 Emission Control System ... 4-4 Engine Exhaust (Carbon Monoxide) ... 4-5 Before Starting the Engine ... 4-6 Before Getting In ... 4-6 After Getting In ...
Page 106: Fuel And Engine Exhaust Precautions
Ø Never add fuel system additives. Never add cleaning agents other than those specified by Mazda. Other cleaning agents and additives may damage the system. Consult an Authorized Mazda Dealer. Gasoline blended with oxygenates such as alcohol or ether compounds are generally referred to as oxygenated fuels.
Page 107 Vehicle damage and drivability problems resulting from the use of the following may not be covered by the Mazda warranty. Gasohol containing more than 10% ethanol. Gasoline or gasohol containing methanol. Leaded fuel or leaded gasohol. Fuel and Engine Exhaust Precautions...
Page 108: Emission Control System
Ø USE ONLY UNLEADED FUEL. Ø Don't drive your Mazda with any sign of engine malfunction. Ø Don't coast with the ignition switch turned off. Ø Don't descend steep grades in gear with the ignition switch turned off.
Page 109: Engine Exhaust (Carbon Monoxide)
When inhaled, it can cause loss of consciousness and death. If you smell exhaust gas inside your vehicle, keep all windows fully open and contact an Authorized Mazda Dealer immediately. Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous.
Page 110: Before Starting The Engine
Before Driving Your Mazda Before Starting the Engine Before Getting In Be sure the windows, outside mirrors, and outside lights are clean. Inspect inflation pressures and condition of tires. Look under the vehicle for any sign of fluid leaks. If you plan to back up, make sure nothing is in your way.
Page 111: Driving Tips
No special break-in is necessary, but a few precautions in the first 1,000 km (600 miles) may add to the performance, economy, and life of your Mazda. Don't race the engine. Don't maintain one constant speed, either slow or fast, for a long period of time.
Page 112: Hazardous Driving
Before Driving Your Mazda Driving Tips Hazardous Driving WARNING Be extremely careful if it is necessary to downshift on slippery surfaces: Downshifting into lower gear while driving on slippery surfaces is dangerous. The sudden change in tire speed could cause the tires to skid.
Page 113: Rocking The Vehicle
Carry emergency gear, including tire chains, window scraper, flares, a small shovel, jumper cables, and a small bag of sand or salt. Ask an Authorized Mazda Dealer to perform the following precautions: Have the proper ratio of antifreeze in the radiator.
Page 114 Install the chains on the front tires. Do not use chains on the rear tires. Use only genuine Mazda tire chains. Please consult an Authorized Mazda Dealer. Installing the chains 1.
Page 115: Driving In Flooded Area
If the vehicle has been immersed in water, consult an Authorized Mazda Dealer. Before Driving Your Mazda Driving Tips Overloading WARNING Be careful not to overload your vehicle:...
Page 116: Turbocharger Information Í
Before Driving Your Mazda Driving Tips Turbocharger Information The turbocharger greatly enhances engine power. Its advanced design provides improved operation and requires minimum additional maintenance. To get maximum performance from your turbocharged engine, take note of the following tips: The turbocharged engine is designed for optimal operation with premium unleaded gasoline (page 4-2).
Page 117: Towing
Before Driving Your Mazda Towing Trailer Towing The Mazda3 is not designed for towing. Never tow a trailer with your Mazda3. 4-13...
Page 118 4-14...
Page 119 Driving Your Mazda Explanation of instruments and controls. Starting and Driving ... 5-2 Ignition Switch ... 5-2 Starting the Engine ... 5-4 Brake System ... 5-5 Manual Transaxle Operation ... 5-9 Automatic Transaxle Controls ... 5-12 Power Steering ... 5-18 í...
Page 120: Starting And Driving
Driving Your Mazda Starting and Driving Ignition Switch qIgnition Switch Positions LOCK The steering wheel locks to protect against theft. Only in this position can the key be removed. Manual transaxle To turn the key from the ACC to the...
Page 121 (page 5-37). qIgnition Key Reminder If the ignition switch is in the LOCK or ACC position with the key inserted, a continuous beep sound will be heard when the driver's door is opened. Driving Your Mazda...
Page 122: Starting The Engine
Driving Your Mazda Starting and Driving Starting the Engine NOTE Engine-starting is controlled by the spark ignition system. This system meets all Canadian Interference- Causing Equipment Standard requirements regulating the impulse electrical field strength of radio noise. 1. Occupants should fasten their seat belts.
Page 123: Brake System
Brake System qFoot Brake Your Mazda has power-assisted brakes that adjust automatically through normal use. Should power-assist fail, you can stop by applying greater force than normal to the brake pedal. But the distance required to stop will be greater than usual.
Page 124 Driving Your Mazda Starting and Driving qParking Brake WARNING Before leaving the driver's seat, always put the key to LOCK position, set the parking brake and make sure the shift lever is in P with an automatic transaxle or in 1 or R with a manual...
Page 125 Starting and Driving NOTE Having to add brake fluid is sometimes an indicator of leakage. Consult an Authorized Mazda Dealer as soon as possible even if the brake light is no longer illuminated. WARNING Do not drive with the brake system warning light illuminated.
Page 126 ABS. Should this happen, consult an Authorized Mazda Dealer as soon as possible. NOTE When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS warning light comes on.
Page 127: Manual Transaxle Operation
WARNING Do not drive with both the ABS warning light and brake warning light illuminated. Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving when the brake system warning light and ABS warning light are illuminated at the same time is dangerous.
Page 128 Driving Your Mazda Starting and Driving (6-speed transaxle) Vehicles with 6-speed transaxle are equipped with a device to prevent shifting to R (reverse) by mistake. Push the shift lever downward and shift to R. WARNING Do not use sudden engine braking on...
Page 129 Driving Your Mazda Starting and Driving Downshifting When you must slow down in heavy traffic or on a steep upgrade, downshift before the engine starts to overwork. This reduces the chance of stalling and gives better acceleration when you need more speed.
Page 130: Automatic Transaxle Controls
Driving Your Mazda Starting and Driving Automatic Transaxle Controls Various Lockouts: Indicates that you must depress the brake pedal to shift (The ignition switch must be in the ON position). Indicates the shift lever can be shifted freely into any position.
Page 131 4-gear/5-gear sequence. * 2.3-liter engine model M (Manual) M is the manual shift mode position. Gears can be shifted up or down by operating the shift lever. Refer to Manual Shift Mode (page 5-14). Driving Your Mazda 5-13...
Page 132 2. Insert a screwdriver and push it down. 3. Move the shift lever. 5-14 4. Take the vehicle to an Authorized Mazda Dealer to have the system checked. qManual Shift Mode This mode gives you the feel of driving a...
Page 133 However, this does not indicate an abnormality. When depressing the accelerator fully, the transaxle will shift to a lower gear, depending on vehicle speed. Driving Your Mazda Starting and Driving ) once. 5-15...
Page 134 Driving Your Mazda Starting and Driving Manually Shifting down →M4→M3→M2→M1) To shift down to a lower gear, tap the shift lever forward ( ) once. * 2.3-liter engine model WARNING Do not use sudden engine braking on slippery road surfaces or at high...
Page 135 For normal acceleration and cruising, we recommend these shift points. (2.0-liter engine model) Gear Vehicle speed M1 to M2 24 km/h (15 mph) M2 to M3 40 km/h (25 mph) M3 to M4 65 km/h (40 mph) Driving Your Mazda 5-17...
Page 136: Power Steering
Driving Your Mazda Starting and Driving (2.3-liter engine model) Gear Vehicle speed M1 to M2 24 km/h (15 mph) M2 to M3 40 km/h (25 mph) M3 to M4 65 km/h (40 mph) M4 to M5 73 km/h (45 mph)
Page 137: Cruise Control
If the light remains illuminated, the power steering is still inoperable. Consult an Authorized Mazda Dealer. NOTE The power steering system is inoperable when the power steering malfunction indicator light illuminates.
Page 138 Driving Your Mazda Starting and Driving qActivation/Deactivation To activate the system, press the ON/OFF switch. The cruise main indicator light illuminates. To deactivate the system, press the switch again. The cruise main indicator light turns off. WARNING Keep the ON/OFF switch off when...
Page 139 Take your foot off the accelerator to return to the set speed. qTo Decrease Cruising Speed Press the SET/COAST button and hold it. The vehicle will gradually slow. Release the button at the speed you want. Driving Your Mazda 5-21...
Page 140 Driving Your Mazda Starting and Driving Your vehicle has a tap-down feature that allows you to decrease your current speed in decrements of 1.6 km/h (1 mph) by a momentary tap of the SET/COAST button. Multiple taps will decrease your vehicle speed 1.6 km/h (1 mph) for each...
Page 141: Traction Control System (Tcs)
If the light stays on, the TCS or DSC may have a malfunction and they may not operate correctly. Take your vehicle to an Authorized Mazda Dealer. NOTE In addition to the indicator light flashing, a slight lugging sound will come from the engine.
Page 142: Dynamic Stability Control (Dsc)
CAUTION Ø The DSC may not operate correctly unless the following are observed: Ø Use tires of the correct size specified for your Mazda on all four wheels. Ø Use tires of the same manufacturer, brand and tread pattern on all four wheels.
Page 143 (page 5-25). If the light stays on when the TCS/DSC is not switched off, take your vehicle to an Authorized Mazda Dealer. The dynamic stability control may have a malfunction. qDSC OFF Switch To turn off the TCS/DSC, press and hold the DSC OFF switch until the DSC OFF indicator light illuminates.
Page 144: Tire Pressure Monitoring System
Driving Your Mazda Starting and Driving í Tire Pressure Monitoring System The tire pressure monitoring system (TPMS) monitors the pressure for each tire. If tire pressure is too low in one or more tires, the system will inform the driver via the warning light in the instrument panel and by the warning beep sound.
Page 145 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Driving Your Mazda Starting and Driving 5-27...
Page 146 Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated.
Page 147 Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle.
Page 148 The signal code must be registered with the TPMS before it can work. The easiest way to do it is to have an Authorized Mazda Dealer change your tire and complete ID signal code registration. When having tires changed at an...
Page 149 Replacing tires and wheels CAUTION Ø When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. Ø The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors.
Page 150: Instrument Cluster And Indicators
Driving Your Mazda Instrument Cluster and Indicators (Black-out meter) When the ignition switch is in the ON position, the dashboard gauges illuminate. Speedometer ... page 5-33 Odometer, Trip Meter and Trip Meter Selector ... page 5-33 Tachometer ... page 5-34 Engine Coolant Temperature Gauge ...
Page 151 After the ignition switch is turned to the ACC or LOCK position from the ON position. After the driver's door is opened. Driving Your Mazda 5-33...
Page 152 Driving Your Mazda Instrument Cluster and Indicators Odometer The odometer records the total distance the vehicle has been driven. Trip meter The trip meter can record the total distance of two trips. One is recorded in trip meter A, and the other is recorded in trip meter B.
Page 153 Button on page 5-35. qInstrument Cluster Dimmer ) shown next to Select Button (Black-out meter) The instrument cluster dimmer select button is operable when the ignition switch is in the ON position. Instrument cluster dimmer select button Driving Your Mazda Bright 5-35...
Page 154 Driving Your Mazda Instrument Cluster and Indicators Adjusting the instrument cluster illumination intensity (With exterior lights off) When the exterior lights are off, the instrument cluster illumination can be adjusted to one of five levels by successively pressing the instrument cluster dimmer select button.
Page 155: Warning/Indicator Lights And Beep Sounds
Engine Oil Pressure Warning Light Check Engine Light ABS Warning Light Air Bag/Front Seat Belt Pretensioner System Warning Light Low Fuel Warning Light Warning/Indicator lights will appear in any of the highlighted areas Warning/Indicator Lights Driving Your Mazda Page 5-39 5-40 5-40 5-41 5-39...
Page 156 Driving Your Mazda Warning/Indicator Lights and Beep Sounds Signal Seat Belt Warning Light/Beep Door-Ajar Warning Light Low Washer Fluid Level Warning Light Automatic Transaxle Warning Light Tire Pressure Monitoring System Warning Light Security Indicator Light Headlight High-Beam Indicator Light Shift Position Indicator Light...
Page 157 NOTE Having to add brake fluid is sometimes an indicator of leakage. Consult an Authorized Mazda Dealer as soon as possible even if the brake light is no longer illuminated. Do not drive with the brake system warning light illuminated. Contact an...
Page 158 WARNING Do not drive with both the ABS warning light and brake warning light illuminated. Have the vehicle towed to an Authorized Mazda Dealer to have the brakes inspected as soon as possible: Driving when the brake system warning light and ABS warning light are illuminated at the same time is dangerous.
Page 159 The fuel-filler cap is missing or not tightened securely. If the check engine light remains on or flashes continuously, do not drive at high speeds and consult an Authorized Mazda Dealer as soon as possible. qAir Bag/Front Seat Belt Pretensioner System Warning Light...
Page 160 Belt minder NOTE The belt minder can be deactivated. Consult an Authorized Mazda Dealer to deactivate and restore the seat belt minder. Driver seated/Front passenger not seated The belt minder is a supplemental warning to the seat belt warning function.
Page 161: Warning Light
This warning light comes on when any door or liftgate isn't securely closed. qLow Washer Fluid Level Warning Light This warning light indicates that little washer fluid remains. Add fluid (page 8-27). Driving Your Mazda í í 5-43 Some models.
Page 162 CAUTION If the automatic transaxle warning light illuminates, the transaxle has an electrical problem. Continuing to drive your Mazda in this condition could cause damage to your transaxle. Consult an Authorized Mazda Dealer as soon as possible. qTire Pressure Monitoring System í...
Page 163 Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous - take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order the best replacement tire for your vehicle.
Page 164 If the engine doesn't start with the correct ignition key, and the security indicator light keeps illuminating or flashing, the system may have a malfunction. Consult an Authorized Mazda Dealer. 5-46 qHeadlight High-Beam Indicator Light This light indicates one of two things: The high-beam headlights are on.
Page 165 (page 5-25). If the light stays on when the TCS/DSC is not switched off, take your vehicle to an Authorized Mazda Dealer. The dynamic stability control may have a malfunction. Warning/Indicator Lights and Beep Sounds qCruise Main Indicator Light...
Page 166 Driving Your Mazda Warning/Indicator Lights and Beep Sounds qPower Steering Malfunction í Indicator Light This indicator light illuminates when the ignition switch is turned to the ON position and goes off when the engine is started. If the light stays illuminated after the...
Page 167: Beep Sounds
1 minute. After that, the one-minute beep will be repeated every 30 minutes. Have your vehicle inspected at an Authorized Mazda Dealer as soon as possible. WARNING Do not drive the vehicle with the air...
Page 168: Switches And Controls
Driving Your Mazda Switches and Controls Lighting Control qHeadlights Type A (Without AUTO position) Turn the headlight switch to turn the headlights, other exterior lights and dashboard illumination on or off. Switch Position Headlights Taillights Parking lights License lights Side-marker lights...
Page 169 The timing for turning on the headlights, other exterior lights and dashboard illumination can be delayed by adjusting the sensitivity of the light sensor. Consult an Authorized Mazda Dealer regarding sensor adjustment. Xenon fusion headlight bulbs The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white beam over a wide area.
Page 170 Driving Your Mazda Switches and Controls NOTE If the headlights flicker, or the brightness weakens, the bulb-life may be depleted and a replacement is necessary. Consult an Authorized Mazda Dealer. qLights-On Reminder If lights are on and the key is removed...
Page 171: Turn And Lane-Change Signals
NOTE If an indicator light stays on without flashing or if it flashes abnormally, one of the turn signal bulbs may be burned out. Driving Your Mazda Switches and Controls Right turn Right lane change until the and hold it there.
Page 172: Fog Lights Í
After 5 minutes, turn on the switch and the blades should operate normally. If they don't resume functioning, consult an Authorized Mazda Dealer as soon as possible. Drive to the side of the road and park off the right-of- way. Wait until the weather clears before trying to drive with the wipers inoperative.
Page 173 When the wiper lever is in the AUTO position, the rain sensor senses the amount of rainfall on the windshield and turns the wiper on or off automatically (off intermittent low speed high speed). Driving Your Mazda í 5-55 Some models.
Page 174 Driving Your Mazda Switches and Controls The sensitivity of the rain sensor can be adjusted by turning the switch on the wiper lever. From the center position (normal), turn the switch towards (+) for higher sensitivity (faster response) or turn the switch towards ( _ ) for less sensitivity (slower response).
Page 175 A)/AUTO (Type B) position, the wipers will operate continuously until the lever is released. Switches and Controls If the washer doesn't work, inspect the fluid level (page 8-27). If it's OK, consult an Authorized Mazda Dealer. Washer Driving Your Mazda 5-57...
Page 176: Rear Window Wiper And Washer (5 Door)
Driving Your Mazda Switches and Controls Rear Window Wiper and Washer (5 Door) The ignition switch must be in the ON position. qRear Window Wiper Turn the wiper on by turning the rear wiper/washer switch. Normal Intermittent qRear Window Washer...
Page 177: Horn
This defroster is not designed for melting snow. If there is an accumulation of snow on the rear window, remove it before using the defroster. Switches and Controls Horn To sound the horn, press the the steering wheel. Driving Your Mazda mark on 5-59...
Page 178: Hazard Warning Flasher
Driving Your Mazda Switches and Controls Hazard Warning Flasher The hazard warning lights should always be used when you stop on or near a roadway in an emergency. The hazard warning lights warn other drivers that your vehicle is a traffic hazard and that they must take extreme caution when near it.
Page 179: Interior Comfort
Interior Comfort Use of various features for drive comfort, including air-conditioning and audio system. Climate Control System ... 6-2 Operating Tips ... 6-2 Vent Operation ... 6-3 Types of the Climate Control System ... 6-5 í Manual Type ... 6-6 Fully Automatic Type Audio System ...
Page 180 Have the air conditioner checked before the weather gets hot. Lack of refrigerant may make the air conditioner less efficient. Consult an Authorized Mazda Dealer for refrigerant inspection. The air conditioner is filled with HFC134a (R134a), a refrigerant that will not damage the ozone layer.
Page 181: Climate Control System
qAdjusting the Vents Directing airflow Side Vents To adjust the direction of airflow, open the vents and rotate them left and right. Vent Operation Center vents Center Vents To adjust the direction of airflow, move the adjustment knob. Push NOTE When using the air conditioner, mist may come out from the vents.
Page 182 Interior Comfort Climate Control System qSelecting the Airflow Mode Dashboard Vents Dashboard and Floor Vents Floor Vents Defroster and Floor Vents Defroster Vents...
Page 183: Types Of The Climate Control System
Interior Comfort Climate Control System Types of the Climate Control System Manual type and fully automatic type climate control systems are explained separately. Check your vehicle's climate control type and read the appropriate pages. Manual Type ... page 6-6 Fully Automatic Type ... page 6-10...
Page 184: Manual Type Í
Interior Comfort Climate Control System Mode selector dial A/C switch qControl Switches Temperature control dial Cold This dial controls temperature. Turn it clockwise for hot and counterclockwise for cold. í Some models. í Manual Type Temperature control dial Fan control dial Air intake selector Fan control dial This dial allows variable fan speeds.
Page 185 Mode selector dial Turn the mode selector dial to select airflow mode (page 6-4). NOTE If you want to slightly adjust the airflow amount, set the mode selector dial at For example, when the mode selector dial is at the position between the positions, airflow from the floor vent is less than that of the...
Page 186 Interior Comfort Climate Control System This mode can be used when driving on a dusty road or in similar conditions. It also helps to provide quicker cooling of the interior. WARNING Do not use the recirculated air mode in cold or rainy weather: Using the recirculated air mode in cold or rainy weather is dangerous as it will cause the windows to fog up.
Page 187 qVentilation 1. Set the mode selector dial to the position. 2. Set the air intake selector to the outside air mode. 3. Set the temperature control dial to the desired position. 4. Set the fan control dial to the desired speed.
Page 188: Fully Automatic Type
Interior Comfort Climate Control System Climate control information is displayed on the information display. Fan control dial OFF switch A/C switch qControl Switches AUTO switch By pressing the AUTO switch the following functions will be automatically controlled in accordance with the set temperature: Airflow temperature Amount of airflow...
Page 189 OFF switch Pressing the OFF switch shuts off the climate control system. Temperature control dial Cold This dial controls temperature.Turn it clockwise for hot and counterclockwise for cold. Fan control dial Slow The fan has seven speeds. The selected speed will be displayed. Mode selector switch The desired airflow mode can be selected (page 6-4).
Page 190 Interior Comfort Climate Control System Air intake selector Outside or recirculated air positions can be selected. Press the switch to select outside/recirculated air positions. Recirculated air position (indicator light illuminated) Use this position when going through tunnels, driving in congested traffic (high engine exhaust areas) or when quick cooling is desired.
Page 191 2. Use the temperature control dial to select a desired temperature. Cold To turn off the system, press the OFF switch. NOTE Setting the temperature to maximum high or low will not provide the desired temperature at a faster rate. When selecting heat, the system will restrict airflow until it has warmed to prevent cold air from blowing out of the vents.
Page 192 Interior Comfort Climate Control System Interior temperature sensor 6-14...
Page 193: Audio System
Antenna qDetachable Type To remove the antenna, turn it counterclockwise. To install the antenna, turn it clockwise. Make sure the antenna is securely installed. Type A Remove Type B Install Remove CAUTION Ø To prevent damage to the antenna, remove it before entering a car wash facility or passing beneath a low overhead clearance.
Page 194: Operating Tips For Audio System
Interior Comfort Audio System Operating Tips for Audio System WARNING Do not adjust the audio control switches while driving the vehicle: Adjusting the audio while driving the vehicle is dangerous as it could distract your attention from the vehicle operation which could lead to a serious accident.
Page 195 Signals from an FM transmitter are similar to beams of light because they do not bend around corners, but they do reflect. Unlike AM signals, FM signals cannot travel beyond the horizon. Therefore, FM stations cannot be received at the great distances possible with AM reception.
Page 196 Use a good quality head- cleaning tape or a liquid cleaner cassette tape to remove it. Should the unit not operate normally, consult an Authorized Mazda Dealer. Never attempt to repair it or insert a screwdriver or anything else. Handling the cassette tape player The following precautions should be observed.
Page 197 If the cassette tape is loose, it may produce poor sound or performance during playback. Use a pencil or something similar to remove any slack. Only cassette tapes that play no longer than 90 minutes should be used. Cassette tape exceeding 90 minutes are thin and may easily break.
Page 198 Interior Comfort Audio System The CD revolves at high speed within the unit. Defective (cracked or badly bent) CDs should never be used. Do not use non-conventional discs such as heart-shaped, octagonal discs, etc. The disc may not eject resulting in a malfunction.
Page 199 CD Player In-dash CD Changer Be sure never to touch the signal surface when handling the CDs. Pick up a CD by grasping the outer edge or the edge of the hole and the outer edge. Do not stick paper or tape on the CD. Avoid scratching the reverse side (the side without a label).
Page 200 Interior Comfort Audio System Handling the In-dash CD changer This unit may not be able to play certain CD-R/CD-RWs made using a computer or music CD recorder due to disc characteristics, scratches, smudges, dirt, etc., or due to dust or condensation on the lens inside the unit.
Page 201 If a disc has both music data (CD-DA) and MP3 files, playback of the two file types differs depending on how the disc was recorded. Packet written discs cannot be played on this unit. This unit does not play CDs recorded using MP3i (MP3 interactive), MP3 PRO and RIFF MP3 formats.
Page 202 Interior Comfort Audio System MP3 files not conforming to the MP3 format containing both header frames and data frames will be skipped and not played. This unit will play MP3 files that have up to eight levels. However, the more levels a disc has, the longer it will take to initially start playing.
Page 203 Interior Comfort Audio System Sampling Refers to the process of encoding analog audio data at regular intervals and converting it to digital data. The sampling rate refers to the number of times a sample is taken in one second and is expressed in Hz units.
Page 204 MEMO 6-26...
Page 205: Audio Set
Audio information is displayed on the information display. There are two types of In-dash CD changers. Check which In-dash CD changer your vehicle is equipped with. CD Player Power/Volume/Sound Controls ... page 6-28 Operating the Radio ... page 6-30 Operating the Cassette Tape Player ... page 6-34 Operating the Compact Disc (CD) Player ...
Page 206 Interior Comfort Audio System qPower/Volume/Sound Controls Power ON/OFF Turn the ignition switch to the ACC or ON position. Press the power/volume dial to turn the audio system on. Press the power/volume dial again to turn the audio system off. NOTE To prevent the battery from being discharged, do not leave the audio system on for a long period of time when the engine is not running.
Page 207 2. Turn the audio control dial to adjust the selected functions as follows: Indication Turn Left Turn Right Decrease bass Decrease treble Shift the sound to the front Shift the sound to the left 12Hr (Flashing) NOTE About 5 seconds after selecting any mode, the volume function will be automatically selected.
Page 208 Interior Comfort Audio System qOperating the Radio Scan button Seek tuning buttons Manual tuning button/Auto memory button/Electric serial number button Radio ON Press a band selector button ( turn the radio on. Band selection Successively pressing the band selector button ( ) switches the bands as follows: FM1→FM2→AM.
Page 209 NOTE If you continue to press and hold the button, the frequency will continue changing without stopping. Scan tuning Press the scan button ( automatically sample strong stations. Scanning stops at each station for about 5 seconds. To hold a station, press the scan button ( ) again during this interval.
Page 210 Interior Comfort Audio System 1221 Avenue Of The Americas New York, NY 10020 Attention: Customer Care Include your Sirius Radio ESN (Electronic Serial Number) when subscribing or requesting technical assistance. See the Satellite Radio Kit manual accompanying the SIRIUS unit for complete satellite radio activation procedures and information on how to display the ESN#.
Page 211 MEMO 6-33...
Page 212 Interior Comfort Audio System qOperating the Cassette Tape Player APC button: (next program) (one being played) Program button Cassette tape insert Insert the cassette tape into the slot, open edge to the right and cassette tape will begin play, and TAPE PLAY will be displayed.
Page 213 Fast-forward/Rewind Press the fast-forward button ( fast-forward. Press the rewind button ( To stop this operation and play the cassette tape, press the button again. NOTE When the cassette tape ends during fast- forward or rewind, it automatically stops and starts playing.
Page 214 Interior Comfort Audio System qOperating the Compact Disc (CD) Player Load button Track up button Track down button Type Playable data Music CD player · Music data (CD-DA) (non-MP3 compatible) Inserting the CD Insert the CD into the slot, label-side up. The auto-loading mechanism will set the CD and begin play.
Page 215 CD malfunction. Check the CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service. ) during ) again to ) during...
Page 216 Interior Comfort Audio System qOperating the In-Dash CD Changer Music CD player (non-MP3 compatible) Music CD/MP3 CD player (MP3 compatible) Load button Track up button Track down button Display feed dial Display button There are two types of In-dash CD changers.
Page 217 Normal insertion 1. Press the load button ( 2. When IN is displayed, insert the CD. Inserting CDs into desired tray number 1. Press and hold the load button ( for about 2 seconds until a beep sound is heard. 2.
Page 218 Interior Comfort Audio System NOTE CDs will be ejected starting with the one with the lowest number. All CDs in the tray will be ejected continuously. CDs can be ejected when the ignition switch is off. Press and hold the CD eject button ( ) for about 2 seconds and all CDs will eject.
Page 219 (Folder repeat) 1. Press the repeat button ( playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly. RPT is displayed. 2. Press the button again to cancel the repeat playback. Random playback Tracks are randomly selected and played.
Page 220 CD for damage, dirt, or smudges, and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service. qOperating the Auxiliary jack You can connect portable audio units or similar products on the market to the...
Page 221 Indications If you see an error indication on the display, find the cause in the chart. If you cannot clear the error indication, take the vehicle to an Authorized Mazda Dealer. Indication CD is inserted upside down CHECK CD...
Page 222: Audio Control Switch Operation (Steering Wheel) Í
When a cassette tape/CD being played is ejected. (For the In-dash CD changer, when all CDs are ejected.) NOTE Mazda has installed this system to prevent distraction while driving the vehicle and using audio controls on the dashboard. Always make safe driving your first priority.
Page 223 NOTE Cassette tape, CD, CD changer and SIRIUS digital satellite radio modes cannot be selected in the following cases: A cassette deck, CD, CD changer, or SIRIUS digital satellite radio unit is not equipped on the audio system. A cassette tape, or CD has not been inserted.
Page 224: Auxiliary Input
Interior Comfort Audio System Auxiliary Input You can connect portable audio units or similar products on the market to the auxiliary jack to listen to music or audio over the vehicle's speakers. WARNING Do not adjust the portable audio unit or a similar product while driving the vehicle: Adjusting the portable audio unit or...
Page 225 3. Using a coin, turn the cap counterclockwise (about 45° from the closed position) and remove it. NOTE Do NOT discard the cap. 4. Open the tray by pulling the lower release catch. 5. Pass the connection plug cord through the hole of the tray and insert the plug in the auxiliary jack.
Page 226 Interior Comfort Audio System 7. Pass the connection plug cord through the slit in the tray mat and then set the tray mat in place. To operate the portable audio unit 1. Turn the ignition switch to the ACC or ON position.
Page 227: Safety Certification
Ø This CD player should not be adjusted or repaired by anyone except qualified service personnel. If servicing is required, contact an Authorized Mazda Dealer. Ø Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser exposure. Never operate the CD player with the top case of the unit removed.
Page 228: Interior Equipment
Interior Comfort Interior Equipment Sunvisors When you need a sunvisor, lower it for use in front or swing it to the side. Sunvisor í qVanity Mirrors To use the vanity mirror, lower the sunvisor. í 6-50 Some models. Interior Lights qIlluminated Entry System When the illuminated entry system operates, the overhead light (switch is in...
Page 229 í qOverhead Lights Front Switch Front Overhead Lights Position Light off Light is on when any door is open (With illuminated entry system) Light is on or off when the illuminated entry system is on Rear Interior Equipment Switch Rear Overhead Lights Position Light off Light is on when any door is open...
Page 230 Interior Comfort Interior Equipment Switch Luggage Compartment Light Position Light off Light on when the liftgate is open 6-52...
Page 231: Information Display
Trip computer/Clock With trip computer Without trip computer qInformation Display Functions The information display has the following functions: Clock Ambient Temperature Display (Outside Temperature Display) Climate Control Display (Fully Automatic Type) Audio Display í Trip Computer Information Display Audio display Interior Comfort Interior Equipment Climate control display/Ambient...
Page 232 Interior Comfort Interior Equipment qClock NOTE When the trip computer is displayed, press the CLOCK button to change the display to the time. When the ignition switch is in the ACC or ON position, the time is displayed. Time setting 1.
Page 233 When the time is being displayed, press the INFO switch to change the display to the trip computer. If you have any problems with your trip computer, consult an Authorized Mazda Dealer. Current fuel economy mode This mode displays the current fuel...
Page 234 Interior Comfort Interior Equipment U.S.A. CANADA When you've slowed to about 5 km/h (3 mph), L/100 km ( displayed. Average fuel economy mode This mode displays the average fuel economy by calculating the fuel consumption and the distance traveled since connecting the battery or resetting the data.
Page 235 U.S.A. CANADA NOTE Even though the distance-to-empty display may indicate a sufficient amount of remaining mileage before refueling is required, refuel as soon as possible if the fuel gauge needle nears E or the low fuel warning light illuminates. The display won't change unless you add more than approximately 20 L(5.3 gal) of fuel.
Page 236: Lighter
Ø Don't use the lighter socket for plug-in accessories such as shavers and coffee pots. They may damage it or cause electrical failure. Use only a genuine Mazda lighter or the equivalent. Ø If the lighter doesn't pop out within 30 seconds, remove it to prevent overheating.
Page 237: Cup Holder
Cup Holder WARNING Never use a cup holder to hold hot liquids while the vehicle is moving: Using a cup holder to hold hot liquids while the vehicle is moving is dangerous. If the contents spill, you could be scalded. Do not put anything other than cups or drink cans in cup holders: Putting objects other than cups or...
Page 238: Bottle Holder
Interior Comfort Interior Equipment Bottle Holder Bottle holders are on the inside of the front doors. Bottle holder CAUTION Do not use the bottle holders for containers without caps. The contents may spill when the door is opened or closed. 6-60 Storage Compartments WARNING...
Page 239 qCenter Console To open, pull the lower release latch. Small items can be placed in the tray of the center console lid. To open it, pull the upper release latch. qCargo Securing Loops (5 Door) WARNING Make sure luggage and cargo is secured before driving: Not securing cargo while driving is dangerous as it could move or be...
Page 240 Interior Comfort Interior Equipment Without flexible floor board To use the cargo sub-compartment, remove or lift the trunk board. Trunk board Cargo sub- compartment qFlexible Floor Board (5 Door) The luggage compartment can be separated vertically and/or horizontally, using the trunk board and the trunk board loops.
Page 241 2. Insert the trunk board loops into the trunk board slits. Trunk board NOTE To facilitate insertion of the trunk board loops into the trunk board slits, first insert the bottom of the rear trunk board into the groove of the luggage sub-compartment. Cargo sub- compartment 3.
Page 242: Accessory Sockets Í
Accessory Sockets The ignition switch must be in the ACC or ON position to prevent the battery from discharging. Only use genuine Mazda accessories or the equivalent requiring no greater than 120 W (DC 12 V, 7 A). CAUTION To prevent accessory socket damage...
Page 243 When placing an electrical device (e.g. cellular phone) in the tray which is connected to the accessory socket, pass the connection plug cord through the slot in the cap. Cap slot, closed Cap slot, opened 1. Open the lid by pulling the upper release catch.
Page 244 Interior Comfort Interior Equipment 7. Pass the connection plug cord through the slit in the tray mat and then set the tray mat in place. 6-66...
Page 245: In Case Of An Emergency
In Case of an Emergency Helpful information on what to do in an emergency. Parking in an Emergency ... 7-2 Parking in an Emergency ... 7-2 Flat Tire ... 7-3 Spare Tire and Tool Storage ... 7-3 Changing a Flat Tire ... 7-8 Overheating ...
Page 246: Parking In An Emergency
In Case of an Emergency Parking in an Emergency Parking in an Emergency The hazard warning lights should always be used when you stop on or near a roadway in an emergency. The hazard warning lights warn other drivers that your vehicle is a traffic hazard and that they must take extreme caution when near it.
Page 247: Flat Tire
In Case of an Emergency Flat Tire Spare Tire and Tool Storage Spare tire and tools are stored in the locations illustrated in the diagram. 4 Door Spare tire Jack Tiedown eyelet Lug wrench Jack handle...
Page 248 In Case of an Emergency Flat Tire 5 Door (Type A) Jack Jack handle (Type B) Jack Jack handle Lug wrench Lug wrench Tiedown eyelet Spare tire Tiedown eyelet Spare tire...
Page 249 Make sure the jack screw is sufficiently tightened. qSpare Tire Wing bolt Your Mazda has a temporary spare tire. The temporary spare tire is lighter and smaller than a conventional tire, and is designed only for emergency use and should be used only for VERY short periods.
Page 250 Ø Do not use your temporary spare tire on any other vehicle; it has been designed only for your Mazda. Ø Use only one temporary spare tire on your vehicle at the same time. Ø (With limited slip differential)
Page 251 To remove the spare tire (4 Door) 1. Remove the trunk mat and trunk board. 2. Turn the tire hold-down bolt counterclockwise with the lug wrench. In Case of an Emergency (5 Door) 1. Remove the trunk mat, trunk board and cargo sub-compartment.
Page 252: Changing A Flat Tire
CAUTION (With Tire Pressure Monitoring System) The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors. Do not use non-genuine wheels, otherwise it may not be possible to install the tire pressure sensors.
Page 253 qRemoving a Flat Tire 1. If your vehicle is equipped with a wheel cover, pry off the wheel cover with the beveled end of the lug wrench. NOTE Force the end of the lug wrench firmly between wheel and cover, or removal will be difficult. CAUTION There is a valve-stem mark inside the wheel cover.
Page 254 Before removing the lug nuts, make sure your Mazda is firmly in position and that it cannot slip or move. 6. Remove the lug nuts by turning them counterclockwise;...
Page 255 If you lose this key, consult an Authorized Mazda Dealer or use the lock manufacturer's order form, which is with the registration card.
Page 256 Because the wheel studs and lug nuts on your Mazda have metric threads, using a non-metric nut is dangerous. On a metric stud, it would not secure the wheel and would damage the stud, which could cause the wheel to slip off and cause an accident.
Page 257 7. Have the flat tire repaired or replaced as soon as possible. WARNING Do not drive with any tires that have incorrect air pressure: Driving on tires with incorrect air pressure is dangerous. Tires with incorrect pressure could affect handling and result in an accident. When you check the regular tires' air pressure, check the spare tire, too.
Page 258: Overheating
If the cooling fan does not operate while the engine is running, the engine temperature will increase. Stop the engine and call an Authorized Mazda Dealer. 6. Make sure the cooling fan is operating, then turn off the engine after the temperature has decreased.
Page 259 Carefully add coolant as required (page 8-21). CAUTION If the engine continues to overheat or frequently overheats, have the cooling system inspected. The engine could be seriously damaged unless repairs are made. Consult an Authorized Mazda Dealer. In Case of an Emergency Overheating 7-15...
Page 260: Emergency Starting
4. If the engine fails to start, crank it without depressing the accelerator for up to 10 seconds. If the engine still does not start using the above procedure, have your vehicle inspected by an Authorized Mazda Dealer. 7-16...
Page 261: Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel unsure about jump-starting, we strongly recommend that you have a competent service technician do the work. WARNING Follow These Precautions Carefully: To ensure safe and correct handling of the battery, read the following precautions carefully before using the battery or inspecting it.
Page 262 In Case of an Emergency Emergency Starting Keep all flames, including cigarettes, and sparks away from open battery cells: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious burns and injuries.
Page 263 1. Remove the battery cover from its front side. Battery cover 2. Make sure the booster battery is 12 V and that its negative terminal is grounded. 3. If the booster battery is in another vehicle, don't allow both vehicles to touch.
Page 264: Push-Starting
In Case of an Emergency Emergency Starting Push-Starting Do not push-start your Mazda. WARNING Never tow a vehicle to start it: Towing a vehicle to start it is dangerous. The vehicle being towed could surge forward when its engine starts, causing the two vehicles to collide.
Page 265: Emergency Towing
Towing Description We recommend that towing be done only by an Authorized Mazda Dealer or a commercial tow-truck service. Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed. A towed vehicle usually should have its drive wheels (front wheels) off the ground.
Page 266: Tiedown Hook
In Case of an Emergency Emergency Towing CAUTION Do not use the hooks under the rear bumper for towing and tying down, as they cannot hold the load and it will damage the bumper. Hooks 7-22 Tiedown Hook CAUTION Don't use the tiedown hook under the rear for towing.
Page 267: Recreational Towing
3. Securely install the tiedown eyelet using the lug wrench. Lug wrench 4. Hook the tying rope to the tiedown eyelet. CAUTION If the tiedown eyelet is not securely tightened, it may loosen or disengage from the bumper when tying down the vehicle.
Page 268 7-24...
Page 269: Maintenance And Care
Maintenance and Care How to keep your Mazda in top condition. Introduction ... 8-2 Introduction ... 8-2 Scheduled Maintenance ... 8-3 Scheduled Maintenance (USA, Canada, and Puerto Rico) ... 8-3 Scheduled Maintenance (Mexico) ... 8-8 Owner Maintenance ... 8-15 Owner Maintenance Schedule ... 8-15 Owner Maintenance Precautions ...
Page 270: Introduction
Claims against the warranty resulting from lack of maintenance, as opposed to defective materials or authorized Mazda workmanship, will not be honored. Any auto repair shop using parts equivalent to your Mazda's original equipment may perform maintenance. But we recommend that it always be done by an Authorized...
Page 271: Scheduled Maintenance
Scheduled Maintenance (USA, Canada, and Puerto Rico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are being used Driving on rough or muddy roads Extended periods of idling or low-speed operation Driving for long periods in cold temperatures or extremely humid climates...
Page 272 Maintenance and Care Scheduled Maintenance qSchedule 1 Maintenance Interval ENGINE Engine valve clearance Drive belts (tension) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission IGNITION SYSTEM Spark plugs CHASSIS and BODY...
Page 273 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 274 Maintenance and Care Scheduled Maintenance qSchedule 2 Maintenance Interval ENGINE Engine valve clearance Drive belts (tension) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant Engine coolant level FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission IGNITION SYSTEM Spark plugs (without turbocharger) Spark plugs (with turbocharger)
Page 275 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 276: Scheduled Maintenance (Mexico)
Maintenance and Care Scheduled Maintenance Scheduled Maintenance (Mexico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are being used Driving on rough or muddy roads Extended periods of idling or low-speed operation Driving for long periods in cold temperatures or extremely humid climates...
Page 277 qSchedule 1 Maintenance Interval ENGINE Engine valve clearance Drive belts (tension) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission Fuel filter IGNITION SYSTEM Spark plugs CHASSIS and BODY Brake lines, hoses and connections Brake and clutch fluid level...
Page 278 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 279 qSchedule 2 Maintenance Interval ENGINE Engine valve clearance Drive belts (tension) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant Engine coolant level FUEL SYSTEM Air cleaner element Fuel lines and hoses Hoses and tubes for emission Fuel filter IGNITION SYSTEM Spark plugs ELECTRICAL SYSTEM...
Page 280 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 281 (Cont.) Maintenance Interval ENGINE Engine valve clearance Drive belts (tension) Engine oil Engine oil filter COOLING SYSTEM Cooling system Engine coolant Engine coolant level FUEL SYSTEM Air filter Fuel lines and hoses Hoses and tubes for emission Fuel filter IGNITION SYSTEM Spark plugs ELECTRICAL SYSTEM Function of all lights...
Page 282 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 283: Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the indicated intervals to ensure safe and dependable operation. Bring any problem to the attention of an Authorized Mazda Dealer or qualified service technician as soon as possible.
Page 284: Owner Maintenance Precautions
Improper owner maintenance during the warranty period may affect warranty coverage. For details, read the separate Mazda Warranty statement provided with the vehicle. If you're unsure about any servicing or maintenance procedure, have it done by an Authorized Mazda Dealer.
Page 285: Engine Compartment Overview
Engine Compartment Overview Without turbocharger Engine coolant Engine oil-filler cap reservoir Power steering fluid reservoir Windshield washer fluid reservoir With turbocharger Engine coolant reservoir Power steering Engine oil-filler cap fluid reservoir Windshield washer fluid reservoir Brake/Clutch fluid reservoir Engine oil dipstick Automatic transaxle fluid-level dipstick (Only for automatic transaxle)
Page 286: Engine Oil
Maintenance and Care Owner Maintenance Engine Oil NOTE Changing the engine oil should be done by an Authorized Mazda Dealer. qRecommended Oil Use SAE 5W-20 engine oil (Without turbocharger). Oil container labels provide important information. A chief contribution this type of oil makes...
Page 287 International Lubricant Standardization and Approval Committee (ILSAC), comprised of U.S. and Japanese automobile manufacturers. Except U.S.A. and CANADA Maintenance and Care Owner Maintenance –30 –20 –10 –20...
Page 288 Maintenance and Care Owner Maintenance The quality designation SM, or ILSAC must be on the label. –30 –20 –10 –20 5W-30 qInspecting Engine Oil Level 1. Be sure the vehicle is on a level surface. 2. Warm up the engine to normal operating temperature.
Page 289: Engine Coolant
NOTE Changing the coolant should be done by an Authorized Mazda Dealer. Maintenance and Care Owner Maintenance Inspect the antifreeze protection and coolant level in the coolant reservoir at...
Page 290 If engine coolant other than FL22 type is used, the engine coolant must be replaced earlier than the specified replacement interval indicated in the scheduled maintenance (page 8-3). If the coolant reservoir is empty or new coolant is required frequently, consult an Authorized Mazda Dealer.
Page 291: Brake/Clutch Fluid
Ø Using nonspecified brake and clutch fluids (page 10-4) will damage the systems. Mixing different fluids will also damage them. If the brake/clutch system frequently requires new fluid, consult an Authorized Mazda Dealer. 8-23...
Page 292: Power Steering Fluid
Add fluid if necessary; it does not require periodic changing. Without turbocharger With turbocharger 8-24 The level must be kept between MIN and MAX. Visually examine the lines and hoses for leaks and damage. If new fluid is required frequently, consult an Authorized Mazda Dealer.
Page 293: Automatic Transaxle Fluid (Atf) Í
Automatic Transaxle Fluid í (ATF) qInspecting Automatic Transaxle Fluid Level The automatic transaxle fluid level should be inspected regularly. Measure it as described below. CAUTION Ø Always check the automatic transaxle fluid level according to the following procedure. If the procedure is not done correctly, the automatic transaxle fluid level cannot be measured accurately...
Page 294 Maintenance and Care Owner Maintenance The volume of fluid changes with temperature. Fluid must be checked while idling the engine without driving at normal operating temperature. CAUTION Ø Low fluid level causes transaxle slippage. Overfilling can cause foaming, loss of fluid, and transaxle malfunction.
Page 295: Washer Fluid
Fully insert the dipstick. When adding fluid, inspect with the dipstick to make sure it doesn't pass full. NOTE Inspect the fluid on both sides of the dipstick in a well lit area for an accurate reading. Maintenance and Care Owner Maintenance Washer Fluid qInspecting Washer Fluid Level...
Page 296: Body Lubrication
Maintenance and Care Owner Maintenance Inspect fluid level in the washer fluid reservoir; add fluid if necessary. To inspect the washer fluid level in the front reservoir, pull off the cap. Then, holding your thumb over the hole in the center of the cap, lift it straight up.
Page 297: Wiper Blades
Be careful not to pinch hands or fingers as it may cause injury, or damage the wipers. When washing or servicing your Mazda, make sure the wiper lever is in the OFF position. Contamination of either the windshield or the blades with foreign matter can reduce wiper effectiveness.
Page 298 Maintenance and Care Owner Maintenance 2. Pull down the blade rubber and slide it out of blade holder. 3. Remove the metal stiffener from each blade rubber and install them in the new blade. CAUTION Ø Don't bend or discard the stiffener. You need to use them again.
Page 299 CAUTION To prevent damage to the rear window let the wiper arm down easily, don't let it slap down on the rear window. 2. Pull down the blade rubber and slide it out of the blade holder. 3. Remove the metal stiffener from each blade rubber and install them in the new blade.
Page 300: Battery
Maintenance and Care Owner Maintenance WARNING Wash hands after handling the battery and related accessories: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Read the following precautions carefully before using the battery or inspecting to ensure safe and correct handling: Always wear eye protection when working near the battery: Working without eye protection is dangerous.
Page 301 Maintenance and Care Owner Maintenance Keep all flames, including cigarettes, and sparks away from open battery cells: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious burns and injuries.
Page 302 Maintenance and Care Owner Maintenance NOTE Remove the battery cover before performing battery maintenance. Battery cover qBattery Maintenance To get the best service from a battery: Keep it securely mounted. Keep the top clean and dry. Keep terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.
Page 303: Tires
(radial, bias-belted, bias-type) on all four wheels. Using Wrong-Sized Tires: Using any other tire size than what is specified for your Mazda (page 10-8) is dangerous. It could seriously affect ride, handling, ground clearance, tire clearance, and speedometer calibration.
Page 304 Reduced braking, steering, and traction could result in an accident. CAUTION (With Tire Pressure Monitoring System) When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged.
Page 305 NOTE (With Tire Pressure Monitoring System) When tires with steel wire reinforcement in the sidewalls are used, the system may not function correctly even with a genuine wheel. Refer to System Error Activation on page 5-30. Be sure to install the tire pressure sensors whenever tires or wheels are replaced.
Page 306 Ø (With Tire Pressure Monitoring System) Ø When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. Ø The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors.
Page 307: Light Bulbs
4 Door Overhead light/Map lights (Front) Headlights (Low beam) Headlights (High beam) Fog lights Front turn signal lights/Side-marker lights Side turn signal lights 5 Door Overhead light/Map lights (Front) Headlights (Low beam) Headlights (High beam) Fog lights Front turn signal lights/Side- marker lights Side turn signal lights Owner Maintenance...
Page 308 Consult an Authorized Mazda Dealer when the replacement is necessary. Never touch the glass portion of a halogen bulb with your bare hands and...
Page 309 3. Perform the following procedure when replacing the left headlight bulb. Remove the clip, grasp the attached area of the slide mount and lift it upward, and then slide the slide mount to a position where it does not interfere with the frame.
Page 310 (Xenon fusion bulb) You cannot replace the low beam bulbs by yourself. The bulbs must be replaced at an Authorized Mazda Dealer. (Halogen bulb) 1. Detach the electrical connector from the bulb by pulling it to the rear. 2. Pull off the sealing cover.
Page 311 Front turn signal lights/Side-marker lights Due to the complexity and difficulty of the procedure, the bulbs should be replaced by an Authorized Mazda Dealer. Side turn signal lights 1. Slide the unit as shown in the figure to remove it.
Page 312 Brake lights/Taillights (4 Door) With LED bulb Due to the complexity and difficulty of the procedure, the LED bulbs should be replaced by an Authorized Mazda Dealer. NOTE LED bulb replacement is not possible. The rear combination component must be replaced.
Page 313 4. Install the new bulb in the reverse order of removal. NOTE To replace the bulb, contact an Authorized Mazda Dealer. Rear turn signal lights (4 Door) 1. Pull the center of each plastic retainer, and then remove the retainers and the trunk end trim.
Page 314 4. Disconnect the bulb from the socket. 5. Install the new bulb in the reverse order of removal. NOTE To replace the bulb, contact an Authorized Mazda Dealer. Rear turn signal lights (5 Door) 1. Remove the cover. Left side 8-46 Right side 2.
Page 315 3. Disconnect the bulb from the socket. 4. Install the new bulb in the reverse order of removal. NOTE To replace the bulb, contact an Authorized Mazda Dealer. 5 Door 1. Remove the cover. Maintenance and Care Owner Maintenance 2. Turn the socket and bulb assembly counterclockwise and remove it.
Page 316 5 Door With LED bulb Due to the complexity and difficulty of the procedure, the LED bulbs should be replaced by an Authorized Mazda Dealer. With Non-LED bulb 1. Remove the liftgate upper trim. 8-48 2. Disconnect the electrical connector from the socket.
Page 317 Overhead light/Map lights (Front) Due to the complexity and difficulty of the procedure, the bulbs should be replaced by an Authorized Mazda Dealer. Overhead light (Rear) 1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the...
Page 318: Fuses
If a fuse has blown, the inside element will be melted. If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible. qFuse Replacement Replacing the fuses on the front passenger's side below the glove box...
Page 319 If it does not fit tightly, have an expert install it. We recommend an Authorized Mazda Dealer. If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the MIRROR or CIGAR circuit.
Page 320 Normal 8-52 Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement: Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect...
Page 321 qFuse Panel Description Fuse block (Engine compartment) Without turbocharger DESCRIPTION P/ST HEAD GLOW ABS 1 ABS 2 ENGINE IG KEY 1 STARTER IG KEY 2 GLOW 1 HEATER GLOW 2 DEFOG FUSE RATING Cooling fan Power steering For protection of various circuits Headlights For protection of various circuits Ignition switch...
Page 322 Maintenance and Care Owner Maintenance DESCRIPTION AUDIO ABS IG HORN H/CLEAN F/PUMP P/ST IG A/C MAG ALT/TCM GLOW SIG P.OUTLET ENG +B ROOM ENG BAR 4 ENG BAR 3 EGI INJ ENG BAR 1 ENG BAR 2 With turbocharger DESCRIPTION HEAD F/PUMP ABS 1...
Page 323 DESCRIPTION ABS IG HORN H/CLEAN A/C MAG P.OUTLET ENG +B ROOM ENG BAR 3 ENG BAR 1 ENG BAR 2 FUSE RATING PROTECTED COMPONENT Front fog lights Horn í Elec. throttle valve Air conditioner Power outlet Interior lights sensors For protection of various circuits PCM, Fuel pump Maintenance and Care Owner Maintenance...
Page 324 Maintenance and Care Owner Maintenance Fuse block (Passenger's side) DESCRIPTION D/LOCK 2 STOP LAMP/HORN HEAD HIGH L HEAD HIGH R CIGAR RADIO MIRROR TAIL R TR/LOCK SUN ROOF WASHER P/WIND R í 8-56 Some models. 37 38 39 40 41 42 43 44 45 46 47 48 49 50 515253 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 7475 76 77 78 79 80 81 82 83 84 85 86 FUSE RATING...
Page 325 DESCRIPTION P/WIND L ALARM M/DEF HEAD LOW R HEAD LOW L METER IGNITION WIPER ENGINE IG SIG SAS 2 SEAT WARM D/LOCK 1 P/WIND L P/WIND R BACK SUN ROOF TAIL L ILLUMI FUSE RATING PROTECTED COMPONENT 7.5A Mirror Defroster Headlight low beam (RH), Headlight leveling Headlight low beam (LH) Supplemental restraint system...
Page 326: Appearance Care
Prevention It is necessary to have your Mazda washed and waxed to preserve its finish according to the instructions in this section. This should be done as soon as possible.
Page 327 This increases the chance of paint chipping. Chipped paint can lead to rust forming on your Mazda. Before this happens, repair the damage by using Mazda touch-up paint according to the instructions in this section. Failure to repair the affected area could lead to serious rusting and expensive repairs.
Page 328: Exterior Care
Be careful not to pinch hands or fingers as it may cause injury, or damage the wipers. When washing or servicing your Mazda, make sure the wiper lever is in the OFF position. To help protect the finish from rust and...
Page 329 CAUTION Ø Don't use steel wool, abrasive cleaners, or strong detergents containing highly alkaline or caustic agents on chrome-plated or anodized aluminum parts. This may damage the protective coating; also, cleaners and detergents may discolor or deteriorate the paint. Ø To prevent damaging the antenna, remove it before entering a car wash facility or passing beneath a low overhead clearance.
Page 330 Exposed metal quickly rusts and can lead to major repairs. CAUTION If your Mazda is damaged and needs metal parts repaired or replaced, make sure the body shop applies anti-corrosion materials to all parts, both repaired and new. This will prevent them from rusting.
Page 331: Interior Care
qAluminum Wheel Maintenance A protective coating is provided over the aluminum wheels. Special care is needed to protect this coating. NOTE Don't use a wire brush or any abrasive cleaner, polishing compound, or solvent on aluminum wheels. They may damage the coating.
Page 332 í 8-64 Some models. WARNING Have an Authorized Mazda Dealer replace damaged seat belts immediately: Using damaged seat belts is dangerous. In a collision, damaged belts cannot provide adequate protection.
Page 333: Customer Information And Reporting Safety Defects
Mazda Importer/Distributors ... 9-10 Importer/Distributor ... 9-10 Distributor in Each Area ... 9-10 Warranty ... 9-12 Warranties for Your Mazda ... 9-12 Outside the United States ... 9-13 Outside Canada ... 9-14 Registering Your Vehicle in A Foreign Country (Except United States and Canada) ...
Page 334: Customer Assistance
Authorized Mazda Dealer. qSTEP 1: Contact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 335: Customer Assistance (Puerto Rico)
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on the upper driver's side corner of the dash) 4. Purchase date and current mileage 5. Your dealer's name and location 6. Your question(s) If you live outside the U.S.A., please contact your nearest Mazda Distributor.
Page 336: Customer Assistance (Mexico)
Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In our experience, any questions, problems, or complaints regarding the operation of your Mazda or any other general service transactions are most effectively resolved by your dealer.
Page 337 If a specific item of concern arises, where a solution cannot be reached between an owner, Mazda, and/or one of it's dealers (that all parties cannot agree upon), the owner may wish to use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 338 Provincial Administrators may be reached locally as listed below: Province/Territory British Columbia & Yukon Territories Alberta & Northwest Territories Saskatchewan Atlantic Canada qRegional Offices REGIONAL OFFICES MAZDA CANADA INC. WESTERN REGION 8171 ACKROYD ROAD SUITE 2000 RICHMOND B.C. V6X 3K1 (604) 303-5670 MAZDA CANADA INC.
Page 339 1 Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 340 1: Contact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 341 Customer Information and Reporting Safety Defects Customer Assistance In order to serve you efficiently and effectively, please help us by providing the following information: 1. Your name, address, and telephone number 2. Year and model of vehicle 3. Vehicle Identification Number (17 digits, noted on your registration or title or located on the upper driver's side corner of the dash) 4.
Page 342: Mazda Importer/Distributors
55 Vogell Road, Richmond Hill, Ontario, L4B 3K5 Canada TEL: 1 (800) 263-4680 (in Canada) (905) 787-7000 (outside Canada) qPUERTO RICO/U.S. Virgin Island Plaza Motors Corp. (Mazda de Puerto Rico) P.O. Box 362722, San Juan, Puerto Rico 00936-2722 TEL: (787) 641-9300...
Page 343 Customer Information and Reporting Safety Defects Mazda Importer/Distributors Triple J Saipan, Inc. (d.b.a. Triple J Motors) P.O. Box 500487 Saipan, MP 96950-0487 TEL: (670) 234-7133/3051 qAMERICAN SAMOA Polynesia Motors, Inc. P.O. Box 1120, Pago Pago, American Samoa 96799 TEL: (684) 699-9347...
Page 344: Warranty
Federal Emission Control Warranty (U.S.A. only) Emission Defect Warranty Emission Performance Warranty California Emission Control Warranty (U.S.A. only) Emission Control Warranty (Canada only) Replacement Parts and Accessories Limited Warranty Tire Warranty NOTE Detailed warranty information is provided with your Mazda. 9-12...
Page 345: Outside The United States
We strongly recommend that you NOT take your Mazda outside the United States. However, in the event that you are moving to Canada permanently, Mazda vehicles built for use in the United States could be eligible for exportation to Canada with specific vehicle modifications to comply with the Canadian Motor Vehicle Safety requirements (CMVSS).
Page 346: Outside Canada
We strongly recommend that you NOT take your Mazda outside Canada. However, in the event that you are moving to the United States permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the United States with specific vehicle modifications to comply with the United States Federal Motor Vehicle Safety Standards (FMVSS).
Page 347: Registering Your Vehicle In A Foreign Country (Except United States And Canada)
Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be unavailable. There might not be an Authorized Mazda Dealer in the country you plan to take your vehicle. The Mazda warranty is valid only in certain countries.
Page 348: Add-On Non-Genuine Parts And Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores. These may fit your vehicle, but they are not approved by Mazda for use with Mazda vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's performance or safety systems;...
Page 349: Cell Phones
WARNING Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country: Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous. Dialing a number on a cell phone while driving also ties-up the driver's hands.
Page 350: Type Approval Of Equipment
Customer Information and Reporting Safety Defects Type Approval of Equipment Type Approval of Equipment Immobilizer system 9-18...
Page 351 Customer Information and Reporting Safety Defects Type Approval of Equipment Keyless entry system 9-19...
Page 352: Uniform Tire Quality Grading System (Utqgs)
Customer Information and Reporting Safety Defects Uniform Tire Quality Grading System (UTQGS) Uniform Tire Quality Grading System (UTQGS) This information relates to the tire grading system developed by the U.S. National Highway Traffic Safety Administration for grading tires by tread wear, traction, and temperature performance.
Page 353 These grades will be added to the sidewalls of passenger vehicle tires over the next several years according to a schedule established by the NHTSA and the tire manufacturers. The grade of tires available as standard or optional equipment on Mazda vehicles may vary with respect to grade.
Page 354: Tire Information (U.s.a.)
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tire Labeling Federal law requires tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a tire identification number for safety standard certification and in case of a recall.
Page 355 11. Tread wear, traction and temperature grades 12. Max. permissible inflation pressure 13. SAFETY WARNING P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation of the various components of that tire size and load index rating. Note that the tire size and load index rating may be different from the example.
Page 356 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) H is the speed rating. The speed rating denotes the maximum speed for which the use of the tire is rated. Letter Rating * For tires with a maximum speed capability over 149 mph, tire manufacturers sometimes use the letters ZR. For tires with a maximum speed capability over 186 mph, tire manufacturers always use the letters ZR.
Page 357 Tread Wear, Traction and Temperature Grades Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100.
Page 358 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qInformation on Temporary Tires Please refer to the diagram below. 1. Temporary tires 2. Nominal width of tire in millimeters 3. Ratio of height to width (aspect ratio) 4. Diagonal 5. Rim diameter code 6.
Page 359 70 is the aspect ratio. This two-digit number indicates the tire's ratio of height to width. D is the tire construction symbol. D indicates diagonal ply construction . 16 is the wheel rim diameter in inches. 90 is the Load Index. This two-or three-digit number indicates how much weight each tire can support.
Page 360: Location Of The Tire Label (Placard)
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Location of the Tire Label (Placard) You will find the tire label containing tire inflation pressure by tire size and other important information on the driver's side B-pillar or on the edge of the driver's door frame. SAMPLE qRecommended Tire Inflation Pressure On the tire label you will find the recommended tire inflation pressure in both kPa and psi...
Page 361 WARNING Always check the tire inflation pressures on a regular basis according to the recommended tire inflation pressure on the tire label and in conjunction with the information in this owner's manual: Driving your vehicle with under-inflated tires is dangerous. Under-inflation is the most common cause of failures in any kind of tire and may result in severe cracking, tread separation or “blowout”, with unexpected loss of vehicle control and increased risk of injury.
Page 362 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qGlossary of Terms Tire Placard: A label indicating the OE tire sizes, recommended inflation pressure, and the maximum weight the vehicle can carry. Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size, and date of manufacture.
Page 363: Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are some important maintenance points: qTire Inflation Pressure Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain recommended pressures for the best ride, top handling, and minimum tire wear. Use the pressures specified on the vehicle tire information placard or tire label for optimum service.
Page 364 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) CAUTION Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs only from front to rear, not from side to side. Tire performance will be weakened if rotated from side to side. (With limited-slip differential) Don't use the following: Ø...
Page 365 qSafety Practices The way you drive has a great deal to do with your tire mileage and safety. So cultivate good driving habits for your own benefit. Observe posted speed limits Avoid fast starts, stops and turns Avoid potholes and objects on the road Do no run over curbs or hit the tire against the curb when parking CAUTION If you feel a sudden vibration or ride disturbance while driving or you suspect your...
Page 366: Vehicle Loading
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to tow a trailer and doing so will affect the drive system which could result in vehicle damage.
Page 367 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Base Curb Weight is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment. Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your dealer plus any aftermarket equipment.
Page 368 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE CARGO Cargo Weight includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight.
Page 369 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849 lbs) for the combination weight of occupants and cargo should never exceed : The cargo weight limit with one occupant is 385 kg (849 lbs) _ 68 kg (150 lbs) = 317 kg (699 lbs) The cargo weight limit with two occupants is 385 kg (849 lbs) _ (68 ×...
Page 370 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE WARNING Exceeding Axle Weight Rating Limits: Exceeding the Safety Certification Label axle weight rating limits is dangerous and could result in death or serious injury as a result of substandard vehicle handling, performance, engine, transmission and/or structural damage, serious damage to the vehicle, or loss of control.
Page 371 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can handle without risking damage.
Page 372 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Exceeding GVWR or GAWR Specifications: Exceeding the GVWR or the GAWR specified on the certification label is dangerous. Exceeding any vehicle rating limitation could result in a serious accident, injury, or damage to the vehicle.
Page 373: Steps For Determining The Correct Load Limit
Steps for Determining the Correct Load Limit: Steps for Determining Correct Load Limit: (1) Locate the statement The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs on your vehicle's placard. (2) Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 374: Reporting Safety Defects
7755 Irvine Center Drive Irvine, California 92618-2922 P.O. Box 19734 Irvine, CA 92623-9734 Customer Assistance Center or toll free at 1 (800) 222-5500 If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown (page 9-10) in this booklet. 9-42...
Page 375: Reporting Safety Defects (Canada)
Customer Information and Reporting Safety Defects Reporting Safety Defects Reporting Safety Defects (Canada) Canadian customers who wish to report a safety-related defect to Transport Canada, Defect Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330 Sparks Street, Ottawa ON K1A 0N5.
Page 376: Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do some of their own maintenance and repair. When requesting any of our publications through an Authorized Mazda Dealer, refer to the chart below. If they don't have what you need in stock, they can order it for you.
Page 377 Customer Information and Reporting Safety Defects Service Publications qNAVIGATION SYSTEM OWNER'S MANUAL: This booklet contains information regarding the proper operation and use of the navigation system. This is not a technician's manual. 9-45...
Page 378 9-46...
Page 379 Specifications Technical information about your Mazda. Identification Numbers ... 10-2 Vehicle Information Labels ... 10-2 Specifications ... 10-4 Specifications ... 10-4 10-1...
Page 380: Identification Numbers
Identification Numbers Vehicle Information Labels qVehicle Identification Number The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the cowl panel located on the left corner of the dashboard. This plate can easily be seen through the windshield.
Page 381 Identification Numbers qTire Pressure Label qEngine Number Without turbocharger Forward With turbocharger Forward 10-3...
Page 382: Specifications
Specifications qEngine Item Type Bore×Stroke Displacement (1,999 cc, 122.0 cu in) Compression ratio qElectrical System Item Without turbocharger Battery With turbocharger Without turbocharger Spark-plug number With turbocharger Without turbocharger Spark-plug gap With turbocharger *1 ex factory NOTE When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.
Page 383 qCapacities (Approximate Quantities) Without turbocharger Engine oil With turbocharger Coolant Without turbocharger Manual transaxle oil With turbocharger 4-speed transaxle Automatic transaxle fluid 5-speed transaxle Fuel tank Check oil and fluid levels with dipsticks or reservoir gauges. qDimensions Item Without turbocharger Overall length With turbocharger Without...
Page 384 Specifications qWeights 4 Door 2.0-liter engine Item GVWR (Gross Vehicle Weight Rating) GAWR (Gross Axle Weight Rating) 2.3-liter engine Item GVWR (Gross Vehicle Weight Rating) GAWR (Gross Axle Weight Rating) 5 Door Without turbocharger Item GVWR (Gross Vehicle Weight Rating) GAWR (Gross Axle Weight Rating) With turbocharger Item...
Page 385 qLight Bulbs Exterior light Light bulb High beam Headlights Low beam Front turn signal lights/Side-marker lights í Fog lights Side turn signal lights 4 Door High-mount brake light 5 Door Rear turn signal lights Non-LED bulb Brake lights/Taillights LED bulb Reverse lights License plate light *1 Bulb replacement is not possible because it is built into the unit.
Page 386 NOTE The tires have been optimally matched with the chassis of your vehicle. When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer. Check the tire pressure label for tire size and inflation pressure.
Page 387: Index
Index 11-1...
Page 388 Index Accessory Socket ... 6-64 Add-On Non-Genuine Parts and Accessories ... 9-16 Air Bag Systems ... 2-40 Ambient Temperature Display ... 6-54 Antenna ... 6-15 Anti-Lock Brake System (ABS) ... 5-7 Warning light ... 5-8 Appearance Care ... 8-58 Ashtray ... 6-58 Audio System ...
Page 389 Customer Assistance ... 9-2 Dashboard Illumination ... 5-35 Daytime Running Lights ... 5-53 Defroster Rear window ... 5-58 Dimensions ... 10-5 Door Locks ... 3-8 Driving In Flooded Area ... 4-11 Driving Tips ... 4-7 Automatic transaxle ... 5-18 Break-in period ... 4-7 Driving in flooded area ...
Page 390 Index Glove Box ... 6-60 Hazard Warning Flasher ... 5-60 Hazardous Driving ... 4-8 Headlights Control ... 5-50 Flashing ... 5-52 High-low beam ... 5-52 Leveling ... 5-52 On reminder ... 5-52 Hood Release ... 3-21 Horn ... 5-59 Ignition Keys ...
Page 391 Manual Transaxle Operation ... 5-9 Recommendations for shifting... 5-10 Map Lights ... 6-51 Mirrors Outside mirrors ... 3-29 Rearview mirror ... 3-30 Money-Saving Suggestions ... 4-7 Moonroof ... 3-23 Odometer and Trip Meter ... 5-33 Outside Mirrors ... 3-29 Overhead Lights ... 6-51 Overheating ...
Page 392 Index Storage Compartments ... 6-60 Cargo securing loops ... 6-61 Cargo sub-compartment ... 6-61 Center console ... 6-61 Flexible Floor Board ... 6-62 Glove box ... 6-60 Sunshade ... 3-24 Sunvisors ... 6-50 Tachometer ... 5-34 Temporary Spare Tire ... 8-37 Theft-Deterrent System ...
Page 393 Washer Fluid ... 8-27 Weights ... 10-6 Wheel Replacement ... 8-38 Windows Power windows ... 3-18 Windshield Washer ... 5-57 Windshield Wipers ... 5-55 Blades replacement ... 8-29 Winter Driving ... 4-9 Index 11-7...
Page 394 11-8...

Mazda 2008 MazdaSpeed3 Owner's Manual

Table of Contents

3 Knowing Your Mazda

4 Before Driving Your Mazda

5 Driving Your Mazda

6 Interior Comfort

Climate Control System

Audio System

Interior Equipment

7 In Case of an Emergency

8 Maintenance and Care

Customer Information and Reporting 9

Quick Links

Chapters

Related Manuals for Mazda 2008 MazdaSpeed3

Summary of Contents for Mazda 2008 MazdaSpeed3

Table of Contents
