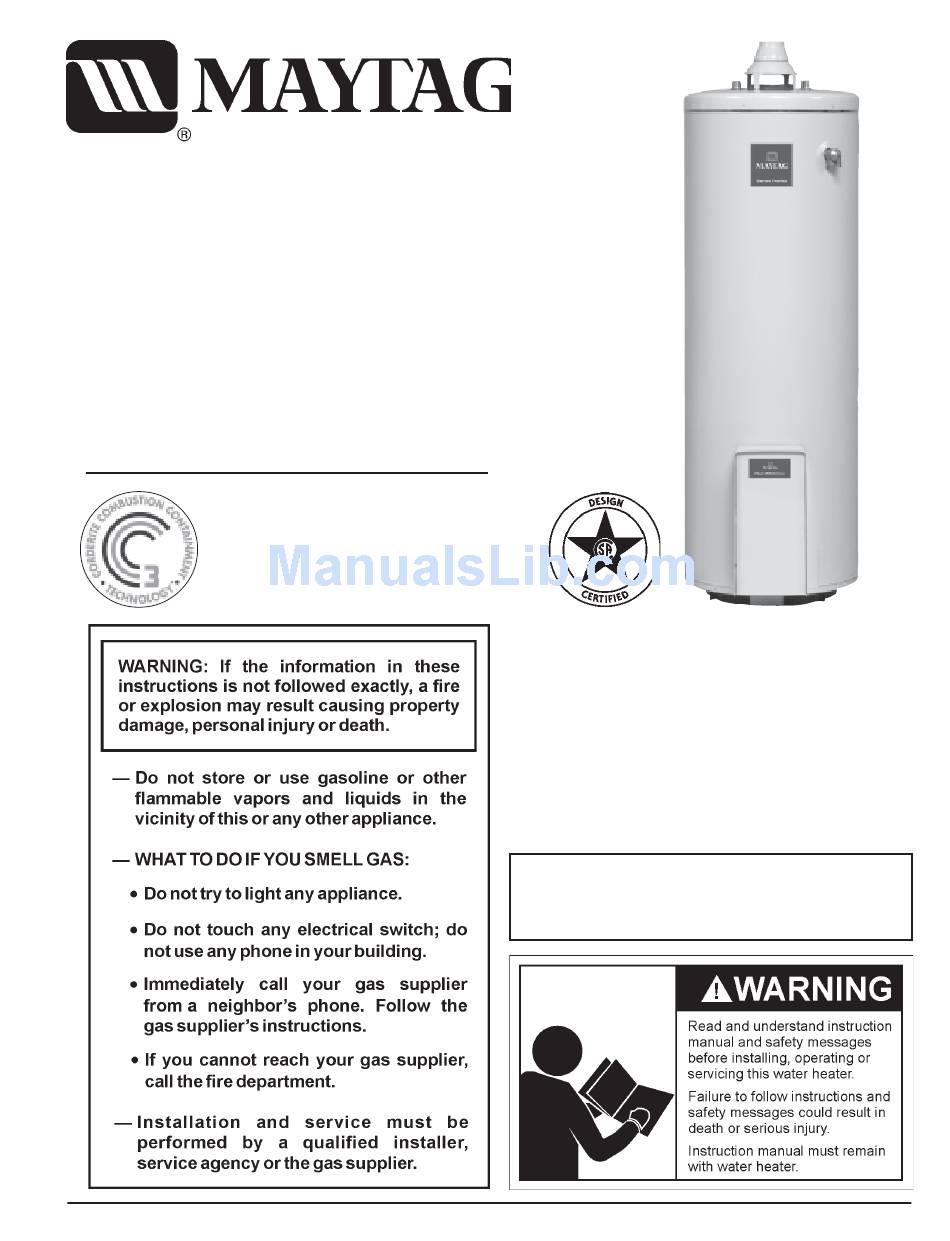

Series Twelve
GAS WATER HEATER
USER'S GUIDE
FOR POTABLE WATER HEATING ONLY
NOT SUITABLE FOR SPACE HEATING
NOT FOR USE IN
MANUFACTURED (MOBILE) HOMES
C3 Technology
the new ANSI Z21.10.1 standard that deals
with the accidental or unintended ignition
of flammable vapors, such as those
emitted by gasoline.
PRINTED IN THE U.S.A. 1204
TM
Gas Water Heaters meet
www.maytagwaterheaters.com
Model Numbers
HRN11240X
HRP11240X
HRN11250Q
HRP11250Q
HRN11250X
HRP11250X
For Your Safety
AN ODORANT IS ADDED TO THE GAS USED
BY THIS WATER HEATER.
1
HRN31240X
HRP31240X
HRN31250Q
HRP31250Q
HRN31250X
HRP31250X
PART NO. 66001861
184445-001
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Maytag HRN11240X
Summary of Contents for Maytag HRN11240X
-
Page 1: For Your Safety
ANSI Z21.10.1 standard that deals with the accidental or unintended ignition of flammable vapors, such as those emitted by gasoline. PRINTED IN THE U.S.A. 1204 Gas Water Heaters meet HRN11240X HRP11240X HRN11250Q HRP11250Q HRN11250X HRP11250X AN ODORANT IS ADDED TO THE GAS USED www.maytagwaterheaters.com... -
Page 2: Safe Installation, Use And Service
• Maytag Customer Service Center: The Maytag Customer Service Center has the ability equivalent to a licensed tradesman in the fields of plumbing, air supply, venting and gas supply, including a thorough understanding of the requirements of the National Fuel Gas Code as it relates to the installation of gas fired water heaters. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS... -
Page 4: Table Of Contents
Tools ... 6 INSTRUCTIONS FOR INSTALLATION ... Removing the Old Water Heater ... 7 TYPICAL INSTALLATION ... Get to Know Your Water Heater ... 8 Mixing Valve Usage ... 9 LOCATING THE NEW HEATER... Facts to Consider About the Location ... 10-11 Insulation Jackets ... -
Page 5: Customer Responsibilities
Thank You for purchasing a Maytag water heater. Properly installed and maintained, it should give you years of trouble free service. It is strongly suggested that this new water heater be professionally installed, contact Maytag Customer Service (1-800-788-8899) for recommended installers. -
Page 6: Accessories And Tools Needed
ACCESSORIES AND TOOLS NEEDED Accessories To simplify the installation Maytag has available the installation parts shown below. You may or may not need all of these accessories depending on your type of installation. Call Maytag Customer Service at 1-800-788-8899 for an authorized installer. -
Page 7: Instructions For Installation
6. If you have copper piping to the water heater, the two copper water pipes can be cut with a hacksaw approximately four inches away from where they connect to the water heater. -
Page 8: Typical Installation
GET TO KNOW YOUR WATER HEATER - GAS MODELS A Vent Pipe B Draft Hood C Anode D Hot Water Outlet E Outlet F Standard Pipe Fittings G Gas Supply H Manual Gas Shut-off Valve I Ground Joint Union * INSTALL IN ACCORDANCE WITH LOCAL CODES. -
Page 9: Mixing Valve Usage
Mixing valves are available at plumbing supply or hardware stores. See Figure 8. Valves for reducing point of use temperature by mixing cold and hot water are also available. Consult Maytag Customer Service (1-800-788-8899). Follow mixing valve manufacturer’s instructions for installation of the valves. Before changing the factory setting on the thermostat, read the “Temperature Regulation”... -
Page 10: Locating The New Heater
• Devices that will turn off the gas supply to a gas water heater while at the same time shutting off its water supply. -
Page 11: Insulation Jackets
Insulation Blankets Insulation blankets available to the general public for external use on gas water heaters are not necessary with Maytag products. The purpose of an insulation blanket is to reduce the standby heat loss encountered with storage tank heaters. Your... -
Page 12: In Unconfined Spaces
Combustion Air and Ventilation for Appliances Located in Unconfined Spaces UNCONFINED SPACE is space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed, through openings not furnished with doors, are considered a part of the unconfined space. -
Page 13: Water Piping
Refer to the Thermal Expansion section under Troubleshooting Guide or contact local plumbing authority or call Maytag Customer Service at 1-800-788-8899 for an authorized installer on how to control this situation. -
Page 14: T & P Valve And Pipe Insulation
It will harm the dip tube and damage the tank. • Look at the top cover of the water heater. The water outlet is marked “HOT”. Put two or three turns of teflon tape around the threaded end of the threaded-to-sweat coupling and around both ends of the 3/4”... -
Page 15: Filling The Water Heater
(150 psi = 1,035 kPa) and a discharge capacity not less than the water heater input rate as shown on the model rating plate. For safe operation of the water heater, the relief valve must not be removed from its designated opening nor plugged. -
Page 16: Venting
American National Standard ANSI Z21.68 (ANSI Z21.66 & 67, respectively, cover electrically and mechanically actuated vent dampers). Before installation of any vent damper, consult your Maytag Customer Service Center at 1-800-788-8899 or the local gas supplier for further information. -
Page 17: Gas Piping
Contact Maytag Customer Service at 1-800-788-8899 or your local gas supplier for any specific changes which may be required in your area. -
Page 18: Sediment Trap
ANSI Z223.1/NFPA 54. A sediment trap shall be installed as close to the inlet of the water heater as practical at the time of water heater installation. The sediment trap shall be either a tee fitting with a capped nipple in the bottom outlet or other device recognized as an effective sediment trap. -
Page 19: Operating Instructions
D. Do not use this appliance if any part has been under water. Immediately contact a qualified installer or service agency to replace a flooded water heater. Do not attempt to repair the unit! It must be replaced! LIGHTING INSTRUCTIONS... -
Page 20: Temperature Regulation
Temperature Regulation Due to the nature of the typical gas water heater, the water temperature in certain situations may vary up to 30F° (16.7 C°) higher or lower at the point of use such as, bathtubs, showers, sink, etc. Any water heater’s intended purpose is to heat water. Hot water is needed for cleansing, cleaning, and sanitizing (bodies, dishes, clothing). -
Page 21: Service And Maintenance
DEATH, SERIOUS BODILY INJURY, OR PROPERTY DAMAGE. Contact the Maytag dealer from whom the appliance was purchased or call Maytag Customer Service at 1-800-788-8899 for an authorized servicer to replace a flooded water heater. -
Page 22: Housekeeping
You may have a check valve installed in the water line or a water meter with a check valve. Consult Maytag Customer Service at 1-800-788-8899 for further information. Do not plug the temperature-pressure relief valve. -
Page 23: Drain Valve Washer Replacement
Operational Conditions found in the Troubleshooting Guide of this manual. If a condition persists or you are uncertain about the operation of the water heater, let the Maytag Customer Service Center check it out. Call the Maytag Customer Service at 1-800-788-8899 for an authorized servicer. -
Page 24: Smoke / Odor
Thermal expansion tanks are available for ordering through the Maytag Customer Service Center (1-800-788-8899). Contact the local plumbing inspector, water supplier and/or call Maytag Customer Service at 1-800-788-8899 for assistance in controlling these situations. -
Page 25: High Temperature Shut Off System
Turn “OFF” the entire gas supply to the water heater. The high temperature Shut-off is built into the gas control valve. It is non-resettable. If the high temperature Shut-off activates, the gas control valve must be replaced. Call Maytag Customer Service at 1-800-788-8899 for an authorized servicer. -
Page 26: Troubleshooting Guide
TROUBLESHOOTING GUIDE These guidelines should be used by a qualified Maytag Customer Service Center Agent. Call the Maytag Customer Service Center at 1-800-788-8899 for assistance. Inform the associate that this is a “Flammable Vapor Ignition Resistant” Product. Problem Cause Improperly sealed, hot or cold supply connection, relief valve, drain valve, or thermostat threads. -
Page 27: Notes
NOTES... - Page 28 NOTES...
-
Page 29: Repair Parts List
Includes Inner Door Gasket. Now that you have purchased this gas water heater, should a need ever exist for repair parts or service, simply call Maytag Customer Service at 1-800-788-8899 for an authorized servicer. Be sure to provide all pertinent facts when you call or visit. - Page 30 Includes Inner Door Gasket. Now that you have purchased this gas water heater, should a need ever exist for repair parts or service, simply call Maytag Customer Service at 1-800-788-8899 for an authorized servicer. Be sure to provide all pertinent facts when you call or visit.
-
Page 31: Repair Parts List
REPAIR PARTS LIST MAYTAG/STATE PART NUMBER CONVERSION KEY MAYTAG STATE 66001011 9001609 66001012 9001608 66001013 ETC2X 66001014 ETC5X 66001015 9002401 66001016 9002402 66001021 9001584 66001020 9000734 66001105 9002769 66001183 9000249 66001251 9001829 66001269 9002277 66001494 9003385 66001498 9003398 66001499 9003400... -
Page 32: Warranty
This warranty is limited to the original owner of the water heater. TO RECEIVE WARRANTY SERVICE To locate an authorized service company in your area contact the Maytag dealer from whom your appliance was purchased; or call Maytag Customer Service at the number listed below. Should you not receive satisfactory...
