Sealey TA111.V2 Instruction Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
1.1. PERSONAL PRECAUTIONS
When using the test leads, observe all normal safety rules concerning:
9
Protection against the dangers of electric current.
9
Protection of the test leads against misuse.
9
DO NOT use leads if damaged or if the internal wire is exposed in any way.
8
1.2. GENERAL SAFETY INSTRUCTIONS
WARNING! Never perform resistance measurements on live circuits. Only measure on disconnected circuits.
‰
These test leads are designed to be used on automotive circuits only.
9
DO NOT use on 110V and 230V applications.
8
Familiarise yourself with the application and limitations of the test leads as well as the potential hazards.
9
IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
When not in use, store the test leads in the case supplied.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting. Keep tools and other items away from the engine and
9
ensure that you can see the working parts of the engine clearly.
Observe standard workshop safety procedures when using the test leads.
9
Consult the vehicle's handbook for fuse positions and check if the fuse has blown. If the fuse has blown, first establish the reason for
9
this before replacing with the same fuse type.
Ensure test leads are kept clear of hot surfaces and rotating parts.
9
Never apply voltage or current to the test leads that exceeds the specified maximum.
9
DO NOT use the test leads for any purpose other than for which they are designed.
8
DO NOT get the test leads wet, or use in damp or wet locations or areas where there is condensation.
8
2. INTRODUCTION

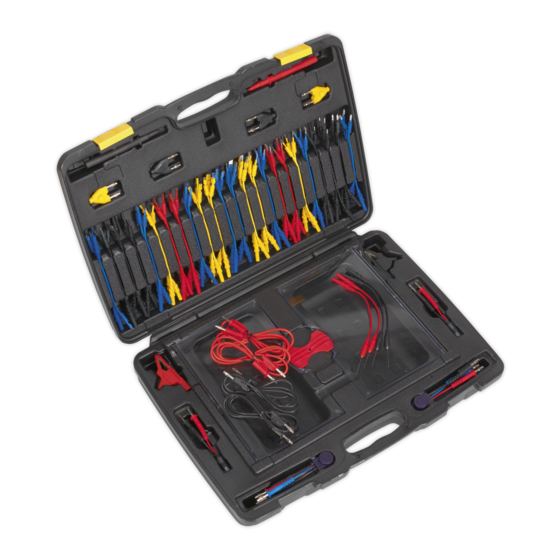

Comprehensive set of test leads and components suitable for testing, isolating and evaluating automotive electronic circuits. Includes standard
Ø4mm banana style plugs and sockets suitable for use with most diagnostic multimeters and test equipment. Supplied in sectioned storage case
for quick location of components.
3. SPECIFICATION
Model No: ............................................................... TA111.V2
Contents: Potentiometer; 5kΩ (x2), Alligator Clip (x2), Back Probe (x4),
LED 2-Colour Strobes (x2), SRS Connector (x2), 1:2 Connector (x2), 1:1
Connector/Cables (Piggy-Back) (x4), Probe (x2), Round Terminals with
Banana Socket; Male (x3)/Female (x3) - 1.5, 2, 3.5, 4mm, Flat Terminals with
Banana Socket; Male (x3)/Female (x3) - 0.7, 0.8, 1.2, 2, 2.5, 3, 5, 6mm
4. CONTENTS
4.1. FLAT TERMINALS (fig.1)
0.7mm (Male/Female) + Female banana sockets (3pcs each)
0.8mm (Male/Female) + Female banana sockets (3pcs each)
1.2mm (Male/Female) + Female banana sockets (3pcs each)
2.0mm (Male/Female) + Female banana sockets (3pcs each)
2.5mm (Male/Female) + Female banana sockets (3pcs each)
3.0mm (Male/Female) + Female banana sockets (3pcs each)
5.0mm (Male/Female) + Female banana sockets (3pcs each)
6.0mm (Male/Female) + Female banana sockets (3pcs each)
© Jack Sealey Limited
92PC TEST LEAD SET
TA111.V2
MODEL NO:
fig.1
Original Language Version TA111.V2 Issue:2 ( H,F) 21/09/23
