Hitachi PV-XL300K Instruction Manual

Cordless stick vacuum cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction
Manual
Hitachi
Cordless Stick
Vacuum Cleaner

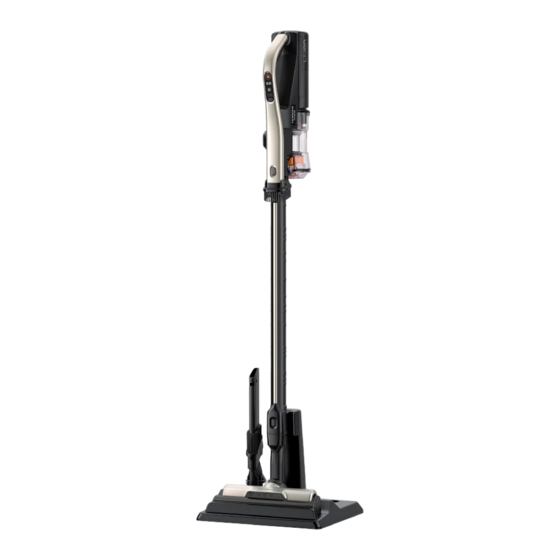

Model
PV-XL300K
Thank you for purchasing a Hitachi Cordless Stick
Vacuum Cleaner.
This vacuum cleaner is designed for household and
indoor use only. Do not use for commercial, non-
cleaning related, and outdoor purpose.
To ensure proper use, read this manual carefully
before using the vacuum cleaner.
For future reference, keep this manual in an easily
accessible place.
To ensure proper use, read the safety precautions
(P.E-4 to E-8) .
Contents
Before use
Part names and assembly ................. E-2
Safety precautions ............................. E-4
Usage notes ....................................... E-8
Controls and indicators ..................... E-8
Control buttons .......................................
Indicator during charging ........................
Indicators during use ..............................
To operate ........................................... E-12
Using the attachments ...................... E-13
Power head .............................................
Handy brush ...........................................
Two-way crevice nozzle ..........................
Maintenance
Emptying the dust case ..........................
Cleaning the filters ..................................
Attaching the dust case ..........................
Maintenance ....................................... E-20
Washable Parts .......................................
Cleaning the power head .................. E-23
Appendix
Troubleshooting ................................. E-25
Replacement parts ............................ E-30
Specifications ..................................... E-30
E-8
E-9
E-9
E-13
E-14
E-15
E-16
E-16
E-18
E-20
E-20
E-21
E-21

Advertisement

Table of Contents
loading

Related Manuals for Hitachi PV-XL300K

Summary of Contents for Hitachi PV-XL300K

  • Page 1: Table Of Contents

    E-21 Maintaining (washing with water) the filters ....Cleaning the power head ....E-23 Appendix Thank you for purchasing a Hitachi Cordless Stick Troubleshooting ......... E-25 Vacuum Cleaner. About replacing the old battery ..E-28 This vacuum cleaner is designed for household and Disposing of the vacuum cleaner ..

  • Page 2: Part Names And Assembly

    Part names and assembly Stick configuration Vacuum cleaner stand (P.E-10) Hand-held configuration Overall view when housed The two-way crevice nozzle can be Handle attached to the indent in the base. Hook for the stand Control buttons Battery (P.E-8) Vacuum cleaner Indicator Vacuum cleaner body...

  • Page 3: Safety Precautions

     The severity of injury or damage that might occur if these precautions are ignored or the vacuum cleaner is used improperly is classified and explained below. Hitachi is not responsible for any injury or damage If the vacuum cleaner malfunctions or you notice any of the following that occurs as a result of ignoring these precautions.
  • Page 4 Failure to heed this warning might cause overheating, leading to fi re or the deformation. or in a car under the sun.  Do not use any battery in this product other than a genuine Hitachi battery.  Do not put the battery in a microwave or an oven.

  • Page 5: Usage Notes

    Safety precautions (Continued) Indicator during charging CAUTION Indicator signs Charging status  When charging the battery, ensure that the ambient temperature is between 5˚C and 35˚C. The battery is charging. Battery Charging the battery in temperatures outside of this range might prevent the battery from be- indicator It takes approximately two hours to charge the battery.

  • Page 6: Charging The Vacuum Cleaner

    Charging the vacuum cleaner Note You can charge the battery without removing it from the main body. When it is used for the first time or when it is not used for several days, Do not remove the battery from the vacuum cleaner except when you are disposing of the vacuum cleaner. ...

  • Page 7: To Operate

    You cannot replace the brushes or wheels by your- To stop, press self. Please contact a Hitachi authorized service agent to have the brushes, wheels, and rotary brush replaced as a set. The rotary brush Rotary brush Inlet can be purchased as a replacement part.

  • Page 8: Handy Brush

    Using the attachments (continued) Two-way crevice nozzle  The safety switch of the power head When you lift the power head from the floor, the safety switch activates and the rotary brush stops Swiftly perform cleaning with the brush on the tip. rotating for your safety.

  • Page 9: Emptying The Dust Case And Cleaning The Filters

    Emptying the dust case and cleaning the filters Emptying the dust case [When removed] Cyclonic vacuum cleaners have the advantage of not requiring paper filter bags. To vacuum with strong suction power, we recommend that you remove dust every time you use your cleaner and clean the filter frequently.

  • Page 10: Cleaning The Filters

    Emptying the dust case and cleaning the filters (continued) Cleaning the filters Inner cylinder filter Open the dust case lid (P.E-17) and remove the inner cylinder filter. Clean filter Turn the inner cylinder filter in the Unlock Lift the inner cylinder filter straight up. Open the clean filter.

  • Page 11: Attaching The Dust Case

    Emptying the dust case and cleaning the filters (continued) Washable Parts The maintenance brush, handy brush  (P.E-14), two-way crevice nozzle  (P.E-15), clean filter, sponge filter Attaching the dust case  (P.E-21), inner cylinder filter/dust case  (P.E-22), and rotary brush  (P.E-24) are washable. Do not wash any other attachments or parts with water.

  • Page 12: Cleaning The Power Head

    Using the power head while they are worn out might damage the floor. To request replacement, please contact a Hitachi authorized service agent. You cannot replace the brushes or wheels by yourself. Please contact a Hitachi authorized service agent to have the brushes, wheels, and rotary brush replaced as a set.

  • Page 13: Troubleshooting

    Before requesting for repair Cleaning the power head Troubleshooting (Continued) Check the following points again. Rotary brush maintenance. The vacuum cleaner does not operate, or stops while the vacuum cleaner is running. The suction power is weak. The rotary brush does not rotate. Remove the brush holder.
  • Page 14 − cleaner air duct? posable chopsticks, etc. already have deteriorated. Please consult with a Hitachi authorized service agent. E-26 E-27...

  • Page 15: About Replacing The Old Battery

    Hitachi authorized service agent or one of our recycling partner stores. or a failure has occurred in the battery or AC adapter. Please consult an authorized Hitachi service agent. Alternatively, ask local authorities about the proper method of disposing of the vacuum cleaner, and follow...

  • Page 16: Replacement Parts

    Inner cylinder filter Rotary brush Vacuum cleaner stand Service parts Service parts Service parts Service parts PV-XL300K-902 PV-BL20G-009 CV-KP900J-011 PV-XL300JT-909 Since batteries are consumables, they will only be available for a charge. (P.E-28) Specifications Product name Cordless Stick Vacuum Cleaner...
