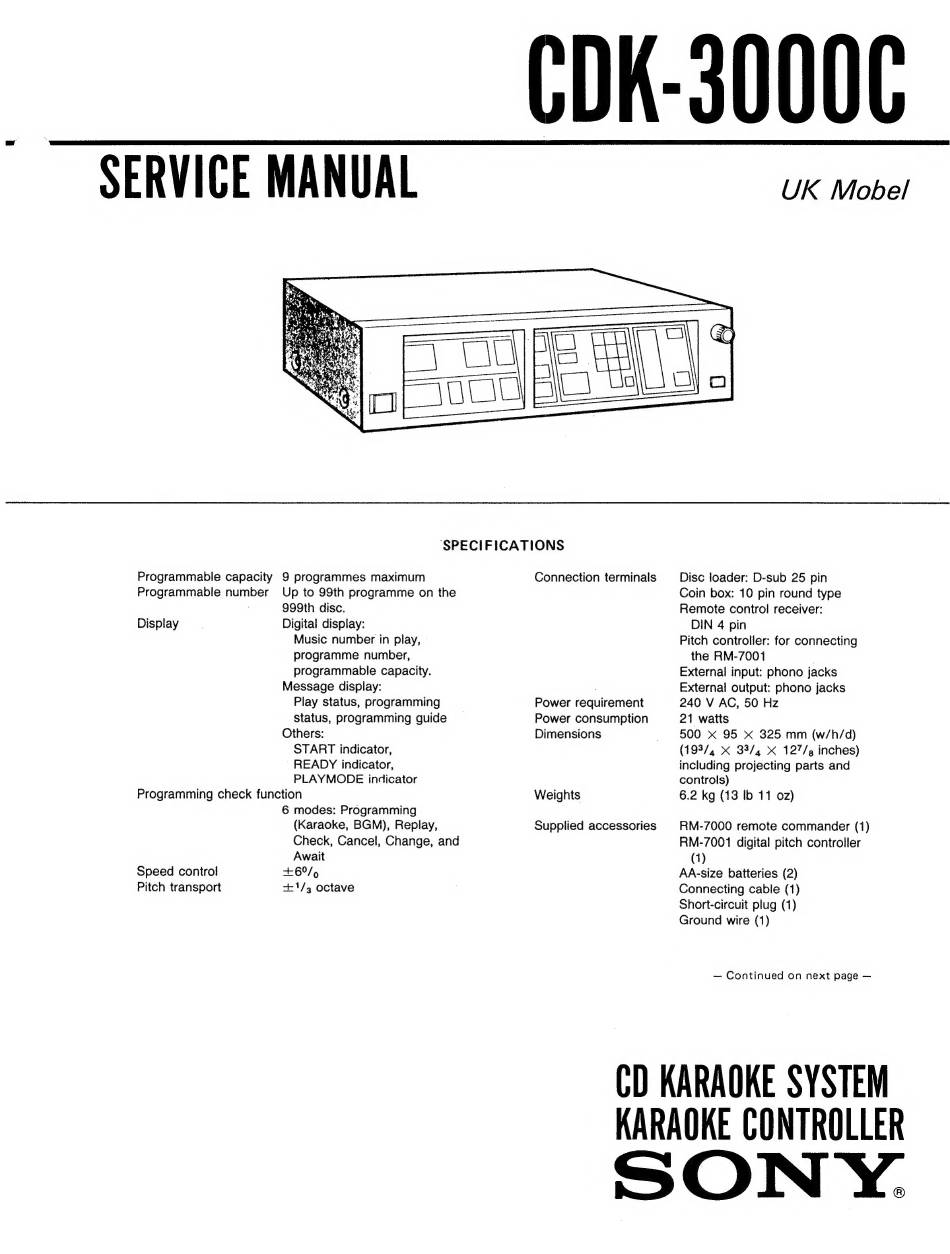

CDK-3O00C
SERVICE MANUAL
UK Mobel
'SPECIFICATIONS
Programmable capacity
9 programmes maximum
Connection terminals
Disc loader: D-sub 25 pin
Programmable number
Up to 99th programme on the
Coin box: 10 pin round type
999th disc.
Remote control receiver:
Display
Digital display:
DIN 4 pin
Music number in play,
Pitch controller: for connecting
programme number,
the RM-7001
programmable capacity.
External input: phono jacks
Message display:
External output: phono jacks
Play status, programming
Power requirement
240 V AC, 50 Hz
status, programming guide
Power consumption
21 watts
Others:
Dimensions
—
§00 XK 95 X 325 mm (W/h/d)
START indicator,
(193/74 X 33/4 X 127/, inches)
READY indicator,
including projecting parts and
PLAYMODE
indicator
controls)
Programming check function
Weights
6.2 kg (13 Ib 11 oz)
6 modes: Programming
(Karaoke, BGM), Replay,
Supplied accessories
RM-7000 remote commander (1)
Check, Cancel, Change, and
RM-7001 digital pitch controller
Await
(1)
Speed control
+6°/
AA-size batteries (2)
Pitch transport
+1/3 octave
Connecting cable (1)
Short-circuit plug (1)
Ground wire (1)
— Continued on next page —

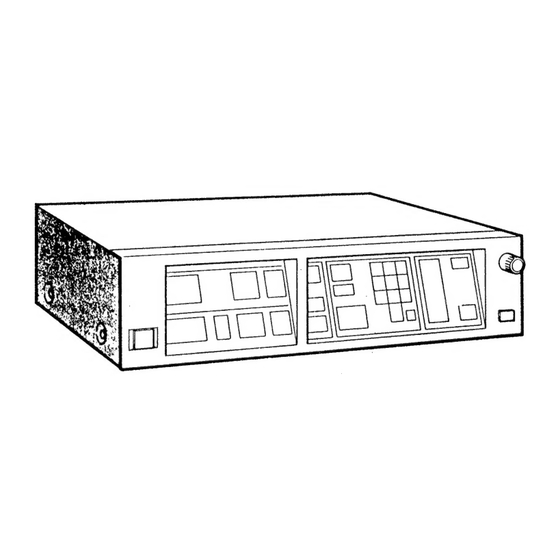

CD KARAOKE SYSTEM
KARAOKE CONTROLLER
