Overhead door 981 Homeowner's Manual

Homeowner's GaraGe Door manual
models: 981, 982, 983, 984
read this manual carefully and observe all
warnings when operating or maintaining your
garage door.
1-800-929-DOOR
www.OverheadDoor.com
Keep this manual for future reference.

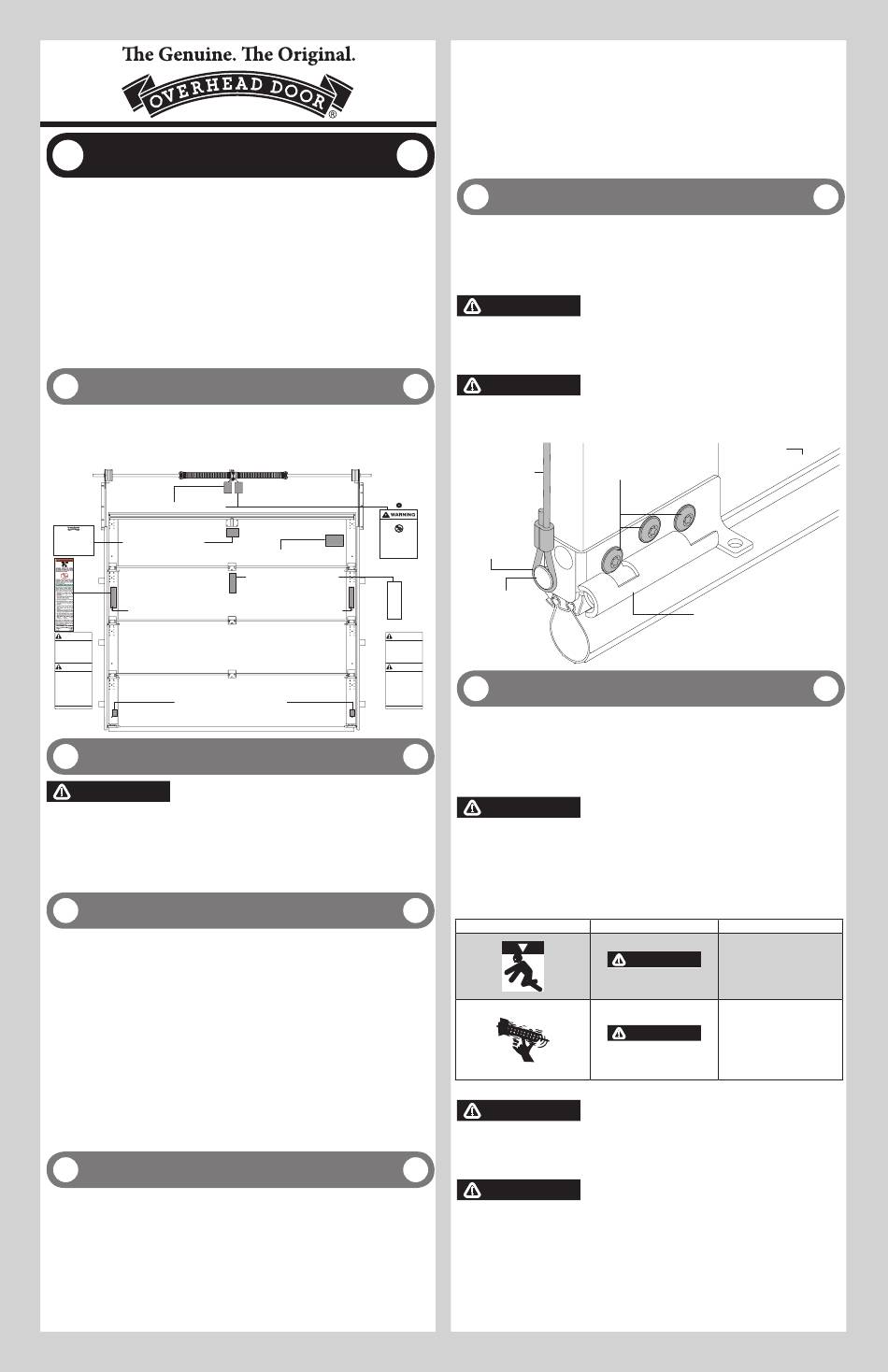

Label Placement
Important: If the labels are not applIed at the factory, then ensure you place all labels In posItIon,
as shown.
note: the spring warning tag(s) are factory attached (one per spring).
note: because of different configurations, some labels may require minor relocations.
Torsion spring tag(s) (one per spring)
CAUTION!
TO AVOID POTENTIAL INJURY OR DAMAGE TO DOOR WHEN Operator bracket label
CONNECTING A GARAGE DOOR OPENER TO THIS DOOR, AN
OVERHEAD DOOR OPENER BRACKET DESIGNED
SPECIFICALY FOR THIS DOOR MUST BE SECURELY
ATTACHED TO THE TOP SECTION OF THE DOOR, ALONG
WITH ANY STRUTS PROVIDED WITH THE DOOR. THE
INSTALLATION OF THE OPENER MUST BE IN ACCORDANCE
WITH THE MANUFACTURER'S INSTRUCTIONS AND FORCE
SETTINGS MUST BE ADJUSTED PROPERLY.
Residential warning label
The warning label either be on the right or the left end stile.
WARNING
Lift handles/gripping points are required
on this door, located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
WARNING
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL. PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR Bottom section warning labels
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
Counterbalance Assemblies
warnInG warnInG
Homeowner! torsIon sprInGs sHoulD only be removeD, InstalleD, repaIreD or aD-
justeD by a traIneD Door system tecHnIcIan. attemptInG to remove, Install, repaIr
or aDjust a torsIon sprInG assembly wItHout proper traInInG anD tools may result
In an uncontrolleD release of sprInG forces wHIcH coulD cause serIous or fatal
Injury.
bottom fIxtures, cables, Drums, pulleys, sHafts, anD bracKets are unDer HIGH
sprInG tensIon. Do not attempt repaIrs on any of tHese Items. call a traIneD Door
system tecHnIcIan.
Cleaning Your Steel And Fiberglass
Garage Door
Important: do not use a pressure washer on GaraGe door!
while factory-applied finishes on garage doors are durable, it is desirable to clean them on a routine basis. some
discoloration of the finish may occur when a door has been exposed to dirt-laden atmosphere for a period of time. slight
chalking may also occur as a result of direct exposure to sunlight.
cleaning the door will generally restore the appearance of the finish. to maintain an aesthetically pleasing finish of the
garage door, a periodic washing of the garage door is recommended.
a mild detergent solution consisting of one cup detergent (with less than 0.5% phosphate) dissolved into five gallons of
warm water is recommended to aid in the removal of most dirt.
note: the use of detergents containing greater than 0.5% phosphate is not recommended for use in general cleaning of
garage doors.
note: be sure to clean behind weather stripping on both sides and top of door.
cautIon: neVer MIX cleansers or deterGents wIth bleach.
Glass cleanInG InstructIons:
clean with a mild detergent solution (same as above) and a soft cloth. after cleaning, rinse thoroughly.
acrylIc cleanInG InstructIons:
clean acrylic glazing with nonabrasive soap or detergent and plenty of water. use your bare hands to feel and dislodge
any caked on particles. a soft, grit-free cloth, sponge or chamois may be used to wipe the surface. do not use hard or
rough cloths that will scratch the acrylic glazing. dry glazing with a clean damp chamois.
note: do not use any window cleaning fluids, scouring compounds, gritty cloths or solvent-based cleaners of any kind.
Steel Preparation For Painting
steel (surface preparatIon for paIntInG):
wax on the surface must be removed or paint peeling/flaking will result. to remove this wax, it will be necessary to lightly
scuff the surface with a fine steel wool pad, saturated with soapy water. a final wipe and rinse should be done with clean
water only, to remove any loose particles and any soapy film residue.
surface scratches, which have not exposed the metal substrate, can be lightly buffed or sanded out with 0000 steel wool
or no. 400 sand paper. care must be taken to not expose the substrate under the paint. once the substrate is exposed,
the likelihood for rusting is greatly increased.
If substrate is exposed, it must be treated to prevent rust from forming. sand the exposed area lightly and paint with a
high quality metal primer, specifically intended for galvanized surfaces, to protect the area from corrosion. allow for drying
time shown on primer can label before applying topcoat.
the surface of the factory-applied finish, that is being painted, must not be too smooth, or the paint will not adhere to it.
It is advisable to test in an inconspicuous area, to evaluate adhesion. If poor adhesion is observed, surface preparation for
painting the factory-applied finish must be repeated until desired results are achieved. again, care must be taken to not
HIGH SPRING TENSION CAN CAUSE
SERIOUS INJURY OR DEATH.
DO NOT adjust, repair or remove springs or
parts to which springs are connected, such
as steel brackets, cables, wood blocks,
fasteners or other parts of the
counterbalance system.
Adjustments or repairs must ONLY be made
by a trained door systems technician using
proper tools and instructions.
DO NOT remove, cover or paint over this tag.
Homeowner's Manual Envelope
Product user should inspect this tag
periodically for legibility and should order a
replacement tag from the door
manufacturer, as needed.
Painting instruction label
Like any other exterior surface, Overhead Door
garage doors will have dirt exposure from
atmospheric conditions. Ordinarily, the cleaning action of rainfall will be adequate to wash the
door, or the door can be washed periodically by
hosing with a garden hose and clear water (in
particular) for the areas not accessible to rain. If
you desire to do a more thorough cleaning, or
where soil collection conditions occur, follow
these simple instructions.
1. Use a soft-bristled, long-handled washing
brush. It attaches to your garden hose and makes
washing your garage door easier. Do not rub
the vinyl finish. vigorously which may create glossy areas over
2. For hard-to-remove dirt, such as soot and
grime found in industrial areas, wash the garage
door down with a mild solution consisting of the
following ingredients:
One cup detergent (with less than 0.5%
phosphate) dissolved into five gallons of warm
water.
NOTE: The use of detergents containing greater
than 0.5% phosphate is not recommended for
NOTE: Be sure to clean behind weather stripping use in general cleaning of garage doors.
on both sides and top of door.
3. Start at the bottom and work up to the top, as
less streaking will result. Immediately following
all washing operations, thoroughly rinse the
surface area with fresh water from a garden
hose.
This cleaning and maintenance information is
suggested in an effort to be of assistance;
however, manufacturer cannot assume
dependent on the cleaning solution and method responsibility for results obtained which are
of application.
CAUTION: DO NOT PAINT DOOR. PAINTING
DOOR WILL VOID YOUR WARRANTY.
NOTE: DO NOT remove, cover or paint over this
label.
WARNING
Lift handles/gripping points are required
on this door, located as spelled out in the
installation instructions, even if the door
is motor operated.
Failure to install and use these lift handles/
gripping points on this door can result in
serious injury to fingers and/or hands, if
placed in the opening between sections,
when the door is operated manually.
WARNING
The adjacent bottom corner bracket and
all cable retention features including
milford pins, cotter pins, & clevis pins are
under HIGH SPRING TENSION.
Adjustments and repairs must only be
made by a trained door systems
technician, using proper tools and
instructions.
DO NOT REMOVE, COVER OR PAINT OVER
THIS LABEL. PRODUCT USER SHOULD
INSPECT THIS LABEL PERIODICALLY FOR
LEGIBILITY AND SHOULD ORDER A
REPLACEMENT FROM THE DOOR
MANUFACTURER AS NEEDED.
expose the substrate under the paint.
steel (paIntInG):
after surface has been properly prepared, it must be allowed to dry thoroughly, and then coated immediately with premi-
um quality latex house paint. follow paint label directions explicitly. oil base or solvent base paints are not recommended.
please note that if substrate is exposed and not properly primed, painting with latex paint may cause accelerated rusting
of the steel in the exposed area.
notes:
1. re-painting of finish painted steel doors cannot be warranted, as this condition is totally beyond the door manufac-
turer's control.
2. consult a professional coatings contractor if in doubt about any of the above directions.
3. follow directions explicitly on the paint container labels for proper applications of coatings and disposal of containers.
pay attention to acceptable weather and temperature conditions in which to paint.
Fiberglass Refinishing and Finishing
refInIsHInG:
the top coat on a factory finished fiberglass door may require a re-coat after 1-3 years if the surface appears chalky or
faded. reapply a top coat as follows: (always test on a small area prior to top coating the entire door).
1. clean surfaces with soap and water, mineral spirits or naptha.
note: light scuffing of surface may be required using scotch-brite™ pads.
2. apply a commercial brand of exterior grade top coat for fiberglass, following the manufacturer's instructions.
warnInG warnInG
Homeowner! torsIon sprInGs sHoulD only be removeD, InstalleD, repaIreD or aD-
justeD by a traIneD Door system tecHnIcIan. attemptInG to remove, Install, repaIr
or aDjust a torsIon sprInG assembly wItHout proper traInInG anD tools may result
In an uncontrolleD release of sprInG forces wHIcH coulD cause serIous or fatal
Injury.
warnInG warnInG
bottom fIxtures, cables, Drums, pulleys, sHafts, anD bracKets are unDer HIGH
sprInG tensIon. Do not attempt repaIrs on any of tHese Items. call a traIneD Door
system tecHnIcIan.
Counterbalance Typical bottom
cable bracket fasteners
Counterbalance
cable loop
Milford pin
Safety Information
overvIew of potentIal HaZarDs reaD tHIs safety InformatIon conventIons useD In tHese
InstructIons:
Garage doors are large, heavy objects that move with the help of springs under high tension and electric motors. since
moving objects, springs under tension, and electric motors can cause injuries, your safety and the safety of others
depend on you reading the information in this manual. If you have questions or do not understand the information
presented, call your nearest trained door system technician or visit our website.
the following safety alert symbol and signal words are used throughout this manual to call attention to and identify dif-
ferent levels of hazard and special instructions.
warnInG warnInG
tHIs Is tHe safety alert symbol. tHIs symbol alerts you to potentIal HaZarDs tHat
can KIll or Hurt you anD otHers. all safety messaGes wIll follow tHe safety alert
symbol anD tHe worD "DanGer", "warnInG", or "cautIon".
DanGer: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
warnInG: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
cautIon: Indicates a potentially hazardous situation which, if not avoided, may result in injury or property damage.
note: Indicates important steps to be followed or important considerations.
Important safety InstructIons reaD anD follow all InstructIons save tHese InstructIons.
potential Hazard
could result in death or serious Injury
could result in death or serious Injury
reaD tHIs safety InformatIon:
warnInG warnInG
If your olD Door or new Door uses torsIon sprInGs, Do not attempt to remove,
Install, repaIr or aDjust tHe sprInGs yourself. Have a traIneD Door system tecHnI-
cIan remove, Install, repaIr or aDjust tHem. attemptInG to remove, Install, repaIr
or aDjust a torsIon sprInG assembly wItHout proper traInInG or tools may result
In an uncontrolleD release of sprInG forces wHIcH can cause serIous Injury.
warnInG warnInG
be sure tHat your GaraGe complIes wItH all applIcable state anD or local ventIla-
tIon requIrements before you enclose any veHIcles In tHe GaraGe. GooD ventIlatIon
avoIDs fIre anD HealtH HaZarDs causeD by fumes accumulatInG wItHIn a well-
sealeD GaraGe.
1. do not permit children to play beneath or with any garage door or electric operating controls.
2. Keep hands and fingers clear of section joints, track, and other door parts when the door is opening and closing to
avoid injury.
3. bolts must be installed at the rear end of horizontal tracks. these act to stop the rollers and keep the door from rolling
off the back of the track.
4. track installations must use sway braces on the rear track hangers to prevent sideways movement. If the tracks are
not firmly stabilized they might spread, allowing the door to fall and cause severe injury and damage.
2010
©CoPyright ovErhEad door CorPoratioN
Bottom section
Typical bottom bracket
effect prevention
Keep people clear of opening while door
is moving.
WARNING
do not allow children to play with the door
opener.
do not operate a door that jams or one
that has a broken spring.
do not try to remove, install, repair or
adjust springs or anything to which door
spring parts are fastened, such as, wood
WARNING
blocks, steel brackets, cables or other like
items.
Installations, repairs and adjustments must
be done by a trained door system techni-
cian using proper tools and instructions.
Part No. 344970 NEW 08/05/2010
