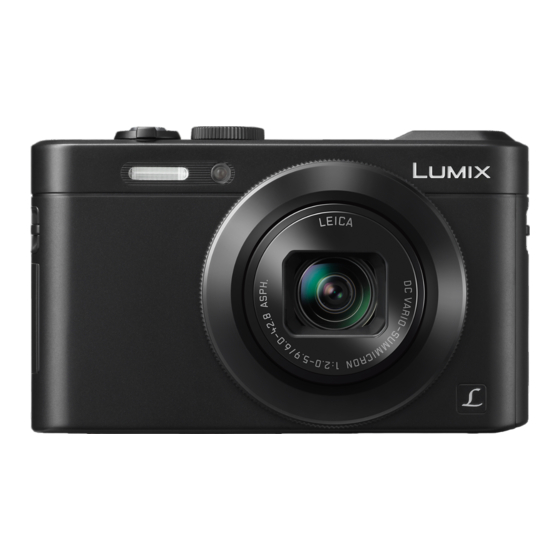

Basic Operating Instructions Digital Camera DMC-LF1 Model No. Please read these instructions carefully before using this product, and save this manual for future use. More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)”...
Dear Customer, We would like to take this opportunity to thank you for purchasing this Panasonic Digital Camera. Please read these Operating Instructions carefully and keep them handy for future reference. Please note that the actual controls and components, menu items, etc. of your Digital Camera may look somewhat different from those shown in the illustrations in these Operating Instructions.
Page 3
■ About the battery pack CAUTION • Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer. • When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal. •...
• Do not use any other USB connection cables except the supplied one or a genuine Panasonic USB connection cable (DMW-USBC1: optional). • Always use a genuine Panasonic AV cable (DMW-AVC1: optional). • Use a “High Speed HDMI micro cable” with the HDMI logo. Cables that do not comply with the HDMI standards will not work.
Page 5
For Singapore only Complies with IDA Standards DB01017 For India only The specifications are exempted for any licensing requirement by Ministry of Communications and Information Technology, G.S.R. 45 (E)., dated 28th January, 2005. -If you see this symbol- Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union.
Contents Information for Your Safety ..2 Using the control ring ... 17 Before use ........ 6 Taking pictures with the Standard accessories ..... 7 composition determined Names and Functions of [Composition Guide] ..... 19 Main Parts ........ 8 Viewing your pictures ... 20 Inserting and removing the Deleting pictures ....
Standard accessories Check that all the accessories are supplied before using the camera. Part numbers are as of May 2013. These may be subject to change. Battery pack USB connection cable DMW-BCN10E K1HY08YY0034 • Charge the battery before use. Battery pack is indicated as CD-ROM battery pack or battery in the text.
Names and Functions of Main Parts 21 22 23 VQT5A26 (ENG)
Page 9
1 Camera [ON/OFF] button 23 Cursor button • In this manual, the button that 2 Shutter button is to be used is indicated by 3 Mode dial 4 Microphones 24 [MENU/SET] button 5 [Wi-Fi] antenna 25 [DISP.] button 6 Diopter adjustment dial 26 [Q.MENU/ ] / [ ] button 7 Strap eyelet...
Lever Press Pull out ● Always use genuine Panasonic batteries (DMW-BCN10E). ● If you use other batteries, we cannot guarantee the quality of this product. ● Keep the Memory Card out of reach of children to prevent swallowing.
When using the AC adaptor (supplied), observe the following points as improper connections may cause malfunctions. ● Do not use any other USB connection cables except the supplied one or a genuine Panasonic USB connection cable (DMW-USBC1: optional). ● Do not use any other AC adaptors except the supplied one. ●...
Setting the clock The clock is not set when the camera is shipped. Disconnect the unit from the AC adaptor (supplied). Press the Camera [ON/OFF] button ( ) Press [MENU/SET] ( ) Press to select the language, and press [MENU/SET] •...
Setting the menu Refer to the following procedures to operate the menus. Example: Setting [AF Mode] from in the [Program AE] Mode Press [MENU/SET] to display the menu Switching to the [Rec] menu Use cursor button to select [Rec] and press [MENU/SET] •...
Taking still pictures Press the Camera [ON/OFF] button ( ) Set to the desired recording mode Align the mode dial correctly to the mode that you want to use. Use the zoom lever ( ) to adjust the range of the picture to be captured Capture a wider area Enlarge the subject...
Page 15
■ Recording mode Take pictures with automatic settings. Take pictures with automatic shutter speed and aperture value settings. Determine aperture, then record pictures. Determine shutter speed, then record pictures. Determine aperture and shutter speed, then record pictures. Record pictures using pre-registered settings. Record panorama pictures.
Recording motion pictures You can record motion pictures with audio (stereo). Zoom can also be used during recording. Press the motion picture button ( ) to start recording ● Do not block the microphones ( ) when recording motion pictures. ●...
Using the control ring Using the control ring allows you to perform frequently used operations and settings such as Step zoom and ISO Sensitivity directly. Turn the control ring ( ) • You can also perform operations with the control dial. (Some operations may differ under certain recording conditions such as [Manual Exposure] mode.) (when in [Intelligent Auto]...
Page 18
Using the control ring Using Quick menu Using the Quick menu, you can change camera settings with the control ring. Press [Q.MENU/ ] button ( ) Press to select menu items Turn the control ring to change the setting • You can also change settings with the control dial. Press [MENU/SET] ( ) VQT5A26 (ENG)
Taking pictures with the composition determined [Composition Guide] By using the viewfinder or LCD monitor to consider the placement of your subject (the composition), you can take more impressive still pictures. Press [Fn] button ( ) • [Fn Button Set] is set to [Composition Guide] at the time of purchase.
Viewing your pictures When a card is in the camera, pictures are played back from the card, and without a card, pictures are played back from the built-in memory. Press the Playback button ( ) • By holding down the Playback button while the camera is off, you can turn the camera on in Playback Mode.
Viewing motion pictures Select a picture with the motion picture icon, and press Motion picture icon Motion picture (differs depending on recording time the recording mode and picture quality setting) ■ Operations during motion picture playback : Pause/play : Stop : Fast rewind (2 steps)/Single-frame rewind (while paused) : Fast forward (2 steps)/Single-frame forward (while paused) [MENU/SET]: Capturing still pictures from motion pictures (while paused)
■ Using a smartphone as a camera remote control By installing the “Panasonic Image App” on your smartphone, you can operate the camera remotely and use the smartphone to record and play back. • By using the NFC function, you can hold your smartphone close to the camera and easily make a Wi-Fi connection without making troublesome Wi-Fi settings.
Page 23
Also, during recording, you can transfer still pictures as they are recorded (except for transferring to a printer). ■ Panasonic Image App The “Panasonic Image App” is an application provided by Panasonic. For details, refer to “Wi-Fi connection guide”. ■ LUMIX CLUB If you register this unit to the “LUMIX CLUB”, you can synchronize images...
Reading the Operating Instructions (PDF format) More detailed instructions on the operation of this camera are contained in “Operating Instructions for advanced features (PDF format)” in the supplied CD-ROM. Install it on your PC to read it. ■ For Windows Turn the PC on and insert the CD-ROM containing the Operating Instructions (supplied) Select the desired language and...
Supplied software The supplied CD-ROM contains the following software. Install the software on your computer to use. Pictures can be captured to a PC, and can be viewed, PHOTOfunSTUDIO organised, printed, etc. Also, still pictures can be 9.2 AE corrected and motion pictures can be edited. •...
Page 26
Supplied software Installing supplied software Preparations: • Check your PC’s specifications and operating environment for each software. • Before inserting the CD-ROM (supplied), close all running applications. ■ Windows Insert the CD-ROM with the supplied software • The installation menu runs. Click [Recommended Installation] •...
Specifications Digital Camera: Information for your safety Power Source DC 5 V Power 1.7 W (When recording with LCD Monitor) Consumption 1.1 W (When playing back with LCD Monitor) Camera effective 12,100,000 pixels pixels Image sensor 1/1.7″ MOS sensor, total pixel number 12,800,000 pixels Primary colour filter Lens Optical 7.1x zoom...
Page 29
Mass With card and battery: Approx. 192 Excluding card and battery: Approx. 170 Operating 0 °C to 40 °C temperature Operating humidity 10%RH to 80%RH Wi-Fi Compliance IEEE 802.11b/g/n standard (standard wireless LAN protocol) Frequency range 2412 MHz to 2462 MHz (1ch to 11ch) used (central frequency) Encryption method Wi-Fi compliant WPA™...
Page 30
Specifications AC adaptor (Panasonic VSK0775 (DMC-LF1GH)): Information for your safety Input ~ 110 V to 240 V, 50/60 Hz, 0.2 A Output 5 V, 800 mA AC adaptor (Panasonic VSK0772 (DMC-LF1GA)): Information for your safety Input ~ 110 V to 240 V, 50/60 Hz, 0.2 A...
Page 31
HDMI Licensing LLC in the United States and other countries. • HDAVI Control™ is a trademark of Panasonic Corporation. • “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation. • Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
