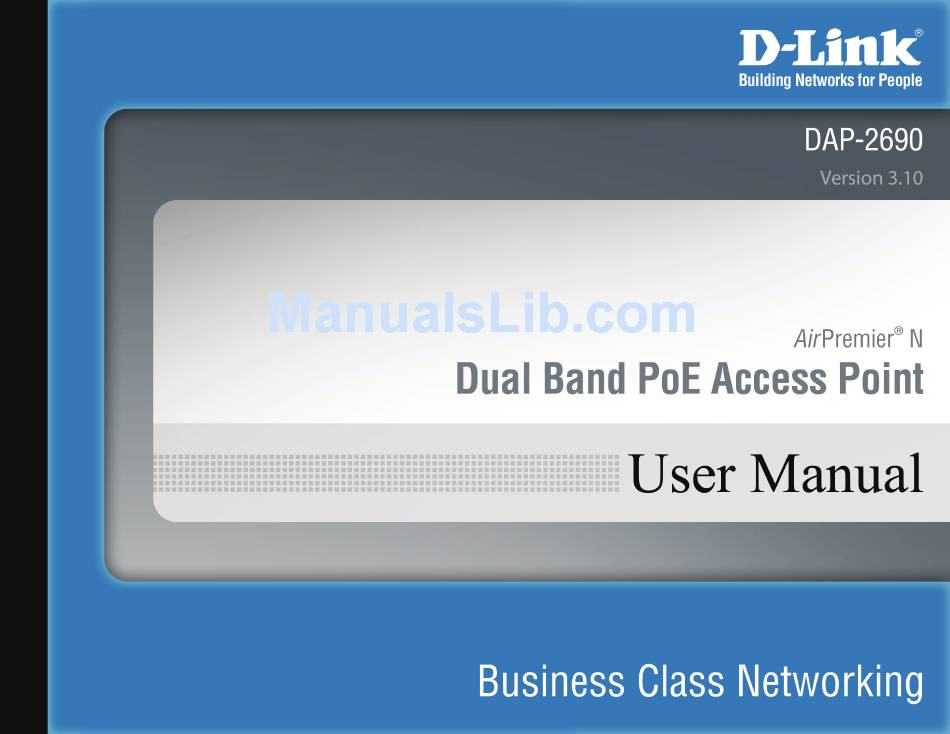

D-Link DAP-2690 AirPremier N User Manual

Dual band poe access point
Hide thumbs Also See for DAP-2690 AirPremier N:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DAP-2690 AirPremier N

Summary of Contents for D-Link DAP-2690 AirPremier N

  • Page 2: Table Of Contents

    Advanced Settings ............... 28 DHCP Server ................59 Performance ................28 Dynamic Pool Settings ..........59 Wireless Resource Control ............30 Static Pool Setting ............61 Multi-SSID ................. 32 Current IP Mapping List ..........62 VLAN Settings ................. 34 D-Link DAP-2690 User Manual...
  • Page 3 System Name Settings ..........76 Login Settings ..............77 Console Settings ............. 77 SNMP Settings ..............78 Ping Control Setting ............78 Central WiFiManager Settings ........78 Firmware and SSL Certification Upload ......79 Configuration File ..............80 D-Link DAP-2690 User Manual...

  • Page 4: Product Overview

    Section 1 - Product Overview Product Overview Package Contents • DAP-2690 AirPremier N Dual Band PoE Access Point • Power Adapter • PoE Base Unit • CD with manual and warranty • Ethernet Cable • Mounting Plate • Mounting Hardware •...

  • Page 5: Introduction

    Section 1 - Product Overview Introduction D-Link, an industry pioneer in wireless networking, introduces a solution for businesses seeking to deploy next generation draft 802.11n LANs. D-Link unveils its new AirPremier N Dual Band PoE Access Point (DAP-2690), designed specifically for business- class environments such as large or enterprise corporations to provide secure and manageable dual band wireless LAN options for network administrators.

  • Page 6: Features And Benefits

    **Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2690 isn’t supported in the 5.25~5.35 GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions. D-Link DAP-2690 User Manual...

  • Page 7: Wireless Basics

    D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within your home, business or public access wireless networks. D-Link wireless products provides you with access to the data you want, whenever and wherever you want it.
  • Page 8 OFDM reduces the amount of crosstalk (interference) in signal transmissions. The D-Link DAP-2690 will automatically sense the best possible connection speed to ensure the greatest possible speed and range. Note: 802.11n offers the most advanced network security features available today, including WPA.

  • Page 9: Installation

    The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

  • Page 10: Four Operational Modes

    Create a wireless LAN Wirelessly connect multiple networks while still WDS with AP functioning as a wireless AP Wirelessly connect multiple networks AP acts as a wireless network adapter for your Wireless Client Ethernet enabled device D-Link DAP-2690 User Manual...

  • Page 11: Connect To Your Network

    Method 3 - Use if you do not have a PoE switch and have a power outlet near the location of the access point. Method 1 1. Connect one end of your Ethernet cable into the LAN (PoE) port on the DAP-2690 and then connect the other end to your PoE switch. D-Link DAP-2690 User Manual...
  • Page 12 3. Use the supplied power adapter. Connect the power adapter to the the other end into a power outlet. Power In receptor on the PoE adapter. 4. Connect the power cable to the power adapter and then connect the other end into a power outlet. D-Link DAP-2690 User Manual...

  • Page 13: Configuration

    IP address. Step 4 - Enter admin for the User Name and then click Login. By default the password is blank. Note: If you have changed the password, make sure to enter the correct password. D-Link DAP-2690 User Manual...
  • Page 14 Click the Apply button to configure changes. Click the Save button to configure changes. Alternatively, click the Save and Activate option on the Configuration drop-down menu at the top of each DAP-2690 window. This will cause the DAP-2690 to save and reboot. D-Link DAP-2690 User Manual...

  • Page 15: Wireless Settings

    2.4G and Mixed 802.11 a/n in 5G. When the channel width is set to Auto 20/40 MHz, then 802.11n wireless devices are allowed to transmit data using 40 MHz. Captive Profile: Enable or disable captive profile for user authentication. D-Link DAP-2690 User Manual...
  • Page 16 Select 802.1X if your network is using port-based Network Access Control. For more information about the different types of Authentication offered on the DAP-2690 and the respective settings of each, please go to the first page of the “Authentication” explanations, which begins on page 23. D-Link DAP-2690 User Manual...

  • Page 17: Wds With Ap Mode

    Mixed 802.11 a/n in 5G. When the channel width is set to Auto 20/40 MHz, then 802.11n wireless devices are allowed to transmit data using 40 MHz. Captive Profile: Enable or disable captive profile for user authentication. D-Link DAP-2690 User Manual...
  • Page 18 Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. For more information about the different types of Authentication offered on the DAP-2690 and the respective settings of each, please go to the first page of the “Authentication” explanations, which begins on page 23. D-Link DAP-2690 User Manual...

  • Page 19: Wds Mode

    Mixed 802.11 b/g/n in 2.4G and Mixed 802.11 a/n in 5G. 802.11n wireless devices are allowed to transmit data using 40 MHz when the channel width is Auto 20/40 MHz. Captive Profile: Disable in WDS mode. D-Link DAP-2690 User Manual...
  • Page 20 Select Open System to communicate the key across the network. Select Shared Key to limit communication to only those devices that share the same WEP settings. Select WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required. D-Link DAP-2690 User Manual...

  • Page 21: Wireless Client Mode

    This option is unavailable in wireless client mode. Captive Profile: Disable in Wireless Client mode. Site Survey: Click the Scan button to search for available wireless networks, then click on the available network that you want to connect with. D-Link DAP-2690 User Manual...
  • Page 22 If you selected Manual for the MAC Source above, you can either click the Scan button to search for all available devices connected to your DAP-2690’s Ethernet port or manually enter a MAC address in the space provided. D-Link DAP-2690 User Manual...

  • Page 23: Wpa-Personal Authentication

    Select the interval during which the group key will be valid. The default Update Interval: value of 1800 is recommended. PassPhrase: When you select WPA-Personal, please enter a PassPhrase in the corresponding field. Confirm PassPhrase: Retype the Passphrase entered above in the corresponding field. D-Link DAP-2690 User Manual...

  • Page 24: Wpa-Enterprise Authentication

    Accounting Port: Enter the Accounting port (1813 is the default). Accounting Secret: Enter the Accounting secret. Note: You can input the secondary RADIUS server and accounting server settings if you have a backup RADIUS and accounting server. D-Link DAP-2690 User Manual...

  • Page 25: Authentication

    Accounting Port: Enter the Accounting port (1813 is the default). Accounting Secret: Enter the Accounting secret. Note: You can input the secondary RADIUS server and accounting server settings if you have a backup RADIUS and accounting server. D-Link DAP-2690 User Manual...

  • Page 26: Lan

    Enter the IP address of the gateway in your network. If Gateway: there is a router/gateway in your network, please enter its IP address. DNS: Enter a DNS server IP address of your choice. In most cases, enter the LAN IP of your router. D-Link DAP-2690 User Manual...

  • Page 27: Ipv6

    Enter the default gateway address. This is usually the IP Gateway: address of your router. Note: If IPv6 is enabled, AP Array, QoS, and Traffic Manager will all be disabled. Also, AP Client mode will change to AP mode. D-Link DAP-2690 User Manual...

  • Page 28: Advanced Settings

    *Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11a and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. D-Link DAP-2690 User Manual...
  • Page 29 Access Point will automatically change to 20MHz. Transfer DHCP Offer to Enable to transfer the DHCP Offer to Unicast from LAN to WLAN, suggest to enable this function if stations number is larger than 30. Unicast : D-Link DAP-2690 User Manual...

  • Page 30: Wireless Resource Control

    AP. User Limit: Set the maximum amount of users that are allowed access (zero to 64 users) to the device using the specified wireless band. The default setting is 20. D-Link DAP-2690 User Manual...
  • Page 31 Use the drop-down menu to Enable the function. When enabled, the device denies the connection request from the wireless clients with the RSSI lower than the specified threshold below. ACL RSSI Threshold: Set the ACL RSSI Threshold. D-Link DAP-2690 User Manual...

  • Page 32: Multi-Ssid

    23. For a detailed description of the WPA-Personal parameters please go to page 24. For a detailed description of the WPA-Enterprise parameters please go to page 25. For a detailed description of the 802.1X parameters please go to page 26. D-Link DAP-2690 User Manual...
  • Page 33 When the Enable Priority check box is checked at the top of this window, this drop-down menu is used to select a priority between 0 and 7. WMM (Wi-Fi Multimedia): Select Enable to provide basic Quality of Service features. Captive Profile: Enable or disable captive profile for user authentication. D-Link DAP-2690 User Manual...

  • Page 34: Vlan Settings

    The VLAN List tab displays the current VLANs. VLAN Status: Click the Enable button. Next, go to the Add/Edit VLAN tab to add or modify an item on the VLAN List tab. VLAN Mode: The current VLAN mode is displayed. D-Link DAP-2690 User Manual...

  • Page 35: Vlan Port List

    The name of the port is displayed in this column. Tag VID: The Tagged VID is displayed in this column. Untag VID: The Untagged VID is displayed in this column. PVID: The Port VLAN Identifier is displayed in this column. D-Link DAP-2690 User Manual...

  • Page 36: Vlan Add/Edit

    Click the Enable radio button. VLAN Status: VLAN Mode: The current VLAN mode is displayed. Provide a number between 1 and 4094 for the VLAN ID (VID): Internal VLAN. VLAN Name: Enter the VLAN to add or modify. D-Link DAP-2690 User Manual...

  • Page 37: Pvid Setting

    Once you have made the desired settings, click the Save button to let your changes take effect. VLAN Status: Click the Enable radio button. VLAN Mode: The current VLAN mode is displayed. PVID Auto Assign Use the radio button to toggle PVID auto Status: assign status to Enable. D-Link DAP-2690 User Manual...

  • Page 38: Intrusion

    Save button to let your changes take effect. Wireless Band: Select 2.4GHz or 5GHz. Detect: Click this button to initiate a scan of the network. AP List: The choices include All, Valid, Neighbor, Rogue, and New. D-Link DAP-2690 User Manual...

  • Page 39: Schedule

    24 hours a day, enter the desired starting and ending times in the next two fields. Start Time: Enter the beginning hour and minute, using a 24-hour clock. End Time: Enter the ending hour and minute, using a 24-hour clock. D-Link DAP-2690 User Manual...

  • Page 40: Internal Radius Server

    Enter a name to authenticate user access to the internal RADIUS server. Password: Enter a password to authenticate user access to the internal RADIUS server. The length of your password should be 8~64. Status: Select Enable or Disable from the drop-down menu. D-Link DAP-2690 User Manual...

  • Page 41: Arp Spoofing Prevention

    The ARP Spoofing Prevention feature allows users to add IP/MAC address mapping to prevent arp spoofing attack. ARP Spoofing Prevention: This check box allows you to enable the arp spoofing prevention function. Gateway IP Address: Enter a gateway IP address. Gateway MAC Address: Enter a gateway MAC address. D-Link DAP-2690 User Manual...

  • Page 42: Bandwidth Optimization

    Available options are: Allocate average BW for each station, Allocate maximum BW for each station, Allocate different BW for 1a/b/g/n stations, and Allocte specific BW for SSID. Use the drop-down menu to toggle the wireless D-Link DAP-2690 User Manual...
  • Page 43 Use the drop-down menu to select the SSID for the specified wireless band. Downlink Speed: Enter the limitation of the downloading speed in either Kbits/sec or Mbits/sec for the rule. Uplink Speed: Enter the limitation of the uploading speed in either Kbits/sec or Mbits/sec for the rule. D-Link DAP-2690 User Manual...

  • Page 44: Ap Array

    Array Name, Master IP, MAC, Master, Backup Master, Slave, and Total. Current Members: This table displays all the current array members. The DAP-2690 AP array feature supports up to eight AP array members. D-Link DAP-2690 User Manual...

  • Page 45: Configuration Settings

    Advanced Functions: Select this option to specify the other advanced settings that the APs in the group will inherit. Administration Select this option to specify the administrative Settings: settings that the APs in the group will inherit. D-Link DAP-2690 User Manual...
  • Page 46 WMM (Wi-Fi Select this option to use the same WMM settings. Multimedia): Ack Time Out: Select this option to use the same ACK timeout value. Wireless ACL: Select this option to use the same wireless ACL settings. D-Link DAP-2690 User Manual...
  • Page 47 Select this option to use the same Quality of Service settings. Log Settings: Select this option to use the same log settings. Time and Date Settings: Select this option to use the same time and date settings. D-Link DAP-2690 User Manual...
  • Page 48 Console Settings: Select this option to use the same console settings. Limit Administrator: Select this option to use the same limit administrator settings. Ping Control Setting: Select this option to use the same ping control settings. D-Link DAP-2690 User Manual...

  • Page 49: Auto-Rf

    1 and 24 hours. RSSI Threshold: Select the RSSI threshold value here. This value is listed in the drop-down menu in increments of 10% from 10% to 100%. RF Report Frequency: Enter the RF report frequency value here. D-Link DAP-2690 User Manual...

  • Page 50: Load Balance

    In this window, users can view and configure the AP array’s load balancing settings. Click the Save button to accept the changes made. Enable Load Balance: Select to Enable or Disable the load balance feature here. Active Threshold: Enter the active threshold value here. D-Link DAP-2690 User Manual...

  • Page 51: Captive Portal

    Last Active Day: Select the last active date for this ticket here. Year, Month and Day selections can be made. User Limit: Enter the maximum amount of users that can use this ticket at the same time. D-Link DAP-2690 User Manual...

  • Page 52: Authentication Settings - Username/Password

    Enter the username for the new account here. Password: Enter the password for the new account here. Group: Select the group for the new account here. Options to choose from are Manager and Guest. Guest accounts will have limited access. D-Link DAP-2690 User Manual...

  • Page 53: Authentication Settings - Remote Radius

    Select to Enable or Disable the accounting mode here. Accounting Server: Enter the accounting server’s IP address here. Accounting Port: Enter the accounting server’s port number here. Accounting Secret: Enter the accounting server’s shared serect here. D-Link DAP-2690 User Manual...

  • Page 54: Authentication Settings - Ldap

    Identity: Enter the identity’s full path string here. Alternatively, select the Auto Copy checkbox to automatically add the generic full path of the web page in the identity field. D-Link DAP-2690 User Manual...

  • Page 55: Authentication Settings - Pop3

    POP3 option. Server: Enter the POP3 server’s IP address or domain name here. Port: Enter the POP server’s port number here. Connection Type: Select the connection type here. Options to choose from are None and SSL/TLS. D-Link DAP-2690 User Manual...

  • Page 56: Login Page Upload

    Upload button to initiate the upload. Upload picture from In this field the path to the image file, that will be file: uploaded, will be displayed. Alternatively, the path can be manually entered here. D-Link DAP-2690 User Manual...

  • Page 57: Web Redirection

    Click the Save button to accept the changes made. Web Redirection: Select this checkbox to enable the Web redirection feature. Web Site: Enter the destination web site’s address here. D-Link DAP-2690 User Manual...

  • Page 58: Mac Bypass

    MAC bypass list file saved on the computer, and then click Upload. Load MAC File to Local To download MAC bypass list file, click Download Hard Driver: and to save the MAC bypass list. D-Link DAP-2690 User Manual...

  • Page 59: Dhcp Server

    IP address of a network computer that has a dynamically assigned IP address. DNS: Enter the IP address of the Domain Name System (DNS) server. The DNS server translates domain names such as www.dlink.com into IP addresses. D-Link DAP-2690 User Manual...
  • Page 60 Enter the domain name of the network, if applicable. (An example of a domain name is www.dlink.com.) Lease Time: The lease time is the period of time before the DHCP server will assign new IP addresses. D-Link DAP-2690 User Manual...

  • Page 61: Static Pool Setting

    IP address, if applicable. DNS: Enter the Domain Name System (DNS) server address for the wireless network. The DNS server translates domain names such as www. dlink.com into IP addresses. Domain Name: Specify the domain name for the network. D-Link DAP-2690 User Manual...

  • Page 62: Current Ip Mapping List

    Binding MAC The MAC address of a device on the network that is within Address: the DHCP static IP address pool. Assigned IP The current corresponding DHCP-assigned static IP Address: address of the device. D-Link DAP-2690 User Manual...

  • Page 63: Filters

    Upload File : the ACL list file, saved on the computer, and then click Upload. Load ACL File to To download ACL list file, click Download and to save Local Hard Driver : the ACL list. D-Link DAP-2690 User Manual...

  • Page 64: Wlan Partition

    The default value is Enable, which allows stations to Connection: intercommunicate by connecting to a target AP. When disabled, wireless stations cannot exchange data on the same Multi-SSID. In Guest mode, wireless stations cannot exchange data with any station on your network. D-Link DAP-2690 User Manual...

  • Page 65: Traffic Control

    Mbits per second. These values are also used in the QoS and Traffic Manager windows. Once the desired uplink and downlink settings are finished, click the Save button to let your changes take effect. Downlink Bandwidth: The downlink bandwidth in Mbits per second. Uplink Bandwidth: The uplink bandwidth in Mbits per second. D-Link DAP-2690 User Manual...

  • Page 66: Qos

    Downlink The downlink bandwidth in Mbits per second. This value Bandwidth: is entered in the Uplink/Downlink Setting window. Uplink The uplink bandwidth in Mbits per second. This value is Bandwidth: entered in the Uplink/Downlink Setting window. D-Link DAP-2690 User Manual...

  • Page 67: Traffic Manager

    Downlink The downlink bandwidth in Mbits per second. This value is Bandwidth: entered in the Uplink/Downlink Setting window. Uplink The uplink bandwidth in Mbits per second. This value is Bandwidth: entered in the Uplink/Downlink Setting window. D-Link DAP-2690 User Manual...

  • Page 68: Status

    Section 3 - Configuration Status Device Information Device This read-only window displays the configuration settings Information: of the DAP-2690, including the firmware version and the device's MAC address. D-Link DAP-2690 User Manual...

  • Page 69: Client Information

    Displays the wireless band that the client is connected Authentication: Displays the type of authentication being used. RSSI: Displays the client's signal strength (received signal strength indicator). Power Saving Mode: Displays the status of the power saving feature. D-Link DAP-2690 User Manual...

  • Page 70: Wds Information

    Displays the name of the client. MAC: Displays the MAC address of the client. Authentication: Displays the type of authentication being used. Signal: Displays the WDS link signal strength. Status: Displays the status of the power saving feature. D-Link DAP-2690 User Manual...

  • Page 71: Channel Analyze

    Section 3 - Configuration Channel Analyze Wireless Band: Select either 2.4Ghz or 5GHz. Detect: Click the Detect button to scan. AP List: This will list the transmitting channels and quality. D-Link DAP-2690 User Manual...

  • Page 72: Stats

    Section 3 - Configuration Stats Ethernet Ethernet Traffic This window displays transmitted and received Statistics: count statistics for packets and bytes. D-Link DAP-2690 User Manual...

  • Page 73: Wireless Traffic Stats

    Section 3 - Configuration Wireless Traffic Stats WLAN Traffic This window displays wireless network statistics for data Statistics: throughput, transmitted and received frames, and frame errors. D-Link DAP-2690 User Manual...

  • Page 74: Log

    The log information includes but is not limited to the following items: cold start AP, upgrading firmware, client associate and disassociate with AP, and web login. The web page holds up to 500 logs. D-Link DAP-2690 User Manual...

  • Page 75: Log Settings

    Enter a user name for the SMTP server. Password: Enter a password for the SMTP server. Confirm Password: Confirm the password for the SMTP server by retyping it. Schedule: Use the drop-down menu to set the e-mail log schedule. D-Link DAP-2690 User Manual...

  • Page 76: Maintenance

    Add button. System Name Settings System Name: The name of the device. The default name is D-Link DAP-2690. Location: The physical location of the device, e.g. “office”. D-Link DAP-2690 User Manual...

  • Page 77: Login Settings

    Status is enabled by default. Uncheck the box to disable the console port. Select the type of protocol you would like to use: Telnet or Console Protocol: SSH. Timeout: Set to 1 Min, 3 Mins, 5 Mins, 10 Mins, 15 Mins or Never. D-Link DAP-2690 User Manual...

  • Page 78: Snmp Settings

    Check the box to enable Ping control. Ping works by sending ICMP “echo request” packets to the target host and listening for ICMP echo response replies. The default is enabled. Central WiFiManager Settings Enable Central Select to enable or disable the Central WiFiManager. WiFiManager : D-Link DAP-2690 User Manual...

  • Page 79: Firmware And Ssl Certification Upload

    DAP-2690. Upload SSL Click Browse to locate the SSL Certification file on Certification From your local computer. After selecting and opening Local Hard Drive: the file, click Upload to upload the file to the DAP-2690. D-Link DAP-2690 User Manual...

  • Page 80: Configuration File

    Configuration configuration to your local computer. Note that if File: you save one configuration with the administrator’s password now, after resetting your DAP-2690, and then updating to this saved configuration file, the password will be gone. D-Link DAP-2690 User Manual...

  • Page 81: Time And Date

    A user can either manually set the time for the AP here, Time Manually: or click the Copy Your Computer’s Time Settings button to copy the time from the computer in use (Make sure that the computer’s time is set correctly). D-Link DAP-2690 User Manual...

  • Page 82: Configuration

    If the "Save and Activate" option is selected, the following window will appear to display how many seconds remain before the save settings and reboot system action is completed. Discard Changes The drop-down Configuration menu allows users to drop the latest changes by clicking "Discard Changes." D-Link DAP-2690 User Manual...

  • Page 83: System

    Click Restart to restart the DAP-2690. Restart the Device: Click Restore to restore the DAP-2690 back to Restore to Factory Default Settings: factory default settings. Click Clear to remove the DAP-2690 language pack. Clear Language Pack: D-Link DAP-2690 User Manual...

  • Page 84: Help

    Section 3 - Configuration Help Help: Scroll down the Help page for topics and explanations. D-Link DAP-2690 User Manual...

  • Page 85: Using The Console Port

    2. Run HyperTerminal on the PC: • Go to the Start Menu • Select All Programs • Select Accessories • Select Communications • Select HyperTerminal 3. Enter a New Connection name: D-Link DAP-2690 User Manual...
  • Page 86 Section 4 - Using the Console Port 4. Select the appropriate COM port: 5. Configure the Port Settings: Note: Your terminal emulation must be set to 115200 bits per second. D-Link DAP-2690 User Manual...
  • Page 87 6. Enter the Login Name and Password: Once logged in, you will be able to run configuration commands from the command line prompt. You can type in a letter and press tab to see the available commands. D-Link DAP-2690 User Manual...

  • Page 88: Troubleshooting

    • Perform a Ping test to make sure that the DAP-2690 is responding. Go to Start > Run, type cmd, and then press Enter. At the DOS prompt, type ping 192.168.0.50. A successful ping will show four replies. Note: If you have changed the default IP address, make sure to ping the correct IP address assigned to the DAP-2690. D-Link DAP-2690 User Manual...
  • Page 89 • If it is necessary to assign a Static IP Address to the wireless adapter. If you are entering a DNS Server address, you must also enter the Default Gateway Address. Remember that if you have a DHCP-capable router, you will not need to assign a static IP address. D-Link DAP-2690 User Manual...
  • Page 90 Section 5 - Troubleshooting 3. What variables may cause my wireless products to lose reception? D-Link products let you access your network from virtually anywhere you want, however, the positioning of the products within your environment will affect its wireless range.

  • Page 91: Technical Specifications

    **Please note that operating frequency ranges vary depending on the regulations of • SSID Broadcast Disable individual countries and jurisdictions. The DAP-2690 isn’t supported in the 5.25~5.35 • MAC Address Access Control GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions. D-Link DAP-2690 User Manual...

  • Page 92: D-Link Dap-2690 User Manual

    • H = 35 mm *Please note that operating frequency ranges vary depending on the regulations of individual countries and jurisdictions. The DAP-2690 isn’t supported in the 5.25~5.35 GHz and 5.47 ~ 5.725 GHz frequency ranges in some regions. D-Link DAP-2690 User Manual...

  • Page 93: Copyright Statement

    Appendix B - Warranty Trademarks: D-Link is a registered trademark of D-Link Corporation/D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their respective owners. Copyright Statement: No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the...
  • Page 94 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office.
  • Page 95 This device has been designed to operate with an antenna having a maximum gain of 6 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. D-Link DAP-2690 User Manual...
