- Page 1 CABINET PARTS REFRIGERATOR For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) Part No. W10268080 Rev.A 5−09 Litho In U.S.A. (mat)(bay)
-

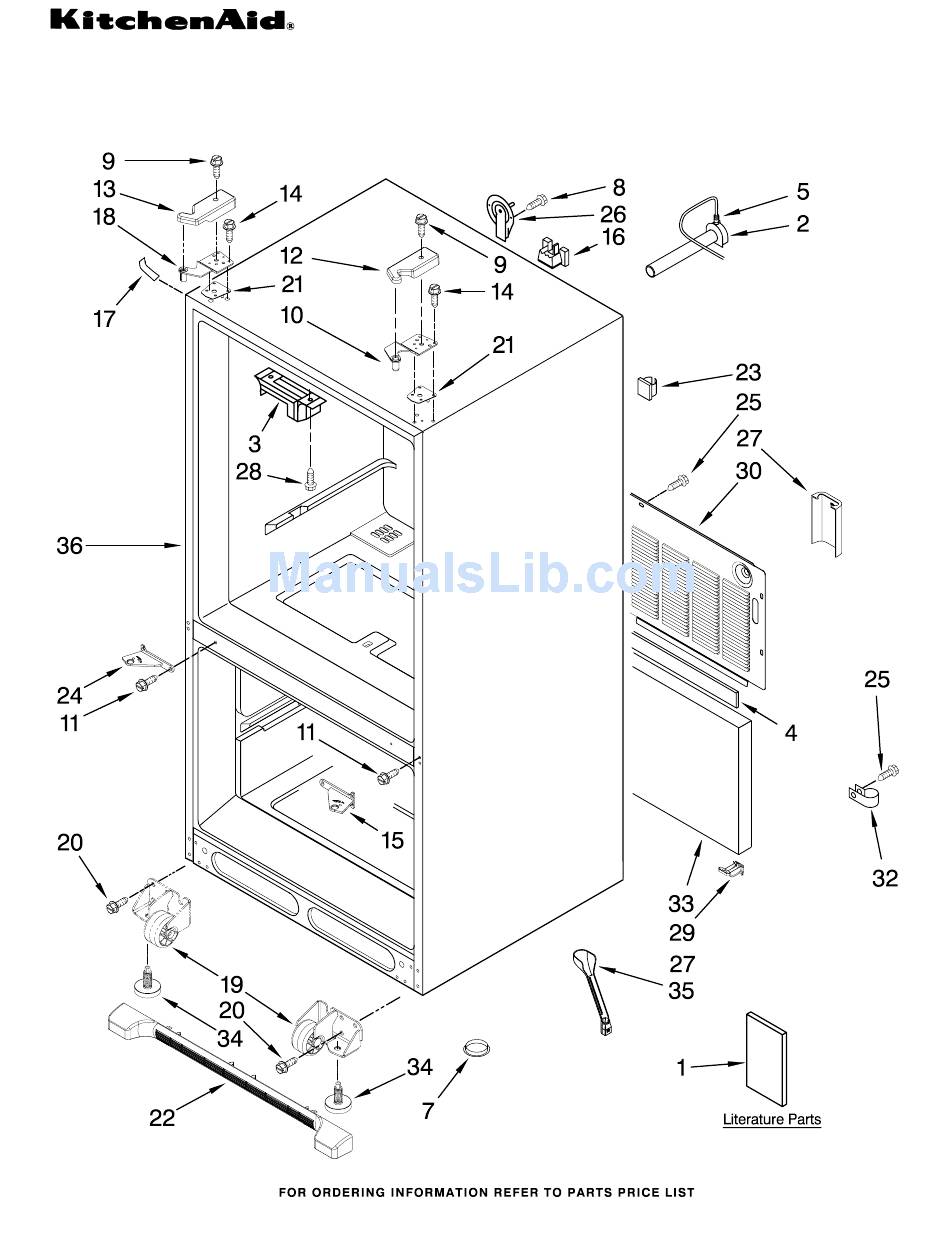

Page 2: Cabinet Parts
For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 Illus. Part DESCRIPTION Literature Parts W10238853 Tech Sheet 12828187SP Owners Manual W10194233 Tag, Energy 2 10463203SP Elbow, Fill Tube 3 W10120087 Block, Pivot B5759655 Gasket 5 M0114003SP Clip, Speed A3076901 Plug, Button 12990504 Screw 12992603 Screw... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) W10268080... - Page 4 FREEZER LINER PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12002497 Gear (Left) (Includes Item 7) 4 12476401SP Housing, Light 5 12812903WD Shaft 6 12570701SP Socket, Light...
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) W10268080... - Page 6 REFRIGERATOR LINER PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806303 Module, Light 3 W10118311 Overlay 12806405 Housing, Control 5 W10116216 Board, Control 12806501 Cover, Light 12806601V Housing, Light 9 W10194422V Bulb, Light (2)
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) W10268080... - Page 8 REFRIGERATOR DOOR PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Door, Refrigerator 13094713WQ White, LH 13094713BQ Black, LH 13094715SQ Stainless, LH 12991703 Screw 12744905 Door, Dairy 4 12369502SP Tray, Dairy 5 W10184033 Bucket, Medium (3)
-
Page 9: Unit Parts
UNIT PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) W10268080... - Page 10 For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 Illus. Part DESCRIPTION 12992301 Screw 12825803 Blade, Fan 3 W10210985 Basepan 12990511 Screw 2264017 Capacitor 6 W10233569 Tube, Discharge 7 W10211456 Harness, Evap. Heater 8 W10215085 Pan, Drain 9 W10216919 Screw, Shoulder 12729129 Heater, Defrost...
-
Page 11: Shelf Parts
SHELF PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) W10268080... - Page 12 SHELF PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 12204815 Glass, Pantry 12655204V Knob, Temp Control 12656822 Lid, Pantry Drawer 4 W10119222 Knob, Humidity Control (2) 5 12227305WD Brace, Pantry (2) 2204542 Roller, Basket 7 W10119854 Basket, Middle...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) W10268080... - Page 14 ICEMAKER PARTS For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 2 B5705333SP Tube, Plastic 10526702 Clamp 489276 Screw 12544124 Valve−Inlet 12868001 Arm−Shut Off 12582501 Cover, Front 8 A3223101SP Insert, Tube 9 W10122527 Mold & Heater...
-
Page 15: Freezer Door Parts
For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 W10268080 FREEZER DOOR PARTS (White) (Black) (Monochromatic Stainless) Illus. Part DESCRIPTION Door, Freezer 13094907WQ White 13094907BQ Black 13094908SQ Stainless Handle, Door W10119642 White W10119643 Black W10119644 Stainless Gasket, Door W10164040 White W10164041 Black W10164042 Apollo Grey... - Page 16 OPTIONAL PARTS (NOT INCLUDED) For Models: KFCS22EVWH1, KFCS22EVBL1, KFCS22EVMS1 (White) Illus. Part DESCRIPTION Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108") 876370 Kit, Insulation (2 Pcs. x 3" x 24" X 48") 876305 Kit, Insulation (14 Pcs. x 3"...
