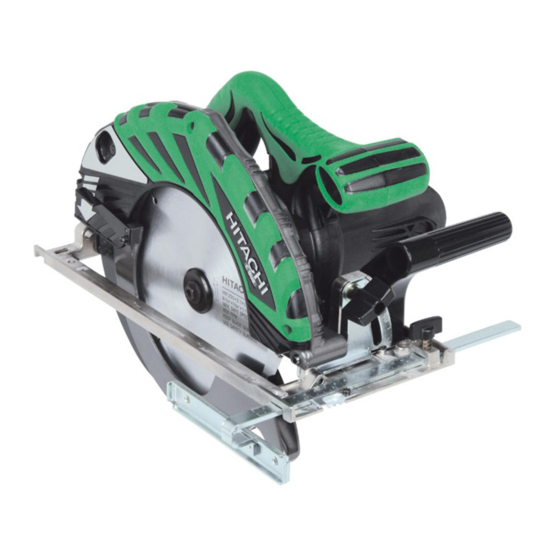

MODELS C 9U2 C 9BU2 Hitachi Power Tools CIRCULAR SAWS TECHNICAL DATA C 9U2 C 9BU2 SERVICE MANUAL LIST Nos. C 9U2: E513 Nov. 2005 C 9BU2: E514 SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT...
Page 2
REMARK: Throughout this TECHNICAL DATA AND SERVICE MANUAL, a symbol(s) is(are) used in the place of company name(s) and model name(s) of our competitor(s). The symbol(s) utilized here is(are) as follows: C 9U2, C 9BU2 Competitor Symbol Utilized Company Name...
8. PRECAUTIONS IN DISASSEMBLY AND REASSEMBLY ............. 8 8-1. Disassembly ............................. 8 8-2. Reassembly ............................9 8-3. Insulation Tests ..........................13 8-4. Cleaning the Cover ......................... 13 9. STANDARD REPAIR TIME (UNIT) SCHEDULES ................ 14 Assembly Diagram for C 9U2 Assembly Diagram for C 9BU2...
4. SELLING POINTS Compact and light weight (Weight: 6.8 kg) Low noise and vibration (Noise level during no-load operation: 4 to 5 dB lower than the conventional Electric brake model) Unique design (Models C 9BU2 only) Most lightweight in the class thanks to the gear cover made of die-cast magnesium alloy Main handle...
(3) Low noise and vibration In the Models C 9U2 and C 9BU2, the ball bearings at the front and the back of the motor are supported by rubber parts and a highly efficient, low-noise and small-diameter fan is adopted. The noise level and the vibration level at start-up and no-load operation are reduced thanks to the above.
Page 7
(11) Two kinds of levers (Standard accessories) The Models C 9U2 and C 9BU2 are equipped with both the short lever for use with the dust collector and the long lever (factory-installed) as standard accessories. When the dust collector is not necessary, use the easier-to-operate long lever for comfortable cutting operation.
5. SPECIFICATIONS Model C 9U2 C 9BU2 Saw blade diameter 235 mm (9-1/4") at 90û 0 to 86 mm (0 to 3-3/8") Cutting depth at 45û Max. 65 mm (2-9/16") Power source AC single phase Type of motor AC single phase commutator motor...
7. PRECAUTIONS IN SALES PROMOTION In the interest of promoting the safest and most efficient use of the Models C 9U2 and C 9BU2 Circular Saws by all of our customers, it is very important that at the time of sale the salesperson carefully ensures that the buyer seriously recognizes the importance of the contents of the Handling Instructions.
[Bold] numbers in the descriptions below correspond to the item numbers in the parts list and exploded assembly diagram for the Model C 9U2. During disassembly and reassembly, and at all other times as well, sufficient care must be exercised in handling to ensure that there is no deviation in the flatness of the bottom surface of the base and in its perpendicularity with relation to the saw blade.
8-2. Reassembly Reassembly can be accomplished by following the disassembly procedures in reverse. However, particular attention should be given to the following items. (1) Tightening torques for fastening screws and bolts Machine Screws M4 [18] [21] [46] ........... 1.8 0.4 N m {18 4 kgf •...
Page 13
[28] (4) Reassembly of the Lock Lever [26] (See Fig. 3.) A. Position the Lock Lever [26] between the fan and the Ball Bearing 6202VVCMPS2L [35] of the Armature [25], and carefully assemble it together with the Armature [25] into the Gear Cover [28]. B.
Page 14
A. Model C 9U2 (Not provided for the Model C 9U2 for South Africa) Fig. 4 B. Model C 9U2 (For Switzerland) Fig. 5 --- 11 ---...
Page 15
C. Model C 9BU2 (Not provided for the Model C 9BU2 for South Africa) Fig. 6 D. Model C 9BU2 (For Switzerland) Fig. 7 --- 12 ---...
8-3. Insulation Tests On completion of disassembly and repair, measure the insulation resistance and conduct dielectric strength test. Insulation resistance: 7 M Ω or more with DC 500 V megohm tester Dielectric strength: AC 4000 V/1 minute, with no abnormalities 8-4.
9. STANDARD REPAIR TIME (UNIT) SCHEDULES Variable 60 min. MODEL Fixed Work Flow C 9U2 C 9BU2 Handle Cover Switch Cord Cord Armor Housing Ass'y Stator Ass'y General Assembly Protective Armature Ass'y Cover Ball Bearing Return Spring (6202VV) Saw Cover...
Page 18
Hitachi Power Tools LIST NO. E513 ELECTRIC TOOL PARTS LIST CIRCULAR SAW 2005 • • Model C 9U2 (E1)
Page 19
PARTS C 9U2 ITEM CODE NO. DESCRIPTION REMARKS USED 673-002 NEEDLE BEARING (HK1212) 303-789 SPINDLE AND GEAR SET 303-790 BEARING HOLDER 303-797 SEAL LOCK FLAT HD. SCREW M6X14 998-887 LINER 620-3VV BALL BEARING 6203VVCMPS2L 325-353 SAFETY COVER 303-805 RETURN SPRING...
