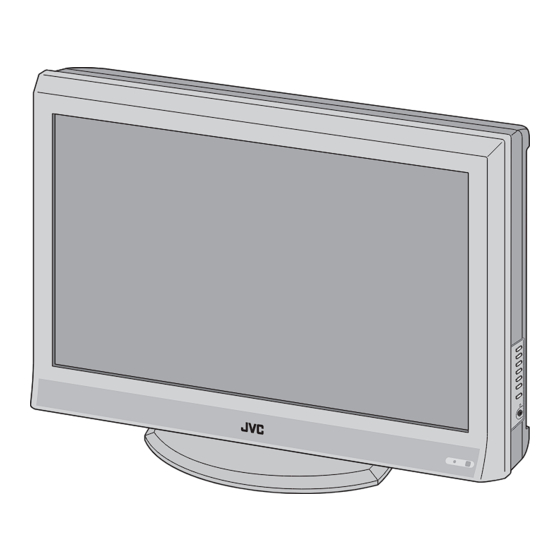

JVC LT-Z37EX6 Service Manual

Wide lcd television
Hide thumbs Also See for LT-Z37EX6:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , User Manual
SERVICE MANUAL
10
2006
YA462
LT-Z37EX6, LT-Z37EX6
LT-Z37EX6
1
PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2
SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
4
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
5
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
WIDE LCD TELEVISION

TABLE OF CONTENTS

COPYRIGHT © 2006 Victor Company of Japan, Limited
, LT-Z37EX6
/B
,
/A
/S
BASIC CHASSIS
FL3
No.YA462
2006/10

Advertisement

Chapters

Table of Contents
loading

Related Manuals for JVC LT-Z37EX6

Summary of Contents for JVC LT-Z37EX6

  • Page 1: Table Of Contents

    SERVICE MANUAL WIDE LCD TELEVISION YA462 2006 LT-Z37EX6, LT-Z37EX6 LT-Z37EX6 , LT-Z37EX6 BASIC CHASSIS TABLE OF CONTENTS PRECAUTION............... . . 1-3 SPECIFIC SERVICE INSTRUCTIONS .
  • Page 2 SPECIFICATION Items Contents Dimensions ( W × H × D ) 91.9 cm × 55.2 cm × 31.1 cm [Included stand] 91.9 cm × 60.4 cm × 12.8 cm [TV only] Mass 21.0 kg [Included stand] 18.4 kg [TV only] Power Input AC110V - AC240 V, 50 Hz / 60 Hz Power Consumption...

  • Page 3: Precaution

    SECTION 1 PRECAUTION SAFETY PRECAUTIONS (1) The design of this product contains special hardware, (6) Isolation Check (Safety for Electrical Shock Hazard) many circuits and components specially for safety After re-assembling the product, always perform an purposes. For continued protection, no changes should be isolation check on the exposed metal parts of the cabinet made to the original design unless authorized in writing by (antenna terminals, video/audio input and output terminals,...
  • Page 4 INSTALLATION 1.2.1 HEAT DISSIPATION 1.2.3 INSTALLATION REQUIREMENTS If the heat dissipation vent behind this unit is blocked, cooling To ensure safety in an emergency such as an earthquake, and efficiency may deteriorate and temperature inside the unit will to prevent accidents, ensure that measures are taken to prevent rise.
  • Page 5 HANDLING LCD PANEL 1.3.1 PRECAUTIONS FOR TRANSPORTATION 1.3.2 OPTICAL FILTER (ON THE FRONT OF THE LCD PANEL) When transporting the unit, pressure exerted on the internal LCD (1) Avoid placing the unit under direct sunlight over a panel due to improper handling (such as tossing and dropping) prolonged period of time.

  • Page 6: Specific Service Instructions

    Please order to your parts center if you do not have this remote control unit. Parts number: LP20873-009A (Remote control unit for VCR) MAIN DIFFERENCE LIST Item LT-Z37EX6 LT-Z37EX6/A LT-Z37EX6/S LT-Z37EX6/B POWER CORD EU Type (2 Pins) AU Type (2 Pins)
  • Page 7 TECHNICAL INFORMATION 2.4.1 LCD PANEL This unit uses the flat type panel LCD (Liquid Crystal Display) panel that occupies as little space as possible, instead of the conventional CRT (Cathode Ray Tube), as a display unit. Since the unit has the two polarizing filter that are at right angles to each other, the unit adopts "normally black" mode, where light does not pass through the polarizing filter and the screen is black when no voltage is applied to the liquid crystals.
  • Page 8 2.4.2 MAIN CPU PIN FUNCTION [IC7301 : DIGITAL PWB] Pin name Function Pin name Function Test purpose I/O Program ROM data for main CPU Test purpose I/O Program ROM data for main CPU Test purpose I/O Program ROM data for main CPU Test purpose VSS33 P2.8...

  • Page 9: Disassembly

    SECTION 3 DISASSEMBLY DISASSEMBLY PROCEDURE CAUTION AT DISASSEMBLY: • Be sure to perform the SYSTEM SETTEING, at the end of the procedure. • Make sure that the power cord is disconnected from the outlet. • Pay special attention not to break or damage the parts. •...
  • Page 10 STNAD COVER JACK COVER STAND REAR COVER SHIELD COVER BACK BRACKET DIGITAL PWB D-AMP PWB SHIELD COVER SHIELD TERMINAL SHIELD TERMINAL POWER CORD HOLDER SHIELD BASE ANALOG PWB POWER CORD D-AMP PWB TUNER BASE BRACKET POWER PWB DC-DC PWB TERMINAL BASE FRONT Fig.1 1-10 (No.YA462)
  • Page 11 3.1.8 REMOVING THE SW PWB (Fig.2) 3.1.11 REMOVING THE LCD PANEL UNIT (Fig.2) • Remove the STAND. • Remove the STAND. • Remove the REAR COVER. • Remove the REAR COVER. (1) Remove the 2 screws [A]. • Remove the BACK BRACKET. (2) Remove the CONTROL ASS’Y with SW PWB.
  • Page 12 MEMORY IC REPLACEMENT • This model uses the memory IC. • This memory IC stores data for proper operation of the video and drive circuits. • When replacing, be sure to use an IC containing this (initial value) data. 3.2.1 MEMORY IC TABLE Simbol Number of pins Mounting PWB Main content of data...
  • Page 13 3.2.4 SETTINGS OF FACTORY SHIPMENT 3.2.4.1 BUTTON OPERATION 3.2.4.2 REMOTE CONTROL DIRECT OPERATION Setting item Setting position Setting item Setting position POWER CHANNEL PR01 CHANNEL PR01 VOLUME VOLUME ZOOM Panoramic TV/AV 3.2.4.3 REMOTE CONTROL MENU OPERATION (1) PICTURE (3) FEATURES Setting item Setting position Setting item...
  • Page 14 REPLACEMENT OF CHIP COMPONENT 3.3.1 CAUTIONS (1) Avoid heating for more than 3 seconds. (2) Do not rub the electrodes and the resist parts of the pattern. (3) When removing a chip part, melt the solder adequately. (4) Do not reuse a chip part after removing it. 3.3.2 SOLDERING IRON (1) Use a high insulation soldering iron with a thin pointed end of it.

  • Page 15: Adjustment

    SECTION 4 ADJUSTMENT ADJUSTMENT PREPARATION BASIC OPERATION OF SERVICE MODE (1) There are 2 ways of adjusting this TV : One is with the 4.5.1 HOW TO ENTER THE SERVICE MODE REMOTE CONTROL UNIT and the other is the (1) Press [DISPLAY] key and [MUTING] key on the remote conventional method using adjustment parts and control unit simultaneously to enter the SERVICE MODE components.
  • Page 16 4.5.4 ADJUSTMENT MODE This mode is used to adjust the VIDEO CIRCUIT and the MTS CIRCUIT. 4.5.4.1 HOW TO ENTER THE ADJUSTMENT MODE When the SERVICE MENU SCREEN of SERVICE MODE is displayed, press [1] key to enter the ADJUSTMENT MODE. 4.5.5 DESCRIPTION OF STATUS DISPLAY (3) PICTURE MODE SOFT...
  • Page 17 INITIAL SETTING VALUES IN THE SERVICE MODE • Perform fine-tuning based on the "initial values" using the remote control when in the Service mode. • The "initial values" serve only as an indication rough standard and therefore the values with which optimal display can be achieved may be different from the default values.
  • Page 18 Item No. Item Variable range Setting value Item No. Item Variable range Setting value M088 1E57 00 - FF M146 1E91 00 - FF M089 1E58 00 - FF M147 1E92 00 - FF M090 1E59 00 - FF M148 1E93 00 - FF M091...
  • Page 19 Item No. Item Variable range Setting value Item No. Item Variable range Setting value M204 1ECB 00 - FF M221 1EDC 00 - FF M205 1ECC 00 - FF M222 1EDD 00 - FF M206 1ECD 00 - FF M223 1EDE 00 - FF M207...

  • Page 20: Troubleshooting

    SECTION 5 TROUBLESHOOTING SELF CHECK FEATURE 5.1.5 POINTS TO NOTE WHEN USING THE SELF CHECK FEATURE 5.1.1 OUTLINE In addition to circuit failures (abnormal operation), the following This unit comes with the "Self check" feature, which checks the cases may also be iagnosed as "Abnormal" and displayed and operational state of the circuit and displays/saves it during counted as "NG".
  • Page 21 5.1.6 DETAILS Self check is performed for the following items: < Page 1 of screen > Diagnosis Detection item Display Detection content Detection timing signal (line) Low bias line short Confirm the operation of the low bais (16V / 5V / LB_PRO Detection starts 3 seconds after protection...
  • Page 22 Victor Company of Japan, Limited Display Category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan (No.YA462) Printed in Japan...
  • Page 23 ENGLISH LT-Z26EX6 LT-Z32EX6 LT-Z37EX6 WIDE LCD PANEL TV INSTRUCTIONS LT-Z26EX6 © 2006 Victor Company of Japan, Limited 0706TKH-CR-MU GGT0128-001B-H-EN...
  • Page 24 LT-Z26EX6 / LT-Z32EX6 LT-Z37EX6...
  • Page 25 Expanding the world of beautiful images Contents Enjoy rich multi-media with JVC First things first! VHF/UHF  Warning ············································ 3 Digital camera Video camera Getting started Game console  Names of all the parts ······················ 5  Basic connections ···························· 7 Personal ...

  • Page 26: First Things First

    There is a risk that the TV will fall and  etc. on the TV may procedures. cause injuries. cause a fire.  JVC assumes no responsibility for damage due to improper mounting. Never expose to rain or Make enough room for moisture! inserting and removing the power plug! To prevent fire or electric...

  • Page 27: Getting Started

    “Power Lamp” (P. 28)  Channel information To previous screen (P. 17) Remove the terminal cover Change channel / page Volume LT-Z37EX6 LT-Z32EX6 LT-Z26EX6  When watching TV / Video Press to Press to Press to Change the aspect ratio (P. 17) remove.

  • Page 28: Basic Connections

    200mm optional JVC wall mounting unit Consult a qualified technician.  See the included manual on mounting procedures.  JVC assumes no responsibility for damage due to  improper mounting. 200mm × 200mm mount which conforms to VESA  LT-Z37EX6 LT-Z32EX6 / LT-Z26EX6 standards.

  • Page 29: Initial Settings

    “Editing channels” (P. 11)  To the previous screen  Confirm  Exit   If the “JVC” logo does not appear or if you wish to make changes later  “Language”, “Teletext language” and “Auto Program” (P. 28)

  • Page 30: Registering Channels

    Editing channels Edit the channels registered with “Auto Program” in “Initial settings” (P. 9) 1 Begin 2 Select a destination 3 Finish Move a When coming from “Initial settings” (P. 9), skip to ⁄. channel’s >Edit > Edit select CH/CC CH/CC Display the menu bar position...

  • Page 31: Connecting External Devices

    Connecting external devices VCR / DVD / other devices You can connect many different devices to the rear panel of the TV. Please read the user manuals of each device before setting up. VIDEO-1 (Connecting cables are not supplied with this TV.) : signal direction Watching videos Output...

  • Page 32: Enjoying Your New Tv

    Let’s try it out Enjoying your new TV! TV mode TV and Text mode Watching TV Text mode PAGE Viewing teletext  View channel information  Change the aspect ratio PAGE  Enlarge the text  Enjoy “Cinema Surround”  To the index page ...

  • Page 33: Watching Tv

    Watching TV Power on  Mute PR List The blue PR List Channel information Channels  power lamp registered in on the TV lights Channel “Initial settings” will information appear here. (No indication)  Press again to turn the screen off DISPLAY and put the TV into standby mode.

  • Page 34: Viewing Teletext

    Viewing teletext This TV can display TV broadcasts and teletext on the same channel in two windows. Hold the current page When watching TV Hold the current page HOLD  Release  Press “ ” again TEXT Enter a teletext page Display hidden information (answers to quizzes, etc.) Reveal...

  • Page 35: Watching Videos / Dvds

    Record / Display DVD top menu Using S-VIDEO Select a chapter (DVD mode)  Some models of JVC devices cannot be operated with this remote control.  If both composite and S-VIDEO cables are connected, S-VIDEO will be enable. PC position adjustment...

  • Page 36: Try The Advanced Features

    Try the advanced features Useful functions Select the number of screens 1 select 2 set 1 select “Features” Features Selecting “ ” returns to normal viewing mode Set a time 2 next Not available in PC mode.  for the TV to Features turn itself off 1 select “Sleep Timer”...
  • Page 37 Useful functions (continued) While the channel is displayed  “MENU”  “ ”  “Features”  “Blue Back” Hold down 1 - 4? 1 select Displays a for 3 seconds blue screen Movie Theatre : Function is : Displays a and mute turned off blue screen...

  • Page 38: Just The Way You Like It

    Just the way you like it Customising your TV Display the menu bar Menu Item Adjustments / Configurations Picture Mode Picture mode (Bright / Standard / Soft) Selected menu’s title Back Light Backlight brightness (Darker  Brighter) Picture Contrast Picture Contrast (Lower ...

  • Page 39: Advanced Picture Adjustment

    Advanced picture adjustment By default, the TV automatically adjusts itself for the best picture. Auto Super Display the menu bar natural-looking : Function is : When the picture : When : Automatically DigiPure Auto Super DigiPure turned off loses sharpness noise appears adjusts outlines...

  • Page 40: When You Have Trouble

    When you have trouble Troubleshooting Problem Actions page Severe noise or snow Remote control – Unplug TV, several minutes later plug it in again.  stops working Front control buttons Switch “Child Lock” to “Off”.  does not work  Is the TV connected correctly to the aerial? ...
  • Page 41 Troubleshooting (continued) Problem Actions page Problem Actions page LCD panels use fine dots (“pixels”) to display images.  Adjust the “Bass” and “Treble”. While more than 99.99% of these pixels function properly,  Black or white dots Poor sound If receiving a poor signal in “Stereo / t·u”, switch to “Mono”. a very small number of pixels may not light, or may light all –...

  • Page 42: Technical Information

    Technical information Language group for teletext Monoaural sound Use this function when stereo sound or bilingual sound is hard to hear. Group Languages  Set “Stereo / t · u” to “MONO”  (P. 28) Group-1 Turkish, Hungarian, English, German, French, Italian, Spanish, Portuguese, Greek, Swedish, Finnish Group-2 Polish, Serbian, Croatian, Slovenian, Czech, Slovak, Rumanian, Hungarian, German, French, Italian, Swedish, Finnish PC Signals that can be displayed...

  • Page 43: Ch/Cc" List

    To use the INSERT function (P. 11), find the “CH/CC” number corresponding to the TV’s Channel number from this Main unit table. The US channel numbers are the channel numbers used in the United States, Philippines, etc. Model LT-Z37EX6 LT-Z32EX6 LT-Z26EX6 CCIR: The CCIR channel numbers are the channel numbers used in the Middle East, Southeast Asia, etc.

  • Page 44: Parts List

    PARTS LIST CAUTION The parts identified by the symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the  safety. The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied. P.W.
  • Page 45 EXPLODED VIEW -1 ..............................3-5 EXPLODED VIEW PARTS LIST -2 ..........................3-6 EXPLODED VIEW -2 ..............................3-6 PRINTED WIRING BOARD PARTS LIST [LT-Z37EX6] ..................... 3-7 ANALOG P.W. BOARD ASS'Y (SFL-1233A-H2) ....................3-7 D-AMP P.W. BOARD ASS'Y (SFL-6232A-H2) ....................3-10 SW P.W. BOARD ASS'Y (SFL-7211A-H2) ...................... 3-11 LED P.W.

  • Page 46: Using P.w. Board & Remote Control Unit

    USING P.W. BOARD & REMOTE CONTROL UNIT P.W.B ASS'Y No. P.W.B ASS'Y name LT-Z37EX6 LT-Z37EX6/A LT-Z37EX6/S LT-Z37EX6/B ← ← ANALOG P.W.B SFL-1233A-H2 SFL-1233A-BK ← ← D-AMP P.W.B SFL-6232A-H2 SFL-6232A-BK ← ← SW P.W.B SFL-7211A-H2 SFL-7211A-BK ← ← LED P.W.B SFL-8906A-H2 SFL-8906A-BK ←...

  • Page 47: Exploded View Parts List -1

    SIN CR C-C WIRE MAIN POWER F-D-AMP CN10F QJJ009-151010-E SIN CR C-C WIRE MAIN POWER A-DC-DC A  133 QMPK450-170-JC POWER CORD(EU) 1.7m BLACK LT-Z37EX6  133 QMPG110-170-JC POWER CORD(AST) 1.7m BLACK LT-Z37EX6A  133 QMPR990-165-K2 POWER CORD 1.65m BLACK LT-Z37EX6B ...

  • Page 48: Exploded View -1
