3. Analog and Digital TV signals provided on cable and antenna
Antenna
Cable TV Wall
Jack
ANTENNA
Note: The TV will let you know when the TV(analog antenna), DTV(digital antenna), CATV(analog cable) and CADTV(digital
cable) channel scans are complete.

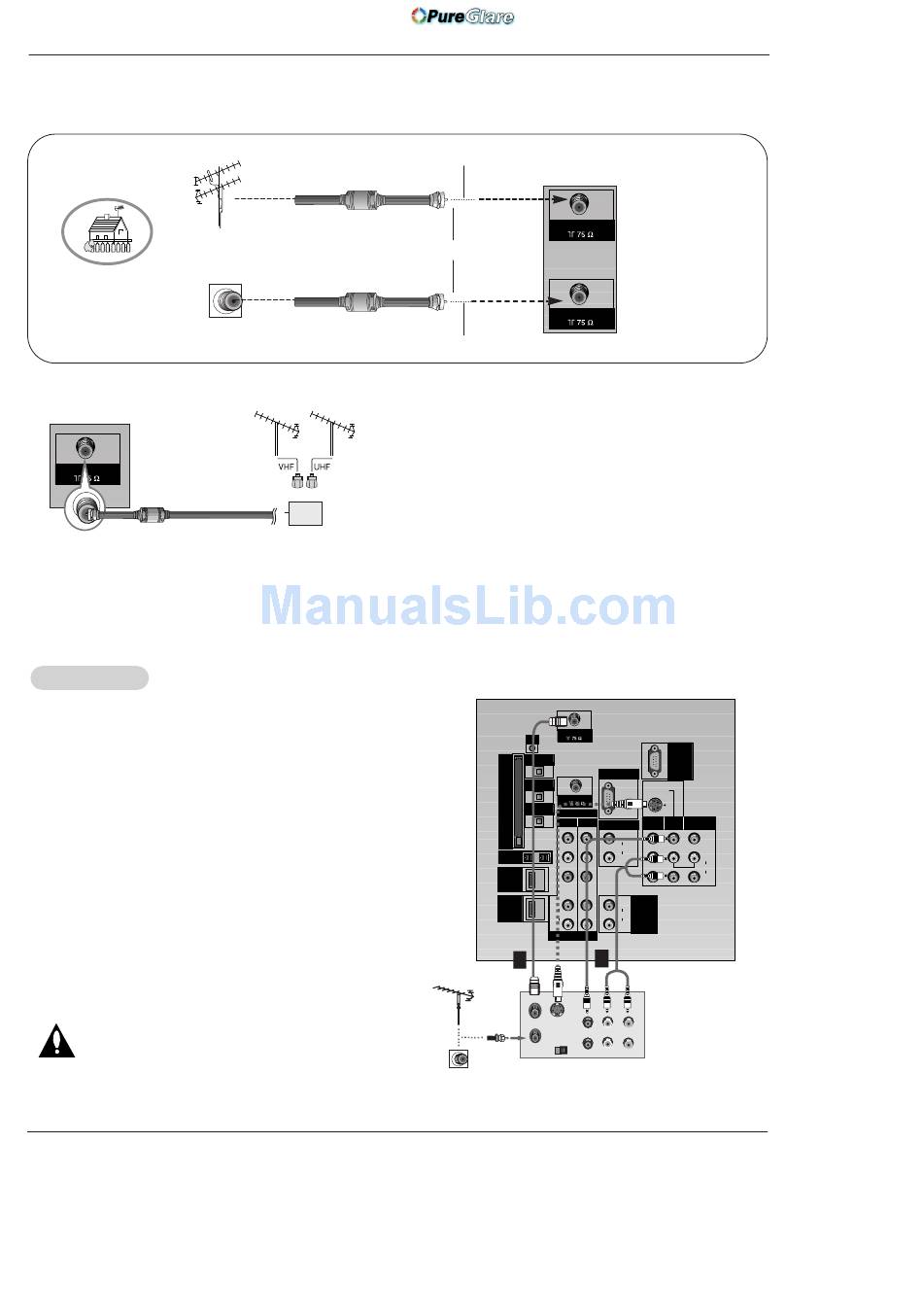

VCR Setup

VCR Setup
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune the
TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the VCR's output
jacks to the TV input jacks, as shown in the figure.
When connecting the TV to VCR, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
If you connect an S-VIDEO output from VCR to the S-VIDEO
input, the picture quality is improved; compared to connecting
a regular VCR to the Video input.
2. Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner's manual.)
3. Select the input source with using the TV/VIDEO button on
the remote control. Note that this TV finds the connected
input sources automatically for Video, Front Video and
Component 1-2. It is presumed that RGB, HDMI1/DVI and
HDMI2 sources are connected.
Do not connect to both Video and S-Video at the
same time. In the event that you connect both Video
and the S-Video cables, only the S-Video will work.)
Bronze Wire
RF Coaxial Wire (75 ohm)
Turn clockwise to tighten.
RF Coaxial Wire (75 ohm)
Bronze Wire
• To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.
• If the antenna needs to be split for two TV's, install a "2-
Way Signal Splitter" in the connections.
• If the antenna is not installed properly, contact your deal-
er for assistance.
Signal
Amplifier
