• Before operating this unit, please read these instructions carefully and keep them for future reference.
• Please refer to attached Installation Manual.
Installation performed by non-authorized individuals could cause safety-related problems with the
operation of this equipment.
For U.S.A. only:
• To locate the closest authorized dealer in your area, please call 1-800-449-8989.

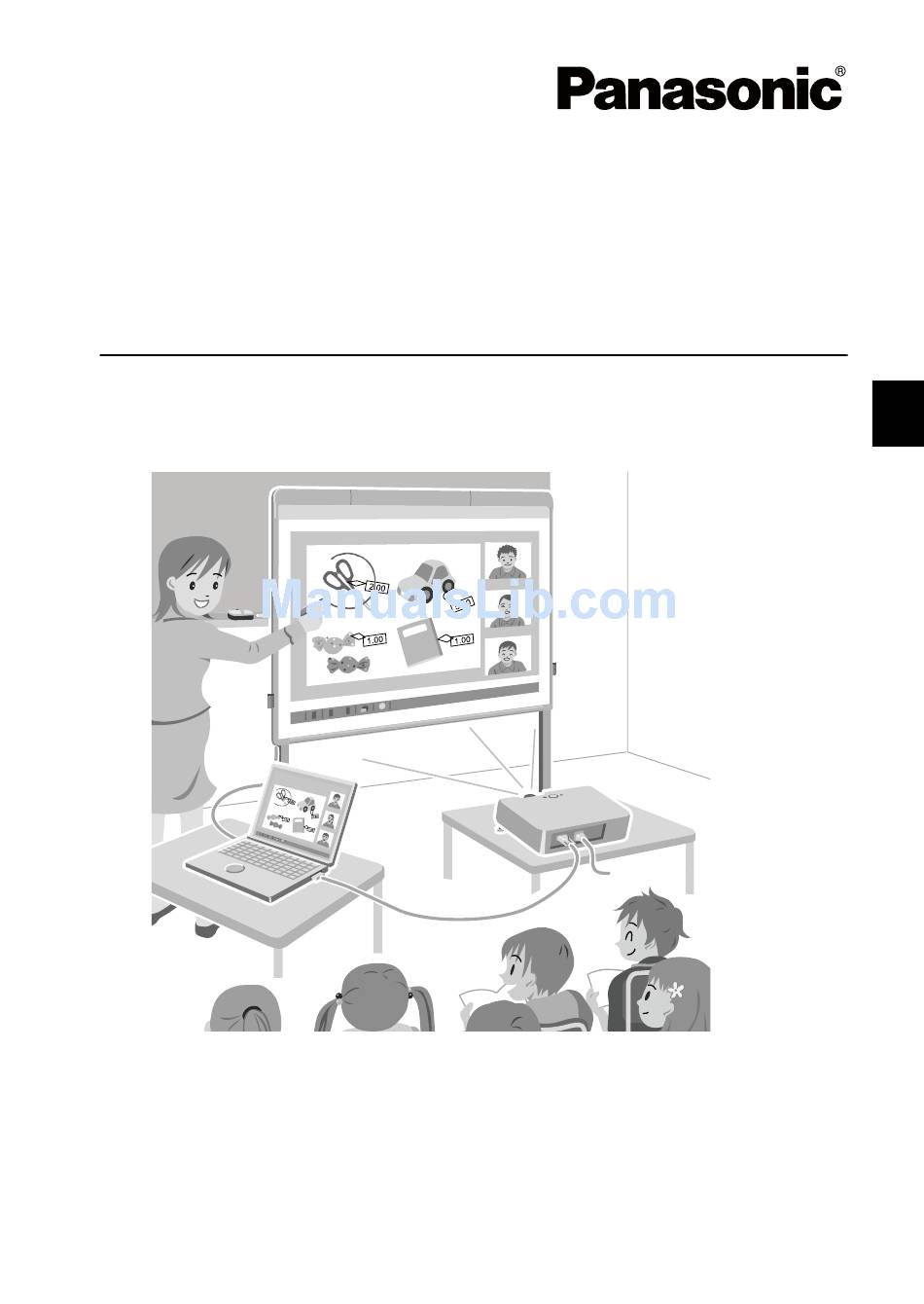

Operating Instructions
UB-T580
Stand and electronic pen are optional devices.
Electronic Board
(elite Panaboard)
UB-T580W
Model No.
UB-T580W
1
Advertisement
Table of Contents
Related Manuals for Panasonic UB-T580
Summary of Contents for Panasonic UB-T580
- Page 1 (elite Panaboard) UB-T580W Model No. UB-T580W UB-T580 Stand and electronic pen are optional devices. • Before operating this unit, please read these instructions carefully and keep them for future reference. • Please refer to attached Installation Manual. Installation performed by non-authorized individuals could cause safety-related problems with the operation of this equipment.
-
Page 2: Feature Highlights
Introduction Introduction Introduction Thank you for purchasing the Panasonic Electronic Board. For optimum performance and safety, please read these instructions carefully. Feature Highlights You can project your computer screen onto the screen board of elite Panaboard using a projector and perform various operations. - Page 3 Introduction Things you should keep a record of Attach your sales receipt here For your future reference Date of purchase Model no. Serial number Dealer’s name Dealer’s address Dealer’s tel no. Abbreviations Windows refers to the Microsoft Windows operating system. ®...
- Page 4 Introduction Organization of the Manuals The following documents are provided to help you use the elite Panaboard properly and safely. In additions to these documents, the help information is provided for all software. Operating Instructions Safety precautions, operating procedures, and information on after- (this document) sales service are provided.
-
Page 5: System Requirements
Exemption of Liability Panasonic System Networks Co., Ltd. is not responsible for accidents or injuries caused by, but not limited to, the following: Altering the device or improper installation construction. - Page 6 Introduction For FRG Users (For Germany Only) Note Machine noise information regulation - 3.GPSGV, the maximum sound pressure level is 70 dB(A) or less, in conformity with EN ISO 7779. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
-
Page 7: Table Of Contents
Using the elite Panaboard After Positioning the System (Calibration) ....22 Viewing the Help of the Software ................25 Uninstalling the Software................... 26 Uninstalling Panasonic Software Update Manager ..........26 Download the Latest Software................... 26 Appendix....................27 Daily Care ........................27 Cleaning the elite Panaboard ................. -
Page 8: For Your Safety
For Your Safety For Your Safety For Your Safety WARNING To prevent severe injury and loss of life, read this section carefully before using the unit to ensure proper and safe operation of your unit. Power • This section explains the graphic symbols used in Stop operation immediately if the unit this manual. - Page 9 For Your Safety Operating Safeguards Electronic Pen (Optional Device) Battery If metal fragments or water gets into the unit, unplug the USB cable immediately. Use only the specified type of battery. Contact your dealer for service. Using the incorrect type of battery can Operating the contaminated unit can result in overheating/burning or leakage cause fire or electric shock.
- Page 10 For Your Safety Operating Safeguards CAUTION If the unit falls down or gets damaged, unplug the USB cable. Otherwise, it Installation and Relocation may cause fire or electric shock. Do not position the unit in a location Do not lean against the unit, even if the where it is unstable.
-
Page 11: Precautions
For Your Safety Precautions Handling of End-of-life Batteries (For Brazil only) Any changes or modifications not expressly BRASIL approved by the party responsible for compliance Após o uso, as pilhas e/ou could void the user’s authority to operate this baterias poderão ser entregues device. -
Page 12: Usage
Usage Included Accessories Usage Check that all of the following items are included with your elite Panaboard. In the event that an item is missing, please contact your dealer. List of Accessories Operating Instructions Software DVD-ROM Stylus Pen (this document) Warranty Installation Manual* Cable Holder*... -
Page 13: Names And Uses Of The Parts
Usage Names and Uses of the Parts Main unit Front View Status LED Lights green when the power is on. Lights red when an error occurs. Undetectable Area The position of your finger or the electronic pen in this area cannot be detected. Make sure that the projected image does not overlap with this area. - Page 14 Usage Stylus Pen The stylus pen works just like using your finger. You cannot use both stylus pen and electronic pen simultaneously. Strap Loop For attaching straps, if desired. (Use a commercially available strap from which the cord will detach if excessive force is applied.) Penpoint Notice...
- Page 15 Usage Electronic Pen (Optional Device) Strap Loop For attaching straps, if desired. (Use a commercially available strap from which the cord will detach if excessive force is applied.) Selector Dial Selects features of the electronic pen. Status LED (green) Lights when the electronic pen power is Blinks when the electronic pen battery is low.
- Page 16 Usage Electronic Pen Features Draws with a marker in the selected color. Black/Red/Blue/ Marker line thickness and other settings can be specified in the Drawing Menu. Green Erases marker lines that you have drawn. Eraser size and other settings can be specified in the Drawing Menu. Eraser Highlights with a highlighter in the selected color.
-
Page 17: Connecting External Components
Projector Video Cable * In the case of the UB-T580, the length of the USB cable from the edge of the main unit is approx. 2.7 m (8 ft. 10 in.) when it is connected to the left side and approx. 2.4 m (7 ft. 10 in.) when it is... - Page 18 Usage Moving the elite Panaboard When Using the Stand (Optional Device) Disconnect the USB cable and bundle it using the cable clamp. Release the locks on the casters. Note • When folding back the fall-prevention extension legs, release the lock as follows (1, 2). Move the elite Panaboard with 2 people, avoid banging or shaking the board.
-
Page 19: Installing The Software
Autoplay dialog box is displayed, click [Run installed, this function will be deleted Menu.exe]. (uninstalled). • If Panasonic Software Update Manager is When the “elite Panaboard” screen is already installed, it will not be deleted displayed, click the type of device you (uninstalled) even when it is deselected. - Page 20 • The [elite Panaboard] group and the • If the USB cable is connected to the [Panasonic Software Update Manager] computer, disconnect the cable, and click group will be created in the [Panasonic] [OK]. group in the program menu. • If Microsoft ®...
-
Page 21: Setting The Projector
Usage Setting the Projector • If the image is projected trapezoidally, the position may not be read correctly. Adjust the Set up your projector as instructed below. projector so that the projected image is a rectangle. Refer to your projector’s About Positioning the Image documentation for information on adjusting the •... -
Page 22: Using The Elite Panaboard After Positioning The System (Calibration)
Usage Using the elite • Raise your finger vertically when touching the screen board, to avoid other fingers Panaboard After being detected. (If other fingers are detected, the position may get shifted.) Positioning the System • After you touch an indicated point correctly, (Calibration) the next point is shown automatically. - Page 23 • Double-click the desktop icon of (elite Panaboard book). • To display the Select Function Menu, click the • Click [Start] → [All Programs] → [Panasonic] → Menu Start Tab (left side: / right side: ) on [elite Panaboard] → [elite Panaboard book].
-
Page 24: Using The Electronic Pen
• To display the Drawing Menu, touch the computer, and connect the UB-T580 / screen board while holding the menu/mode UB-T580W to your computer. selector button on the electronic pen in the Electronic Pen mode. -
Page 25: Viewing The Help Of The Software
→ [Panasonic Software Update position. Manager] → [Help]) • Make sure to lock the stand’s casters when using the elite Panaboard, as failing to do so can cause • Panasonic Software Update Manager help is misalignment. displayed. Performing the Recalibration (Displaying Note the Calibration Screen Manually) •... -
Page 26: Uninstalling The Software
For the steps to take, refer to “Viewing the Help of the Software” (page 25). Uninstalling Panasonic Software Update Manager If it is necessary to uninstall the Panasonic Software Update Manager, follow the procedure below. Turn on your computer and start Windows. -
Page 27: Appendix
Appendix Daily Care Appendix When cleaning the elite Panaboard or inside the elite Panaboard, make sure to unplug the USB cable from the computer. Cleaning the elite Panaboard Replacing the Penpoint of the Electronic Pen (Optional Clean at least once every three months. Device) When the penpoint of the electronic pen starts to wear down, a hole will start to form in the penpoint. -
Page 28: Replacing The Battery In The Electronic Pen (Optional Device)
Appendix Replacing the Battery in the Changing the Attachment Electronic Pen (Optional Location of the Pen Holders Device) When the stand is used, you can change the attachment location of the pen holders. When the electronic pen battery is low, the [See “Names and Uses of the Parts”... -
Page 29: Troubleshooting
Appendix Troubleshooting When experiencing problems, please refer to the table below for possible solutions. If the problem persists, contact your dealer. In the case of the kinds of trouble which are not described in the table below, refer to “Troubleshooting” in the software help. Symptom Possible cause and solution page... - Page 30 Appendix Symptom Possible cause and solution page The connection between the computer and the Check that the elite Panaboard is in an operable state, and that — elite Panaboard is the USB cable is properly connected. unexpectedly lost. The elite Panaboard Other applications or anti-virus software are active.
- Page 31 Appendix Symptom Possible cause and solution page • The Finger/Stylus Pen mode is selected. → Switch to the Electronic Pen mode. • Other applications or anti-virus software are active. The electronic pen loses → Shut down the other applications and anti-virus software. the functions.
-
Page 32: Specifications
LR03 (AAA alkaline dry cell battery) × 1 Electronic Pen Power (Optional Device) Electronic Pen Battery Life 30 hours (when used continuously at 25 °C [77 °F]) * When using Panasonic LR03 alkaline dry-cell batteries. Model UB-T580 Number 1,352 mm × 1,637 mm × 74 mm... -
Page 33: Supplies & Accessories
Appendix Supplies & Accessories Optional Device Stand KX-B061-A Electronic Pen UE-608020 Stylus Pen UE-608021 Up / Down Unit UE-608030 Stand Table Unit UE-608031 Short-Throw Arm Unit UE-608032 Consumables Penpoint (For the electronic pen) UG-6020 (Replace the penpoint with a new one when it is worn and a hole has formed.) •... - Page 34 For the purpose of recycling to facilitate effective utilization of resources, please return this product to a nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product. Please see the Panasonic website for further information on collection centers, etc. http://www.panasonic.co.in/wps/portal/home (For EU only) F0112NS2042 ©...
