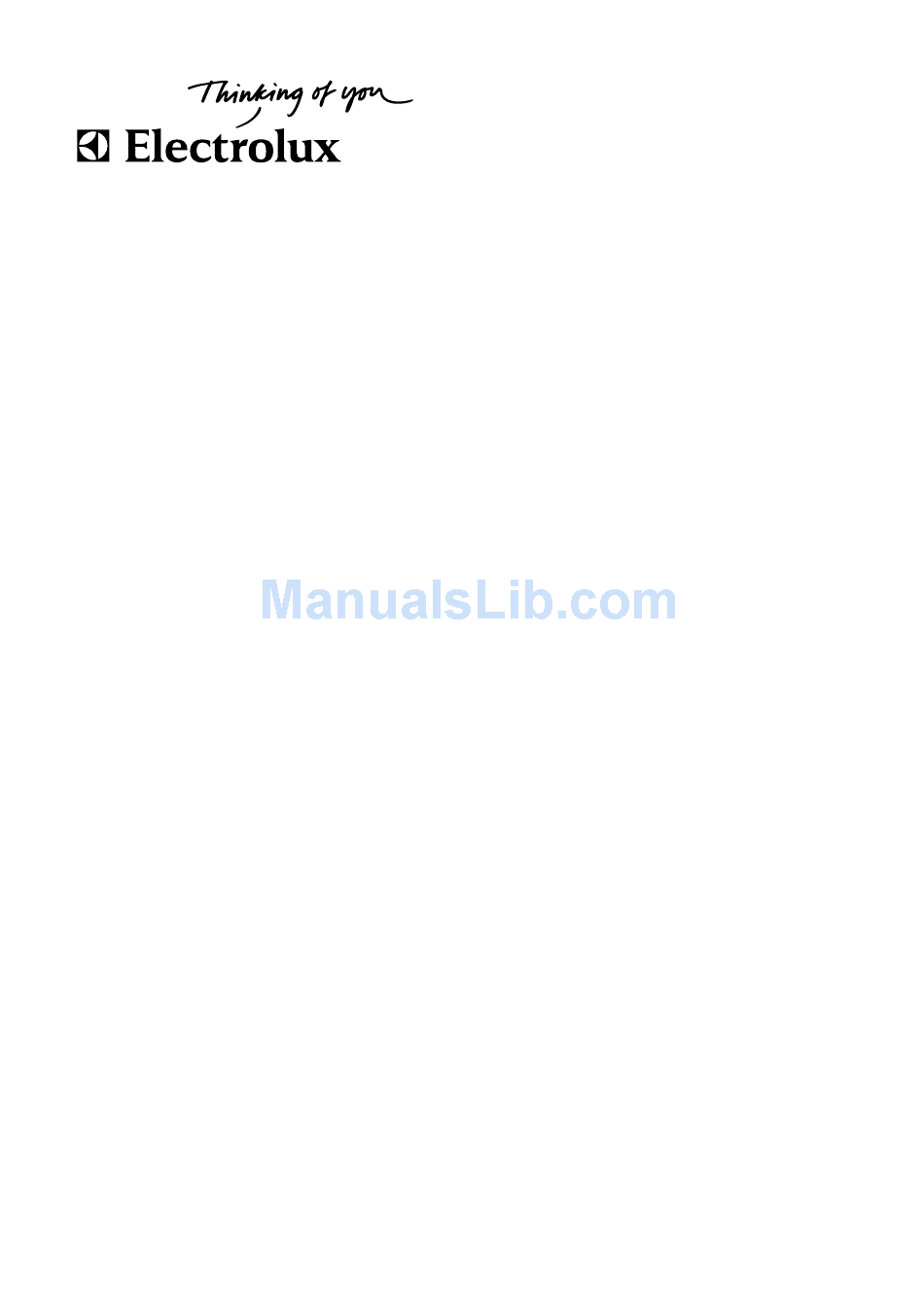

  • Page 1 ESI 63020...
  • Page 2 We were thinking of you when we made this product http://www.markabolt.hu/...
  • Page 3 Electrolux electrolux 3 Welcome to the world of Electrolux Thank you for choosing a first class product from Electrolux, which hopefully will provide you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of quality products that make your life more comfortable.

  • Page 4: Table Of Contents

    4 electrolux contents Contents Safety information Product description Control panel First use Daily use Washing programmes Care and cleaning Something not working Technical data Hints for test institutes Installation Environment concerns Guarantee/Customer Service The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance.

  • Page 5: Safety Information

    5 Safety information After use, isolate the appliance from the power supply and turn off the water supply. In the interest of your safety and to This product should be serviced ensure the correct use, before only by an authorised service...
  • Page 6 6 electrolux safety information Keep all packaging well away from children. There is risk of suffocation. Keep all detergents in a safe place out of children’s reach. Keep children well away from the dishwasher when the door is open. Installation Check your dishwasher for any transport damage.

  • Page 7: Product Description

    7 Product description Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters Lower spray arm Upper spray arm http://www.markabolt.hu/...

  • Page 8: Control Panel

    Control panel Programme marker On/Off indicator light Programme knob Start/cancel button Delay start button Indicator lights http://www.markabolt.hu/...
  • Page 9 9 Indicator lights Wash Illuminates when the washing and rinsing phases are running. Illuminates when the drying phase is running. End of programme Illuminates when a washing programme has ended. It also has added functions of visual...
  • Page 10 10 electrolux control panel Programme knob and On/Off indicator light The selection of a washing programme occurs by turning the programme knob clockwise or anticlockwise, until the programme marker, placed on the knob, corresponds with the desired washing programme indicated on the control panel.

  • Page 11: First Use

    11 First use Before using your dishwasher for the Set the water softener first time: The dishwasher is equipped with a Ensure that the electrical and water softener designed to remove water connections comply with the minerals and salts from the water...
  • Page 12 12 electrolux first use The water softener must be set in 2. Release the start/cancel button, both ways: manually, using the water the On/Off and start/cancel hardness dial and electronically, using indicator lights start to flash the programme knob and the indicating that you have activated start/cancel button.
  • Page 13 13 Filling with dishwasher salt 4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket. 5. Replace the cap tightly turning it Only use salt specifically designed for clockwise until it stops with a click.

  • Page 14: Filling With Rinse Aid

    14 electrolux first use Filling with rinse aid According to the finish and drying results obtained, adjust the dose of Rinse aid ensures thorough rinsing, rinse aid by means of the 6 position and spot and streak free drying. selector (position 1 minimum dosage, Rinse aid is automatically added position 6 maximum dosage).

  • Page 15: Daily Use

    15 Daily use Check if it’s necessary to refill with - Lay small objects in the cutlery dishwasher salt or rinse aid basket. Load cutlery and dishes into the Plastic items and pans with non dishwasher. stick coatings have a tendency to Fill with dishwasher detergent .
  • Page 16 16 electrolux daily use For washing in the dishwasher the following cutlery and dishes are not suitable: - Cutlery with wooden, horn, china or mother-of- pearls handles. - Plastic items that are not heat resistant. - Older cutlery with glued parts that are not temperature resistant.
  • Page 17 17 Open the door and slide out the baskets to load the dishes. The lower basket The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc. Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the spray arms can turn freely.
  • Page 18 18 electrolux daily use The cutlery basket If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards. Long bladed knives stored in an Mix spoons with other cutlery to upright position are a potential prevent them from sticking together.
  • Page 19 19 The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses. Arrange items on and underneath the cup racks so that water can reach all surfaces.
  • Page 20 20 electrolux daily use Adjusting the height of the upper basket If washing very large plates you can load them in the lower basket after moving the upper basket to the higher position. Maximum height of the dishes in: the upper...
  • Page 21 21 Use of detergent 20 = approximately 20 g of detergent 30 = approximately 30 g of detergent Only use detergents specifically 3. All programmes with prewash designed for use in dishwashers. need an additional detergent dose (5/10 g) that must be placed in the Please observe the manufacturer’s...
  • Page 22 22 electrolux daily use Detergent tablets Detergent tablets from different manufactures dissolve at different If the drying results are not rates. For this reason, some detergent satisfactory we recommend that you: tablets do not attain their full cleaning 1. Fill up the rinse aid dispenser with power during short washing rinse aid.
  • Page 23 23 Select and start a washing programme During the running of the 1. Check that the baskets have been programme, it is not possible to loaded correctly and that the spray change the selection made by arms are free to rotate turning the programme knob in 2.
  • Page 24 24 electrolux daily use Cancelling the "delay start" Cancel a washing programme in progress Press the start/cancel button for about 5 seconds, the indicator Press the start/cancel button for lights of start/cancel and delay about 5 seconds. The start/cancel start buttons turn off while the...
  • Page 25 25 Unloading the dishwasher Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down before removing from the appliance. Empty the lower basket first and then the upper one; this will avoid...

  • Page 26: Washing Programmes

    26 electrolux washing programmes Washing programmes Programme Degree of Type of load Programme description soil Prewash Intensive Main wash up to 70°C Crockery, 2 intermediate rinses cutlery, pots Heavy soil Final rinse and pans Drying Prewash Normal Main wash up to 65°C...

  • Page 27: Care And Cleaning

    27 Care and cleaning Cleaning the filters 4. Take hold of the coarse filter (A) by the handle with the hole and The filters must be checked and remove from the microfilter (B). cleaned from time to time. Dirty filters will degrade the washing result.
  • Page 28 28 electrolux care and cleaning Frost precautions Avoid placing the machine in a location where the temperature is NEVER try to remove the spray below 0°C. If this is unavoidable, arms. empty the machine, close the If residues of soil have clogged the...

  • Page 29: Something Not Working

    29 Something not working The dishwasher will not start or stops during operation. Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the indications described in the chart, without calling out an engineer.
  • Page 30 30 electrolux something not working Malfunction Possible cause and solution The programme does not start The dishwasher’s door has not been properly closed. Close the door. The main plug is not plugged in. Insert the main plug. The fuse has blown out in the household fuse box.
  • Page 31 31 The wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes are arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded.

  • Page 32: Technical Data

    32 electrolux technical data Technical data Dimensions Width 59.6 cm Height 81.8 - 87.8 cm Depth 57.5 cm Electrical connection Information on the electrical connection is given Voltage - Overall power - on the rating plate on the inner edge of the Fuse dishwasher’s door...
  • Page 33 33 Consumption values Programme Programme Energy Water duration consumption consumption (in minutes) (in kWh) (in litres) Intensive 120 - 130 1.8 - 2.0 22 - 24 Normal 105 - 115 1.5 - 1.7 23 - 25 Quick 1.05...

  • Page 34: Hints For Test Institutes

    34 electrolux hints for test institutes Hints for test institutes Testing in accordance with EN 60704 Test in accordance with EN 50242 must be carried out with appliance must be carried out when the salt fully loaded and using the test container and rinse aid dispenser programme (see "Consumption...

  • Page 35: Installation

    35 Installation Levelling Good levelling is essential for correct closure and sealing of the door. Any electrical and/or plumbing When the appliance is correctly work required to install this levelled, the door will not catch on appliance should be carried out by either side of the cabinet.
  • Page 36 36 electrolux installation (Attention! NOT all models of Water inlet hose with safety valve dishwashers have fill and drain hoses After connecting the double-walled provided with locknut. In this case, water inlet hose, the safety valve is this kind of facility is not possible).
  • Page 37 37 Water outlet hose connection When connecting the drain hose to an under sink trap spigot, the entire The end of the drain hose can be plastic membrane (A) must be connected in the following ways: removed. Failure to remove all the 1.
  • Page 38 38 electrolux installation Electrical connection Safety standards require the appliance to be earthed. Prior to using the appliance for the first time, ensure that the rated voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed.

  • Page 39: Environment Concerns

    39 Environment concerns Packaging material Old appliance The packaging materials are The symbol on the product or on environmentally friendly and can be its packaging indicates that this recycled. The plastic components are product may not be treated as identified by markings, e.g.

  • Page 40: Guarantee/Customer Service

    40 electrolux guarantee/customer service Guarantee/Customer Service European guarantee This appliance is guaranteed by Electrolux, in each of the countries listed in the following page, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to...
  • Page 41 Domáce spotrebiče SK, Seberíniho 1, 821 03 Bratislava Suomi www.electrolux.fi Sverige +46 (0)771 76 76 76 Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm Türkiye +90 21 22 93 10 25 Tarlabafl› caddesi no : 35 Taksim Istanbul –ÓÒÒˡ +7 495 9377837 129090 ÃÓÒÍ‚‡, ŒÎËÏÔËÈÒÍËÈ...
  • Page 42 42 electrolux Notes ............
  • Page 43 http://www.markabolt.hu/...
  • Page 44 117991 56/0-00-22012007...
