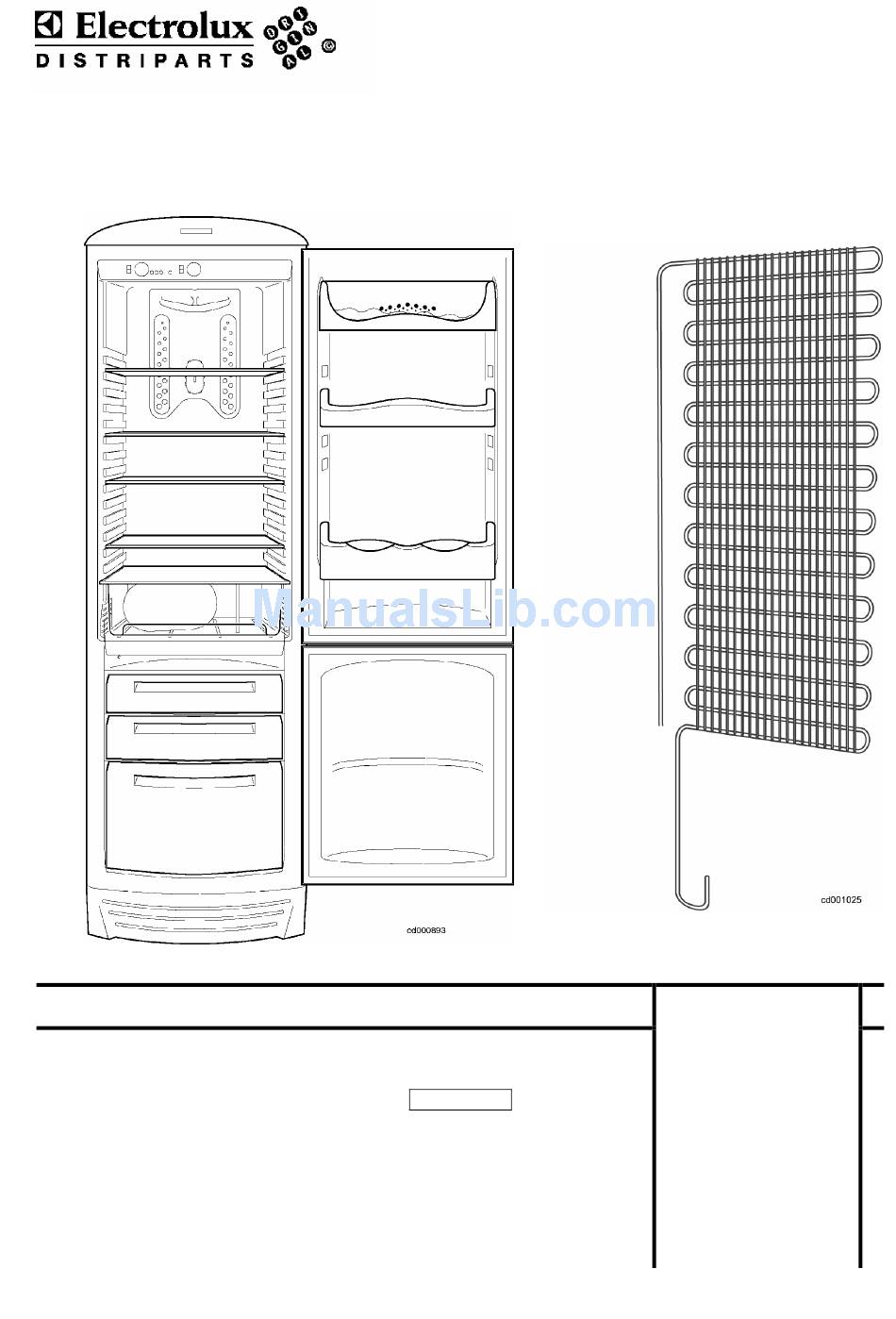

SERVICE MANUAL
REFRIGERATION
EUROFLEC
With exposed
condenser

Advertisement

Table of Contents
loading

Summary of Contents for Electrolux EUROFLEC

  • Page 1 SERVICE MANUAL REFRIGERATION EUROFLEC © ELECTROLUX ZANUSSI S.p.A. Publication No. Spares Operations Italy 599 35 40-29 With exposed Corso Lino Zanussi, 30 020806 condenser I - 33080 PORCIA / PN (ITALY) ITZ/SERVICE/AA Fax +39 0434 394096...
  • Page 2 EUROFLEC with exposed condenser 2/35...
  • Page 3: Table Of Contents

    9.1. Refrigerator compartment ........................28 9.2. Displaying board (UIB)...........................30 9.3. Freezer compartment..........................31 9.4. Glass shelves............................33 9.5. Air inlets ..............................33 9.6. Control and power board (MB).......................34 10. Main differences between EUROFLEC model and EUROFLEC model with exposed condenser..35 EUROFLEC with exposed condenser 3/35...
  • Page 4 EUROFLEC with exposed condenser 4/35...
  • Page 5: Introduction

    A flap-operated mechanical thermostat controls the temperature inside the refrigerator compartment. The EUROFLEC comprises various models which differ from each other in the different size of the freezer and refrigerator compartments and therefore in the number of shelves and drawers.
  • Page 6: Euroflec: Total Nofrost

    1.2. EUROFLEC: total nofrost The EUROFLEC is a total no-frost appliance, and as such its operation is based exclusively on the battery evaporator in the freezer compartment, which cools the air; the fan circulates the air. A duct embedded in foam channels the cold air into the refrigerator compartment, where the flap-operated mechanical thermostat regulates the flow of cold air and thus the temperature inside the refrigerator compartment.
  • Page 7: Characteristics

    2. Characteristics 2.1. Dimensions and volumes The EUROFLEC models are numbered from 1 to 9 (n° 7 has been eliminated): Model no. Height 1950 1800 1800 1800 1650 1650 1750 1950 Width Depth Gross vol. freezer litres Gross vol. fridge litres Total gross vol.
  • Page 8 Normal operating times: Pre-determined** Hours Minimum Hours Maximum Hours ** A six-hour operating cycle is performed each time the appliance is switched on. Defrosting: Standard time Minutes Maximum time Minutes Temp. for end of defrosting °C EUROFLEC with exposed condenser 8/35...
  • Page 9: Diagrams

    3. Diagrams 3.1 Functional diagram The control system of the EUROFLEC consists of a UIB user interface board and a MB control and power board with the following inputs and outputs: INPUTS: Freezer door switch; NTC sensor on evaporator; NTC sensor in air;...
  • Page 10: Electric Wiring

    3.2 Electric wiring ( see the specific diagram of the model ! ) EUROFLEC with exposed condenser 10/35...
  • Page 11 24. evaporator fan; 26. safety thermal switches; 28. running condenser; 41. display board (UIB); 41a. control and power board (MB); 56. NTC sensor refrigerator (optional); 57. NTC sensor freezer in air; 59. NTC sensor freezer evaporator; EUROFLEC with exposed condenser 11/35...
  • Page 12: Components

    3. evaporator battery; 4. evaporator fan; 5. defrosting heater; 6. drain duct heater; 7. NTC sensor in air; 8. thermal switch (+55°C) and NTC sensor on evaporator; 9. control and power board (MB); 10. condenser; 11. compressor; EUROFLEC with exposed condenser 12/35...
  • Page 13 EUROFLEC with exposed condenser 13/35...
  • Page 14: Uib Display Board

    (reed element). For the version with ELECTROLUX mark, in the reed element board (B) there are also the two LEDs (red and green) (A) to display the operation of the refrigerator through the hole drilled on the door.
  • Page 15: Mb Control And Power Board

    NTC safety sensor for the protection of electric components against overheating; if the temperature of the compressor compartment exceeds 80°C, the compressor stops. The compressor starts again when the temperature falls below 65°C; EUROFLEC with exposed condenser 15/35...
  • Page 16: Foamed Connectors Seat

    The fan is powered with a continuous voltage of 18V. EVAPORATOR FAN The fan is actioned (switch on and off) on the basis of the operation of the compressor and the opening or closure of the doors. EUROFLEC with exposed condenser 16/35...
  • Page 17: Operation With Door Closed

    If one of the two doors is opened while the compressor is on, the evaporator fan stops. If after 2 minutes the door is not closed again, the evaporator fan switches on anyway. Compressor Evaporator fan Doors EUROFLEC with exposed condenser 17/35...
  • Page 18: Operation With Door Opened And Compressor Switched Off

    If one of the two doors is opened while the compressor is switched off, in the span of 30 minutes during which also the evaporator fan is switched off, this is activated for 2 minutes after the door closes. After 2 minutes, the evaporator fan switches off automatically. Compressor Evaporator fan Doors EUROFLEC with exposed condenser 18/35...
  • Page 19: Defrosting Heaters

    The two thermal cut-outs are connected together as one component, therefore they are not available as single spare part. 4.9. Freezer compartment light According to the model, 2 normal lamps or 1 halogen lamp supply the light in the freezer compartment. EUROFLEC with exposed condenser 19/35...
  • Page 20: Evaporator

    +15°C (only refrigerator compartment there is no food, this function is used to keep the door closed thus avoiding the formation of bad odours). EUROFLEC with exposed condenser 20/35...
  • Page 21: Operation

    4 hours and an upper limit of 25 hours. In this way, the appliance adapts the duration of the normal operating cycle to the duration of the previous defrosting cycle: this is the concept of “adaptivity” which distinguishes the EUROFLEC range of fridge- freezers.
  • Page 22: Control Panel

    In order to ensure that the circuit does not remain pressurised, the electronic system introduces a 5-minute delay in compressor start-up each time the appliance is switched on. In order to avoid this delay, press the alarm buttons (b and c) simultaneously within 15 seconds after switching on the appliance. EUROFLEC with exposed condenser 22/35...
  • Page 23: Door Alarm

    The electronic control system memorises the time that has elapsed after selection of the “rapid freezing” function so that, in the event of a temporary power failure, the function does not restart from the beginning, but from the point at which it was interrupted. EUROFLEC with exposed condenser 23/35...
  • Page 24: Ntc Sensors Failure

    22 minutes failure Evaporator NTC First start 6 hours 10 min pause 22 minutes sensor + Air NTC 15 min run sensor During working latest time before latest times before 22 minutes failure failure (no adaptivity) EUROFLEC with exposed condenser 24/35...
  • Page 25: Service Mode

    In case of a fault in one of the sensors, the LEDs will begin to flash as follows 5 seconds after selection of service mode: 1. NTC sensor on evaporator: LEDs (b) and (e) flash 2. ambient NTC sensor: LEDs (c) and (e) flash If no faults are detected, only the ON/OFF LED (e) flashes. EUROFLEC with exposed condenser 25/35...
  • Page 26: Separate Activation Of Loads

    10 seconds, after pressing the “rapid freezing” button the buzzer counts the hundreds. To count the tenths and the unit of days the operation is the same. For the tenths press the “temperature” button and for the units the “door open” button. EUROFLEC with exposed condenser 26/35...
  • Page 27: Demo Mode

    To exit Demo mode, it is necessary to disconnect the appliance from the power supply. Press the ON/OFF button (e) for at least 2 seconds to enter Demo mode with the appliance switched off (Demo OFF operation). EUROFLEC with exposed condenser 27/35...
  • Page 28: Accessibility Of Components

    (warning: heat the hooks with an hairdryer in order to avoid their breakage; the hooks are not replaceable); remove the thermostat rod cover; EUROFLEC with exposed condenser 28/35...
  • Page 29 EUROFLEC with exposed condenser 29/35...
  • Page 30: Displaying Board (Uib)

    9.2. Displaying board (UIB) remove the board cover; remove the thermostat rod; detach the connectors of the PCB; remove the electronic board; EUROFLEC with exposed condenser 30/35...
  • Page 31: Freezer Compartment

    EUROFLEC with exposed condenser 31/35...
  • Page 32 (1), the evaporator sensor (2), the ambient sensor (3) and the freezer compartment door switch. EUROFLEC with exposed condenser 32/35...
  • Page 33: Glass Shelves

    B. 9.5. Air inlets The air inlets through which air returns to the freezer compartment are pressure-fitted. To remove them, simply lever off using a screwdriver. EUROFLEC with exposed condenser 33/35...
  • Page 34: Control And Power Board (Mb)

    (1) and remove the housing (2). EUROFLEC with exposed condenser 34/35...
  • Page 35: Main Differences Between Euroflec Model And Euroflec Model With Exposed Condenser

    For further information about EUROFLEC model please refer to Service Manual 599348504. Please find below a summary of the main differences between EUROFLEC model (writings in italics) and EUROFLEC model with exposed condenser (with normal writings). ♦ Energy class EUROFLEC : B ;...
