Care Solutions | GSM Gateway
GSM Gateway
The GSM Gateway of Bosch is designed to connect a
Carephone to a monitoring center through the GSM
network. This type of connection is independent of the
fixed-line network or broadband connection of the
subscriber. The GSM Gateway is meant to be used as a
backup system.
System Overview
The GSM Gateway contains a modem which translates the
dial request into a GSM protocol. The GSM Gateway thus
functions similarly to a GSM telephone with an analog
connection.

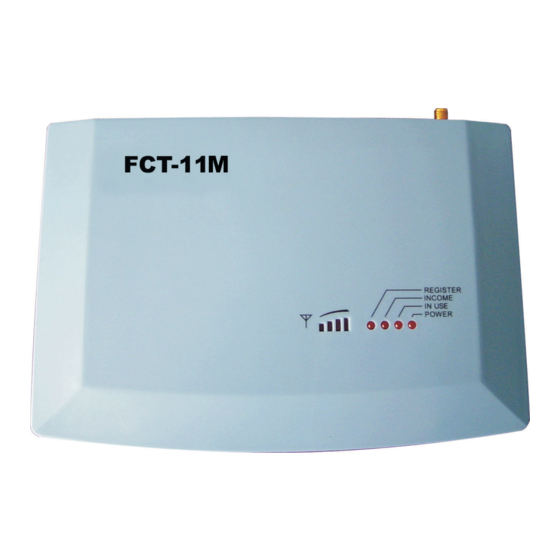

The GSM Gateway is equipped with a series of LEDs that
show its status and signal strength. A SIM card slot allows
easy programming.
Additional functions are available such as quick dialing,
forbidden calls indication and volume adjustment.
Installation/Configuration Notes
It is recommended to avoid using prepaid cards within the
GSM Gateway.
Use only rechargeable batteries as backup power system.
▶ High sensitivity of receiving and sending,
▶ Strong emitting power
▶ Emulates switching equipment
▶ Phone/SIM card locking function
▶ Supports Office PBX
▶ Backup power system
Parts Included
Quant.
Component
1
GSM Gateway
1
Power adapter
1
Set of backup batteries
1
Antenna with cable
1
RJ11 cable
1
User manual
Technical Specifications
Switched-mode power supply
Backup Batteries
Battery life
Operating temperature
Relative humidity
Working frequency (MHz)
Transmission
Reception
Gain
110-240V, DC7.5V, 1.5A
110-240V, DC12V, 1.0A
NiMH AA 1100mAh 1.2V (5 pieces)
In standby: approx. 7 hours
In continuous ttalk: approx. 1 hour
0°C to +55°C
10 to 95%
Up: 890~915 1710~1785
1850~1910
Down: 935~960 1805~1850
1930~1990
< 2 W
- 103 dBm
2 dBm
