- Page 1 D1265 Installation Guide Touchscreen Keypad...
-
Page 2: Table Of Contents
D1265 | Installation Guide | 1.0 Introduction Contents Introduction ................................3 Overview.................................3 Graphical Buttons..............................3 Audible Tones ................................4 Supervision................................4 Tamper Switch ...............................4 Installation................................5 Setup Menu ................................6 Set the Keypad SDI Bus Address .........................6 Adjust the Keypad Volume and Display ......................6 3.2.1 Adjust the Keypad Volume...........................6 3.2.2... -
Page 3: Introduction

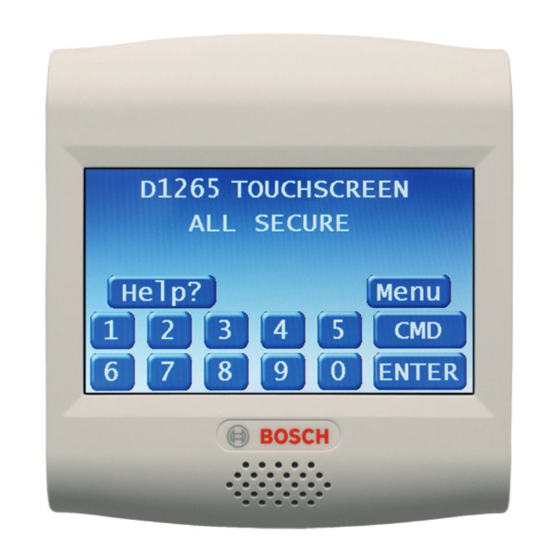

D1265 | Installation Guide | 1.0 Introduction Graphical Buttons 1.0 Introduction Refer to Table 1 for descriptions of the D1265’s graphical buttons. Overview The D1265 Touchscreen Keypad is an SDI bus device Table 1: Graphical Button Descriptions and it is compatible with the Bosch GV2, GV3, and... -
Page 4: Audible Tones
To supervise a keypad, refer to the program D1265. Anytime the D1265 emits an audible tone, the entry guide for your control panel. If a keypad loses keypad illuminates. -
Page 5: Installation
Avoid installing the D1265 in direct sunlight. Direct sunlight can interfere with display screen visibility, and can damage internal components. Avoid installing the D1265 in wet or moist locations. 1. Unlock the keypad by turning the lock counter-clockwise. Refer to Figure 2. -
Page 6: Setup Menu
D1265 | Installation Guide | 3.0 Setup Menu 4. Pull the wiring through the desired wire opening in the base. 3.0 Setup Menu 5. Use the appropriate mounting hardware (not To enter the setup menu, press and hold the 0 button supplied) to mount the base to the desired for at least 5 sec. -
Page 7: Adjust The Display Brightness
D1265 | Installation Guide | 4.0 RPS Configuration 3.2.3 Adjust the Display Brightness Enable the Keypad To adjust the keypad’s display brightness, press the Up 1. In the Program Record Sheet, locate the section or Down arrow buttons until you reach the desired called COMMAND CENTER (GV2MAIN). -
Page 8: Enter Security Company Information
4. Double-click the cell for User 249 or User 99. information when they press the Help? button on the The User Name dialog opens. D1265, and then press the Security Co. Info. button. 1. In RPS, in the Program Record Sheet pane, Figure 13: RPS: User Name Dialog expand the PASSCODES (RADXUSR1/RADXUSR2) section. -
Page 9: Update And Reset The Control Panel
