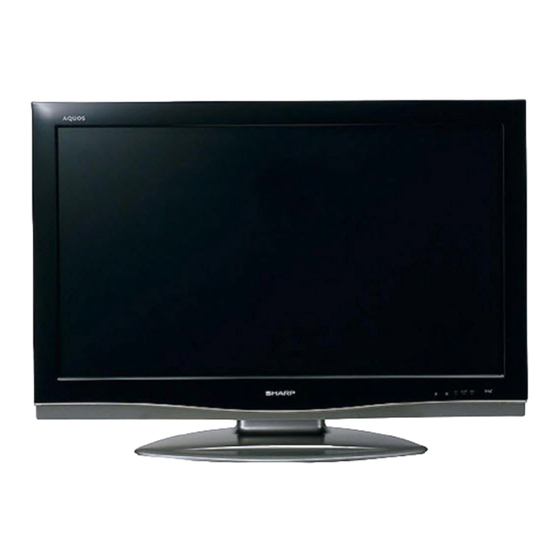

LC - 32RA1E LC - 37RA1E LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN À CRISTAUX LIQUIDES (LCD) TELEVISORE A COLORI LCD LCD-KLEURENTELEVISIE TELEVISIÓN EN COLOR LCD OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI GEBRUIKSAANWIJZING MANUAL DE MANEJO...
Page 2
SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
ENGLISH Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble- free operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions • Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. • Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.
Quick guide Inserting the batteries Before using the TV for the first time, insert two “AA” size batteries (supplied). When the batteries become depleted and the remote control unit fails to operate, replace the batteries with new “AA” size batteries. Hold in the tab on the battery cover and pull the cover towards the direction of the arrow.
Quick guide Remote control unit SURROUND Switch the surround effects on and off. B (Standby/On) Enter standby mode or turn on the power. e (Mute) (See page 7.) Switch the sound on and off. i (k/l) (Volume) i (k) Increase the volume. 0–9 i (l) Decrease the volume.
Quick guide Turning on the power Initial auto installation Press a on the TV. When the TV powers on for the first time after purchase, the initial auto installation is invoked. You can • The B indicator on the TV changes from red to green. automatically set language, country and channels in successive operations.
Using external equipment Setting the input source To view external source images, select the input source using b on the remote control unit or the TV. NOTE • The cables marked with * are commercially available items. Connecting a DVD player Connecting a VCR You can use the EXT 2, 3, 4, 5 (HDMI) or 6 (HDMI) You can use the EXT 1 or 2 terminals when connecting...
Using external equipment Connecting a decoder Using AV Link function You can use the EXT 1 terminal when connecting a This TV incorporates three typical AV Link functions decoder and other audiovisual equipment. for smooth connections between the TV and other audiovisual equipment.
Menu operations Menu operation buttons On-Screen Display Use the following buttons on the remote control unit to Example operate the menu. [ Option ... Colour System ] MENU Option Audio Only [Off] Input Select [CVBS] Colour System [AUTO] Demo 1 Item displayed in yellow •...
Menu operations Common operations Menu Operation: A Menu Operation: B 1 Press MENU and the MENU screen displays. 1 Press MENU and the MENU screen displays. 2 Press c/d to select the desired menu. 2 Press c/d to select the desired menu. 3 Press a/b to select the desired menu item, and 3 Press a/b to select the desired menu item then press OK (Example: AV Mode, OPC, etc).
Menu operations TitleB Picture menu Picture adjustments Menu Operation: B (page 11) MENU [ Picture ] Picture Audio Adjust the picture to your preference with the following picture settings. AV Mode [STANDARD] Adjustment items for AV source [Off] Backlight [+6] –8 Selectable c button...
Menu operations Colour Temp. I/P Setting Adjust the colour temperature to give the best white Adjust the image and input signal can give you a more image. beautiful picture. Item Item Interlace: Display finely detailed images for TV or video, High: White with bluish tone etc.
Menu operations Surround Power Management PC only Menu Operation: A (page 11) Menu Operation: A (page 11) Surround function allows you to enjoy realistic “live” When set, the TV will automatically enter the standby sound. mode. NOTE Item • You can also choose surround effects by pressing Off: •...
Menu operations Press a/b to select the desired menu item, and Programme Setup TV only then press OK. This section describes how to set up analogue TV Press a/b/c/d to select or adjust. channels manually. NOTE • When you exit Programme Setup “Manual Adjust” menu, Press MENU and the MENU screen displays.
Menu operations Enter the 4-digit number as a PIN using 0 – 9. Lock You can block the viewing of any channel. Enter the same 4-digit number as in step 4 to confirm. NOTE • “The system PIN has been changed successfully” •...
Menu operations Fine Sync. 4:3 Mode PC only TV/AV only Menu Operation: C (Page 11) Menu Operation: A (page 11) Ordinarily, the TV automatically adjusts image positions The WSS signal has 4:3 auto-switching that allows you coming from PC (Auto Sync. function). In some cases, to select between Normal and Panorama.
Menu operations DNR (Digital Noise Reduction) Input Select TV/AV only Menu Operation: A (page 11) Menu Operation: A (page 11) Produce a clearer image. (Off, High, Low) For setting the signal type of external equipment. Input source Signal type HDMI Setup AV only EXT 1 Y/C, CVBS, RGB...
Useful features WIDE MODE WIDE MODE PC only TV/AV only You can select the picture size. Selectable picture size You can select the picture size. varies with the type of signal received. Press f. Item (for SD (Standard) signal) • The WIDE MODE menu displays. Normal: For 4:3 “standard”...
Useful features Time display Still image You can display the time information included in the Teletext broadcasts. You can freeze a motion picture on the screen. Press 3. Select a TV channel providing Teletext information. (The time information is automatically captured.) Press 3 again to exit still image.
Appendix Troubleshooting Problem Possible Solution • Check if you pressed B on the remote control unit. (See page 7.) • No power. If the indicator on the TV lights up red, press B. • Is the AC cord disconnected? (See page 3.) •...
Appendix Commands RS-232C port specifications CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS POWER SETTING PC Control of the TV POWER OFF INPUT SELECTION A INPUT SWITCHING (Toggle) When a program is set, the TV can be controlled from the PC TV (CHANNEL FIXED) using the RS-232C terminal.
Operating temperature 0°C to e40°C • As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units.
If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.
