Summary of Contents for Electrolux EW30DF65GSN

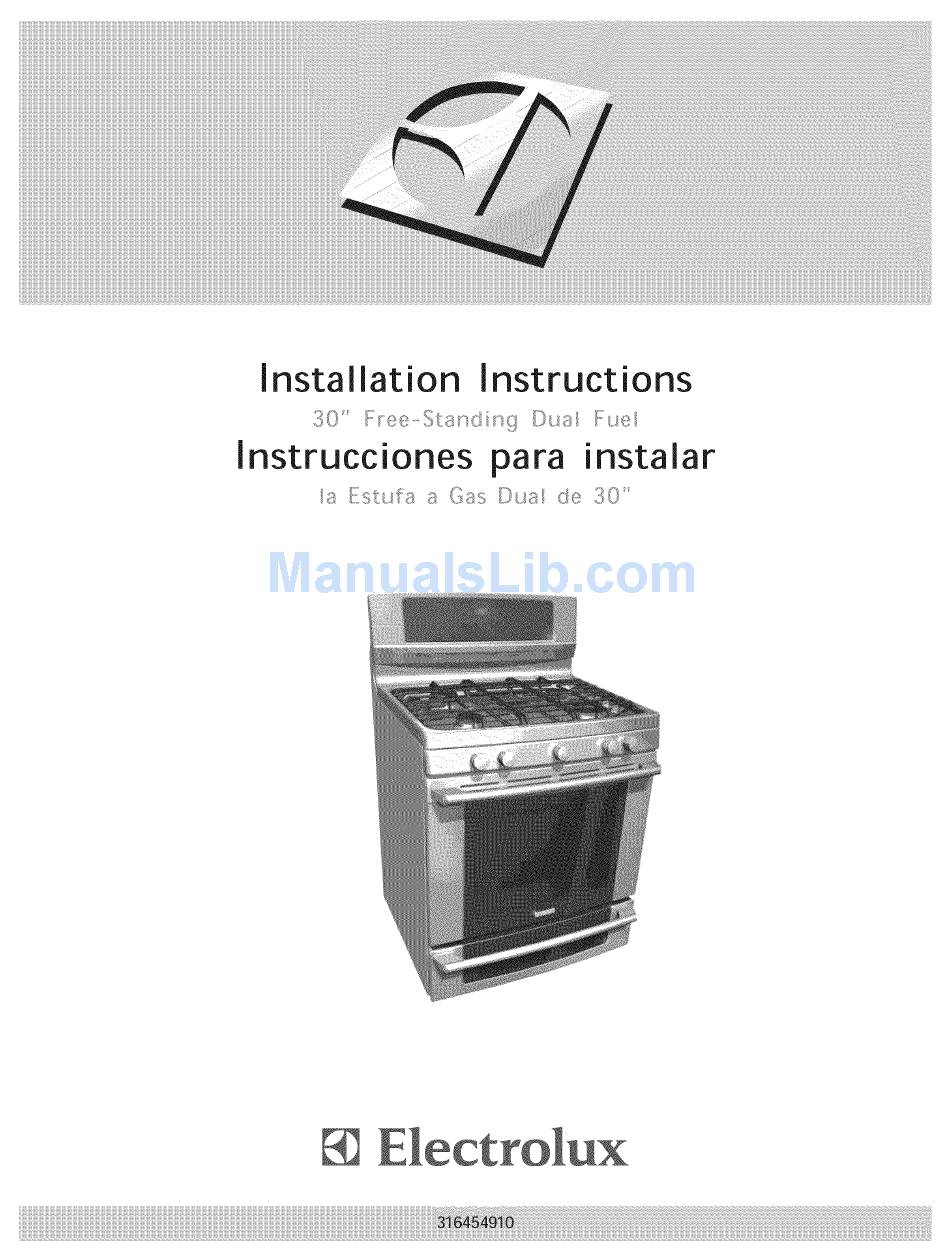

- Page 1 Installation Instructions lnstrucciones para instalar -<.... O_!/s D _: _...
- Page 2 iNSTALLATiON AND SERVICE MUST PERFORMED BY A QUALiFiED iNSTALLER. Refer to your serial plate for applicable iMPORTANT: SAVE FOR LOCAL ELECTRICAL agency certifications iNSPECTOR'S USE. READ AND SAVE THESE iNSTRUCTiONS FUTURE REFERENCE. Provide Proper Fuel Type Before Proceeding: Your range is preset to operate on Natural Gas only.
- Page 3 iMPORTANT SAFETY iNSTRUCTiONS Make sure the wall coverings around the range can Installation of this range must conform with local codes or, in the absence of local codes, with the National Fuel Gas withstand the heat generated by the range. Do not obstruct the flow of combustion air at the...
-
Page 4: Table Of Contents
Tools Tools will need (Wear safety glasses when using tools): For leveling legs and Anti-Tip Bracket: • Adjustable wrench or channel lock pliers (Fig. 5). • 1/4" & 5/16" Nutdriver or flat head screwdriver (Fig. 6). • Electric drill & 1/8" dia. bit (5/32" Masonry drill bit if installing in concrete (Fig. -
Page 5: Fig
Cabinet and countertop dimensions • Check for wall and cabinet clearances where the range will be installed. • Check the stability of the floor where the range will be installed. • Check for proper electrical and gas supply. To eliminate the risk of burns Note: All dimensions provided are minimal unless otherwise stated. -
Page 6: Fig. 23
Installation with cabinets and wall Anti=tip bracket installation instructions Locate the Bracket Using the Template - (Bracket may be positioned on either the left or right side of the range. Refer to Figs. 24 thru 26 to position the bracket if template is not available). -
Page 7: Fig. 24
Electrical requirements Anti=tip bracket installation instructions 3 & 4 - Wire electrical wall Receptacle types and FASTEN BRACKET (WALL OR FLOOR MOUNTING) recommended mounting orientation on wall ---_1 1_=-1=1/4"Max. Leveling Leg -- Required for new and remodeled installations -Wall Mount 4 Wire Wall .., Wall Plate "... -
Page 8: (Fig. 15)
Range installations steps Wiring instructions Install the power cord. (4-wire connection - See fig. 33) The rear access cover must be removed. To remove, loosen Before wiring the range review the suggested power center screw (one screw) and remove access cover. The source location drawing in Fig. - Page 9 installation instructions Range 4-Wire Connection OR _ 3-Wire connection instructions (for existing installations ONLY 3 Factory installed connections CORReCt (DO NOT LOOSEN) See Fig. 34) neutral (white or center) here Power Cord Connection Terminal block Connect Followthe manufacturer's installation instructions line I supplied with the strain relief and install (Also see here...
- Page 10 Range installations steps FOR 3 & 4=Wire Permanent Connections (3 & 4 - Wire Permanent Connections) Strip insulation away from the ends of the permanent wiring _l=Tighten all 3 Terminal wire leads block for Line 1, Line 2, Neutral (also strip ground wire on 4- Wire Connections).
- Page 11 installation instructions Range Do not allow the Pressure Regulator to turn Provide an adequate gas supply. on pipe when tightening fittings. 4.) Attach flexible Appliance Conduit to Flare Adapter on This range is pre-set to operate on 4" natural gas manifold Pressure Regulator(Figs.
- Page 12 Range installations steps Carefully slide range into cabinet opening. Carefully slide range into cabinet opening while inserting rear leveling leg into and FULLY ENGAGING THE ANTI-TIP BRACKET (See Fig. 26). Make sure that the flexible appliance conduit (Fig. 18) and the power cord (Fig. 20) folds into the remaining open floor area behind the range warmer or storage drawer.
- Page 13 Inner burner flame Range installations steps Right-hand burner only adjustment screw Test to verify if "LO or LOW" setting should be adjusted (all other positions): Outer burner flame Follow steps a thru d above. adustment screw Insert a thin-bladed screwdriver into the hollow valve stem and engage the slotted screw inside.
- Page 14 I_ Ele...
