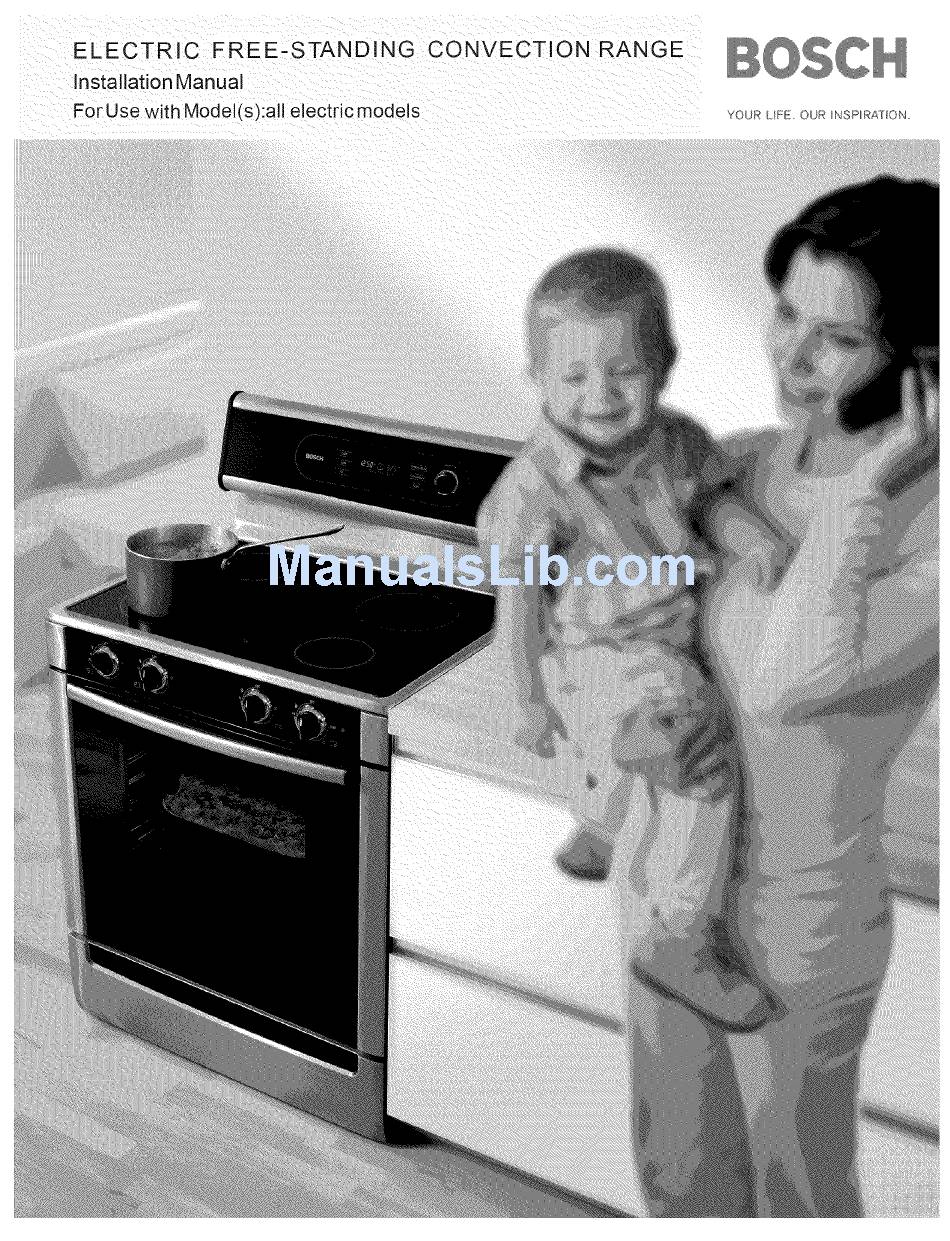

- Page 1 ELECTRIC FREE-STANDING CONVECTION RANGE Installation Manual For Use with Model(s):all electric models...
-
Page 2: Table Of Contents
Table of Contents Important Safety Instructions ........Installation ..........Before You Begin ............Tools and Parts Needed ............Additional Parts Needed for Hard Wire Installations ........Parts Included ..............Cabinet Requirements ............Electrical Requirements ............Installation ............Installation Tips ............... Install Ventilation .............. -
Page 3: Important Safety Instructions
Important Safety Instructions READ AND SAVE THESE INSTRUCTIONS Important Safety WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Instructions • Ask your dealer to recommend a qualified technician and an authorized repair service. -
Page 4: Installation
Power Requirements and Electrical Grounding Instructions • Before installing, turn power OFF at the service panel Lock service panel to prevent power from being turned ON accidentally • Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency Installation Installation Before You Begin... - Page 5 Required C learances: These clearance i nstructions weredetermined u sing Standard A merican c abinets. Standard b asecabinets measure 36"(91.4cm)highx 24"(60.9cm)deep.Cabi- netsoverthecooking surface andcabinets a djacent t othoseoverthecooking surface measure 13inches (33cm)deepfrombackwall, tf nonstandard cabinets areused, c areshould betakentoalterdimensions accordingly. NOTE: S ome cabinet f inishes cannot s urvive thetemperatures allowed byU.Lfor appliances, particularly s elf-cleaning ovens;...
-
Page 6: Electrical Requirements
Electrical Requirements The electrical outlet must be located in the shaded space in Figure 3. (114.3 mm) Figure 3: Cooktop Clearances Verify that wiring to house is adequate. Contact your local utility company to verify that the present electric service to your home is adequate. -
Page 7: Installation
Forinstallations otherthanthoseinCanada, i nstallthestrainreliefandconnect therange cord(orwireconductors) asdescribed inthefollowing s teps. Table 1: Electrical Specifications Check data plate for kW rating. Reference kW rating in table to determine amper- age requirements. 12.3 40 or 50* 13.5 10.2 * Varies by location. Refer to local electric code. -
Page 8: Connect Electric
Electrical connection (found behind terminal block cover) Feed range cord through strain relief in knockout panel here. Figure 4: Electrical Connection and Strain Releif Knockout Panel Locations There are four possible electrical connections: Four wire range cord Three wire range cord Four wire flexible conduit connection (hard wire) Three wire flexible conduit connection (hard wire) The four wire range cord connection is the recommended method, but where local... - Page 9 (when theappliance is to beconnected b y means ofa cordkit,use4-conductor cordforthispurpose) 3=WIRE HOOK UP 4=WIRE HOOK UP Figure 5: Grounding Options Use only cord kits rated 125/250 volts (minimum), 50 amperes and labeled "For Use with Ranges". Strain relief provided with cord must be installed per instruc- tions included with cord.
- Page 10 4. Remove ground strap fromcenterpost,rotate sothatwideendis attopand attach wide end to range through hole below junction box. Attach green wire ........ o t° o groun sir a Tighte Screw: ................... green ground screw ground wire ground strap Figure 7: Four Wire Range cord Connection - Ground Strap and Wire black white...
- Page 11 2: Remove the t e rm !na ! b !o ck cove r to ex 13 o se th e te rm!n a! b!o €k:........Figure 9: Terminal Block Remove top nut, star washer, and round washer from each post. Note: DO NOT remove last round washer, last nut or internal wiring leads.
- Page 12 Note: DO NOT plug in range at this time. 5C) Four Wire Flexible Conduit Con- Disconnect electrical power at the breaker box. nection Remove the terminal block cover to expose the terminal block. Remove the top nut, star washer, and round washer from each post. Note: DO NOT remove last round washer, last nut or internal wire leads.
- Page 13 14.Properly secure flexibleconduit at knockout onangleandatsupply sidejunc- tionbox.Thewiringis nowcomplete. black wire red wire white wire green ground wire Figure 14: Completed Four Wire Flexible Conduit Connection Note: DO NOT plug in range at this time. 5D) Three Wire Flexible Conduit Con- The Four Wire Connection is preferred, but where local codes and ordinances nection permit grounding through neutral and/or conversion to four wire is impractical, unit...
-
Page 14: Attach Anti-Tip Bracket To Floor
6. Insert s tripped endofwhitewireintothecenterlugontopoftheground strap. Secure theclamping screw. . __7" clamping screw wire Figure 17: Attaching Wire to Lug Insert stripped end of red wire into the left lug. Secure clamping screw. Insert stripped end of black wire into the right lug. Secure clamping screw. Tighten each clamping screw with the appropriate torque (See table below). -
Page 15: Complete The Installation
• A riskoftip-over m ayexistif theappliance is notinstalled in accordance with theseinstructions. • Iftherangeis pulled awayfromthewallforcleaning, service, o ranyotherrea- son,ensure thattheAnti-Tip Device is properly reengaged whentherangeis pushed backagainst t hewall.Intheevent o fabnormal usage (suchasa person standing, sitting, o rleaning onanopendoor), f ailure totakethisprecaution c ould result i ntipping oftherange. -
Page 16: Service
CAUTION: If the display flashes and beeps, the polarity of the wiring may be reversed. Reversed polarity can damage the range and can result in electrical shock hazard. Immediately switch off power at the breaker and return to Step 5- Connect Electric. -
Page 17: Www.boschappliances.com
YOUR LIFE,OURINSPIRATION. 5551 McFadden Avenue, Huntington Beach, CA 92649 • 800-944-2904 • www.boschappliances.com 9000087166 (No ECO) ° 10052 Rev H ° 05/05 • © BSH Home Appliances Corporation 2005 • Litho U. S. A.
