Summary of Contents for Miele KM 6316

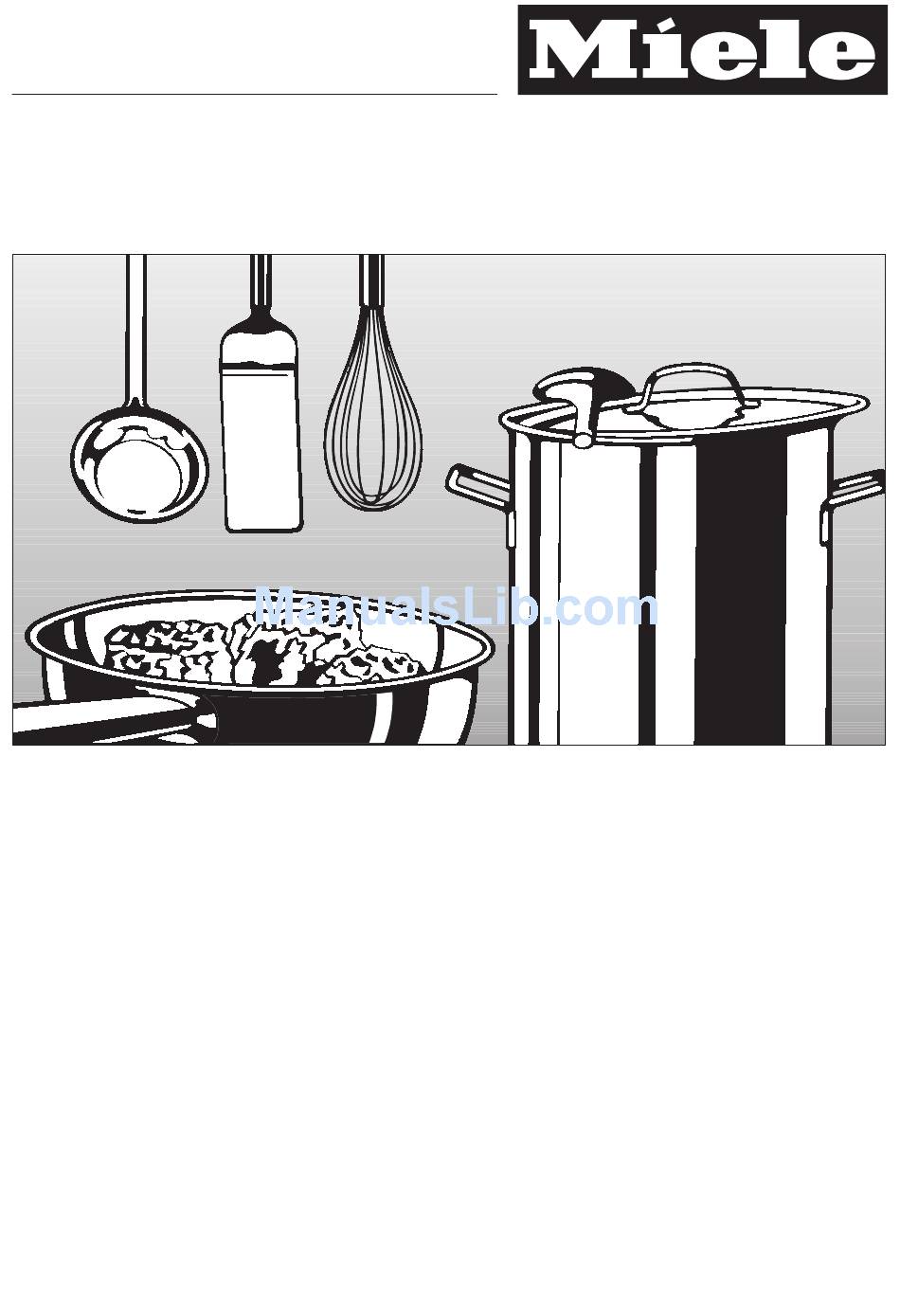

- Page 1 Operating and installation instructions Ceramic hobs with induction KM 6316 KM 6319 KM 6321 en - GB To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
-
Page 2: Table Of Contents
KM 6316 ........ - Page 3 Con|ctivity and Miele|home ........
-
Page 4: Guide To The Appliance
Guide to the appliance KM 6316 Cooking zone with WaterBoost Cooking zones with Booster Control panel... - Page 5 Guide to the appliance KM 6319 / KM 6321 Cooking zone with WaterBoost Cooking zones with Booster Control panel...
-
Page 6: Control Panel
Guide to the appliance Control panel (Example) 0 1 2 3 5 6 7 8 9 Sensor controls For switching the hob on and off Numerical keypad - For setting the power level - For setting the time Safety lock Booster / WaterBoost For selecting the cooking zone Stop and Go... - Page 7 Guide to the appliance Indicator lights Safety lock Booster Cooking zone displays = Cooking zone ready for use = Keeping warm function 1 to 9 = Power levels = WaterBoost level 1 = Booster/WaterBoost level 2 ß = No pan on cooking zone or pan unsuitable (see "Induction") = Residual heat = Auto heat-up when the power level range has been extended...
-
Page 8: Cooking Zones
The wattage quoted may vary depending on the size and material of the pans used. This wattage is only reached when a pan with the maximum base diameter is used. Optional feature The hob is suitable for connecting to the Miele|home system (see "Optional accessories"). -
Page 9: Warning And Safety Instructions
They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions. Keep these instructions in a safe place and ensure that new users... - Page 10 Warning and Safety instructions Correct application This hob is not designed for commercial use. It is intended for use in domestic households and similar working and residential environments. The appliance is not intended for outdoor use. It is intended for domestic use only to cook food and keep it warm.
- Page 11 Warning and Safety instructions Safety with children Children under 8 years of age must be kept away from the appliance unless they are constantly supervised. Children 8 years and older may only use the appliance unsupervised if they have been shown how to use it in a safe way and understand the hazards involved.
- Page 12 Warning and Safety instructions Technical safety Installation, maintenance and repairs may only be carried out by a Miele authorised service technician. Installation, maintenance and repairs by unqualified persons could be dangerous. A damaged appliance can be dangerous. Check the appliance for visible signs of damage.
- Page 13 The manufacturer can only guarantee the safety of the appliance when original Miele replacement parts are used. Faulty components must only be replaced by genuine Miele original spare parts. The hob is not intended for use with an external timer switch or a remote control system.
- Page 14 Warning and Safety instructions Correct use Oil and fat can overheat and catch fire. Do not leave the appliance unattended when cooking with oil or fat. If oil or fat does catch fire, do not attempt to put out the flames with water.
- Page 15 Warning and Safety instructions If the appliance is installed behind a kitchen furniture door, it may only be used with the furniture door open. Do not close the door whilst the hob in use or whilst there is any residual heat present. The appliance gets hot when in use and remains hot for a while after being switched off.
- Page 16 Warning and Safety instructions Do not use pots or pans on the hob with bases with pronounced edges or ridges. These could scratch or scour the ceramic glass surface permanently. Only use pots and pans with smooth bases. Grains of salt, sugar and sand (e.g. from cleaning vegetables) can cause scratches if they get under pan bases.
- Page 17 Warning and Safety instructions Metal utensils stored in a drawer under the hob can become hot if the appliance is used intensively for a long time. Do not store any metal items or utensils in a drawer under the hob This hob is fitted with a cooling fan.
-
Page 18: Caring For The Environment
Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packing Electrical and electronic appliances has been selected from materials often contain materials which, if which are environmentally friendly for handled or disposed of incorrectly, disposal and should be recycled. -
Page 19: Before Using For The First Time
Before using for the first time Please stick the extra data plate for the appliance supplied with this documentation in the space provided in the "After sales service, data plate" section of this booklet. Cleaning for the first time ^ Remove any protective wrapping and adhesive labels. ^ Before using for the first time, clean the appliance with a damp cloth only and then wipe dry. -
Page 20: Induction
Induction The induction principle An induction coil is located under each cooking zone. When a cooking zone is switched on, this coil creates a magnetic field which impacts directly on the base of the pan and heats it up. The cooking zone itself is heated up indirectly by the heat given off by the pan. -
Page 21: Noises
Induction Noises When using an induction cooking zone, the following noises can occur in the pan, depending on what it is made of and how it has been constructed. – On the higher power settings, it might buzz. This will decrease or cease altogether when the power setting is reduced. -
Page 22: Pans
Induction Pans Suitable pans include: – stainless steel pans with a magnetic base – enamelled steel pans – cast iron pans Unsuitable pans: – stainless steel pans without a magnetic base – aluminium and copper pans – glass, ceramic or earthenware pots and pans To test whether a pot or pan is suitable for use on an induction hob, hold a magnet to the base of the pan. -
Page 23: Operation
Operation How the hob is operated The hob is equipped with electronic sensor controls which react to finger contact. To operate the hob, touch the relevant sensor. Each time you touch a sensor, an audible tone sounds. In order to set or alter a power level or the time, the cooking zones and the timer must be "active". -
Page 24: Switching On
Operation Switching on The hob must be switched on before any of the zones can be used. Do not leave the appliance unattended whilst it is being used. To switch the hob on ^ Touch the s sensor. 0 will appear in each of the cooking zone displays. If no further entry is made, the hob will switch itself off after a few seconds for safety reasons. -
Page 25: Power Level Range
Operation Power level range The appliance is delivered with 9 power levels programmed as standard. If you wish to fine-tune a setting, you can extend the power level range (see "Programming"). The intermediate setting will be represented by an illuminated dot next to the number. -
Page 26: Auto Heat-Up
Operation Auto heat-up When Auto heat-up has been activated, the cooking zone switches on automatically at the highest power setting and then switches to the continued cooking setting selected. The heat-up time depends on which continued cooking setting has been chosen (see chart). To activate Auto heat-up ^ Touch the sensor for selecting the cooking zone you want. - Page 27 Operation Continued Heat-up time cooking setting* in minutes and seconds (approx.) 0 : 15 0 : 15 0 : 15 0 : 15 0 : 25 0 : 25 0 : 50 0 : 50 2 : 00 5 : 50 5 : 50 2 : 50 2 : 50...
-
Page 28: Booster Function
Operation Booster function The cooking zones are equipped with a Booster or WaterBoost (see "Guide to the appliance"). When activated, the power is boosted for 15 minutes so that large quantities can be heated quickly, e.g. when boiling water for cooking pasta. The booster function can either be used on the left or the right cooking zone. - Page 29 Operation To switch on the Booster ^ Touch the sensor for selecting the cooking zone you want. ^ Select a power level if you wish. ^ Touch the B I/II sensor. The indicator lamp for the booster lights up, and h starts to flash in the display.
-
Page 30: Keeping Warm Function
Operation Keeping warm function Each cooking zone has a keeping warm function ("h"). The "h" function is in between the "0" setting and the "1" setting. If the keeping warm function has been activated, the cooking zone will switch off automatically after a maximum of 2 hours. This function is for keeping food that has just been cooked warm, i.e. -
Page 31: Switching Off And Residual Heat Indicators
Operation Switching off and residual heat indicators Switching off a cooking zone ^ Touch the sensor for selecting the cooking zone you want twice. A 0 will flash in the cooking zone display for a few seconds. If the cooking zone is still hot, the residual heat indicator will then appear in the display. -
Page 32: Tips On Saving Energy
Tips on saving energy – Use a pan lid whenever possible to minimise heat loss. uncovered covered – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. –... -
Page 33: Timer
Timer The hob must be switched on to use the timer. The timer can be used for two different functions: – to set the minute minder – to set a cooking zone to switch off automatically. You can select a time from 1 minute (01) to 9 hours (9^). A time of up to 99 minutes is set and displayed in minutes. -
Page 34: Minute Minder
Timer Minute minder To set the minute minder time Minutes Example: You want to set 15 minutes. ^ Switch the hob on. ^ Touch the m sensor. 00 will appear in the timer display. The 0 on the right will flash. - Page 35 Timer Hours Whole hours are set by touching the relevant number on the numerical keypad. Half hours are set by touching the area between the relevant two numbers. Example: You want to set 2 hours 30 minutes. ^ Switch the hob on. ^ Touch the m sensor.
- Page 36 Timer To change the minute minder time ^ Touch the m sensor. ^ Set the time you want, as described above. To delete the minute minder time ^ Touch the m sensor until 00 appears in the timer display.
-
Page 37: To Switch A Cooking Zone Off Automatically
Timer To switch a cooking zone off automatically You can set a time at the end of which a cooking zone will switch off automatically. All the cooking zones can be programmed at the same time. If the time programmed is longer than the maximum operational time allowed, the cooking zone will switch off after the maximum time allowed (see "Safety switch-off"). -
Page 38: To Use Both Timer Functions At The Same Time
Timer To use both timer functions at the same time The minute minder and automatic switch-off functions can be used at the same time. If you have programmed in one or more switch-off times, and would like to use the minute minder as well: Touch the m sensor repeatedly until the indicator lamps for the cooking zones you have programmed light up constantly and 00 appears in the timer display. -
Page 39: Safety Features
Safety features Safety lock / System lock Keep children away from the hob for their own safety. Your appliance is equipped with a safety lock to prevent the hob and the cooking zones being switched on or any settings being altered. The safety lock is set with the hob switched on. - Page 40 Safety features Activating Three-finger operation (standard default setting) ^ Touch the $ sensor and the sensors for selecting both right-hand cooking zones at the same time until the safety lock indicator lights up and LC appears in the timer display. The safety lock indicator and LC will go out after a short while.
-
Page 41: Stop And Go
Safety features Stop and Go Your appliance has a Stop and Go feature which, when activated, reduces the power of all cooking zones in use to power level 1. When Stop and Go is activated, the cooking zone power levels and the setting of the timer cannot be altered and the hob can only be switched off. -
Page 42: Safety Switch-Off
Safety features Safety switch-off Safety switch-off with an over-long cooking time If one of the cooking zones is heated for an unusually long period of time (see chart) and the power level is not altered, the hob will switch itself off automatically and the relevant residual heat indicator will light up. -
Page 43: Overheating Protection
Safety features Overheating protection All the induction coils and the cooling elements for the electronics are fitted with an overheating protection mechanism. Before the induction coils or cooling elements get too hot, the overheating protection mechanism cuts in in one of the following ways: Induction coils –... -
Page 44: Cleaning And Care
Cleaning and care For Miele branded cleaning and conditioning products see "Optional accessories". Do not use a steam cleaning appliance to clean this appliance. The steam could reach electrical components and cause a short circuit. The appliance should be cleaned after each use. Let it cool down to room temperature before cleaning. - Page 45 Then clean the hob with Miele ceramic and stainless steel hob cleaner (see "Optional accessories") applied with kitchen paper or a clean cloth. Do not apply cleaner whilst the hob is still hot, as this could result in marking.
-
Page 46: Programming
Programming You can change the default settings of the programme options (see chart). Several settings can be altered in succession. After selecting programming mode, P (Programme) and S (Status) will appear in the timer display. An additional indicator will appear at the rear left. The programme is shown in the displays at the front left and rear left. - Page 47 Programming To save settings ^ Touch the s sensor until all the displays go out. To not save settings ^ Touch the $ sensor until all the displays go out.
- Page 48 Programming Programme* Status** Setting 00 Demonstration mode and Demonstration mode on factory default settings (after the hob is switched on, "dE" will appear in the timer display for a few seconds). Demonstration mode off Factory default settings reinstated 02 Power level range 9 power levels (1, 2, 3 ...
- Page 49 System lock Manual activation of the system lock only Manual and automatic activation of the System lock Auto heat-up Miele|home Feature not fitted - only on Signed off communication-enabled Signed on appliances fitted with a communication module.
-
Page 50: Problem Solving Guide
Reset the trip switch in the mains fuse box, and switch the appliance back on. If it still will not switch on, contact a qualified electrician or the Miele Ser- vice Department. There is a strange The protective conditioning The smell and any vapours... - Page 51 Problem solving guide Problem Possible cause Remedy The ß symbol flashes There is no pan on the Use a suitable pan (see alternately with the cooking zone, or the pan is "Pans"). power setting unsuitable. selected in one of the cooking zones.
- Page 52 Take any pans off the hob and wipe away any food deposits. Interrupt the power supply to the hob for approx. 1 minute. If this does not solve the problem, please call the Miele Service department.
- Page 53 FE 48 fork. Remove the cause of the blockage. If the fault message appears again, call the Miele Service Department. Other fault messages There is an electronic Interrupt the power supply to the FE..
-
Page 54: Optional Accessories
These can be ordered online at: or from Miele (see back cover for contact details) Pans Miele offer a wide range of pans which are perfect for Miele hobs. Please refer to the Miele website for more details on individual products. - Page 55 The hob sends information on its operating status via the household electrical supply. To enjoy the benefits of this feature, your appliance needs to be fitted with a communication module. Detailed information about the Miele|home system can be found at www.miele.de. XKM 2100 KM Communication module including installation accessories...
- Page 56 Optional accessories Miele|home Communication enabled appliances (examples) Communication module SuperVision appliance Electrical supply (Powerline) Miele|home Gateway WLAN) Router Possible connections (optional) PC, Notebook iPod* or iPhone* Connection with a domestic bus system display Possible internet connection * * iPod und iPhone are registered trade marks of Apple Inc.
- Page 57 Optional accessories Con|ctivity Communication module XKM 2000 DA Communication module XKM 2100 KM Electrical supply (Powerline)
-
Page 58: Con|Ctivity And Miele|Home
Con|ctivity and Miele|home Signing on the hob If you want to sign the hob – on to the Miele{home system, first prepare the signing on procedure on the master appliance (see the "Miele|home" fitting and installation instructions) – on to the Con|ctivity system, first sign on the cooker hood (see the "Con|ctivity"... -
Page 59: Signing Off The Hob
Con|ctivity and Miele|home Signing off the hob If you want to sign off from the Miele{home system, first prepare the signing off procedure on the master appliance (see the "Miele|home" fitting and installation instructions). ^ With the hob switched off, touch the s and $ sensors at the same time until the safety lock indicator light flashes. -
Page 60: Safety Instructions For Installation
Safety instructions for installation After installing the hob, ensure that The appliance must only be installed the connection cable cannot come into and connected to the electricity contact with the underside of the supply by a suitably qualified and appliance. Make sure that there is no competent person in strict mechanical obstruction, such as a accordance with current national... - Page 61 Safety instructions for installation Safety distance above the appliance When two or more appliances are installed together below a cooker hood, e.g. a gas wok and a ceramic hob, which have different safety distances given in the installation instructions, you should select the greater distance of the two.
- Page 62 Safety instructions for installation Safety distances to the sides and back of the hob Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear or a tall unit or wall on one side (right or left) (see illustrations).
- Page 63 Safety instructions for installation Safety distances underneath the hob Interim shelf To ensure sufficient ventilation to the It is not necessary to fit an interim shelf hob, a certain gap must be left between underneath the hob, but one may be the underside of the hob and any oven, fitted if you wish.
- Page 64 Safety instructions for installation Safety distance when installing the appliance near a wall with additional niche cladding A minimum safety distance must be maintained between the worktop cut-out and any niche cladding to protect it from heat damage. If the niche cladding is made from a combustible material (e. g. wood) a minimum safety distance of 50 mm must be maintained between the cut-out and the cladding.
- Page 65 Safety instructions for installation Seal between the hob and the Tiled worktop worktop Grout lines and the hatched area underneath the hob frame must be The sealing strip under the edge of the smooth and even. If they are not the top part of the appliance provides a hob will not sit flush with the worktop sufficient seal for the worktop.
-
Page 66: Hob With Frame Or Bevelled Edge
Hob with frame or bevelled edge Building-in dimensions KM 6316 Front Casing depth Connection for Miele|home Mains connection box The mains connection cable (1440 mm long) is supplied separately. - Page 67 Hob with frame or bevelled edge KM 6321 Front Casing depth Connection for Miele|home Mains connection box The mains connection cable (1440 mm long) is supplied separately.
-
Page 68: Installing The Hob
Hob with frame or bevelled edge Installing the hob Installing the hob ^ Feed the mains connection cable Preparing the worktop down through the cut-out. ^ Make the worktop cut-out according ^ Place the hob centrally in the cut-out. to the dimensions given in the When doing this, make sure that the building-in diagram. -
Page 69: Flush-Fitted Hobs
Flush-fitted hobs Building-in dimensions KM 6319 Front Casing depth Connection for Miele|home Please take careful note of the Stepped cut-out for granite or detailed diagrams for the cut-out marble worktops dimensions in granite and marble Mains connection box worktops. The mains connection cable (1440 mm... -
Page 70: Installing The Hob
Flush-fitted hobs Installing the hob The hob can be installed – in a suitable cut-out in a granite or Flush fit hobs are only suitable for marble worktop. installation in granite, marble, tiled or solid wood worktops. – in a suitable cut-out in a tiled or solid When using a worktop made from wood worktop or a glass worktop any other material, please check first... - Page 71 Flush-fitted hobs Granite and marble worktops Connecting the mains cable to the appliance Preparing the worktop The mains cable must only be connected to the appliance by a qualified and competent electrician in strict accordance with current local and national safety regulations (BS 7671 in the UK).
- Page 72 Flush-fitted hobs Solid wood, tiled and glass Connecting the mains cable to the appliance worktops The mains cable must only be Preparing the worktop connected to the appliance by a qualified and competent electrician in strict accordance with current local and national safety regulations (BS 7671 in the UK).
-
Page 73: Electrical Connection
3 mm in type H 05 VV-F, available from the isolator switch (including switch, Miele. fuses and relays). Ensure power is not supplied to the Important U.K. appliance until after installation or The appliance is supplied for repair work has been carried out. -
Page 74: Wiring Diagram
Electrical connection Wiring diagram The electrical safety of this appliance can only be guaranteed when continuity is complete between it and an effective earthing system, which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested and where there is any doubt, the electrical wiring in the home should be inspected by a... -
Page 75: After Sales Service, Data Plate
Guarantee For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details. In the UK, your appliance is guaranteed for 2 years from the date of purchase. However, you must activate your cover by calling 0845 365 6640 or registering online at www.miele.co.uk. - Page 76 Alteration rights reserved / 5012 M.-Nr. 09 549 430 / 00...
