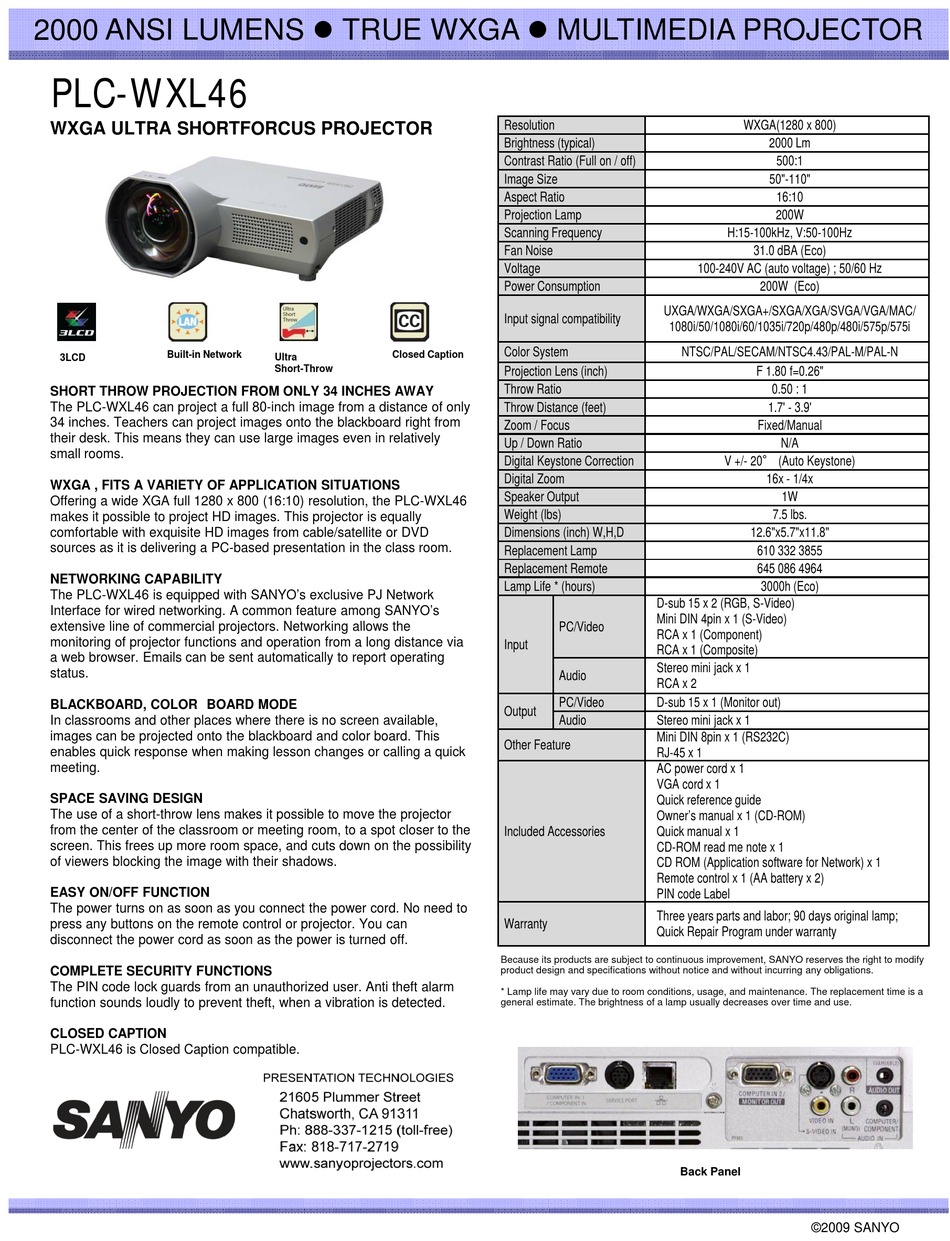

Sanyo PLC-WXL46 Specifications

2000 ANSI LUMENS
PLC-WXL46
WXGA ULTRA SHORTFORCUS PROJECTOR
Built-in Network
3LCD
SHORT THROW PROJECTION FROM ONLY 34 INCHES AWAY
The PLC-WXL46 can project a full 80-inch image from a distance of only
34 inches. Teachers can project images onto the blackboard right from
their desk. This means they can use large images even in relatively
small rooms.
WXGA , FITS A VARIETY OF APPLICATION SITUATIONS
Offering a wide XGA full 1280 x 800 (16:10) resolution, the PLC-WXL46
makes it possible to project HD images. This projector is equally
comfortable with exquisite HD images from cable/satellite or DVD
sources as it is delivering a PC-based presentation in the class room.
NETWORKING CAPABILITY
The PLC-WXL46 is equipped with SANYO's exclusive PJ Network
Interface for wired networking. A common feature among SANYO's
extensive line of commercial projectors. Networking allows the extensive line of commercial projectors Networking allows the
monitoring of projector functions and operation from a long distance via
a web browser. Emails can be sent automatically to report operating
status.
BLACKBOARD, COLOR BOARD MODE
In classrooms and other places where there is no screen available,
images can be projected onto the blackboard and color board. This
enables quick response when making lesson changes or calling a quick
meeting.
SPACE SAVING DESIGN
The use of a short-throw lens makes it possible to move the projector
from the center of the classroom or meeting room, to a spot closer to the
screen. This frees up more room space, and cuts down on the possibility
of viewers blocking the image with their shadows.
EASY ON/OFF FUNCTION
The power turns on as soon as you connect the power cord. No need to
press any buttons on the remote control or projector. You can
disconnect the power cord as soon as the power is turned off.
COMPLETE SECURITY FUNCTIONS
The PIN code lock guards from an unauthorized user. Anti theft alarm
function sounds loudly to prevent theft, when a vibration is detected.
CLOSED CAPTION
PLC-WXL46 is Closed Caption compatible.
TRUE WXGA
Closed Caption
Ultra
Short-Throw
MULTIMEDIA PROJECTOR
Resolution
Brightness (typical)
Contrast Ratio (Full on / off) Contrast Ratio (Full on / off)
Image Size
Aspect Ratio
Projection Lamp
Scanning Frequency
Fan Noise
Voltage
Power Consumption
UXGA/WXGA/SXGA+/SXGA/XGA/SVGA/VGA/MAC/
Input signal compatibility Input signal compatibility
1080i/50/1080i/60/1035i/720p/480p/480i/575p/575i
Color System NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N
Projection Lens (inch)
Throw Ratio
Throw Distance (feet)
Zoom / Focus
Up / Down Ratio
Digital Keystone Correction
Digital Zoom
Speaker Output
Weight (lbs)
Dimensions (inch) W,H,D
Replacement Lamp
Replacement Remote
Lamp Life * (hours)
D-sub 15 x 2 (RGB, S-Video)
Mini DIN 4pin x 1 (S-Video)
PC/Video PC/Video
RCA x 1 (Component)
Input
RCA x 1 (Composite)
Stereo mini jack x 1
Audio
RCA x 2
PC/Video D-sub 15 x 1 (Monitor out)
Output
Audio Stereo mini jack x 1
Mini DIN 8pin x 1 (RS232C)
Other Feature
RJ-45 x 1
AC power cord x 1
VGA VGA cord x 1
Quick reference guide
Owner's manual x 1 (CD-ROM)
Included Accessories Quick manual x 1
CD-ROM read me note x 1
CD ROM (Application software for Network) x 1
Remote control x 1 (AA battery x 2)
PIN code Label
Three years parts and labor; 90 days original lamp;
Warranty
Quick Repair Program under warranty Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
* Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a
general estimate. The brightness of a lamp usually decreases over time and use.
Back Panel
WXGA(1280 x 800)
2000 Lm
500:1 500:1
50"-110"
16:10
200W
H:15-100kHz, V:50-100Hz
31.0 dBA (Eco)
100-240V AC (auto voltage) ; 50/60 Hz
200W (Eco)
F 1.80 f=0.26"
0.50 : 1
1.7' - 3.9'
Fixed/Manual
N/A
V +/- 20° (Auto Keystone)
16x - 1/4x
1W
7.5 lbs.
12.6"x5.7"x11.8"
610 332 3855
645 086 4964
3000h (Eco)
p ( )
d 1
©2009 SANYO
