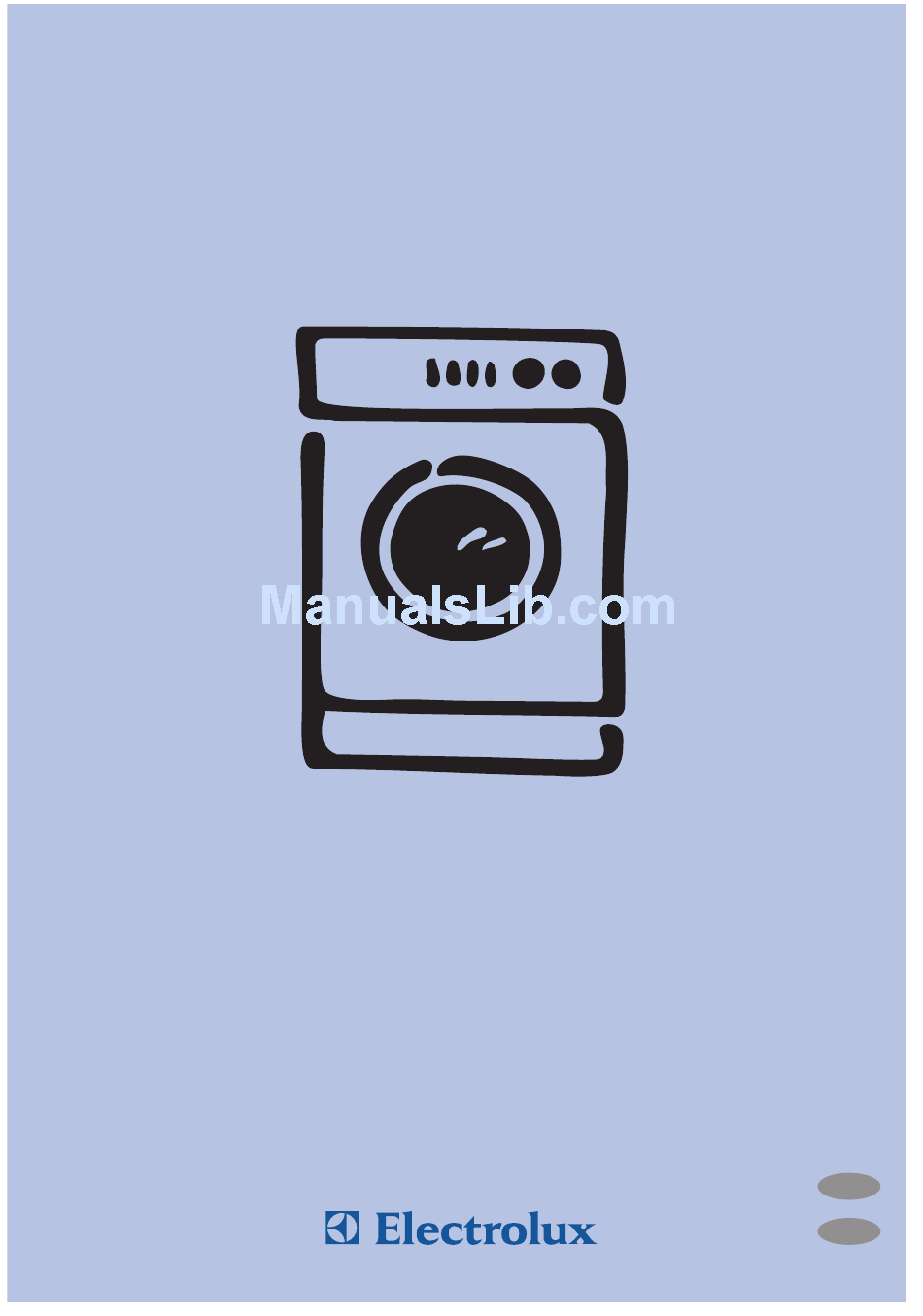

- Page 1 L A V A D O R A - S E C A D O R A W A S H E R - D R Y E R M A N U A L D E U S O I N S T R U C T I O N B O O K L E T E W 1 2 5 0 W I 124 972 040...
- Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
-
Page 3: Table Of Contents
Contents Warnings 29-30 Maintenance Bodywork Disposal Detergent dispenser drawer Drain filter Tips for environmental protection 30 Water inlet filter Emergency emptying out Technical specifications Frost precautions Installation Something not working? 49-50 Unpacking Positioning Water inlet Water drainage Electrical connection Building-in 34-35 Your new washer-dryer Description of the appliance... -
Page 4: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Leave the porthole door slightly ajar when the appliance is not in use. This preserves the door •... -
Page 5: Disposal
Child safety • Keep all detergents in a safe place out of children’s reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum. -
Page 6: Technical Specifications
Technical specifications DIMENSIONS Height 82 cm Width 60 cm Depth 54 cm WASHING DRYING MAXIMUM LOAD Cotton 4.5 kg 2.25 kg Synthetics 1.5 kg Delicates Woollens SPIN SPEED 1200 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION 10 A... -
Page 7: Installation
Installation Unpacking 6. Set the machine upright and remove the two remaining bolts from the back. 7. Pull out the three plastic spacers from the holes All transit bolts and packing must be removed into which the bolts were fitted. before using the appliance. -
Page 8: Water Inlet
Water inlet The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be Connect the water inlet hose to a tap with a 3/4" raised. thread after having inserted the small filter “A” supplied with the machine. -
Page 9: Building-In
Building-in b) Hinges To mount the hinges it is necessary to drill two holes This appliance has been designed to be built into the (dia. 35 mm, depth 14 mm) on the inner side of the kitchen furniture. door. The distance between the holes must be The recess should have the dimensions shown in 416 mm. - Page 10 d) Counter-magnet (6) The appliance is pre-arranged for a magnetic closure of the door. To enable a correct operation of this device, it is necessary to screw the counter-magnet (6) (steel disk + rubber ring) into the inner side of the door.
-
Page 11: Your New Washer-Dryer
Your new washer-dryer This new washing machine, which is fitted with the Direct Spray system, patented Electrolux, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 12: Use
Control panel 1 2 3 4 5 6 7 1 Programme chart 5 Quick wash button It will help you to choose the most suitable washing and drying programme. By pressing this button on programmes for cotton and synthetics the washing time is reduced by approx. -
Page 13: Washing Hints
Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment quilt cover 700 g label and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens. -
Page 14: Detergents And Additives
Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on residual marks on white fabrics with bleach and then the type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 15: Drying Hints
Drying symbols on garment labels Drying hints Always look at the garment label to check whether As a dryer, the machine works on the condensation garments can be machine dried. principle. The following symbols refer to drying: Therefore, the water tap must be open and the drain hose must drain water into a sink or into Machine drying is usually possible the drain pipe, even during the drying cycle. -
Page 16: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 17: Operating Sequence
4. Select the temperature Operating sequence Turn the dial to the required setting. Washing only Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 18: At The End Of The Programme
7. At the end of the programme Drying only The machine stops automatically. Warning! Do not exceed the maximum laundry loads: If you have selected a programme which ends with the water of the last rinse left in the tub, drain the - 2.25 kg for linen and cottons water before opening the door. -
Page 19: Washing Programmes
Programme table Washing programmes for cotton and linen Consumptions* Additional Programme Temp. Fabrics Max. load functions Energy Water Duration min. 60°-90° WHITES HEAVY 4.5 kg SOILED, WITH PREWASH, for example work garments, sheets, household linen, underwear, towels WHITES 60°-90° 4.5 kg NORMALLY SOILED, WITHOUT PREWASH, for... -
Page 20: Washing Programmes
Programme table Washing programmes for synthetics, mixed fabrics, delicates and wool Consumptions* Additional Programme Temp. Fabrics Max. load functions Energy Water Duration min. 30°-60° SYNTHETICS 2 kg HEAVY SOILED, WITH PREWASH, underwear, coloured items, shirts, blouses SYNTHETICS 30°-60° 2 kg NORMALLY SOILED, WITHOUT... -
Page 21: Drying Times
Programme table Drying times Degree of Drying time Type of fabric Max. load Spin speed drying mins Cotton and linen 2.25 kg 1200 (towels, T-shirts, bathrobes) 1,5 kg 1200 Store dry (*) Suitable for items to put Synthetics and 1.5 kg away without mixed fabrics ironing... -
Page 22: Maintenance
Maintenance 1. Bodywork 3. Drain filter Clean the outside of the machine with warm water The drain filter collects threads and small objects and a neutral, non-abrasive household detergent. inadvertently left in the laundry. Check regularly that Rinse with clean water and dry with a soft cloth. the filter is clean. -
Page 23: Emergency Emptying Out
5. Emergency emptying out If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •... -
Page 24: Something Not Working
Something not working? Problems which you can resolve yourself. Problem Possible cause • The machine does not start up: • The door is not firmly closed. • The machine is not plugged in or there is no power at the socket. •... - Page 25 Problem Possible cause • Spinning starts late or the • The electronic unbalance detection device has cut in because the laundry is not evenly distributed in machine does not spin: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
