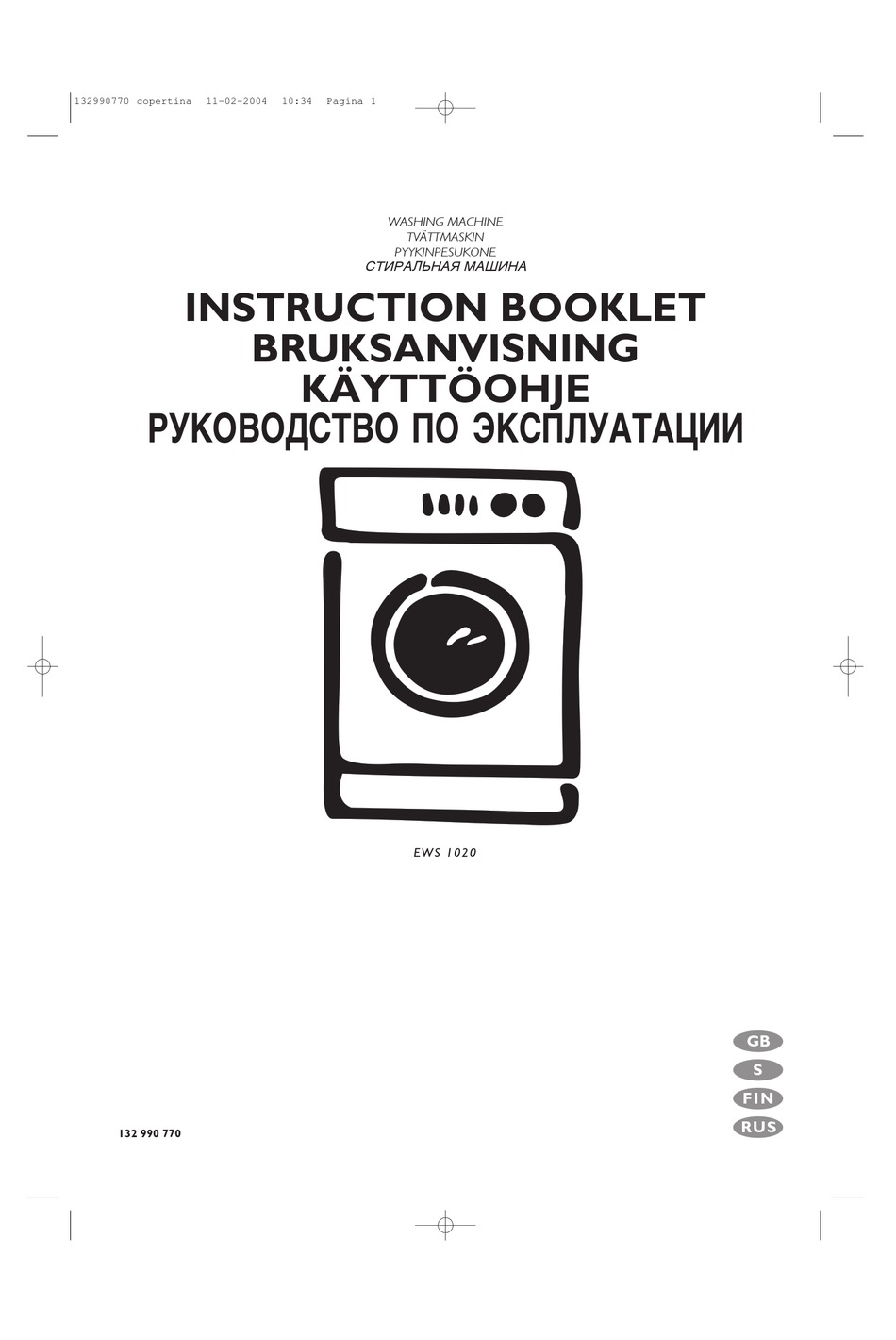

132990770 copertina 11-02-2004 10:34 Pagina 1 WASHING MACHINE TVÄTTMASKIN PYYKINPESUKONE STIRALWNAÅ MAfiINA INSTRUCTION BOOKLET BRUKSANVISNING KÄYTTÖOHJE RUKOVODSTVO PO ÈKSPLUATACII E WS 1020 F I N 132 990 770...
132990770 GB.qxd 11/02/2004 10:33 Pagina Transport damages Dear customer, When unpacking the appliance, check that it is not Please read these operating instructions carefully damaged. If in doubt, do not use it and contact the and pay particular attention to the safety notes Service Centre.
132990770 GB.qxd 11/02/2004 10:33 Pagina Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • Use only the recommended quantities of fabric Installation softener. An excessive amount could damage the •...
132990770 GB.qxd 11/02/2004 10:33 Pagina Disposal Machine Packaging materials Use authorised disposal sites for your old appliance. The materials marked with the symbol Help to keep your country tidy! recyclable. >PE<=polyethylene >PS<=polystyrene >PP<=polypropylene This means that they can be recycled by disposing of them properly in appropriate collection containers.
132990770 GB.qxd 11/02/2004 10:33 Pagina Installation 7. Plug all the holes with the plugs which you will Unpacking find in the envelope containing the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.
132990770 GB.qxd 11/02/2004 10:33 Pagina The other end of the inlet hose which connects to the The drain hose must not be kinked. machine can be turned in any direction. Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks For a correct functioning of the machine the drain hose must remain hooked on the proper...
132990770 GB.qxd 11/02/2004 10:33 Pagina Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The automatic cooling of the washing water from 95° to 60°C before draining will prevent old drain pipes from being deformed.
132990770 GB.qxd 11/02/2004 10:33 Pagina Control panel 1 Programme chart Programme Option buttons A programme chart in English is in the interior part of Depending on the programme, different functions the detergent dispenser drawer. can be combined. These must be selected after choosing the desired programme and before depressing the START/PAUSE button.
132990770 GB.qxd 11/02/2004 10:33 Pagina 7 Quick wash button Start This option can be used for lightly soiled items (not for wool, hand wash) in order to obtain a good After having selected the required programme, washing program in a short time. The washing time press this button to start the machine;...
132990770 GB.qxd 11/02/2004 10:33 Pagina Programme information A = Rinses With this programme it is possible to rinse and spin the garments which have been washed by hand. The machine performs 3 rinses, followed by a final spin at the maximum speed. The spin speed can be reduced by depressing button The final spin is foreseen only for cotton items as in...
132990770 GB.qxd 11/02/2004 10:33 Pagina Laundry weights Washing hints The following weights are indicative: Sorting the laundry bathrobe 1200 g napkin 100 g Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. quilt cover 700 g Sort the laundry as follows: sheet 500 g...
132990770 GB.qxd 11/02/2004 10:33 Pagina residual marks with bleach. Quantity of detergent to be used Ink: depending on the type of ink, moisten the fabric The type and quantity of detergent will depend on first with acetone (*), then with acetic acid; treat any the type of fabric, load size, degree of soiling and residual marks on white fabrics with bleach and then hardness of the water used.
132990770 GB.qxd 11/02/2004 10:33 Pagina 4. Switch the machine on Operating sequence To switch the machine on, press the ON/OFF button : the mains-on light comes on. Before the first wash we recommend that you pour 2 litres of water into the main wash compartment of the detergent drawer in order to activate the ECO valve.
Page 14
132990770 GB.qxd 11/02/2004 10:33 Pagina 7. Select the required options 12. Opening the door after the programme has started The light corresponding to the depressed button illuminates. First set the machine to PAUSE by pressing the START/PAUSE button. If the door does not open, this means that the machine is already heating, that the water level is above the bottom edge of the door or that the drum is turning.
132990770 GB.qxd 11/02/2004 10:33 Pagina International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C...
132990770 GB.qxd 11/02/2004 10:33 Pagina Programme chart Washing programmes Consumption* Programme Additional Max. Temp. Type of fabric description functions load Energy Water Time min. 60° 95° White 4 kg Wash at 60°-95°C cotton 3 rinses Normal spin 4 kg 0.76 White cotton Wash at 60°C E60°**...
132990770 GB.qxd 11/02/2004 10:33 Pagina Programme chart Special programmes Consumption* Selector dial Programme Additional Max. Programme position description functions load Energy Water Time min. 4 kg 0.05 3 rinses with liquid Rinses additives if required Spin Drain Spin 4 kg Drain and delicate 1.5 kg Delicate...
132990770 GB.qxd 11/02/2004 10:33 Pagina Maintenance Detergent can also accumulate inside the drawer Bodywork recess: clean it with an old toothbrush. Refit the Clean the outside of the machine with soap and drawer after cleaning. water only. Rinse with clean water and dry with a soft cloth.
132990770 GB.qxd 11/02/2004 10:33 Pagina • Remove any objects from the pump impeller by Emergency emptying out rotating it. If the water is not discharged, proceed as follows to empty out the machine: • pull out the plug from the power socket; •...
132990770 GB.qxd 11/02/2004 10:33 Pagina Something not working? Problems which you can resolve yourself. During machine operation it is possible that the light starts to flash: - 1 flash : problem with the water supply - 2 flashes : problem with water draining - 4 flashes : door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme.
Page 21
132990770 GB.qxd 11/02/2004 10:33 Pagina Problem Possible cause • The electronic unbalance detection device has cut • Spinning starts late or the in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum.
Page 22
