Summary of Contents for Bosch NTC-265-PI
- Page 1 IP Camera 200 Series NTC-265-PI Installation Manual...
-
Page 3: Table Of Contents
I/O connector Audio connectors Camera set-up 3.7.1 Camera positioning Resetting the camera Browser connection System requirements Establishing the connection 4.2.1 Password protection in camera Protected network Troubleshooting Resolving problems Customer service Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... - Page 4 | Table of Contents IP Camera 200 Series Maintenance Repairs 6.1.1 Transfer and disposal Technical Data Specifications 7.1.1 Accessories AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems...
-
Page 5: Safety
If not avoided, this could result in minor or moderate bodily injury. CAUTION! Low risk: Indicates a potentially hazardous situation. If not avoided, this could result in property damage or risk of damage to the device. Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 6: Important Safety Instructions
10. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment. -
Page 7: Fcc & Ices Compliance
Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action. Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 8: Ul Certification
Please dispose of these devices at an environmentally compatible recycling facility, per European Directive 2002/96/EC More information For more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.com AM18-Q0610 | v1 | 2012.02 Installation Manual... -
Page 9: Copyrights
Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. This software is based in part on the work of the Independent JPEG Group. Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 10: Introduction

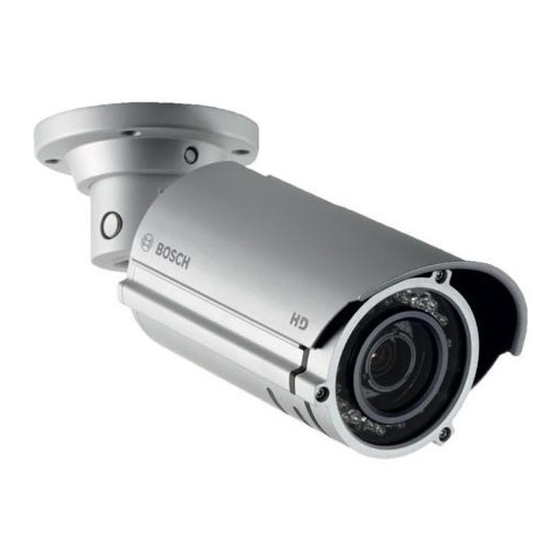

IP Camera 200 Series Introduction Features The Bosch NTC-265-PI 720p infrared IP bullet camera is a ready- to-use, robust network camera. This camera offers a cost effective solution for a broad range of applications. The robust aluminum camera body is IP66 rated, offering water and dust proofing for demanding environments. -
Page 11: Unpacking
– Installation paper sticker – Quick installation guide – CD ROM – Bosch Video Client – Documentation – Tools If equipment has been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier. WARNING! -
Page 12: Installation
Using the special screwdriver bit supplied, loosen the top adjustment screw (1) in the housing. Slide the sun hood (2) to the desired position. Tighten the top adjustment screw (1). AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... -
Page 13: Mounting
Attach the camera and base unit securly to the surface using the two supplied M4 screws. CAUTION! Do not point the camera/lens into direct sunlight as this may damage the sensors. Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 14: Network (And Power) Connector
Power can be supplied to the camera via the Ethernet cable compliant with the Power-over-Ethernet (IEEE 802.3af) standard. CAUTION! This equipment is only to be connected to PoE networks without routing to outside plant. AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... -
Page 15: Power Connection
Remove the 2-pole connector from the camera cable tree. Loosen the screws and insert the wires. Tighten the screws and reconnect the 2-pole connector to the power connector of the camera cable tree. Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 16: I/O Connector
Relay switching capability: Max. voltage 24 VAC or 24 VDC. Max. 1 A continuous, 12 VA. – Alarm in: Short or +5 VDC activation. – Alarm input configurable as active low or active high. AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... -
Page 17: Audio Connectors
Figure 3.5 Audio connectors Connect audio devices to the Line In and Line Out connectors. – Line in: 9 kOhm typical, 200 mVrms – Line out: 16 Ohm minimum 200 mVrms (earphone compatible) Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 18: Camera Set-Up
To help set up the camera, connect a monitor to the BNC connector of the camera cable tree. This connector provides a composite video signal (with sync) for installation purposes only. AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... -
Page 19: Camera Positioning
Tighten the screw. To obtain a horizontal horizon (3), rotate the camera body as necessary to align the picture shown on the monitor. Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 20: Resetting The Camera
If the camera cannot be connected because the IP address has changed, short circuit the reset connector for approximately 7 seconds to recall the factory default values. The factory default IP address is 192.168.0.1 AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... -
Page 21: Browser Connection
A computer with Microsoft Internet Explorer can be used to receive live images from the camera, control cameras, and replay stored sequences. The camera is configured over the network using a browser or via the Bosch Video Client (supplied with the product). System requirements –... -
Page 22: Establishing The Connection
If the connection is not established, the maximum number of possible connections may already have been reached. Depending on the device and network configuration, up to 25 web browsers, or 50 Bosch VMS connections are supported. 4.2.1 Password protection in camera A camera offers the option of limiting access across various authorization levels. -
Page 23: Troubleshooting
Customer service If a fault cannot be resolved, please contact your supplier or system integrator, or contact Bosch Security Systems Customer Service directly. The Installer should write down all information regarding the unit so that it can be referenced for warranty or repair. The... -
Page 24: Maintenance
Defective or superfluous devices and parts should be disposed of professionally or taken to your local collection point for hazardous materials. AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... -
Page 25: Technical Data
BNC connector Alarm Input Short or 5 VDC activation Relay Out Switch rating: Max. 1 A 24 VAC/VDC Audio Input Line in jack connector Audio Output Line out jack connector Bosch Security Systems Installation Manual AM18-Q0610 | v1 | 2012.02... -
Page 26: Accessories
-20 ºC to +70 ºC (-4 ºF to +158 ºF) Temperature Humidity Less than 90% relative humidity (non-condensing) 7.1.1 Accessories Contact a Bosch representative in your area for the latest available accessories or visit our website at www.boschsecurity.com AM18-Q0610 | v1 | 2012.02 Installation Manual Bosch Security Systems... - Page 28 Bosch Security Systems www.boschsecurity.com © Bosch Security Systems, 2012...
