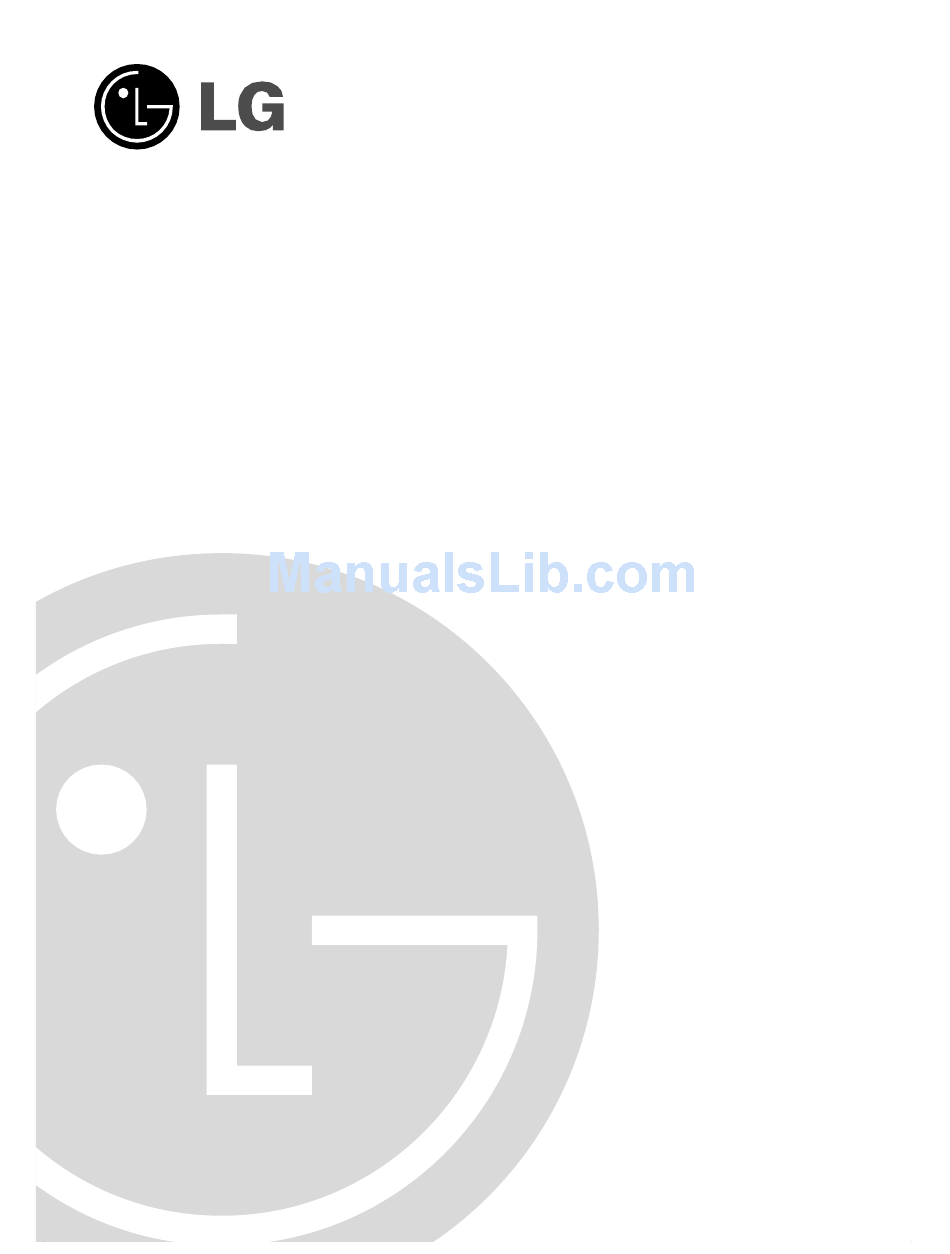

- Page 1 RJP-110W Series Remote Jack Pack (RJP-110W / RJP-110WBR) Installation & Setup Guide Warranty © Copyright 2007, LG Electronics U.S.A., Inc.
-
Page 2: Safety Warnings
• Consult the dealer or an experienced radio/TV technician for help. CAUTION: Do not attempt to modify this product in any way (except as noted herein) without written authoriza- tion from LG Electronics U.S.A., Inc. Unauthorized modification could void the user’s authority to oper- ate this product. COMPLIANCE: The responsible party for this product’s compliance is:... -
Page 3: Table Of Contents
Warranty ..........Back Cover Note: Model Number RJP-110W indicates the black cabinet. Model Number RJP-110WBR indicates the brown cabinet. 206-4061... -
Page 4: Overview
Overview DIGITAL VIDEO IN PC VIDEO IN 7 AMP MAXIMUM CURRENT The Remote Jack Pack (RJP) contains circuitry to determine the pres- ence of a signal at each input jack. (Note: Audio In, Audio In L-R and Video In inputs detect the pres- ence of the inserted plug, regardless if a signal is present or not.) When a source is detected, its priority is compared to the priority of other sources which may be present. -
Page 5: Overview
Introduction Conveniently installed right in the room where guests will stay, the LG Remote Jack Pack, (RJP) multi-media interface is available to end-users to connect audio, video and computer devices to hear and view on the in-room TV display panel. -
Page 6: Installation In Cabinet Front Panel
Installation in Cabinet Front Panel The RJP-110W can only be installed in a vertical position into the cutout provided in the cabinet front panel. Vertical mount- ing in the cutout is required so that if liquid is spilled on the desk top, it will not be able to flow into the RJP. The RJP must only be installed in the cutout opening. -
Page 7: Installer Connections
Installer Connections The RJP-110W and the cables listed below are to be connected to both the TV display panel and any other entertainment resources available in room. CAUTION: Be sure power is turned off before attempting to connect the RJP-110W to the TV display panel and in-room resources. -
Page 8: Installer Connections
Installer Connections Contd. After completing connections between the RJP, the TV display panel and other resources, be sure the installer menu items have been updated to enable the RJP. Installer Menu item 040 Auto Camport needs to be set to 000 and 093 RJP Available needs to be set to 001. -
Page 9: End-User Operation
End-User Connections Overview The end-user simply plugs a device such as a laptop computer with the appropriate cables, as shown in the example, into the RJP connection panel. The Remote Jack Pack senses the new source connection and switches the TV to the newly-connected source. -
Page 10: End-User Multi-Media Connections
End-User Multi-Media Interface Connections Reset Switch 3.5 mm Stereo Audio Circuit breaker for Input Jack AC power outlets. Connection for MP-3 player or PC audio. DIGITAL VIDEO IN PC VIDEO IN 7 AMP MAXIMUM CURRENT Audio/Video Input Jacks AC Power Outlets Two (2) convenience AC Connection for Left-Right outlets for end-user. -
Page 11: End-User Connectable Devices
End-User Connectable External Source Devices Examples of devices a guest/end-user can connect are shown to the right. There are two AC power outlets avail- able on the jack pack for added con- venience. The End-User Can Connect: • PC Laptop/Notebook Computers •... -
Page 12: End-User Audio/Video Input Priorities
End-User Audio/Video Input Priorities End-User Audio/Video Input Priorities Note: The highest priority is listed first. Audio Inputs/Sources 1st. 3.5 mm Stereo Audio Jack 2nd. Left - Right Audio Jacks 3rd. Digital Video Audio 4th. TV Display Panel Tuner Audio (Audio Default) Video Inputs 1st. -
Page 13: Reference: 12-Foot Output Cable Assembly
Reference 12-Foot Output Cable Assembly DIGITAL CONTROL w/Yellow VIDEO Sleeve 14" Note: Connector set near mesh sleeving hooks up to TV display panel. 6. Cable Tie Mesh Sleeving 36" Output Cable Assembly Parts List Output Item Description Cable Assembly Left/Right Audio Cable. Composite Video Cable. -
Page 14: Accessory Cable: Dvi-Hdmi Adapter Cable/Strain Relief
Accessory Cable: DVI to HDMI Adapter Cable Strain Relief Special Connections Note: DVI to HDMI Adapter Cable Male For TVs equipped with Connector HDMI, this adapter cable will be required to connect Female the RJP for digital Connector video/audio. RS-232C .. -
Page 15: Specifications
Specifications Application Makes available to the hotel’s guests, a multi-media interface to the in-room TV display panel and media resources. Input jacks are provided for external portable devices such as DVD/CD Players, Laptop Computers, Camcorders, etc. Installer Connections Digital Video Out Digital Video Connector RGB OUT 15-pin RGB PC Monitor Connector... - Page 16 Specifications Contd. Dimensions Height 2.25 Inches (5.7 cm) Width 13.75 Inches (34.9 cm) Depth 3.5 Inches (8.9 cm) Weight (Approx.) 2.15 Pounds (.975223 kgrms) End-User Device Inputs AC Outlets x 2 AC 120V 60Hz (Maximum 7 Amps. total combined current allowed for AC outlets) Audio In 3.5mm Stereo Audio Jack Audio In L-R...
-
Page 17: Troubleshooting
Troubleshooting Equipment Setup Analysis Notes • Make sure all connectors and connections are tight and secure on user device, RJP-110W and TV. • Check to assure user device, RJP-110W and TV are all powered up and working properly and that the TV Installer menu items are set correctly. -
Page 18: Troubleshooting Flow Chart
Troubleshooting Flow Charts No Video (or No Audio (or not desired not desired Power Video) Audio) Remove AC Has Circuit Power Remove AC Restore Has Circuit Breaker Failure? load, press Breaker load, press Power Tripped RESET Tripped RESET Connect Is power cord Connect Is Video Connect... -
Page 19: Quick Setup Reference Guide
Quick Setup Guide Installer RJP-110W/RJP-110WBR 4. Adjust TV installer menu items 040 6. Provide user information in and 093 to enable RJP capability. room. (As applicable to your enter- Quick Setup Reference Guide (See TV installation guide for com- tainment system.) -
Page 20: Warranty
RJP-110W Warranty Remote Jack Pack Welcome to the LG family! We believe that you will be pleased with your new LG product. Please read this warranty carefully, it is a “LIMITED WARRANTY” as defined under Federal Law. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state within the U.S.A.
