LG 26LX1D - - 26" LCD TV Owner's Manual

Owners manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

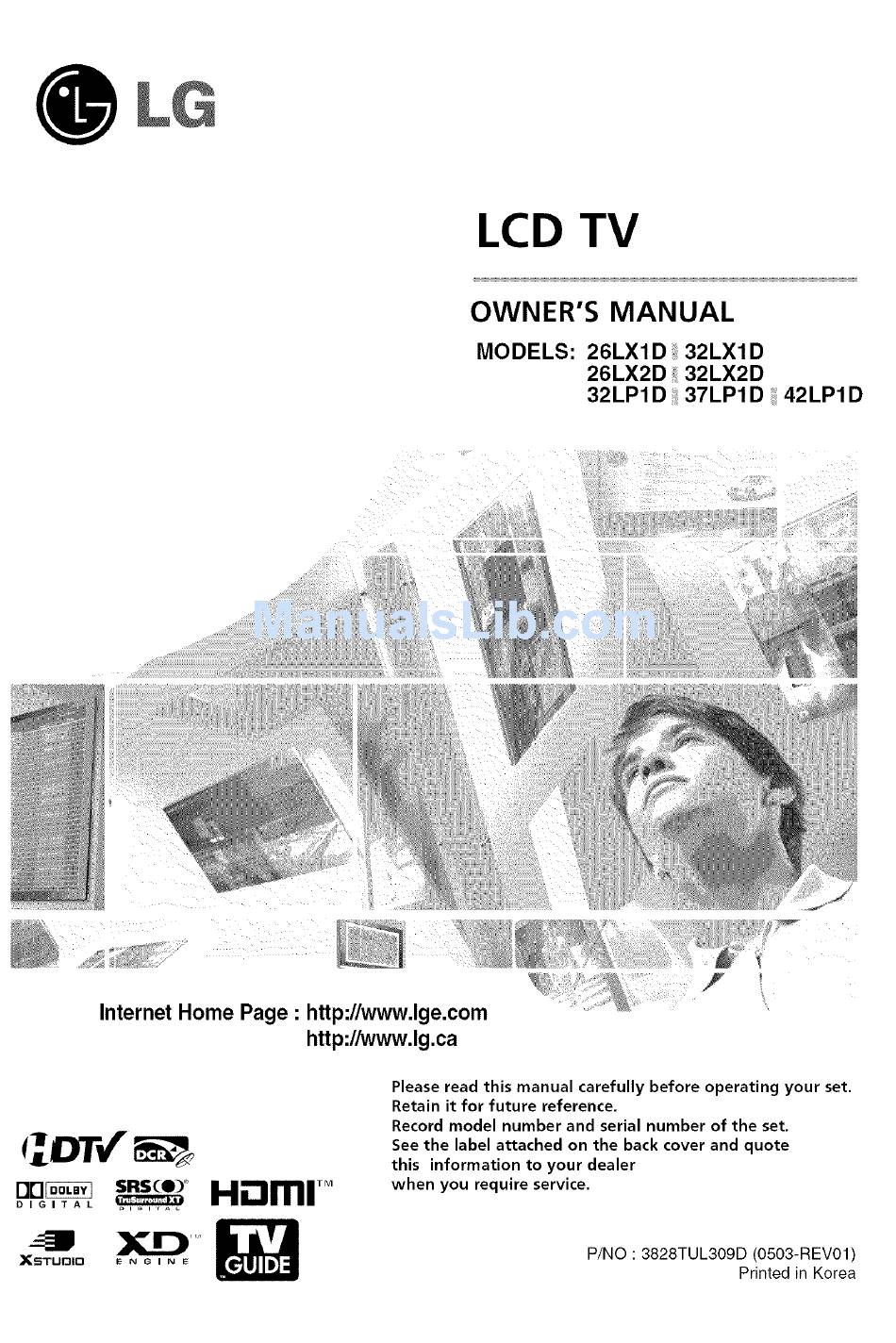

LCD TV
OWNER'S
MANUAL
MODELS:
26LXID
!_32LXID
26LX2D
32LX2D
32LPID
37LPID
42LPID
BD_
DIGITAL
i ITr__tT"t_"r_.,t:i i
X5TUOtO
Internet Home Page : http://www.lge.com
http://www.lg.ca
$RS(II) "_
ENGINE
Please read this manual
carefully
before
operating
your set.
Retain
it for future
reference.
Record
model
number
and serial
number
of the set.
See the label
attached
on the back cover
and quote
this
information
to your
dealer
when
you require
service.
P/NO: 3828TUL309D
(0503-REV01)
Printed in Korea

Advertisement

Table of Contents
loading

Related Manuals for LG 26LX1D - - 26" LCD TV

Summary of Contents for LG 26LX1D - - 26" LCD TV

  • Page 1 LCD TV OWNER'S MANUAL MODELS: 26LXID !_32LXID 26LX2D 32LX2D 32LPID 37LPID 42LPID Internet Home Page : http://www.lge.com http://www.lg.ca Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set.

  • Page 2: Warnings

    CAUTION: Do not attempt to modify this product in any way without written authorization from LG Electronics Corporation. Unauthorized modification could void the user's authority to operate this product. U.S.A. only ..........
  • Page 3 In the United States, TV GUIDE and other related marks are registered marks of Gemstar-TV Guide International, Inc. and/or one of its affiliates. In Canada, TV GUIDE is a registered mark of Transcontinental Inc., and is used under license by Gemstar-TV Guide International, Inc.

  • Page 4: Safety Instructions

    Safety Instructions WARNING • To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Page 5 Safety Instructions 12. Use only with a cart, stand, tripod, bracket, or table 14. Refer all servicing to qualified service personnel. specified by the manufacturer, or sold with the appa- Servicing is required when the apparatus has been ratus. When a cart is used, use caution when moving damaged in any way, such as power supply cord or the cart / apparatus...

  • Page 6: Table Of Contents

    Contents Warnings TV Guide On Screen Notices / Digital Cable Compatibility Safety Instructions Accessories "6 Controls (Model Name: 32/37/42LPID) Connection Options (Model Name: 32/37/42LPID) Controls (Model Name: 26/32LXID, 26/32LX2D) Connection Options (Model Name: 26LXID/2D) Connection Options (Model Name: 32LXID/2D) 14-18 Remote Control Key Functions Various Installation How to use back cover...
  • Page 7 Contents _ _, ..... Auto Clock Setup Manual Clock Setup On/Off Timer Setup Sleep Timer i iiiiii iiiiii iiiH!!!!i}iiii! !iiiiiiiiii ............................Auto Off iiiii_iii_!!iii_i!!ii!!iii_ii_ii_ii_ii_iiii_!!iiiii!!iii_ii!!ii!!iiii!!iii_iiiiiiii_ii_ii_ii_ii_ii_iii_iii!!iiii_ii_! ........iiiiii_iii_ii_ii_iii_ii_ii_ii_ii_iiiii!iiii_iii_ii_iii_i_iii_i!!iii_iiii_iii_ii_ii_ii_iiiiiiii_iiii_ii_i_i !iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!!il _!ii_!ii_!ii_!ii_iii_i_1_i_2_2_2_i_!!i_!_ii_i_i_!_i_iii_!_:iii_!_:iii_iii ..i i iiiiiiiiiiiiiiiiiiiiiiiiiiii!ii!iiill ii iiiii iiiii iiiii iiiii iiiii iiii i iiii iiiii i!!iiiHiiiii ii H i!ii i !iiii ii!iii ii! i!!ii !i H ii!i! ii i i !i !ii Aspect Ratio Control...
  • Page 8 Introduction Ensure that the following accessories are included with your TV. If any accessory is missing, please contact the dealer from where you purchased the product. Power Cord 75_-_Round Cable G-LINK Cable D-sub 15 pin cable Owner's Manual Remote Control / Twister Holder Polishing Cloth...
  • Page 9 Introduction Co nt ro Is (M od e I Na m e: 32!37/42LP1 - This is a simplified representation of front panel. - Here shown may be somewhat different from your TV. Logo Display Lamp Channel Display Power Standby Indicator Illuminates red when the TV is in standby mode.

  • Page 10: Connection Options (Model Name: 32/37/42Lpid)

    Introduction Connection Options (Model Name: 32/37/42LP1 COMPONENT2 DIGITAL AUDIO OUTPUT AC IN / DVI INPUT MONITOR OUT / COMPONENT1 INPUT HDMI / IEEE1394 Port G-LINK Port AUDIONIDEO INPUT1 CableCARD Slot RS-232C INPUT (CONTROL/SERVICE) ANTENNA Input RGB INPUT (PC/DTV INPUT) CABLE Input PC AUDIO INPUT REMOTE CONTROL Port COMPONENT1...

  • Page 11: Controls (Model Name: 26/32Lxid, 26/32Lx2D)

    Introduction Controls (Model Name: 26/32LXID, 26/32LX2D) - This is a simplified representation of front panel. - Here shown may be somewhat different from your TV. Remote Control Sensor /Power Standby Indicator Illuminates red when the TV is in standby mode. When the TV is switched on, blinks green and then illuminates green.

  • Page 12: Connection Options (Model Name: 26Lxid/2D)

    Introduction Connection Options (Model Name:: 26LXID/2D) - Here shown may be somewhat different from your TV. S-VIDEO- AUDIO VIDEO2- Input- Memory Card Slot (For XSTUOlO• mode) COM PON ENT2 _ (VIDEO Input) DIGITAL AUDIO OUTPUT/DVI INPUT HDMI / IEEE1394 Port AC IN / COMPONENT1 INPUT...
  • Page 13 Introduction Connection Options (Model Name: 32LXID/2D) - Here shown may be somewhat different from your TV. ii _ i i_i iiii i! i i i _ _!!!!!_! !! i iiiiii iii i ii_i ii S-VIDEO- _VIDEO2_ AUDIO Input-- _ iiiiii ii ii!i!i!i!i!i!i!i!i!i!i!i!!!!!ii!iii_i!ii_!_!_i_i_i!_i_i,:_!i!:_!_ ¸[ _!_!_! o_i_!_,_,!_iii_!i!_J!_ii!_i!_i!_i!_i_i,!i_ii_iiii!:!!_iiii...

  • Page 14: Remote Control Key Functions

    Introduction Remote Co ntrol Key Fu nction s POWl Turns your TV or any other programmed equipment on or Rotates the input mode between Antenna and Cable. Video1-2, Component !-21 RGB-DTV (or RGB-PC), HDMI!DVI, IEEE139,; input s0urces, screen returns to the last TV channel.
  • Page 15 Introduction VCR/DV D/DVHS/Camcorder BUTTOI_ Control some video cassette recorders or DVD players ('!RECORD" button is not available for DVD player). Control DVHS or camcorders while in IEEE !394 mode. DAY+ / DAY- Moves forward or backward in 24 hour increments, Contros the XSTUOIO Mode.
  • Page 16 Introduction Switches between PIP, POP (Picture-out-of-Picture) Twin picture modes. Switches the video window locking or unlocking in the Listings Grid. PIP CH-/PIP OH+ (Refer to p.94) Changes to next higher/lower PIP channel. PIP INPUT (Refer to p.94) Selects the input source for the sub picture in PIP/Twin pic- ture mode.
  • Page 17 Introduction Auto Link TVNIDEO 1. When every external equipment is connectea I Component1 I _ I.GB-oTv Co, .GB-PC_ I÷ IComponent21 2. When any external equipment is not connected: I.GB-DTv Co,.GB-PC_ 3. When some External Equipment is connected: (ex: When connected to Video 2 •...
  • Page 18 Introduction EZ Mute TV/ViDEO -When you repeatedly press the MUTE button, the sound _node is changed in turn. (Refer to the picture below) Mute: Sound is muted. PAGE EZ Mute: A special mute mode to activate the closed caption automatically. Mute Off: Sound is enab ed.
  • Page 19 Introduction For proper ventilation, allow a clearance of 4" on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide. For proper ventilation, allow a clearance of 4" on each side and from the wall. iiiiiiiiiiiiiiiiJ_l i_i_i!!i_iii_i!ii_i_ili!i!ii!%i%%iii _:_:_:l_ii_ii_ii_iiii_...
  • Page 20 Installation Hold the cover with both hands and pull it backward. _:_"_:_m:_¢_r_1_r_:_:_:>_"_ "i,_ _ _'_,lmmmmMHImmmi> _ ",, ..Install wires as necessary. (To install various wires, refer to p.21-41 .) * Arrange the signal input cable andthe powercord by holder,as shown. Align the holes on the TV back panel with the protuberances on the back...
  • Page 21 Installation Ext e r na I Eq u ip m e nt Co n ne c t io ns NOTE: All cables shown are not included with the TV - Antenna or Cable Service without a Cable Box Connection. - For optimum picture quality, adjust antenna direction if needed. Multi-family Dwellings/Apartment_ (Connect to wall antenna socket)
  • Page 22 Installation - To avoid picture noise (interference), leave an adequate distance between the VCR and TV. - Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. / i_ii ¸...
  • Page 23 Installation 26 inch TV Back 32, 37, 42 inch TV Back $-VIDE_ A_TOUT S-VIDEO OUT Connect the S-VIDEO output of the VCR to the S-VIDEO input on the set. The picture quality is improved: compared to normal composite (RCA cable_ input. Connect the audio outputs of the VCR to the AUDIO input jacks on the set.
  • Page 24 Installation 26 inch TV Back 32, 37, 42 inch TV Back CCJ • S-VIDEO S.VlOEO IR_aUOlO I[ Connect the S-VIDEO output of the DVD to the S-VIDEO inout on the set Connect the audio outputs of the DVD to the AUDIO input jacks on the set. Turn on the DVD player, insert a DVD.
  • Page 25 Installation 26 inch TV Back 32,37.42inch TV Back J LJ S-VIDE0 MONITOR COMPONENT1 -- @0@0@ ,uo,o,N Ut AUDJO4L Select , depending on your DVD connector. Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT1 VIDEO INPUT jacks on the set. Connect the audio outputs of the DVD to the COMPONENT1 AUDIO INPUT jacks on the set.
  • Page 26 Installation - This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below. 32,37,42 inch TV Back 26 inch TV Back AD IN AC IN...
  • Page 27 Installation 32, 37, 42 inch TV Back 26 inch TV Back o_uDJoe_,0 _ COOPONENT,__ AUDIO INPUT VIDEO INPUT ..mAU_O,L •_p ..tR_ AUDIO Digital Set-top Box Digital Set-top Box Select , depending on your digital set-top box connector. Connect the video outputs (Y, PB, PR) of the digital set-top box to the COMPONENT1 VIDEO INPUT jacks on the set.
  • Page 28 Installation 32, 37, 42 inch TV Back 26 inch TV Back HDM/ HDMI DTVOUPUT _DMI DTVOUPUl Digital Set-top Box Digital Set-top Box Connect the HDMI output of the digital set-top box to the HDMI jack on the set. Select HDMI/DVI input source with using the TV/VIDEO button on the remote control. Turn on the digital set-top box.
  • Page 29 Installation 32, 37, 42 inch TV Back 26 inch TV Back HD_I IEEE ° WOEOmPUT .._G_TA_ A UDIO mAUDJO4L_ OPTICAL D_-DWOUTPUT Digital Set-top Box Digital Set-top Box Select _z_ or , depending on your digital set-top box connector. Connect the DVI output of the digital set-top box to the HDMI jack on the set. Connect the audio output of the a gital set-top box to the PC AUDIO INPUT jack on the set.
  • Page 30 Installation • 9#_ :If connected to VlDEOl input, select Video1 •_J input source, Camcorder Operate the corresponding external equipment TV S de " Refer to externa equ!pment operating guide. For connection instructions to operate the -IV Guide Video Game Set On Screen system, see page 42_43.
  • Page 31 Installation - The TV has a special signal output capability which allows you to hook up a second TV or monitor. 32.37.42inch TV Back 26 inch TV Back HDM/ • CableCARD "] - To view the premium stations Insert the CableCARD received -rom Cable Service provider to CableCARDslot of TV as shown.
  • Page 32 Installation - This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings. 32,37,42 inch TV Back 26 inch TV Back ..? ° AC IN AC IN [] 1_el = _¢J AUDIO RGB-PC OUPUI AUDIO RGB-PC OUPUT...
  • Page 33 Installation 26 inch TV Back 32,37, 42inch TV Back • Connect the DVI output of the PC to the HDMI jack on the set. Connect the PC audio output to the PC AUDIO INPUT jack on the set. Turn on the PC and the set. Select HDMI/DVI input source with using the TVNIDEO button on the remote control.
  • Page 34 Installation 1. To get the best picture quality, adjust the PC OSD display. Refer to the Manual of HDMI1/DVI graphics card to 1024x768, 60Hz. Source Devices or contact your service center. 2. Depending on the graphics card, DOS mode may 6.
  • Page 35 Installation - When RGB connect to PC input and select the RGB-PC in Main Input, this function is used. - When HDMI/DVI connect to PC input and select HDMI/DVI input, this function is used. - In RGB-DTVmode. SIZEandPHASEisnetavailable. - In HDMI/DVI-PC mode. PHASE is net available. - After connecting RGB-PC or HDMI/DVI to PC input and checking the screen quality.
  • Page 36 Installation - It's available to communicate to either direction and you can give and take a image, sound, or each control command with one cable. • To operate the IEEE1394. these methods are available as shown below. (a) TV _..ID,_ DVHS When connecting the DVHS or the MicroMV Camcorder.
  • Page 37 Installation Connect the_ EEE1394 Cable DVHS Connect the IEEE 1394 jack of the TV to the IEEE When watching the TV, press the 1394 button. 1394 jack of the DVHS with IEEE 1394 Cable. The control panel OSD of DVHS is displayea Supported DVHS List JVC (HM-DH4OOOOK)
  • Page 38 Installation Connect the '_"J IEEE1394 Cable MicroMV Camcorder When watching the TV, press the 1394 button. Connect the IEEE 1394 jack of the TV to the IEEE The control panel OSD of MicroMV Camcorder 1394 jack of the MicroMV Camcorder with IEEE 1394 Cable.
  • Page 39 Installation Synchronously, connect the IEEE 1394 jack of the TV to the IEEE 1394 ack of the DVHS and the MicroMV Camcorder with IEEE 1394 Cable. Press the • / T button to select device, then press ENTER button to play it. And then select- ed device will be showed OSD.
  • Page 40 Installation - DTV Link applies to 1394 connection of device abeled DTV Link logo. - It is normal standard of CEA which restricts by a remote and displays OSD and plays to stream of a remote control by using a connection of IEEE1394. •...
  • Page 41 Installation _iii_!iiiii!ill ti!!!_i!!!!i_il!l!,i_,_ - When connecting with these 2 methods, the IEEE1394 will not work properly. (a) LOOP Connection Connect the IEEE1394 Cable FE°EE_3tthcable MicroMV Camcorder Connect the IEEE1394 Cable (b) When connecting the 4 devices and over, the 1394 will not work properly. ,' When the same devices connect...
  • Page 42 Installation - The G-LINK cable is necessary for the TV Guide On Screen system to work with your Cable Box and VCR. See page 44-50 for information on setting up the TV Guide On Screen system. 32, 37, 42 inch TV Back 26 inch TV Back...
  • Page 43 Installation 32, 37, 42 inch TV Back 26 inch TV Back _ .- _== _ ." _ VCR Front VCR BaCk 32, 37, 42 inch TV Back ..ii_i i _VORBack¸' VCR Front Cable box F!ont_ _"' Cable box Front ,,, ....
  • Page 44 TV Guide On Screen System i..TV Gu de On System n Tu - The TV Guide On Screen system uses Setup information to provide you with show listings and lineups m your area--which are updated several times a day. - Once you set up the TV, you are ready to set up the TV Guide On Screen system.

  • Page 45: How To Use

    TVGuide On Screen System How to use Screen 1: Country • This screen asks you the location of your TV. • Use the •/• button to highlight a country. • Press ENTER button to display Screen 2. Screen 2: Enter ZIP or Postal Code Option •...

  • Page 46: G-Link Tm

    TV Guide On Screen System Screen 4: Do you have a Cable Box? • If you select Yes, you see Screen 5. • If you select No, you see Screen 12. Screen 5: Which TV input is the cable box plugged into? •...
  • Page 47 TVGuide On Screen System Screen 8: Cable Box Brand Name • Use the • / • button to select a cable box brand. • Press ENTER button to display Screen 9. Screen 9: Cable Box Preparation • Follow the on-screen instructions, and press ENTER button to display Screen 10.
  • Page 48 TV Guide On Screen System Screen 12: Do you have an antenna connected? • If you select Yes, you see Screen 13. - If you selected No in Screen 3 then you must select Yes in this screen to receive a channel lineup and listings. Screen 13: Are your basic settings...
  • Page 49 TVGuide On Screen System Screen 16: VCR Configuration Diagram • This screen shows the correct way to install the G- LINK Cable from the back of the TV to the Recording device. Make sure the G-LINK Cable is properly installed. •...
  • Page 50 TV Guide On Screen System Screen 20: VCR Tuned to Channel • If you select Yes, you see Screen 21. • If you select No, a different code is tested in Screen 19. Many VCRs require testing more than one code. If you SelectTestthis Codeagain,the Same Codeis tested Screen 21: Confirming Your Settings •...
  • Page 51 TVGuide On Screen System - Your new TV contains the TV Guide On Screen Interactive Program Guide. - The TV Guide On Screen system has features that help you get the most out of your viewing experience. TV Guide On Screen Overview - The TV Guide On Screen system has the following •...
  • Page 52 TV Guide On Screen System Panel Menu Panel Menu- Command -- Button Entry Box- Odometer • A Panel Menu appears when the Menu key is pressed on a highlighted tile and additional options are available. It also appears when you press ENTER button on a show starting in the future. •...

  • Page 53: Tv Guide On Screen

    TVGuide On Screen System Main Services - Access Listings by pressing the TV Guide button on your remote or on the front panel of your TV. - Listings is always the first Service displayed in the Guide. - With Listings highlighted, press the Info button to display a Help screen. Press the Info button again to close the screen.
  • Page 54 TV Guide On Screen System - Search lets you find shows by category (Alphabetical, Movies, Sports, Children, Educational, News, Variety, Series, HDTV) or by Keyword. - With Search highlighted, press the INFO button to display a Help screen. Press the INFO button again to close the screen.
  • Page 55 TVGuide On Screen System 2. Use the • button to highlight a subcategory (for example, All). 3. Press ENTER button to display a list of all Movies, organized by date and time. 4. Highlight a show and press ENTER button to watch (if on now) or the MENU button to display the...
  • Page 56 TV Guide On Screen System • Keyword Search - Keyword search lets you enter a word(s) to look for a particular show by category or for every show title that matches. 1. Highlight the Keyword navigation label, and press ENTER button to display the Keyword Search menu. 2.
  • Page 57 TVGuide On Screen System 7.A list of all matching shows for that keyword is dis- played. You can highlight a show, and press ENTER button to display all airings. You can then highlight a specific listing and press ENTER button to watch (if On now) or the MENU button to display the Episode Options menu.
  • Page 58 TV Guide On Screen System - Schedule lets you review, edit, or delete Record and Remind events that you set previously. - With Schedule highlighted, press the INFO button to display a Help screen. Press the INFO button again to close the screen.
  • Page 59 TVGuide On Screen System - After you initially complete Guide Setup, you can make changes to Guide settings in the following areas: • Change System Settings • Change Channel Display • Change Default Options Highlight a choice, press ENTER button, and follow the on-screen instructions.
  • Page 60 TV Guide On Screen System • Change Channel Display Change Channel Display lets you edit channel informa- tion that appears in Listings. With Change Channel Display you can : • Re-order the position of the channel in Listings • Change the tune channel number •...
  • Page 61 TVGuide On Screen System • Change Default Options Change Default Options lets you change default set- tings in the following categories: 1) General Default Options 2) Record Defaults 3) Remind Defaults Highlight Change Default Options, and press ENTER button. 1) General Default Options General Default Options lets you set defaults for the following: •...
  • Page 62 TV Guide On Screen System 2) Record Defaults Record Default Options lets you set defaults for the following: • When to start the record event. Choices are 120 minutes early to 120 minutes late, to On time. (Default = On time) •...
  • Page 63 TVGuide On Screen System Record And Remind Features You can set a show to Record in Listings, Search, and Schedule or change Record settings for a show in Schedule. There are 3 ways to set a show to Record: 1) Using the Record Button on the Remote •...
  • Page 64 TV Guide On Screen System When finished, press ENTER button to highlight Schedule Recording. Press ENTER button again to close the menu. You see a Record icon for the selected frequency next to the show title. Highlight Cancel to close the menu, change no infor- mation, and return to the highlighted show.
  • Page 65 TVGuide On Screen System • Use the < / _ button to choose between Once, Daily, Weekly, and Off. as follows. Records the time channel, input. recorder combination one time. Records the lime. channel. _nput, Daily recorder combination Monday through Friday.
  • Page 66 TV Guide On Screen System You can set a show Reminder in Listings, Search, and Schedule or change Reminder settings for a show in Schedule. There are 2 ways to set a show Reminder: 1) From a Panel Menu • Highlight a show, and press MENU button to dis- play the Episode Options menu.
  • Page 67 TVGuide On Screen System 2) Manual Reminder • Highlight the Schedule Service label, and press the Menu key to display the Schedule Options menu. • Use the • / • / 41 / I_ button to move through the options. Use the number or • / • / _1 / I_ button to change the information, as necessary.
  • Page 68 TV Guide On Screen System Based on your option settings, a notification screen will appear, if your TV is On at the reminder time. You can then choose to hide the reminder, or highlight the show, and press ENTER button to tune to the show. If there is no activity for 3 minutes, the notification screen auto- matically closes and completes...
  • Page 69 Operation Basic oDeration 1. First, connect power cord correctly. At this moment, the TV switches to standby mode. In standby mode to turn TV on, press the ON/OFF, TV/VIDEO, CH • / • button on the TV or press the POWER, TV INPUT, TV/VIDEO, CH •...

  • Page 70: On Screen Menus Selection And Adjustment

    Operation On Screen Menus Selection and Adjustment 1. Press the MENU button and then • / • button to select each menu. 2. Press the I_ button and then use • / • / _11 / I_ button to display the available menus. Your TV S OSD (Qn Screen D sp!ay)may d fie[ s! ghtly from what s shewn n th s manual,...

  • Page 71: Ez Scan (Channel Search)

    Operation Set u p M e n u 0 pt io ns Press the MENU button and then use • /• button to select the SETUP menu. - Automatically finds all channels available through antenna cable inputs, and stores them in Press the I_ button and then use •...

  • Page 72: Channel Edit

    Operation Setup Menu Options continued - Create two different types Press the MENU button and then use • / • button to select the SETUP menu. channel lists memory: "Custom list" and "Favorite chan- Press the I_ button and then use • / • button to select Channel. Edit.
  • Page 73 Operation - Shows how strong your DTV sig- Press the MENU button and then use • / • button to select the SETUP menu. nal is and whether you need to adjust your antenna er digital Press the I_ button and then use • / • button to select DTV Signal. cable inpuL The higher the signal strength, the less likely you are...
  • Page 74 Operation Setup Menu Options continued ¢:L " -_ Press the MENU button and then use •/V button to select the SETUP menu. - Changes the picture source so you can watch your TV, cable TV, VCR, DVD, or any other devices Press the _- button and then use •...
  • Page 75 Operation V ideo Men u 0 pt ions - EZ Picture adjusts the TV for the best Press the EZ PIC button repeatedly to select the picture appear- picture appearance. Select the preset ance setup option as shown below: Custom (your own settings), value in the EZ Picture menu based on Daylight, Normal,...
  • Page 76 Operation Video Menu Options Continued > - Adjust the picture appearance to Press the MENU button and then use • / • button to select the VIDEO menu. suit your preference and viewing situations. Press the I_ button and then use • / • button to select the desired pic- ture option (Contrast, Brightness, Color,...

  • Page 77: Ez Soundrite

    Operation A ud io M e n u 0 pt io n s Press the MENU button and then use • /• button to select the - Otherlanguages may be available AUDIO menu. if a digital signal is provided by the broadcasting station.
  • Page 78 Operation Audio Menu Options continued - EZ Sound lets you enjoy the best Press the EZ SOUND button repeatedly to select the appropriate sound sound without any special adjust- setup as shown below: Custom (your own settings), Normal, ment because the TV sets the and Theater.
  • Page 79 Operation - This TV can receive MTS stereo pro- Use the SAP button to select your desired MTS mode in analog signal. grams and any SAP (Secondary Audio Each time you press the SAP button, Mono, Stereo, or SAP appear in Program) that accompanies the stereo turn.

  • Page 80: Bbe

    Operation Audio Menu Options continued I :_iiiiiiJiiiii[i};iiiiiii[iYiiiiiiiiiii[iiiiiii_i I iiiii_%iii_i}i)}_iiiiiiiiiM;i;iiiii l ii;iiiiii;iii}iiiiiiiiiiiiiiiHi_iiiiiii_iiiiiiiiii I:iJJiii[ii[[iiiiiiii[HHii_!i_iiiiiHiiiiiii;iiiiii i_!iii_,_,_iiiiii!_iiiiii:ii!!!!iiiiiiiii!!iiiiiiiiiii;:i - Turn TV speakers off if using Press the MENU button and then use • / • button to select the external audio equipmenL AUDIO menu. Feature tums the TV Speakers option On or Off.
  • Page 81 Operation Time Menu Options Press the MENU button and then use •/• button to select the TIME menu. - The time is set automatically from a digital channel signal. Press the I_ button and then use • / • button to select Auto Clock.
  • Page 82 Operation Time Menu Options continued - Timer function operates only if Press the MENU button and then use • / • button to select the TIME menu. current time has been set. Press the I_ button and then use • / • button to select Off Timer or - Off-Timer function overrides On- On Timer.
  • Page 83 Operation - If set to on and there is no input Press the MENU button and then use •/• button to select the "lIME menu. signal, the TV turns off automati- cally after 10 minutes. Press the I_ button and then use • / • button to select Auto Off. Press the I_ button and then use •...
  • Page 84 Operation Option Menu Features - Lets you choose the way an ana- Press the RATIO button repeatedly to select the desired picture format. log picture with a 4:3 aspect ratio • You can also adjust Aspect Ratio in the OPTION menu.
  • Page 85 Operation ¢>f> - Most movies are 24 frames/sec, Press the MENU button and then use • /• button to select the menu. OPTION but TV signal is 30 frames/sec. - This option lets the TV do 3:2 Press the I_ button and then use • / • button to select Cinema 3:2 Mode.
  • Page 86 Operation S _, ..O ption Menu Features continued * Analog Broadcasting System Captions - Select a caption mode for dis- Use the CC button repeatedly to select Caption Off, CC1, CC2, CC3, or Text4. CC4, Textl, Text2, Text3, playing captioning information •...
  • Page 87 Operation Press the MENU button and then use • /• button to select the - Customize the DTV/CADTV cap- OPTION menu. dons that appear on your screen. Press the _- button and then use • / • button to select Caption Option. Press the _- button and then use ,11/ P- button to select Custom.
  • Page 88 Operation Option Menu Features continued - If you select on, LG logo Press the MENU button and then use • /• button to select the "Liquid Crystal Display" of TV OPTION menu. front panel tums on. Press the I_ button and then use • / • button to select Logo Light.
  • Page 89 Operation Loc k M e n u 0 pt io ns Parental Control can be used to block specific channels, ratings and other viewing sources. The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcast- ing station.
  • Page 90 Operation > * For Canada - Set up blocking schemes Press the MENU button and then use • / • button to select the LOCK block specific channels, ratings, menu. Then, press the _ button and external viewing sources. • If Lock is already set, enter the password as requested. •...
  • Page 91 Operation C a b Ie C A RD TM F Unc t io n - Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual. As shown, the pair- ing number means your TV and CableCARD For further informa- tion regarding...
  • Page 92 Operation CableCARD Function continued If you enter the Channel Edit after running the EZ Scan without CableCARD you can see the cable channel list as shown in the picture 3 above. Insert the CableCARD The TV receive a new cable channel list. It takes about 2-3 minutes to gather the cable channel list after inserting the CableCARD (It will occasionally will take longer).
  • Page 93 Operation Brief Info. Brief Info shows the present screen information. On Watching with the upper Input signal, press the INFO button. 1. Press the INFO button to show the Brief Info on the screen. 2. Press the INFO button or EXIT button to exit. - The INFO button does not work in Component1, Component2, RGB, and HDMI/DVI modes.
  • Page 94 Operation PIP (P ict ure-I n-P ict ure)/P 0 P/Tw in Pict u re - PIP lets you view 2 different inputs (sources) on your TV screen at the same time. One source will be large, and the other source will show a smaller inset image. - Twin Picture mode splits the screen into 2, allowing 2 picture sources to be shown on the TV screen at the same time.

  • Page 95: Channel Selection

    Operation Use the •/•/',I/1_ button to change main and sub picture sizes in Twin Picture mode. If screen is adjusted to the i.e) maximal size, large screen is filled with entire screen vertically as shown. Use the SWAP button to switch the main and sub pictures.
  • Page 96 Operation Notes on Memory card :iii ii l!i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i i i !i,i...
  • Page 97 Operation 32/37/42LP1 D Models Front Panel 26/32LXID, 26/32LX2D Models Side Panel i.e) 32LX1D/2D figure • Insert card 1. Insert the card into the Slot 1 and/or Slot 2 with the hand softly and slowly• 2. Two slots support defferent types of the Memory Cards• 3.
  • Page 98 Operation Compatibility *.jpg *.mp3 Memory card CF: 4GB MS (Memory Stick): 128MB capacity MD (Microdrive): MS Pro (Memory Stick Pro): 1GB CF+II (MagicStor): 2.2GB SMC (Smart Media Card): 128MB SD (Secure Digital): 1GB xD (Extream Digital Picture Card): MMC (MultiMedia Card): 1GB 512MB An error may occur if you use a memory card with greater than the specified capacity.
  • Page 99 Operation F iIe V iew in g 0 pt io ns - When you select Photo in entry menu, you will now see a screen filled with thumbnail photos. * In this manual, the OSD (On Screen Display) may be different from your TV's because it is just an example to help you with the TV operation.
  • Page 100 Operation M P3 Fi Ies P Iayi ng 0 pe rat io n - When you select Music in the entry menu, you will now see a screen filled with music titles. - Purchased MP3/mueic files may contain copyright restrictions. Playback of these files may not be sup- ported by this model.
  • Page 101 Operation Use the CH • / • button to navigate music titles in pages. Use MARK button to mark or unmark a music title. When one or more music titles are marked, the marked music will be played by turns. For example, if you want to listen to only one music repeatedly, just mark the music only and play it.
  • Page 102 Reference Ext e r n a I C o nt ro I Dev ice Set u p - Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system) and control the Monitor's functions externally. - Connect the serial port of the control device to the RS-232C jack on the TV back panel.
  • Page 103 Reference Set ID - Use this function to specify a TV ID number. - Refer to 'Real Data Mapping'. See page 104. 1. Press the MENU button and then use • / • button to select the SETUP menu. 2. Press the I_ button and then use • / • button to select SET ID.
  • Page 104 Reference 01. Power (Command2:a) 05. Volume Mute (Command2:e) • To control Power On/Off of the TV. • To control volume mute on/off. Transmission You can also adjust mute using the MUTE button on remote control. [[k][a][ ][Set ID][ ][Data][Cr] Transmission Data 0 : Power Off 1 : Power On I[k][e][...
  • Page 105 Reference 09.Color (Command2:i) 14. PIP/POP/Twin Picture (Command2:n) • To adjust the screen color. • To control the PIP (Picture-in-Picture)/POP/Twin picture. You can also control the PIP/POP/Twin picture using the You can also adjust color in the Video menu. PIP button on the remote control. Transmission Transmission I[k][i][ ][Set ID][ ][Data][Cr]...
  • Page 106 Reference 19. Color Temperature (Command2:u) * All data are transmitted by Hexadecimal code * Two/One part Channel: 6th bit • To adjust color temperature. This bit is used in a cable-ready system. You can also adjust color temperature in the Video menu.
  • Page 107 Reference 24. Input Select (Command:x b) (Main Picture Input) • To select input source for TV. Transmission I[x][b][ ][Set ID][ ][Data][Cr] Data Structure INPUT DATA(Hex) DTV (Antenna) DTV (Cable) Analog (Antenna) Analog (Cable) Video 1 Video 2 Component Component RGB-DTV RGB-PC HDMI/DVl Acknowledqement...
  • Page 108 Reference IR Codes :,i_!: !,,, ,,!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_: !:::!i !!i_ ,!!i:: !,,!!,_ ;i :!_i_, :!:,,,!!ii _! !!i !i ! !!!!!!!!!!!,, !i,_ !!!!! _!_i:, Connect your wired remote control to the Remote Control port on the TV. • Output waveform Single pulse, modulated with 37.917KHz signal at 455KHz Carrier frequency __J_.__J___...
  • Page 109 Reference TV/VIDEO Remote Control Button POWER R/C Button (Power On/Off) POWER ON Discrete IR Code (Only Power On) POWER OFF Discrete IR Code (Only Power Off) RATIO Remote Control Button TIMER Remote Control Button Remote Control Button 10 ~ 19 Number Key 0- 9 -(Dash) Remote Control Button...
  • Page 110 Reference P ro g ra m m ing t he Re m ote The remote control is a multi-brand or universal remote control• It can be programmed to operate most remote-controllable devices of other manufacturers• Note that the remote control may not control all models of other brands• Test your remote control•...
  • Page 111 AJIN HITACHI STARGATE ANTRONIK HOSPITALITY POST NEWS WEEK TADIRAN ARCHER JERROLD PRUCER TAEKWANG CABLE STAR TAIHAN CENTURION TANDY CENTURY PULSAR TEXSCAN LG (GOLDSTAR) CITIZEN M-NET TOCOM COLOUR VOICE MACOM REGAL TOSHIBA COMBANO MAGNAVOX REGENCY UNIKA COMTRONICS MEMOREX REMBRANT UNITED CABLE...
  • Page 112 BURMECTER LOTTE REALISTIC CARVER SAMSUNG CLARION DAEWOO 198 221 SANSUI DENON SANYO FANTASIA SCOTT FINEARTS SHARP FISHER MAGNAVOX MARANTZ LG(GOLDSTAR) 192 210 SHERWOOD MCINTOSH SONY HAITAI 188 222 HARMAN/KARDON MEMOREX TAEKWANG INKEL ONKYO OPTIMUS TEAC PANASONIC TECHNICS PENNEY Brand Codes...

  • Page 113: Sleep Timer

    Reference Tr o u b Ie s ho o t in g C h e c k Iis t • Check to see if there is any object between the product and the remote The remote control control causing obstruction. doesn't work •...
  • Page 114 Reference The audio function does not work. • Press the VOL or VOLUME button. Picture OK & • Sound muted? Press MUTE button. No sound • Try another channel. The problem may be with the broadcast. • Are the audio cables installed properly? _1ooutput from one •...
  • Page 115 Reference - Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning. Cleaning Screen 1.
