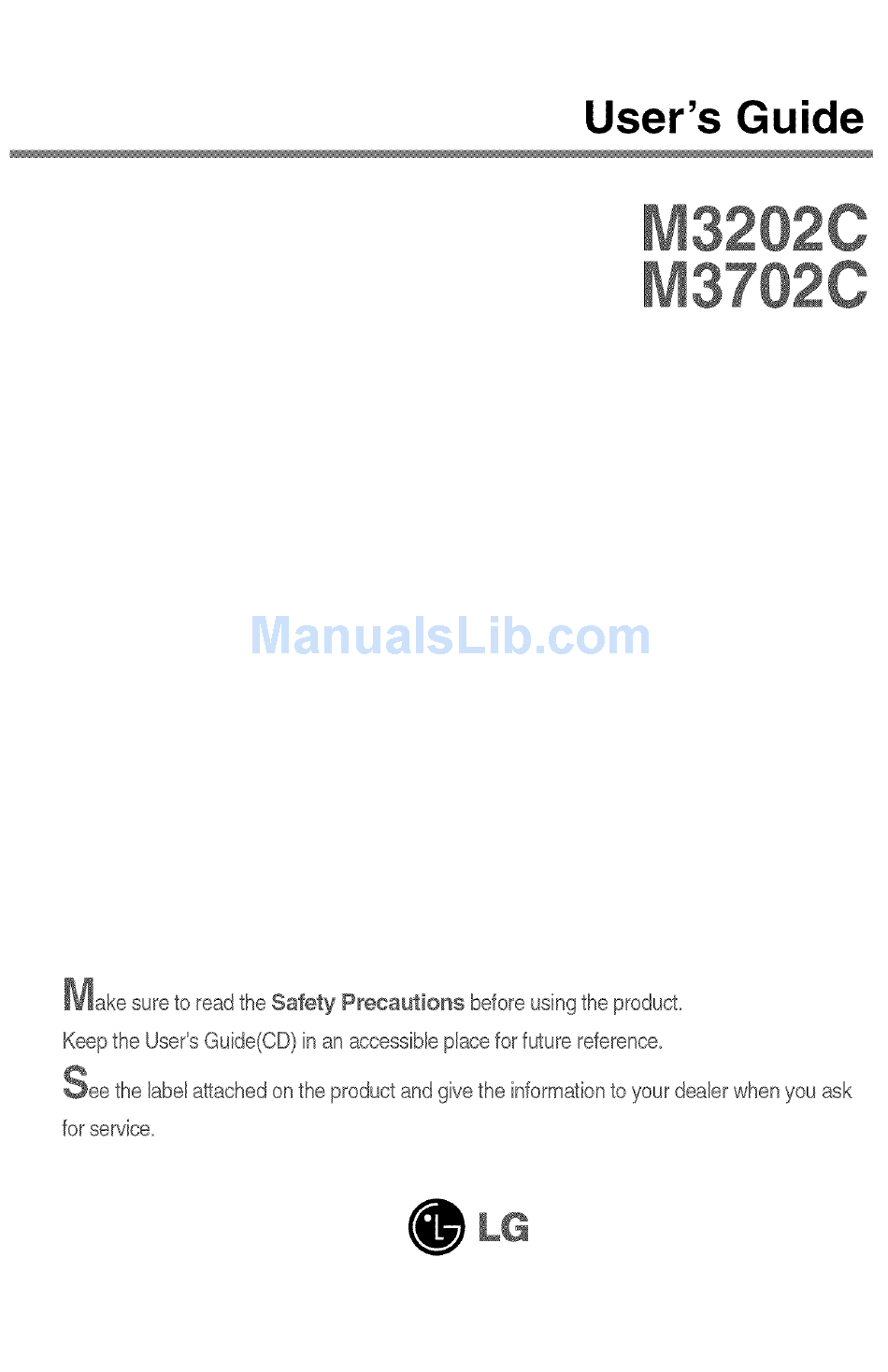

User's Guide
Make sure to readthe Safety Precautions beforeusingthe product.
Keep the User'sGuide(CD)in an accessibleplacefor future reference.
See the label attachedon the productand givethe informationto your dealerwhen you ask
for service.

Advertisement

Table of Contents
loading

Related Manuals for LG M3702C

Summary of Contents for LG M3702C

  • Page 1 User's Guide Make sure to readthe Safety Precautions beforeusingthe product. Keep the User'sGuide(CD)in an accessibleplacefor future reference. See the label attachedon the productand givethe informationto your dealerwhen you ask for service.
  • Page 2 - Only on some models. Take the parts for the stand out of the box and assemble them as shown in the picture. 2, Place a soft cloth on the table and put the product with the screen facing downward. Connect the stand as shown in the following picture. 3, Use the screws to secure the stand on the rear side of the product as shown in the diagram.
  • Page 3 -Only onsome m odels. 1oDisassemble thestand cover. T hecover m aybeeasily disassembled bypressing uponthebase asshown inthefigure. Stand cover 2° After connecting the cables, correctly position the stand cover into the holes on the stand. If securely connected, you will hear the latch click into place.
  • Page 4 - Only o nsome models. Mount the product onto the speaker by using a screw as shown in the following connect the speaker cable. Type 1 When the speaker is installed. *Connect the inputterminal with a proper color match.
  • Page 5 - Onlyon some models. Mount the product onto the speaker by using a screw as shown in the following connect the speaker cable. Type 2 After installing your speakers, use holders and cable ties to organize the speaker cables. Cable holder Remove the paper.
  • Page 6 - Only M3202C "When installing Portrait, rotate it clockwise based on its front."...
  • Page 7 Name of the Remote Control Buttons -- • Power On/Off Button • AV Button • Input Select Button (See next page) - • ARC button • Sleep Button Whenwatching AV,RGBPC,HD[vll/DVI Aspect Ratio Correction. Toggles ,Component1, Component2 through aspect ratio options. Theproduct w illbeautomatically turned •...

  • Page 8: Rear View

    * The product image in the user's guide could be different from the actual image. @ Rear View Power Connector : Connect the power cord Wired Remote Control Port RS-232C Serial Ports RGB, HDMI/DVI Ports PC Sound Jack : Connect the audio cable to the *LINE OUT jack of the PC sound card. AV Ports Speaker Ports...
  • Page 9 First o fall,seeifthecomputer, product andtheperipherals areturned off. Then, connect thesignal input c able. When connecting withthe D-Sub signal input cable. When connecting with the HDMI to DVI signal input cable (not included). ® Rear side of the product. PC/MAC ÷ Macintosh Adapter (not included) Use the standard Macintosh adapter since an incompatible adapter is available in the market.
  • Page 10 Turn on power by pressing the power button on the product. Powerbutton (_Turn on the PC. Select an input signal. Press the INPUT button on the remote control to select the input signal. ( iNPUT--- • •--- SET Or, press the INPUT botton on the bottom of the product. INPUT---,- •...
  • Page 11 iiiii_i_ii_i!_!;i!ii!;_!_!_!_!_!_;_;_::_:_:!:;!;i_i_iiiiii_;_i_!_i;!iii_ii_ii_i!_i ¸!_!i_!i_!i_!iii_i_;;_;_i! ;¸_J;_iiiii_;_i_;i_i_i_ii_!_!_i!_iii!i_ ¸¸¸¸i;_iiiii_i ¸_!;_iii_ii!J_i!_!_i_i_ii_i_iiiiii_iiii_iiiii;;;_i_ii!i!iii_i_!_ii_ii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ ¸i_!!!!!!!!! ha. Mo.,tors Use this function when displaying ANALOG RGB inputs of a PC to the other product. • To use different products connected to each other Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector of other 3roducts.
  • Page 12 VESA FDMI wall Mounting This product supports a VESA FDMI compliant mounting interface. These mounts are purchaed separately and not available from LG. Refer to the instructions included with hte mount for more info. The Set is equipped with a kensington Securify System connector on the back panel.

  • Page 13: Inserting Batteries Into Remote Control

    POWER INPUT I-o-It Toggles through video If you press the button once, SLEEP AUTO the following Input Signal AV._ ,._Component1 CD (_ (_ CD Window will appear. Select Component2 _ RGB PC the signal type you want HDMI/DVl using the • •...
  • Page 14 Connect the video cable as shown in the below figure and then connect the power cord (See page 8). When connecting with a S-Video cable. When connecting with a BNC cable. • Connect to the S-Video input terminal to Connect the input terminal with a watch high image quality movies.
  • Page 15 as shown in the below figure and then, connect the Connect the video/audio cable power cord (See page 8). • Connect the input terminal witha proper color match. Product Product ® O. Oo O° BNC Cable Audio Cable BNC Cable (not included) (not included) (not included)
  • Page 16 -HDMI Supports High D efinition input and HDCP ( High-bandwidth Digital Content Protection). Some d evices require HDCP i norder todisplay HDsignals. figure Connect the video/audio cable shown in the below and then connect the power cord (See page 8s). Product Product HDMI to DVl...
  • Page 17 - When using AV input, you can connect the AV Out to other monitors. AUDIO v,22 Q OUTg Video/TV BNC Cable_- Audio Cable (not included) (not included)_ Product Audio Cable BNC Cable_ (not included) (not included)L Video/TV _N_te , When multi-€onnectingin/out Cascadeformat, no !ossCablesare recommended. \-,_ We rec0mmend thaty0u sh0uld use cab!e distribut0r.

  • Page 18: Screen Adjustment Options

    Screen Adjustment options (Power Button )*Pressthisbuttontoturnonthepower. Pressthisbuttonagainto turn it off. ,,-_ • This Indicator lights up green when the display operates normally (on Indicator) ower mode). If the display is in sleep (Energy Saving) mode, this indicator color changes to amber. MENU Button _ "screen.USe this button to show/hide the OSD (On Screen Display) menu...
  • Page 19 C_ Screen Adjustment options (_ AUTOiSETButton [F0rPCAna'0gsigna!] ......[When XGA Mode is active and 1360 X768 is selected] INPUT _ • A ---* AUTO/SET INPUTButton_ - Toggles between inputs Composite Video, Separate Video Component 1 HDTV, DVD Component 2 HDTV, DVD RGB PC 15-pin D-Sub analog signal HDMI/DVI...
  • Page 20 OSD Menu Icon Function Description Adjusts screen brightness, contrast and color that you prefer. Picture Audio Adjusts the timer options, Time Option Adjust Set ID and check Serial No. and SW version. Information //_ Note I OSD(On screen DisplaY) I The OSD function enables you to adjust the screen status conveniently since it provides I graphica! piesentation.

  • Page 21: How To Adjust The Osd (On Screen Display) Screen

    How to adjust the OSD (On Screen Display) screen EXIT Pops up Move where Select a Move where / Select a Adjust the status Save Exit from the adjustmenl menu screen. the menu you want to menu icon you want to menu icon screen adjust...

  • Page 22: Adjusting Screen Color

    Adjusting Screen Color Picture Mode Toggles between screen presets. • Vivid : Select this option to display with a sharp image. • Standard : The most general and natural screen display status. • Cinema : Select this option to lower brightness by one level. •...
  • Page 23 Adjusting Screen Color Color Temperature Color Settings • Cool • Slightly purplish white. • Medium : Slightly bluish white. • Warm : Slightly reddish white. • User : Select this option to use the user-defined settings. Red / Green / Blue Set your own color levels.
  • Page 24 Adjusting Screen Color Advanced • Gamma • Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma values display high contrast images. • Film Mode : (Function works in the following mode- AV, Component 480i/576i) When you watch a movie, this function adjusts the set to the best picture appearance.
  • Page 25 Adjusting Screen Color Aspect Ratio To select the image size of the screen. PJ_t _ ,iii'iii' <AV> 16:9 Widescreen mode. Just Scan Allows you to enjoy the transmitted data fully without any images cut off. (* This menu is activated only in 720p, 1080p and 1080i in Component mode.) The aspect ratio is not adjusted from the original.
  • Page 26 Adjusting Screen Color Picture Reset ReturnPicture Mode, Color Temperature, Advanced to the defaultfactory settings, Screen Adjust the screen video. Auto Config. (RGB PC input only) : This button is for the automatic adjustment of the screen position, clock and phase. This function is available for analog signals only. Manual Config.

  • Page 27: Adjusting The Audio Function

    Adjusting the audio function So u nd The bestsoundtonequalitywillbe selectedautomatically d ependingonthe videotypethatyou'recurrently watching. Mode • Clear Voice : By differentiating the human sound range from others,it helps users listen to human voices better. • Standard : The most commanding and natural audio. •...

  • Page 28: Adjusting The Timer Function

    Adjusting the timer function Clock If the current time is incorrect, reset the clock manually. 1) Press the MENU button and then use • • button to select the Time menu. 2) Press the • button and then use • • button to select the Clock menu. 3) Press the •...

  • Page 29: Selecting The Options

    Selecting the options Language To choose the language in which the control names are displayed. Use the • & buttons to select On or Off. The monitor can be set up so that it can only be Key Lock used with the remote control. This feature can prevent unauthorized viewing. In order to lock the OSD screen adjustment, set the Key Lock tab to the 'On' position.
  • Page 30 Selecting the options • To use this function - Must be displayed with various other products. - Must be in a function that can be connected to RS-232C or RGB Out It is used to enlarge the screen and Tile mode also used with several products to view screen.
  • Page 31 Selecting the options - Tile mode (product 1 ~ 9) : r(3) x c(3) 1[ 11 column o Tile mode (product 1 ~ 2) : r(2) x c(1) column - Tile mode (product 1 ~16) : r(4) x c(4) lolumn 1l 11...
  • Page 32 Selecting the options Tile mode • H-Size Adjust the horizontal size of the screen taking into account the size of the bezel. • V-Size Adjust the vertical size of the screen taking into account the size of the bezel. • H-Position Moving the screen position horizontally.
  • Page 33 Adjust Set ID and check Serial No. and SW version. Set ID You can assign a unique Set ID NO (name assignment) to each product when several products are connected for display. Specify the number (1-99) using the • • button and exit.
  • Page 34 See if the power cord is properly connected to the @ b the _x>due'_' powe_ eo_d connectS? • outlet. @ _s the 9ewe_ indicato_ light on? See if the power switch is turned on. May need service. @ Powe_ is on powe_ indiea%e_ is blue b@ •...
  • Page 35 @ Is the screen position w_en9 ? • D-Sub analog signal- Press the "AUTO" button in the remote control to automatically select the optimal screen status that fits into the current mode. If adjustment is not satisfactory, use the Position OSD menu. •...
  • Page 36 @ No sound? • See if the audio cable is connected properly. • Adjust the volume. • See if the sound is set properly. • Select the appropriate equalize sound. @ Sound is too dull ° Adjust the volume. @ Sound is too Iowo @ Soreen has [x_or _t_lor r÷solution •...
  • Page 37 The product specifications can change without prior notice for product improvement. M3202C LCD Panel 32 inches Visible diagonal (80.0 cm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel 0.5025 mm X 0.5025 mm (Pixel Pitch) Power Rated Voltage AC 100-240V- 50/60Hz 1.5A Power Consumption On Mode : 145W...
  • Page 38 The product specifications can change without prior notice for product improvement. M3702C LCD Panel 37 inches Visible diagonal (94.0 cm)TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel 0.6000 mm X 0.6000 mm (Pixel Pitch) Power Rated Voltage AC 100-240V- 50/60Hz 1.8A Power Consumption On Mode •...
  • Page 39 The product specifications can change without prior notice for product improvement......Video Signal Max. Resolution RGB : 1600 X 1200 @60Hz HDMI/DVI : 1920X 1080 @60Hz- It maynotbesupported depending o ntheOSor videocardtype. Recommended R esolution RGB : WSXGA 1360 X 768 @60Hz HDMI/DVI : WSXGA 1360 X 768 @60Hz - it may notbe supporteddepending onthe OS or videocardtype.

  • Page 40: Power Indicator

    _iY PC Mode - Preset Mode 640 x 350 31.469 70.8 "11 1280 x 768 47.7 720 x 400 31.468 70.8 "12 1360 x 768 47.72 59.799 640 x 480 31.469 59.94 "13 1366 x 768 47.7 640 x 480 37.5 "14 1280 x 1024...
  • Page 41 Use this method to connect several products to a single PC. You can control several products at a time by connecting them to a single PC. @ Connecting the cable Connect the RS-232C cable as shown in the picture. * The RS-232C protocol is used for communication between the PC and product. You can turn the product on/off, select an input source or adjust the OSD menu from your PC.
  • Page 42 @ Command Reference List ;OMMAND1 COMMAND2 DATA1 DATA2 DATA3 01. Power OOH - 01H 02H - 09H 02. Input Select 01H - 09H 03. Aspect Ratio 04. Screen Mute OOH - 01H 05. Volume Mute OOH - 01H 06. Volume Control OOH - 64H 07.

  • Page 43: Transmission / Receiving Protocol

    Transmission / Receiving Protocol Transmission I [Commandl][Command2][ ][Set ID][ ][Data][Cr] I * [Command 1]: First command. (k) * [Command 2]: Second command.(a - u) * [Set ID]: Set up the Set ID number of product. range • 1-99. by setting '0', server can control all products. * In case of operating with more than 2 sets using set ID as '0' at the same time, it should not be checked the ack message.
  • Page 44 @ Transmission / Receiving Protocol 01. Power(Command : a) • To control Power On/Off of the Set. Transmission I [k][a][ ][Set ID][ ][Data][Cr] Data 0 : Power Off 1 : Power On Acknowledgement I [a][ ][Set ID][ ][OK][Data][x] • To show the status of Power On/Off. Transmission I [k][a][ ][Set ID][ ][gg][Cr] Acknowledgement...
  • Page 45 Transmission / Receiving Protocol 03. Aspect Ratio(Command : c) (Main picture format) • To adjust the screen format. You can also adjust the screen format using the ARC (Aspect Ratio Control) button on remote control or in the Screen menu. Transmission I [k][c][ ][Set ID][ ][Data][Cr] Data 1 : Normal Screen (4:3)
  • Page 46 @ Transmission / Receiving Protocol 05. Volume Mute(Command : e) • To control On/Off of the Volume Mute. Transmission I [k][e][ ][Set ID][ ][Data][Cr] Data 0 • Volume Mute On (Volume Off) 1 • Volume Mute Off (Volume On) Acknowledgement I [e][ ][Set IU][ ][OK][Uata][x] Data 0 •...
  • Page 47 Transmission / Receiving Protocol 07. Contrast(Command : g) • To adjust screen contrast. You can also adjust the contrast in the Picture menu. Transmission I [k][g][ ][Set ID][ ][Data][Cr] Data Min : 00H - Max : 64H • Refer to 'Real data mapping' as shown below. Acknowledgement I [g][ ][Set ID][ ][OK][Data][x] * Real data mapping...
  • Page 48 @ Transmission / Receiving Protocol 09. Color(Command :i) (Video only) • To adjust the screen color• You can also adjust the color in the Picture menu. Transmission I [k][i][ ][Set ID][ ][Data][Cr] Data Min • OOH- Max" 64H (Hexadecimal code) •...
  • Page 49 Transmission / Receiving Protocol 11. Sharpness(Command : k) (Video only) • To adjust the screen Sharpness. You can also adjust the sharpness in the Picture menu. Transmission I [k][k][ ][Set ID][ ][Data][Cr] Data Min • OOH- Max • 64H (Hexadecimal code) •...
  • Page 50 @ Transmission / Receiving Protocol 14 Balance(Command : t) • To adjust the sound balance. Transmission I [k][t][ ][Set ID][ ][Data][Cr] Data Min : OOH- Max : 64H (Hexadecimal code) • Refer to 'Real data mapping' page A7. Acknowledgement I [t][ ][Set IU][ ][OK][Uata][x] Data Min •...
  • Page 51 Transmission / Receiving Protocol 16. Abnomal state (Command : z) • Abnormal State • Used to Read the power off status when Stand-by mode. Transmission I [k][z][ ][Set ID][ ][Data][Cr] Data FF : Read 0 : Normal (Power on and signal exist) 1: No signal (Power on) 2 : Turn the monitor off by remote control 3 : Turn the monitor off by sleep time function...
  • Page 52 @ Transmission / Receiving Protocol 18. Auto Configure(Command: j u) • To adjust picture position and minimize image shaking automatically, it works only in RGB(PC) mode. Transmission I [j][u][ ][Set ID][ ][Data][Cr] Data 1 • To set Acknowledgement I [u][ ][Set ID][ ][OK][Data][x] 19.
  • Page 53 @ Transmission / Receiving Protocol 20. Tile Mode(Command : d d) • Change a Tile Mode. Transmission I [d][d][][Set ID][][Data][x] Data Description Tile mode is off. 1 x 2 mode(column x row) 1 x 3 mode 1 x 4 mode 5 x 5 mode * The data can not be set to OX or XO except 00.
  • Page 54 @ Transmission / Receiving Protocol 21. Tile H Size(Command : d g) set the Horizontal size. Transmission I [d][g][][Set ID][][Data][x] Data Min : OOH- Max : 64H Acknowledgement I [g][][Set IU][][OK/NG][Uata][x] 22. Tile V Size(Command : d h) set the Vertical size. Transmission I [d][h][][Set ID][][Data][x] Data...
  • Page 55 @ Transmission / Receiving Protocol 23. Tile ID Set(Command : d i) • To assign the Tile ID for Tiling function. Transmission I [d][i][][Set ID][][Data][x] Data Min : 00H - Max : 19H (Hexadecimal code) Acknowledgement I [i][][Set IU][][OK/NG][Uata][x] 24 Natural Mode (In Tilemode) (Command : d j) •...
  • Page 56 @ Transmission / Receiving Protocol 26. Temperature value (Command : d n) • To read the inside temperature value. Transmission [d][n][][Set ID][][Data][x] * The data is always FF(in Hex). Acknowledgement [n][][Set IU][][OK/NG][Uata][x] * The data is 1 byte long in Hexadecimal. 27.
  • Page 57 @ Transmission / Receiving Protocol 28. Auto volume (Command : d u) • Automatically adjust the volume level. Transmission [d][u][][Set ID][][Data][x] Data 0 : Off 1 :On Acknowledgement [u][][Set IU][][OK/NG][Uata][x] 29. Speaker (Command : d v) • Turn the speaker on or off. Transmission I [d][v][][Set ID][][Data][x] Data 0 : Off...
  • Page 58 @ Transmission / Receiving Protocol 30. Time (Command : f a) • Set the current time. Transmission [f][a][][Set ID][][Datal][][Data2][][Data3][Cr] [Data1] 0 : Monday 1: Tuesday 2 : Wednesday 3 : Thursday 4 : Friday 5 : Saturday 6 : Sunday [Data2] OH-17H (Hours) [Data3]...
  • Page 59 @ Transmission / Receiving Protocol 31. On Timer (On/Off Timer) On, Off (Command : F b) • Set days for On Timer. Transmission [f][b][][Set ID][][Datal][][Data2][Cr] [Data1] 0 (Write), FFH(Read) [Data2] OOH-FFH bitO : Monday On Timer On(l), Off(O) bit1 : Tuesday On Timer On(1 ), Off(O) bit2 : Wednesday On Timer On(1 ), Off(O) bit3 : Thursday On Timer On(l), Off(O) bit4 : Friday On Timer On(1 ), Off(O)
  • Page 60 @ Transmission / Receiving Protocol 33. On Timer (On/Off Timer) Time (Command : f d) • Set On Timer. Transmission I [f][d][][Set ID][][Datal][][Data2][Data3][Cr] [Data1] 0 : Monday 1: Tuesday 2 : Wednesday 3 : Thursday 4 : Friday 5 : Saturday 6 : Sunday 7 : Everyday [Data2]...
  • Page 61 @ Transmission / Receiving Protocol 34. Off Timer (On/Off Timer) Time (Command : f e) • Set Off Timer. Transmission [f][e][][Set ID][][Datal][][Data2][][Data3][Cr] [Data1] 0 : Monday 1: Tuesday 2 : Wednesday 3 : Thursday 4 : Friday 5 : Saturday 6 : Sunday 7 : Everyday [Data2]...
  • Page 62 Transmission / Receiving Protocol 35. Sleep Time (Command : f f) • Set Sleep Time. Transmission I [f][f][][Set ID][][Data][Cr] Data 0 : Off 1:10 2:20 3:30 4:60 5:90 6:120 7:180 8 : 240 (Orderly) Acknowledgement I [f][][Set ID][][OK/aG][Data][x] 36. Auto Sleep (Command : f g) •...
  • Page 63 Controllingt Transmission / Receiving Protocol 37. Power On Delay (Command : f h) • Set the schedule delay when the power is turned on (Unit: second). Transmission I [f][h][][Set ID][][Data][Cr] Data : OOH- 64H (Data value) Acknowledgement I [h][][Set ID][][OK/aG][Data][x] 38.
  • Page 64 @ Transmission / Receiving Protocol 39. DPM Select (Command : f j) • Set the DPM (Display Power Management) function. Transmission I [f][j][][Set ID][][Data][Cr] Data 0 • Off 1" On Acknowledgement I [j][][Set IU][][OK/NG][Uata][x] 40. Reset (Command : f k) •...
  • Page 65 Transmission / Receiving Protocol 41. S/W Version (Command : f z) • Check the software version. Transmission I [f][z][][Set ID][][Data][Cr] Data FFH • Read Acknowledgement I [z][][Set IU][][OK/NG][Uata][x] 42. Input Select (Command : x b) • To select input source for the Set. Transmission I [x][b][ ][Set ID][ ][Data][Cr] Data 20H : AV...
  • Page 66 • Connect your wired remote control to Remote Control port on the Product. • Output waveform single pulse, modulated with 37.917KHz signal at 455KHz Carrier frequency __I-- I--l__ FCAR = 1/tc = fosc/12 I_--_ Duty ratio = T1/Tc = 1/3 •...
  • Page 67 Code(Hexa) Function Note • R/C Button • R/C Button VOL(,) R/C Button VOL(, R/C Button POWER ON/OFF R/C Button (Power On/Off) POWER Discrete Code(Only Power On) POWER Discrete Code(Only Power On) MUTE R/C Button R/C Button INPUT R/C Button SLEEP R/C Button MENU R/C Button...
  • Page 68 CongratuJationson your purchase! As you enjoy your new product, pJease keep thesesafety tips in mind: THEISSUE • The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer'srecommendations.
