3. Installation

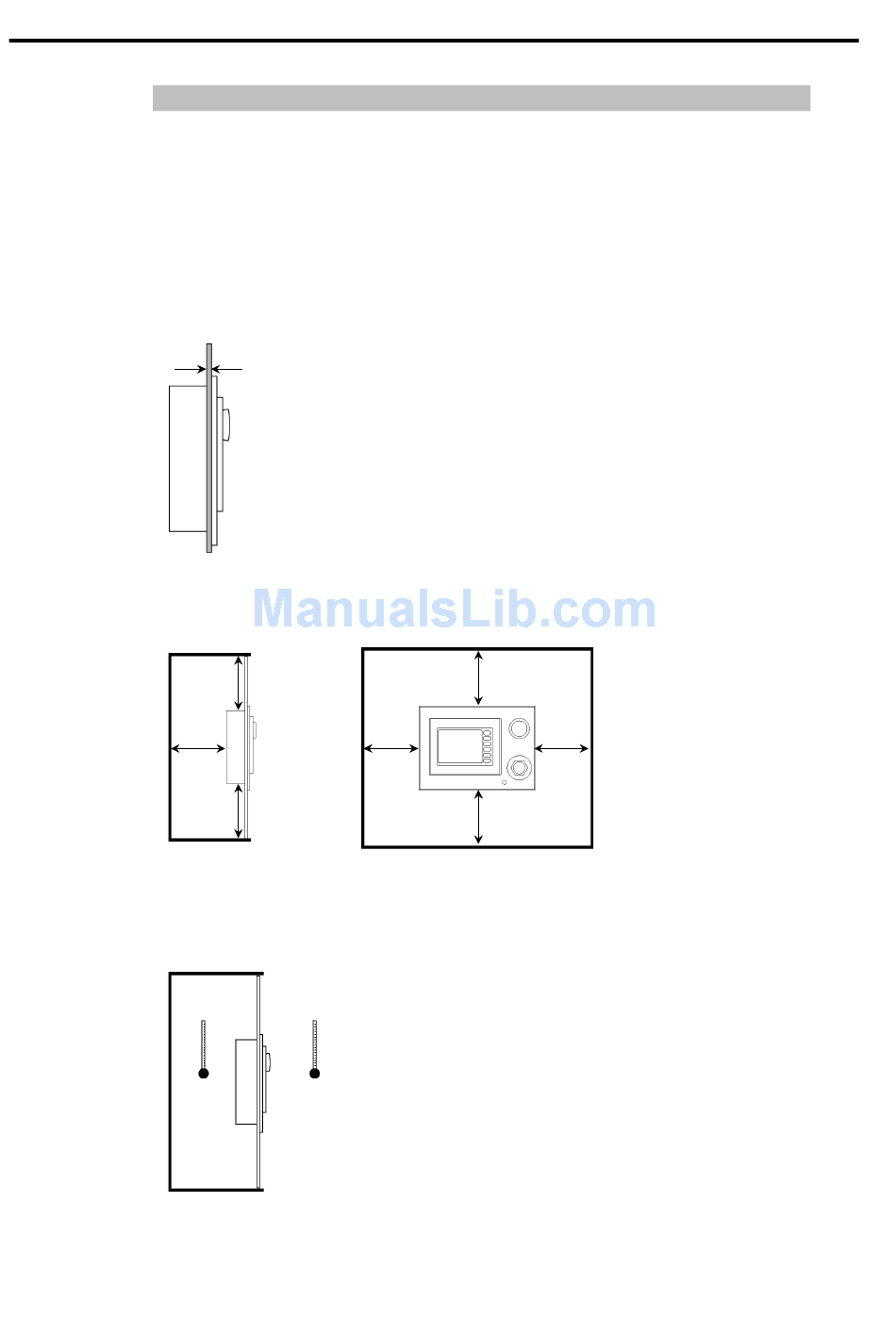

3.2.2 Mounting Holes
Refer to 2.3.3 Panel Cutout Dimensions for machining the mounting parts.
- Prepare the gasket and mounting metal hasps to install the Operator Panel.
To ensure drip-proof performance, install the Operator Panel on a flat surface free of
-
warping, scratches and unevenness. Attaching a stiffening plate is effective to prevent
warping.
The panel thickness range should be from 1.6 to 5.0 mm. Choose a panel thickness taking
-
the strength of the panel into consideration.
For easier maintenance, operation, and improved ventilation, make sure to install the
-
Operator Panel at least 100 mm away from surrounding structures and other equipment.
Use the Operator Panel within the operating ambient temperature range of 5 to 40 degC
-
and operating ambient humidity range of 20 to 80%. The Operator Panel may malfunction
if it is used outside of these ranges. (The operating ambient temperature range applies to
both inside the Controller Box and outside the Controller Box.)
Inside
Controller
Box
- Prevent the Operator Panel from overheating due to heat generated by surrounding
equipment.
10
1.6～5.0mm
100
100
100
Outside
Controller
Box
[Unit : mm]
100
100
100
100
OP1 Rev.1a
