560H Series Connector Conforming to Ver. 4
RIGHT-ANGLE PLUG, THROUGHHOLE TYPE (WITH NO EJECTOR, TO BE MOUNTED ON
THE BACK OF THE PC BOARD) SUPPORTS TYPE I, II CARDS

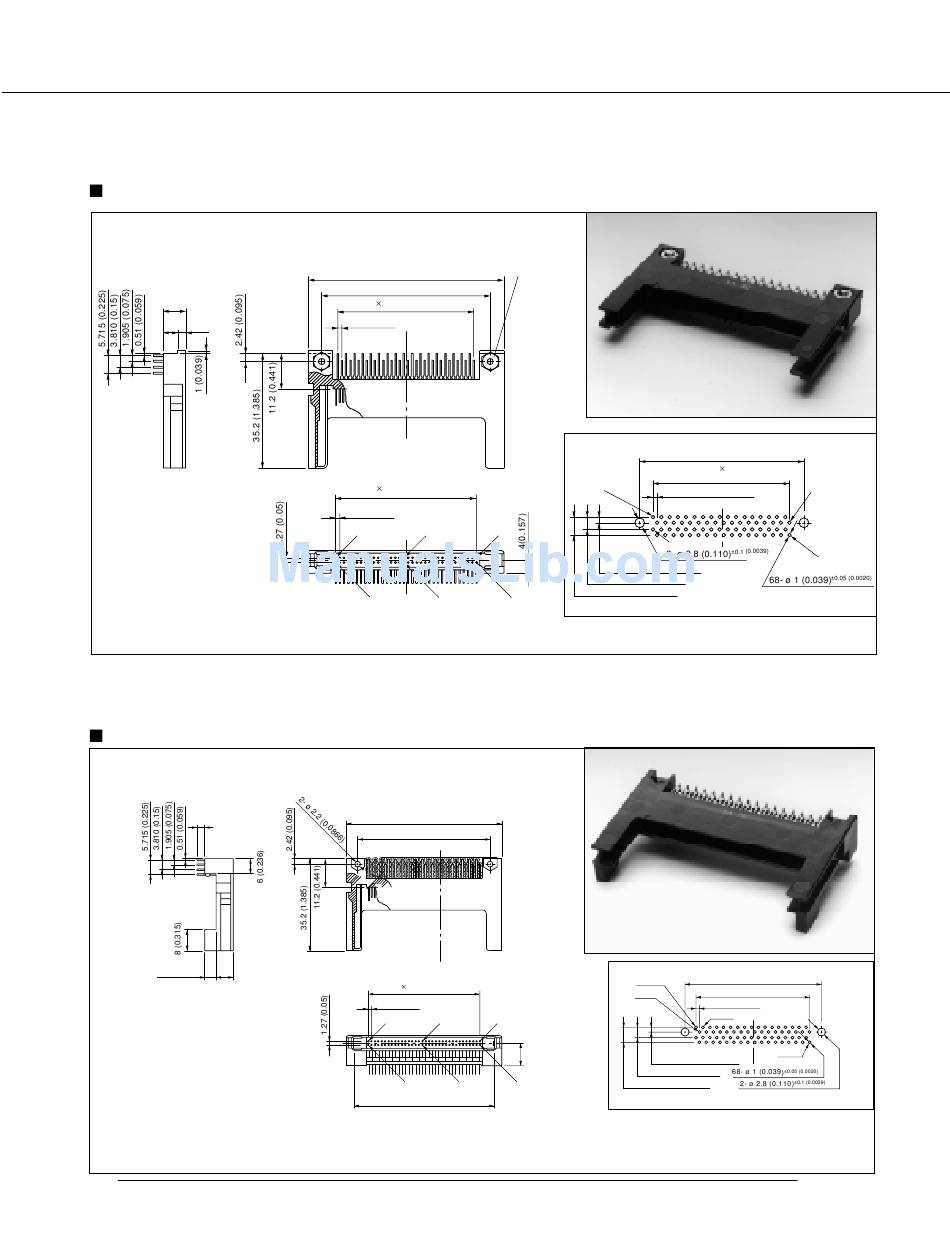

DIMENSIONS AND PC BOARD MOUNTING HOLE LAYOUT (MOUNTING SIDE)
Part number: FCN-565P068-G/F-V4
7 (0.276)
2.5
(0.098)
• A model with no nuts buried is available. Part number: FCN-565P068-G/H-V4
RIGHT-ANGLE PLUG, THROUGHHOLE TYPE (WITH NO EJECTOR, RAISED MOUNTING
TYPE) SUPPORTS TYPE I, II CARDS
DIMENSIONS AND PC BOARD MOUNTING HOLE LAYOUT (MOUNTING SIDE)
Part number: FCN-565P068-G/J-V4 (SUPPORTS TYPE I, II CARD)
Part number: FCN-565P068-G/J-4V (SUPPORTS TYPE I, II, III CARD)
3 (0.118)
4.5 (0.177)
7 (0.276)
• Applicable screw: Self-tapping screw M2.5 (0.098 in.) x 5 mm (0.197 in.) (for 1.6 mm (0.063 in.) thick PC board)
• A model mounted on bottom of a PC board is also available. Part number: FCN-565P068-G16-V4 (supports type I, II)
Specifications
subject to change
59.7 (2.35)
50.8 (2)
1.27 (0.05)
(34 – 1) = 41.91 (1.65)
1.27 (0.05)
1.27 (0.05)
(34 – 1) = 41.91 (1.65)
1.27 (0.05)
No.68
No.51
No.35
No.34
No.17
59.7 (2.35)
50.8 (2)
1.27 (0.05)
(34 – 1) = 41.91 (1.65)
1.27 (0.05)
No.1
No.17
No.35
No.51
53.7 (2.114)
Dimensions are in millimeters (inches)
(2) M2.5 (0.098 in.)
thread nut
<To be mounted on back of PC board>
No.68
1.27 (0.05)
±0.05 (0.0020)
1.905 (0.075)
3.810 (0.15)
±0.05 (0.0020)
5.715 (0.225)
±0.05 (0.0020)
(Card insertion side)
No.1
No.1
No.2
No.34
8.5
1.905 (0.075)
3.810 (0.15)
5.715 (0.225)
No.68
www.fcai.fujitsu.com
±0.05 (0.0039)
50.8 (2)
1.27 (0.05)
(68/2-1) =
±0.1 (0.0039)
41.91 (1.65)
No.35
±0.05 (0.0020)
No.34
No.1
Unit: mm (in.)
50.8 (2)
±0.1 (0.0039)
±0.1 (0.0039)
41.91 (1.65)
±0.05 (0.0020)
1.27 (0.05)
No.3
No.68
±0.05 (0.0020)
±0.05 (0.0020)
±0.05 (0.0020)
(Card insertion side)
Unit: mm (in.)
