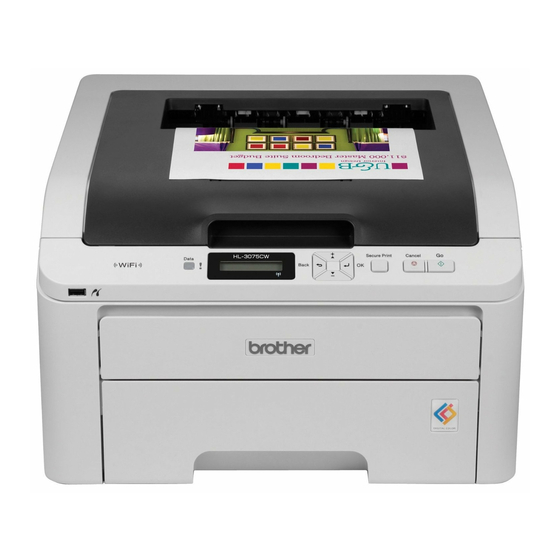

Multi-Protocol On-board Ethernet Print Server and Wireless
(IEEE 802.11b/g) Ethernet Print Server
NETWORK
USER'S GUIDE
HL-3045CN
HL-3075CW
Please read this manual thoroughly before using the machine.
Keep the CD-ROM in a convenient place so you can use it quickly
if you need to.
Please visit us at http://solutions.brother.com/ where you can get
product support, the latest driver updates and utilities, and
answers to frequently asked questions (FAQs) and technical
questions.
Note: Not all models are available in all countries.
Version 0
ENG

Advertisement

Table of Contents
loading

Related Manuals for Brother HL-3075CW

Summary of Contents for Brother HL-3075CW

  • Page 1 (IEEE 802.11b/g) Ethernet Print Server NETWORK USER’S GUIDE HL-3045CN HL-3075CW Please read this manual thoroughly before using the machine. Keep the CD-ROM in a convenient place so you can use it quickly if you need to. Please visit us at http://solutions.brother.com/ where you can get...
  • Page 2 Symbols used in this guide We use the following icons throughout this User’s Guide: IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in damage to property or loss of product functionality. Notes tell you how you should respond to a situation that may arise or give tips about how the current operation works with other features.
  • Page 3 2008 in this document represents Windows Server 2008 and Windows Server 2008 ® ® Windows Vista in this document represents all editions of Windows Vista ® ® Windows 7 in this document represents all editions of Windows The printer illustration is based on HL-3075CW.
  • Page 4 For the location of a Brother authorized service center, call 1-877-BROTHER. If you have any comments or suggestions, please write to us at: In USA Printer Customer Support Brother International Corporation 7905 North Brother Boulevard Bartlett, TN 38133 In Canada Brother International Corporation (Canada), Ltd. - Marketing Dept.
  • Page 5 Internet address Brother Global Website: http://www.brother.com/ For Frequently Asked Questions (FAQs), Product Support, Driver Updates and Utilities: http://solutions.brother.com/ Ordering accessories and supplies In USA 1-877-552-MALL (1-877-552-6255) 1-800-947-1445 (fax) http://www.brothermall.com/ In Canada 1-877-BROTHER http://www.brother.ca/...

  • Page 6: Table Of Contents

    Overview..............................1 Network features............................2 Network printing...........................2 Management utilities..........................2 Types of network connections ........................4 Network connection example ......................4 Wireless network connection examples (For HL-3075CW)..............6 Protocols..............................7 TCP/IP protocols and functions ......................7 Other Protocol .............................9 Configuring your machine for a network Overview..............................10 IP addresses, subnet masks and gateways ....................10 IP address ............................10...
  • Page 7 Configuring your machine for a wireless network (For HL-3075CW) Overview..............................18 Wireless network terms and concepts .....................19 SSID (Service Set Identifier) and channels ..................19 Authentication and encryption ......................19 Step by step chart for wireless network configuration ................22 For Infrastructure mode ........................22 Confirm your network environment......................23...
  • Page 8 Wired Enable (For HL-3075CW wired network only).................54 WLAN Enable (For HL-3075CW wireless network only) ..............54 WPS or AOSS (For HL-3075CW wireless network only) ..............54 WPS w/PIN Code (For HL-3075CW wireless network only) .............55 WLAN Status (For HL-3075CW wireless network only) ..............55 Reset the network settings to the factory default..................59...
  • Page 9 Secure Management using Web Based Management (web browser) ..........85 ® Secure Management using BRAdmin Professional 3 (for Windows ) ..........88 Secure Function Lock 2.0 (For HL-3075CW) ..................89 How to configure the Secure Function Lock 2.0 settings using Web Based Management (web browser)..........................89 Printing documents securely using IPPS....................92 Specifying a different URL.........................92...
  • Page 10 7 and Windows Server 2003/2008 IPP troubleshooting ..........................118 Web Based Management (web browser) troubleshooting (TCP/IP)..........118 Wireless network troubleshooting (For HL-3075CW) ................119 Wireless connection problem ......................119 Appendix Using services ............................120 Other ways to set the IP address (For advanced users and administrators).........120 Using DHCP to configure the IP address ..................120...

  • Page 11: Introduction

    Internet Printing (IPP) Status Monitor Driver Deployment Wizard Only the HL-3075CW has IEEE 802.11b/g Wireless Ethernet (TCP/IP) available. ® BRAdmin Light (for Macintosh), BRAdmin Professional 3, Web BRAdmin and BRPrint Auditor (for Windows ) are available as a download from http://solutions.brother.com/.

  • Page 12: Network Features

    Introduction Network features Your Brother machine has the following basic network functions. Network printing ® ® ® The print server provides printing services for Windows XP, Windows Vista , Windows 7 and Windows ® Server 2003/2008 supporting TCP/IP protocols and Macintosh supporting TCP/IP (Mac OS X 10.4.11 to 10.6.x).
  • Page 13 Introduction ® Web BRAdmin (for Windows Web BRAdmin is a utility for managing network connected Brother devices on your LAN and WAN. This utility can search for Brother products on your network, view the status and configure the network settings. Unlike ®...

  • Page 14: Types Of Network Connections

    Introduction Types of network connections Network connection example Peer-to-Peer printing using TCP/IP In a Peer-to-Peer environment, each computer directly sends and receives data to each device. There is no central server controlling file access or printer sharing. Windows Windows Windows TCP/IP TCP/IP 1) Router...

  • Page 15: Network Shared Printing

    Introduction Network Shared printing In a Network Shared environment, each computer sends data via a centrally controlled computer. This type of computer is often called a “Server” or a “Print Server”. Its job is to control the printing of all print jobs. Windows Windows Windows...

  • Page 16: Wireless Network Connection Examples (For Hl-3075Cw)

    Introduction Wireless network connection examples (For HL-3075CW) Connected to a computer with an access point on the network (Infrastructure mode) This type of network has a central access point at the heart of the network. The access point can also act as a bridge or a gateway to a wired network.

  • Page 17: Protocols

    Introduction Protocols TCP/IP protocols and functions Protocols are the standardized sets of rules for transmitting data on a network. Protocols allow users to gain access to network connected resources. The print server used on this Brother product supports the TCP/IP (Transmission Control Protocol/Internet Protocol) protocols.
  • Page 18 Introduction WINS Windows Internet Name Service is an information providing service for the NetBIOS name resolution by consolidating an IP address and a NetBIOS name that is in the local network. LPR/LPD Commonly used printing protocols on a TCP/IP network. SMTP client Simple Mail Transfer Protocol (SMTP) client is used to send E-mails via the Internet or Intranet.

  • Page 19: Other Protocol

    Introduction Web services ® ® The Web Services protocol enables Windows Vista and Windows 7 users to install the Brother printer driver by right-clicking the machine icon from the Network folder. ® ® See Installation when using Web Services (For Windows Vista and Windows 7 users) on page 127.

  • Page 20: Configuring Your Machine For A Network

    Configuring your machine for a network2 Configuring your machine for a network Overview Before using your Brother machine in a network environment, you must install the Brother software and also configure the appropriate TCP/IP network settings on the machine itself. In this chapter, you will learn the basic steps required to print over the network using TCP/IP protocol.

  • Page 21: Subnet Mask

    Configuring your machine for a network Using BOOTP to configure the IP address on page 121 Using RARP to configure the IP address on page 122. If you do not have a DHCP/BOOTP/RARP server, the Automatic Private IP Addressing (APIPA) protocol will automatically assign an IP address from the range 169.254.1.0 to 169.254.254.255.

  • Page 22: Step By Step Chart

    Configuring your machine for a network Step by step chart Configure the TCP/IP settings. o Configure the IP address See page 13 o Configure the subnet mask See page 13 o Configure the gateway See page 13 Change the print server settings. o Using the BRAdmin Light utility See page 16 o Using the BRAdmin Professional 3 utility...

  • Page 23: Setting The Ip Address And Subnet Mask

    Configuring your machine for a network Setting the IP address and subnet mask Using the BRAdmin Light utility to configure your machine as a network printer BRAdmin Light The BRAdmin Light utility is designed for initial setup of the Brother network connected devices. It also can search for Brother products in a TCP/IP environment, view the status and configure basic network settings, ®...
  • Page 24 Configuring your machine for a network Double-click the unconfigured device. Macintosh ® Windows Note • If the print server is set to its factory default settings (if you don’t use a DHCP/BOOTP/RARP server), the device will appear as Unconfigured in the BRAdmin Light utility screen. •...

  • Page 25: Using The Control Panel To Configure Your Machine For A Network

    Configuring your machine for a network Using the control panel to configure your machine for a network You can configure your machine for a network using the control panel Network menu. See Network menu on page 45. Using other methods to configure your machine for a network You can configure your machine for a network using other methods.

  • Page 26: Changing The Print Server Settings

    For wireless network users, you need to configure the wireless settings to change the print server settings. See Configuring your machine for a wireless network (For HL-3075CW) in Chapter 3. Using the BRAdmin Light utility to change the print server settings Start the BRAdmin Light utility.

  • Page 27: Using Web Based Management (Web Browser) To Change The Print Server Settings

    Configuring your machine for a network ® Start the BRAdmin Professional 3 utility (from Windows ), by clicking Start/All Programs/Brother Administrator Utilities/Brother BRAdmin Professional 3/BRAdmin Professional 3. Choose the print server which you want to configure. Choose Configure Device from the Control menu. Enter a password if you have set one.

  • Page 28: Configuring Your Machine For A Wireless Network (For Hl-3075Cw)

    Configuring your machine for a wireless network (For HL-3075CW)3 Configuring your machine for a wireless network (For HL-3075CW) Overview To connect your printer to your wireless network, you need to follow the steps in the Quick Setup Guide or the Network User’s Guide. We recommend that you use the Brother installer application on the CD-ROM which we have provided with the printer.

  • Page 29: Wireless Network Terms And Concepts

    Wireless networks use channels. Each wireless channel is on a different frequency. There are up to 14 different channels that can be used when using a wireless network. However, in many countries the number of channels available are restricted. For more information, see Wireless network (for HL-3075CW) on page 129.

  • Page 30: Encryption Methods

    Configuring your machine for a wireless network (For HL-3075CW) WPA-PSK/WPA2-PSK Enables a Wi-Fi Protected Access Pre-shared Key (WPA-PSK/WPA2-PSK), which enables the Brother wireless machine to associate with access points using TKIP for WPA-PSK or AES for WPA-PSK and WPA2-PSK encryption (WPA-Personal).
  • Page 31 Configuring your machine for a wireless network (For HL-3075CW) Network Key There are some rules for each security method: Open System/Shared Key with WEP This key is a 64-bit or 128-bit value that must be entered in an ASCII or hexadecimal format.

  • Page 32: Step By Step Chart For Wireless Network Configuration

    Configuring your machine for a wireless network (For HL-3075CW) Step by step chart for wireless network configuration For Infrastructure mode Confirm your network environment. (See page 23.) o Infrastructure mode Connected to a computer with an access point Confirm your wireless network setup method. (See page 24.)

  • Page 33: Confirm Your Network Environment

    Configuring your machine for a wireless network (For HL-3075CW) Confirm your network environment Connected to a computer with an access point in the network (Infrastructure mode) 1) Access point 2) Wireless network printer (your machine) 3) Wireless capable computer connected to the access point...

  • Page 34: Confirm Your Wireless Network Setup Method

    Configuring your machine for a wireless network (For HL-3075CW) Confirm your wireless network setup method There are three methods to configure your wireless network machine. Use the Brother installer application on the CD-ROM (recommended). Use the one-push wireless setting mode or use the PIN Method of Wi-Fi Protected Setup.

  • Page 35: Configuration Using Wps Or Aoss From The Control Panel Menu To Configure Your Machine For A Wireless Network (Infrastructure Mode Only)

    Configuring your machine for a wireless network (For HL-3075CW) Configuration using WPS or AOSS from the control panel menu to configure your machine for a wireless network (Infrastructure mode only) If your wireless access point (A) supports either Wi-Fi Protected Setup (PBC ) or AOSS™, you can configure...

  • Page 36: Configuration Using The Pin Method Of Wi-Fi Protected Setup To Configure Your Machine For A Wireless Network (Infrastructure Mode Only)

    Configuring your machine for a wireless network (For HL-3075CW) Configuration using the PIN Method of Wi-Fi Protected Setup to configure your machine for a wireless network (Infrastructure mode only) If your wireless access point (A) supports Wi-Fi Protected Setup, you can also configure using the PIN Method of Wi-Fi Protected Setup.

  • Page 37: Configure Your Machine For A Wireless Network

    For installation, see Wireless configuration for Windows using the Brother automatic installer application (For HL-3075CW) in Chapter 4 or Wireless Configuration for Macintosh using the Brother installer application (For HL-3075CW) in Chapter 5. Using WPS or AOSS from the control panel menu to configure your machine for...

  • Page 38: Wireless Configuration For Windows Using The Brother Automatic Installer Application (For Hl-3075Cw)

    ® Wireless configuration for Windows ® using the Brother automatic installer application (For HL-3075CW)4 Wireless configuration for Windows using the Brother automatic installer application (For HL-3075CW) Configuration in Infrastructure mode Before configuring the wireless settings IMPORTANT The following instructions will install your Brother machine in a network environment using the Brother ®...

  • Page 39: Configure The Wireless Settings

    ® Wireless configuration for Windows using the Brother automatic installer application (For HL-3075CW) Configure the wireless settings Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically. Choose your machine and the language. The CD-ROM main menu will appear. Click Install Printer Driver.

  • Page 40: Wireless Configuration For Macintosh Using The Brother Installer Application (For Hl-3075Cw)

    Wireless Configuration for Macintosh using the Brother installer application (For HL-3075CW)5 Wireless Configuration for Macintosh using the Brother installer application (For HL-3075CW) Configuration in Infrastructure mode Before configuring the wireless settings IMPORTANT The following instructions will install your Brother machine in a network environment using the Brother installer application for Macintosh found on the CD-ROM we have provided with the machine.

  • Page 41: Configure The Wireless Settings

    Wireless Configuration for Macintosh using the Brother installer application (For HL-3075CW) Configure the wireless settings Put the supplied CD-ROM into your CD-ROM drive. The opening screen will appear automatically. Click Start Here OSX. Choose your machine and click Next. Choose Wireless Network Connection and then click Next.

  • Page 42: Wireless Configuration Using Wps Or Aoss From The Control Panel (For Hl-3075Cw)

    Wireless configuration using SES/WPS or AOSS from the control panel (For HL-3075CW)6 Wireless configuration using WPS or AOSS from the control panel (For HL-3075CW) Overview If your wireless access point/router supports either Wi-Fi Protected Setup (PBC ) or AOSS™, you can configure the machine easily without knowing your wireless network settings.

  • Page 43: How To Configure Your Wireless Machine, Using Wps Or Aoss From The Control Panel Menu

    Wireless configuration using WPS or AOSS from the control panel (For HL-3075CW) How to configure your wireless machine, using WPS or AOSS from the control panel menu IMPORTANT If you are going to connect your Brother machine to your network, we recommend that you contact your system administrator prior to installation.
  • Page 44 Wireless configuration using WPS or AOSS from the control panel (For HL-3075CW) If the LCD shows Connected, the machine has successfully connected to your access point/router. You can now use your machine in a wireless network. If the LCD shows Connection Error, a session overlap has been detected. The machine has detected more than one access point/router on your network with the Wi-Fi Protected Setup mode or AOSS™...
  • Page 45 Wireless configuration using WPS or AOSS from the control panel (For HL-3075CW) ® (Windows You have completed the wireless network setup. If you would like to continue installing the printer driver necessary for operating your device, please choose Install Printer Driver from the CD-ROM menu.

  • Page 46: Wireless Configuration Using The Pin Method Of Wi-Fi Protected Setup (For Hl-3075Cw)

    Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW)7 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) Overview If your wireless access point/router supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily.
  • Page 47 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) Using a computer that is on the network, type “http://access point’s IP address/” into your browser. (Where “access point’s IP address” is the IP address of the device that is used as the Registrar .) Go to...

  • Page 48: For Windows Users

    Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) ® For Windows users IMPORTANT DO NOT try to cancel any of the screens during this installation. Turn on your computer. (You must be logged on with Administrator rights.) Close any applications running before configuration.
  • Page 49 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) Note When the User Account Control screen appears, ® (Windows Vista ) click Allow. ® (Windows 7) click Yes. Choose Driver Install Only, and then click Next. When the License Agreement window appears, click Yes if you agree to the License Agreement.
  • Page 50 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) Choose Standard Installation, and then click Next. Choose Search the network for devices and choose from a list of discovered devices (Recommended). Or enter your printer's IP address or its node name. Click Next.
  • Page 51 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) Choose your printer, and then click Next. Note If your printer takes a long time to appear on the list, 1 minute or more, then click Refresh. Click Finish.

  • Page 52: For Macintosh Users

    Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) For Macintosh users IMPORTANT DO NOT try to cancel any of the screens during this installation. Turn on your Macintosh. Put the installation CD-ROM into your CD-ROM drive.
  • Page 53 Wireless configuration using the PIN Method of Wi-Fi Protected Setup (For HL-3075CW) Follow the on-screen instructions until this screen appears. Choose your machine from the list, and then click OK. Note • If there is more than one of the same printer model connected on your network, the MAC Address (Ethernet Address) will be displayed after the model name.

  • Page 54: Control Panel Features

    Control panel features8 Control panel features Overview This printer has one back lit Liquid Crystal Display (LCD), seven buttons and two Light Emitting Diodes (LEDs) on the control panel. The LCD is a 16 character single line display. With the control panel you can do the following: Change the print server settings using the control panel See Network menu on page 45.

  • Page 55: Network Menu

    Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.
  • Page 56 Control panel features Press + or - to choose Auto , Static , RARP , BOOTP or DHCP Press OK. Auto mode In this mode, the machine will scan the network for a DHCP server, if it can find one, and if the DHCP server is configured to allocate an IP address to the machine, then the IP address supplied by the DHCP server will be used.
  • Page 57 Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.
  • Page 58 Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.
  • Page 59 Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.
  • Page 60 Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.
  • Page 61 Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.
  • Page 62 Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. For HL-3075CW (For wired) Press + or - to choose Wired LAN. (For wireless) Press + or - to choose WLAN.

  • Page 63: Ethernet (Wired Network Only)

    The Factory Reset allows you to reset the print server back to its factory default settings. For more information and resetting, see Reset the network settings to the factory default on page 59. Set to Default (For HL-3075CW) The Set to Default allows you to reset each wired or wireless network setting to the factory default.

  • Page 64: Wired Enable (For Hl-3075Cw Wired Network Only)

    Press OK. Press + or - to choose On. Press OK. WPS or AOSS (For HL-3075CW wireless network only) If your wireless access point/router supports either Wi-Fi Protected Setup (PBC ) or AOSS™, you can configure the machine easily without a computer. Your Brother machine has the WPS/AOSS menu on the control panel.

  • Page 65: Wps W/Pin Code (For Hl-3075Cw Wireless Network Only)

    Control panel features WPS w/PIN Code (For HL-3075CW wireless network only) If your wireless access point/router supports Wi-Fi Protected Setup (PIN Method), you can configure the machine easily. The PIN (Personal Identification Number) Method is one of the connection methods developed by the Wi-Fi Alliance.
  • Page 66 Control panel features Signal This field displays the current wireless network status; Strong, Medium, Weak, or None. Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK.
  • Page 67 Control panel features Speed This field displays the current wireless network speed. Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK. Press + or - to choose WLAN. Press OK.
  • Page 68 Control panel features Comm. Mode This field displays the current wireless network communication mode; Ad-hoc or Infrastructure. Press any of the Menu buttons (+, -, OK or Back) of the control panel on your machine. Press + or - to choose Network. Press OK.

  • Page 69: Reset The Network Settings To The Factory Default

    Control panel features Reset the network settings to the factory default You can reset the print server back to its factory default settings (resetting all information such as the password and IP address information.) Note You can also reset the print server back to its factory default settings using the BRAdmin applications or Web Based Management (web browser).

  • Page 70: Printing The Network Configuration Page

    Node name: Node name appears on the Network Configuration page. The default node name of the print server in the machine is “BRNxxxxxxxxxxxx” for a wired network or “BRWxxxxxxxxxxxx” for a wireless network (For HL-3075CW). The Network Configuration page prints a report listing all the current network settings. You can print the Network Configuration page using the control panel.

  • Page 71: Driver Deployment Wizard (Windows ® Only)

    Driver Deployment Wizard (Windows ® only)9 Driver Deployment Wizard ® (Windows only) Overview The Driver Deployment Wizard software can be used to ease the installation or even automate the installation of a locally connected or network connected printer. The Driver Deployment Wizard can also be used to create self running executable files which when run on a remote PC, completely automates the installation of a printer driver.

  • Page 72: Network Shared

    ® Driver Deployment Wizard (Windows only) Network Shared The device is connected to a network and a central print queue is used to manage all print jobs. Windows Windows Windows TCP/IP Windows 1) Client computer 2) Also known as “Server” or “Print server” 3) TCP/IP or USB 4) Printer (your machine) Local Printer (USB)

  • Page 73: How To Install The Driver Deployment Wizard Software

    ® Driver Deployment Wizard (Windows only) How to install the Driver Deployment Wizard software Put the supplied CD-ROM into your CD-ROM drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language. The CD-ROM main menu will appear. Click Install Other Drivers or Utilities. Choose the Driver Deployment Wizard installation program.

  • Page 74: Using The Driver Deployment Wizard Software

    ® Driver Deployment Wizard (Windows only) Using the Driver Deployment Wizard software When you run the Wizard for the first time you will see a welcome screen. Click Next. Choose Printer, and then click Next. Choose your connection type to the printer that you want to print to. Choose the option you require, and follow the on-screen instructions.
  • Page 75 ® Driver Deployment Wizard (Windows only) 4 For example, choose the “X:\install\your language\PCL\32 ” folder (where X is your drive letter). Click OK. 32 folder for 32-bit OS users and 64 folder for 64-bit OS users Click Next after you choose the correct driver. A summary screen will appear.
  • Page 76 ® Driver Deployment Wizard (Windows only) Note • If you work in a “queue” based network and you create an executable file for another user who does not have access to the same printer queue that you define into the executable file, the driver when installed on the remote computer will default to LPT1 printing.

  • Page 77: Web Based Management

    Web Based Management10 Web Based Management Overview A standard Web Browser can be used to manage your machine using the HTTP (Hyper Text Transfer Protocol). You can get the following information from a machine on your network using a web browser. Machine status information Change network settings such as TCP/IP information Software version information of the machine and print server...

  • Page 78: How To Configure The Print Server Settings Using Web Based Management (Web Browser)

    Web Based Management How to configure the print server settings using Web Based Management (web browser) A standard web browser can be used to change your print server settings using the HTTP (Hyper Text Transfer Protocol). Note To use a web browser, you will need to know the IP address or node name of the print server. Start your web browser.

  • Page 79: Network Printing From Windows ® Basic Tcp/Ip Peer-To-Peer Printing

    ® Network printing from Windows ® basic TCP/IP Peer-to-Peer printing11 Network printing from Windows basic TCP/IP Peer-to-Peer printing Overview To connect your machine to your network, you need to follow the steps in the Quick Setup Guide. We recommend that you use the Brother installer application on the CD-ROM which we have provided with the machine.

  • Page 80: Configuring The Standard Tcp/Ip Port

    ® Network printing from Windows basic TCP/IP Peer-to-Peer printing Configuring the standard TCP/IP port Printer driver not yet installed ® ® ® For Windows Vista , Windows 7 and Windows Server 2008 ® (Windows Vista ) Click the button, Control Panel, Hardware and Sound and then Printers. ®...
  • Page 81 ® Network printing from Windows basic TCP/IP Peer-to-Peer printing ® ® For Windows XP and Windows Server 2003 Click the Start button and choose Printers and Faxes. Click Add a printer to start the Add Printer Wizard. Click Next when you see the Welcome to the Add Printer Wizard screen. Choose Local printer and deselect the Automatically detect and install my Plug and Play printer option, then click Next.

  • Page 82: Printer Driver Already Installed

    Close Printer Ports and Properties dialog box. Other sources of information See Configuring your machine for a network on page 10 and Configuring your machine for a wireless network (For HL-3075CW) on page 18 to learn how to configure the IP address of the machine.

  • Page 83: Internet Printing For Windows

    Internet printing for Windows ® ® Internet printing for Windows Overview ® ® ® ® Windows XP, Windows Vista , Windows 7 and Windows Server 2003/2008 users can print using TCP/IP ® ® using the standard Network Printing IPP protocol software built into Windows XP, Windows Vista ®...
  • Page 84 ® Internet printing for Windows Note If you have edited the hosts file on your computer or are using a Domain Name System (DNS), you can also enter the DNS name of the print server. As the print server supports TCP/IP and NetBIOS names, you can also enter the NetBIOS name of the print server.
  • Page 85 ® Internet printing for Windows ® ® For Windows XP and Windows Server 2003 Click the Start button and choose Printers and Faxes. Click Add a printer to start the Add Printer Wizard. Click Next when you see the Welcome to the Add Printer Wizard screen. Choose Network Printer.
  • Page 86 ® Internet printing for Windows The driver installation starts automatically. Note If the printer driver that you are installing does not have a Digital Certificate you will see a warning message. Click Continue Anyway to continue with the installation. Click OK when you see the Insert Disk screen. Click Browse...

  • Page 87: Specifying A Different Url

    ® Internet printing for Windows Specifying a different URL Please note that there are several possible entries that you can enter for the URL field. http://printer's IP address:631/ipp This is the default URL and we recommend that you use this URL. http://printer's IP address:631/ipp/port1 This is for HP Jetdirect compatibility.

  • Page 88: How To Choose The Printer Driver (Tcp/Ip)

    Network printing from Macintosh using the BR-Script 3 driver (For HL-3075CW)13 Network printing from Macintosh using the BR-Script 3 driver (For HL-3075CW) Overview ® This chapter explains how to configure the BR-Script 3 (PostScript 3™ language emulation) printer driver on a Network.
  • Page 89 "BRNxxxxxxxxxxxx_AT" for Macintosh. Where "xxxxxxxxxxxx" is your machine's MAC Address (Ethernet Address). From the Print Using pop-up menu, choose your model. For example, choose Brother HL-3075CW BR-Script3. Click Add and the printer will be available from the Printer List. The printer is now ready to print.
  • Page 90 Network printing from Macintosh using the BR-Script 3 driver (For HL-3075CW) For Mac OS X 10.5.x to 10.6.x Turn on your Macintosh. Choose System Preferences from the Apple menu. Choose Print & Fax. Click + which is located below the Printers section.
  • Page 91 Network printing from Macintosh using the BR-Script 3 driver (For HL-3075CW) From the Print Using pop-up menu, choose your model. For example, choose Brother HL-3075CW BR-Script3. Click Add and the printer will be available from the Printers. The printer is now ready to print.

  • Page 92: Security Features

    Security features14 Security features Overview In today’s world there are many security threats to your network and the data that travels over it. Your Brother machine employs some of the latest network security and encryption protocols available today. These network features can be integrated into your overall network security plan to help protect your data and prevent unauthorized access to the machine.

  • Page 93: Security Protocols

    Security features Security protocols The Brother print server supports the following security protocols. Note How to configure the protocol settings, see How to configure the print server settings using Web Based Management (web browser) on page 68. SSL (Secure Socket Layer) / TLS (Transport Layer Security) These security communication protocols encrypt data to prevent security threats.

  • Page 94: Configuring The Protocol Settings

    Security features Configuring the protocol settings You can enable or disable each protocol and security method using Web Based Management (web browser). Note ® ® ® We recommend Microsoft Internet Explorer 6.0 (or greater) or Firefox 1.0 (or greater) for Windows Safari 4.0/5.0 for Macintosh.

  • Page 95: Managing Your Network Printer Securely

    Security features Managing your network printer securely To manage your network printer securely, you need to use the management utilities with security protocols. Secure Management using Web Based Management (web browser) We recommend to use HTTPS and SNMPv3 protocol for secure management. To use the HTTPS protocol, the following printer settings are required.
  • Page 96 Security features You can now access the printer using HTTPS. We recommend secure management (SNMPv3) be used along with the HTTPS protocol. If you use the SNMPv3 protocol, follow the steps below. Note You can also change the SNMP settings by using BRAdmin Professional 3 or Web BRAdmin. Click Network Configuration.
  • Page 97 Security features • You can manage the print server by using BRAdmin Professional 3, Web BRAdmin or Web Based Management (web browser) only. • We recommend secure SSL communication (HTTPS) be used. • Except for BRAdmin Professional 3 and Web BRAdmin, all applications that use SNMPv1/v2c will be restricted.

  • Page 98: Secure Management Using Bradmin Professional 3 (For Windows)

    Security features ® Secure Management using BRAdmin Professional 3 (for Windows To use the BRAdmin Professional 3 utility securely, you need to follow the points below. We strongly recommend to use the latest version of the BRAdmin Professional 3 utility or Web BRAdmin that are available as a download from http://solutions.brother.com/.

  • Page 99: Secure Function Lock 2.0 (For Hl-3075Cw)

    PC user login name on page 90. How to configure the Secure Function Lock 2.0 settings using Web Based Management (web browser) Basic configuration Click Administrator Settings on the HL-3075CW web page, and then click Secure Function Lock. Choose On from Function Lock.
  • Page 100 Security features Enter an up to 15 digit alphanumeric group name or user name in the ID Number/Name box and then enter a four-digit password in the PIN box. Uncheck the functions that you want to restrict in the Print box or the Others box. If you want to configure the maximum page count, check the On box in Page Limit, and then enter the number in the Max.
  • Page 101 Security features • The Secure Function Lock feature does not support the BR-Script 3 printer driver for printing. Setting up public mode You can set up the public mode to restrict what functions are available for public users. Public users do not need to enter a password to access the features made available through this setting.

  • Page 102: Printing Documents Securely Using Ipps

    Security features Printing documents securely using IPPS To print documents securely over the internet, you can use the IPPS protocol. Note • Communication using IPPS cannot prevent unauthorized access to the print server. ® ® ® ® • IPPS is available for Windows XP, Windows Vista , Windows 7 and Windows Server...

  • Page 103: Using E-Mail Notification With User Authentication

    Security features Using E-mail notification with user authentication To use the E-mail notification function via secure SMTP server that requires a user authentication, you need to use POP before SMTP or SMTP-AUTH method. These methods prevent an unauthorized user from accessing the mail server.
  • Page 104 Security features You can configure the POP3/SMTP settings on this page. Note • You can also change the SMTP port number using Web Based Management. This is useful if your ISP (Internet Service Provider) implements the “Outbound Port 25 Blocking (OP25B)” service. By changing the SMTP port number to a specific number which your ISP is using for the SMTP server (for example, port 587), you would then be able to send an E-mail via the SMTP server.

  • Page 105: Creating And Installing A Certificate

    Security features Creating and installing a certificate The Brother print server allows you to use SSL/TLS communication by configuring a certificate and corresponding private key. This print server supports two certification methods. A self-signed certificate and a certificate that is issued by a CA (Certificate Authority). Using self-signed certificate This print server issues its own certificate.
  • Page 106 Security features Click Network Configuration. Enter a user name and a password. The default User Name is “admin” and the default Password is “access”. Click OK. Click Configure Certificate. You can configure the certificate settings from the screen below. Note •...

  • Page 107: Creating And Installing A Self-Signed Certificate

    Security features Creating and installing a self-signed certificate How to create and install a self-signed certificate Click Create Self-Signed Certificate on the Configure Certificate page. Enter a Common Name and a Valid Date, then click Submit. Note • The length of the Common Name is less than 64 bytes. Enter an identifier such as an IP address, node name or domain name to use when accessing this printer through SSL/TLS communication.
  • Page 108 Security features How to install the self-signed certificate on your computer Note ® ® The following steps are for Microsoft Internet Explorer 6.0. If you use another web browser, follow the help text of the web browser itself. ® ® For Windows Vista and Windows 7 users that have administrator rights...
  • Page 109 Security features Type “https://printer’s IP address/” into your browser to access your printer (where “printer’s IP address” is the printer’s IP address or the node name). Then, click Continue to this website (not recommended). Click Certificate Error, and then click View certificates. For the rest of the instructions, follow the steps from d on page 106.
  • Page 110 Security features ® ® For Windows Vista and Windows 7 users that do not have administrator rights Click the button and All Programs. Right-click Internet Explorer, and then click Run as administrator. Choose the Administrator that you want to install with and enter the administrator password, and then click OK or Yes.
  • Page 111 Security features Type “https://printer’s IP address/” into your browser to access your printer (where “printer’s IP address” is the printer’s IP address or the node name). Then, click Continue to this website (not recommended). Click Certificate Error, and then click View certificates. Choose the Details tab, and then click Copy to File..
  • Page 112 Security features Click Next. Make sure that DER encoded binary X.509 (.CER) is chosen, and then click Next. Click Browse..
  • Page 113 Security features Click Browse Folders. Choose a folder you want to save the certificate file in and enter a file name, and then click Save. Note If you choose Desktop, the certificate file is saved to the Desktop of the Administrator that you chose. Click Next.
  • Page 114 Security features Click Finish. Click OK. Click OK.
  • Page 115 Security features Open the folder that you saved the certificate file in k and double-click the certificate file. For the rest of the instructions, follow the steps from d on page 101.
  • Page 116 Security features ® ® For Windows XP and Windows Server 2003/2008 users Start your web browser. Type “https://printer’s IP address/” into your browser to access your printer (where “printer’s IP address” is the IP address or the node name that you assigned for the certificate). When the following dialog appears, click View Certificate.
  • Page 117 Security features When the Certificate Import Wizard appears, click Next. Choose Place all certificates in the following store and then, click Browse..Choose Trusted Root Certification Authorities and then, click OK.
  • Page 118 Security features Click Next. Click Finish. Click Yes, if the fingerprint (thumbprint) is correct.
  • Page 119 Security features Note The fingerprint (thumbprint) is printed on the Network Configuration page. To learn how to print the Network Configuration page, see Printing the Network Configuration page on page 60. Click OK. Now the self-signed certificate is installed on your computer, and the SSL/TLS communication is available.

  • Page 120: Creating Csr And Installing A Certificate

    Security features Creating CSR and installing a certificate How to create the CSR Click Create CSR on the Configure Certificate page. Enter a Common Name and your information, such as Organization. Then click Submit. Note • We recommend that the Root Certificate from the CA be installed on your computer before creating the CSR.
  • Page 121 Security features How to install the certificate to your printer When you receive the certificate from a CA, follow the steps below to install it into the print server. Note Only a certificate issued with this printer’s CSR can be installed. Click Install Certificate on the Configure Certificate page.

  • Page 122: Import And Export The Certificate And Private Key

    Security features Import and export the certificate and private key How to import the certificate and private key Click Import Certificate and Private Key on the Configure Certificate page. Specify the file that you want to import. Enter the password if the file is encrypted, and then click Submit. Now the certificate and private key are imported successfully.

  • Page 123: Troubleshooting

    Network print software installation problems Printing problems Protocol-specific troubleshooting Wireless network specific troubleshooting (For HL-3075CW) General problems CD-ROM is inserted, but does not start automatically. If your computer does not support Autorun, the menu will not start automatically after inserting the CD-ROM.
  • Page 124 Troubleshooting • For users who do not have administrator rights: Enter the administrator password and click OK. 3) Click the General tab. Make sure that Off (not recommended) is selected. 4) Click OK. Note After the Brother software package is installed, turn your Firewall back on. ®...

  • Page 125: Network Print Software Installation Problems

    Troubleshooting Network print software installation problems The Brother print server is not found during setup of the network print software installation or from ® the printer driver of the Brother machine in Windows . The Brother print server is not found using the Simple Network Configuration capabilities of Mac OS X.
  • Page 126 Troubleshooting For wireless network users (For HL-3075CW): Note Make sure that your machine setting for a wireless network is enable. Check to see if the wireless signal on the LCD display is following in Ready mode or Sleep mode with...

  • Page 127: Printing Problems

    Troubleshooting Printing problems Print job is not printed. Check the status and configuration of the print server. Make sure that the machine is powered on, is on-line and ready to print. Print the Network Configuration page of the machine and check if the settings such as IP address settings are correct for your network.

  • Page 128: Protocol-Specific Troubleshooting

    Troubleshooting Protocol-specific troubleshooting ® ® ® ® Windows XP, Windows Vista , Windows 7 and Windows Server 2003/2008 IPP troubleshooting I want to use a different Port number other than 631. If you are using Port 631 for IPP printing, you may find that your firewall may not let the print data through. If this is the case, use a different port number (port 80), or configure your Firewall to allow Port 631 data through.

  • Page 129: Wireless Connection Problem

    Troubleshooting Wireless network troubleshooting (For HL-3075CW) Note If you want to confirm the wireless network status, see b on page 115. Wireless connection problem The wireless network connection is sometimes disabled. The wireless network connection status is affected by the environment where the Brother printer and other wireless devices are located.

  • Page 130: Using Services

    AppendixA Appendix Using services A service is a resource that can be accessed by computers that wish to print to the Brother print server. The Brother print server provides the following predefined services (do a SHOW SERVICE command in the Brother print server remote console to see a list of available services): Enter HELP at the command prompt for a list of supported commands.

  • Page 131: Using Bootp To Configure The Ip Address

    Appendix Using BOOTP to configure the IP address BOOTP is an alternative to rarp that has the advantage of allowing configuration of the subnet mask and gateway. In order to use BOOTP to configure the IP address make sure that BOOTP is installed and running on your host computer (it should appear in the /etc/services file on your host as a real service;...

  • Page 132: Using Rarp To Configure The Ip Address

    Appendix Using RARP to configure the IP address The Brother print server’s IP address can be configured using the Reverse ARP (RARP) facility on your host computer. This is done by editing the /etc/ethers file (if this file does not exist, you can create it) with an entry similar to the following: 00:80:77:31:01:07 BRN008077310107 (or BRW008077310107 for a wireless network) Where the first entry is the MAC Address (Ethernet Address) of the print server and the second entry is the...

  • Page 133: Using Arp To Configure The Ip Address

    Appendix Using ARP to configure the IP address If you are unable to use the BRAdmin application and your network does not use a DHCP server, you can ® also use the ARP command. The ARP command is available on Windows systems that have TCP/IP installed as well as UNIX systems.

  • Page 134: Using The Telnet Console To Configure The Ip Address

    Appendix Using the TELNET console to configure the IP address You can also use the TELNET command to change the IP address. TELNET is an effective method to change the machine’s IP address. But a valid IP address must already be programmed into the print server.
  • Page 135 Appendix Using the Brother Web BRAdmin server software for IIS to configure the IP address The Web BRAdmin server software is designed to manage all LAN/WAN Brother network connected devices. By installing the Web BRAdmin server software on a computer running IIS , administrators with a web browser can connect to the Web BRAdmin server, which then communicates with the device itself.

  • Page 136: Installation When Using A Network Print Queue Or Share

    Appendix Installation when using a Network Print Queue or Share Note If you are going to connect to a shared printer on your network, we recommend that you ask your system administrator about the queue or share name for the printer prior to installation. Installing the driver and choosing the correct printer queue or share name Turn on your computer.
  • Page 137 Appendix Installation when using Web Services ® ® (For Windows Vista and Windows 7 users) The steps may vary depending on your operating system. Note • You must configure the IP address on your machine before you proceed with this section. If you have not configured the IP address, see Setting the IP address and subnet mask on page 13 first.

  • Page 138: Print Server Specifications

    AppendixB Appendix Print server specifications Ethernet wired network Network node NC-6700h name You can connect your machine to a network for Network Printing. Support for ® ® ® ® Windows XP, Windows XP Professional x64 Edition, Windows Vista , Windows ®...

  • Page 139: Wireless Network (For Hl-3075Cw)

    Appendix Wireless network (for HL-3075CW) Network board NC-7500w model name You can connect your machine to a network for Network Printing. Support for ® ® ® ® Windows XP, Windows XP Professional x64 Edition, Windows Vista , Windows ® ®...

  • Page 140: Function Table And Factory Default Settings

    On*, Off On , Off* IPv6 Auto* , 100B-FD , 100B-HD , 10B-FD , 10B-HD Ethernet Factory Reset Restart Printer? (HL-3075CW) Level one Level two Level three Level four Options Auto* , Static , RARP , BOOTP , DHCP Network...
  • Page 141 Appendix Level one Level two Level three Level four Options 0 to 32767 Network Wired LAN TCP/IP IP Boot Tries On* , Off APIPA On , Off* IPv6 Auto* , 100B-FD , 100B-HD , 10B-FD , 10B- Ethernet Set to Default Wired Enable On*, Off Auto* , Static , RARP , BOOTP , DHCP...
  • Page 142 Index Index AES ................20 Gateway ..............49 AOSS ..............25 APIPA ............7 APOP ................ 83 ARP ................. 123 HTTP ................9 Authentication ............19 HTTPS ..............85 Infrastructure mode ........6 BINARY_P1 ............120 BOOTP ............7 Internet printing .............1 BRAdmin Light ...........
  • Page 143 Index Password ..............73 Web Based Management (web browser) ..3 PCL_P1 ..............120 Web BRAdmin ............3 Peer-to-Peer ............... 4 Web browser (HTTP) ..........17 PIN Method ............26 Web server (HTTP) ............. 9 Ping ..............116 Web server (HTTPS) ..........83 POP before SMTP ..........83 Web services ..............

This manual is also suitable for:

Hl-3045cn

Table of Contents
