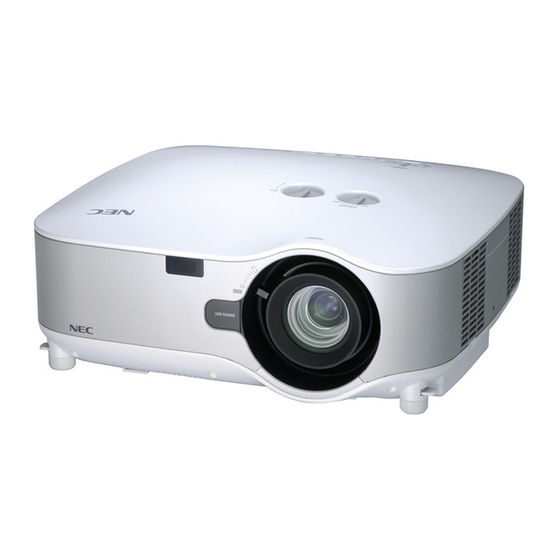

LCD Projector
NP2000/NP1000
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for NEC NP1000

Summary of Contents for NEC NP1000

  • Page 1 LCD Projector NP2000/NP1000 User’s Manual...
  • Page 2 (3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

  • Page 3: Important Information

    Important Information Safety Cautions Precautions Please read this manual carefully before using your NEC NP2000/NP1000 projector and keep the manual handy for future reference. Your serial number is located on the right side of your projector. Record it here: CAUTION To turn off main power, be sure to remove the plug from power outlet.
  • Page 4 Important Information Disposing of your used product EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.
  • Page 5 The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Solutions (America), Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6 - Do not heat the power cable - Do not handle the power plug with wet hands. • Turn off the projector, unplug the power cable and have the object removed by a qualified NEC service personnel under the following conditions: - When the power cable or plug is damaged or frayed.
  • Page 7 Important Information CAUTION • Always carry your projector by the carrying handle. Before doing so, be sure to lock the carrying handle in place. To lock the carrying handle, see "To lock the carrying handle" on page 6. • Do no use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.

  • Page 8: Table Of Contents

    Table of Contents Important Information ..................i 1. Introduction ......................1 What's in the Box? ......................1 Introduction to the Projector ..................2 Congratulations on Your Purchase of the Projector ..........2 Features you’ll enjoy ....................2 About this user's manual ..................3 Part Names of the Projector ..................
  • Page 9 Table of Contents Adjusting Volume Up & Down ..................33 Using the Laser Pointer ....................34 Setting the function switch ..................34 Turning off the Projector ..................... 35 After Use ........................35 4. Convenient Features ..................36 Turning Off the Image and Sound ................36 Freezing a Picture ......................
  • Page 10 Table of Contents Menu Descriptions & Functions [Adjust] ..............72 [Picture] ......................... 72 [Image Options] ..................... 75 [Video] ........................78 [Sound] ........................79 Menu Descriptions & Functions [Setup] ..............80 [Basic] ........................80 [Menu] ........................82 [Security] ....................... 82 [Installation] ......................87 [Options] ........................

  • Page 11: Introduction

    1. Introduction What's in the Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector. Remote control Batteries (AA x 2) (7N900692) Projector Lens cap...

  • Page 12: Introduction To The Projector

    (D-Sub 9 Pin) and LAN support. With input and output flexibility, long lamp life and a full function remote, the NP2000/NP1000 lets you enjoy larger than life viewing from a compact and easy to setup and use projector. Features you’ll enjoy : •...

  • Page 13: About This User's Manual

    For additional information visit: US : http://www.necvisualsystems.com Europe : http://www.neceurope.com/ Global : http://www.nec-pj.com/ About this user's manual The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual.

  • Page 14: Part Names Of The Projector

    1. Introduction Part Names of the Projector Front/Top Lens Shift Dial (Right / Left,Up / Down) ( → page 28) Controls ( → page 7) Focus Ring ( → page 29) Remote Sensor Ventilation (inlet) / Filter ( → page 10) ( →...

  • Page 15: Bottom

    1. Introduction Bottom Anti-theft Screw for Lens Carrying Handle ( → page 116) Carrying the Projector Always carry your projector by the handle. Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the projector.
  • Page 16 1. Introduction To lock the carrying handle 1. Carefully place the projector on its end. 2. Pull up the carrying handle with the catch pressed down. 3. Press down the left and right locks to set the carrying handle in place. •...

  • Page 17: Top Features

    1. Introduction Top Features 1 4 5 SELECT PC CARD LAMP STATUS 3D REFORM AUTO ADJUST SOURCE ON/STAND BY POWER 1. POWER Button (ON / STAND BY) (→ page 24, 35) 7. AUTO ADJUST Button (→ page 33) NOTE: To turn on the projector, press and hold this button 8.

  • Page 18: Terminal Panel Features

    1. Introduction Terminal Panel Features 15 14 13 The actual appearance of the terminal panel may differ slightly from that shown in the drawing, but this does not affect the projector's performance. 1. COMPUTER 1 IN/Component Connector (Mini D- 9. AUDIO OUT (Stereo Mini Jack) (→page 16) Sub 15 Pin) (→page 13, 15) 10.

  • Page 19: Part Names Of The Remote Control

    1. Introduction Part Names of the Remote Control 4. LED Flashes when any button is pressed. 5. POWER ON Button (→ page 24) NOTE: To turn on the projector, press and hold the POWER ON button for a minimum of two seconds. 6.

  • Page 20: Battery Installation

    1. Introduction Battery Installation Slip the cover back over the bat- Press the catch and remove Install new ones (AA). Ensure teries until it snaps into place. the battery cover. that you have the batteries' po- NOTE: Do not mix different types of larity (+/–) aligned correctly.

  • Page 21: Using The Remote Control In Wired Operation

    1. Introduction Using the Remote Control in Wired Operation Connect one end of the supplied remote cable to the REMOTE mini jack and the other end to the remote jack on the remote control. NOTE: Connecting the remote cable to the REMOTE mini jack on the terminal panel will make the wireless operation unavailable. REMOTE...

  • Page 22: Installation And Connections

    2. Installation and Connections This section describes how to set up your projector and how to connect PCs, video and audio sources. Your projector is simple to set up and use. But before you get started, you must first: z Set up a screen and the projector. x Connect your computer or video equip- ment to the projector.

  • Page 23: Making Connections

    Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

  • Page 24: When Viewing A Dvi Digital Signal

    2. Installation and Connections When Viewing a DVI Digital Signal To project a DVI digital signal, be sure to connect the PC and the projector using a DVI-D signal cable (not supplied) before turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu before turning on your PC.

  • Page 25: To Connect Scart Output (Rgb)

    SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro- connector. NOTE: Audio signal is not available for this connection. TIP: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more information.

  • Page 26: Connecting An External Monitor

    2. Installation and Connections Connecting an External Monitor COMPUTER 1 IN (or COMPUTER 2 IN / COMPONENT IN) MONITOR OUT AUDIO OUT Audio cable (not supplied) Audio cable (not supplied) VGA signal cable (supplied) VGA signal cable AUDIO PHONE You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog or component image you're projecting.

  • Page 27: Connecting Your Dvd Player With Component Output

    2. Installation and Connections Connecting Your DVD Player with Component Output COMPONENT IN AUDIO IN Component video RCA 3 cable (not supplied) Audio Equipment DVD player AUDIO IN AUDIO OUT Component Audio cable (not supplied) TIP: A component signal will be automatically displayed. If not, from the menu, select [Setup] → [Options] → [Signal Select] → [Computer 1 (or 2)] →...

  • Page 28: Connecting Your Vcr Or Laser Disc Player

    2. Installation and Connections Connecting Your VCR or Laser Disc Player S-VIDEO IN AUDIO IN VIDEO IN S-Video cable (not supplied) Video cable (not supplied) Audio equipment VCR/ Laser disc player S-VIDEO VIDEO AUDIO IN VIDEO OUT AUDIO OUT Audio cable (not supplied) TIP: You can connect a video cable to the "Y"...

  • Page 29: Connecting To A Network

    Connecting to a Network The NP2000/NP1000 comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable. Placing the optional wireless LAN card (NWL-100*) in the PC card slot of the projector also provides a wireless LAN connection.
  • Page 30 2. Installation and Connections (B) Example of wireless LAN connection (Network Type → Mode: Infrastructure) PC with wireless PC with built-in wireless LAN card inserted LAN function Wireless LAN card (Optional) Access point Wired LAN To make connection with a wired LAN via an access point, you need to select the Infrastructure mode. From the menu, select [Setup] →...

  • Page 31: Inserting And Removing A Pc Card

    2. Installation and Connections Inserting and Removing a PC Card To insert the NEC optional wireless LAN card or a PC memory card (also referred to as PC card in this manual), follow the steps below. CAUTION: * Direction for Inserting the PC Card The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction.

  • Page 32: Pc Card Type

    2. Installation and Connections Removing the PC Card 1. Make sure that the PC CARD access indicator is not lit. (This step is needed only when the PC memory card being inserted into the projector’s PC CARD slot.) NOTE: The PC CARD access indicator lights while its data is being accessed. Eject button 2.

  • Page 33: Connecting The Supplied Power Cable

    2. Installation and Connections Connecting the Supplied Power Cable Connect the supplied power cable to the projector. First connect the supplied power cable's three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet. To wall outlet Make sure that the prongs are fully inserted into both the AC IN and the...

  • Page 34: Projecting An Image (Basic Operation)

    3. Projecting an Image (Basic Operation) This section describes how to turn on the projector and to project a picture onto the screen. Turning on the Projector NOTE: • The projector has two power switches: a main power switch and a POWER (ON/STAND BY) button (POWER ON and OFF on the remote control).

  • Page 35: Note On Startup Screen (Menu Language Select Screen)

    3. Projecting an Image (Basic Operation) Note on Startup screen (Menu Language Select screen) When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 21 menu languages. To select a menu language, follow these steps: 1.

  • Page 36: Selecting A Source

    3. Projecting an Image (Basic Operation) Selecting a Source Selecting the computer or video source Selecting from Source List Press and quickly release the SOURCE button on the projector cabinet to display the Source list. Each time the SOURCE button is pressed, the input source will SELECT change as follows: “Computer 1/2/3”, “Component”, “Video”...

  • Page 37: Adjusting The Picture Size And Position

    3. Projecting an Image (Basic Operation) Adjusting the Picture Size and Position Use the lens shift dials, the adjustable tilt foot levers, the zoom lever or the focus ring to adjust the picture size and position. Adjusting the position of a projected image Adjusting the focus [Lens shift] [Focus ring]...

  • Page 38: Adjusting The Position Of A Projected Image

    3. Projecting an Image (Basic Operation) Adjusting the position of a projected image • Rotate the lens shift dial. LENS SHIFT LEFT RIGHT NOTE: The lens shift dial for LEFT-RIGHT cannot be rotated one-half turn or more. Do not over rotate it or it may break. TIP: The lens shift dial for UP-DOWN can be rotated one turn or more, but not beyond the adjustable range defined below.

  • Page 39: Adjusting The Focus (Focus Ring)

    3. Projecting an Image (Basic Operation) Adjusting the focus (Focus ring) • Rotate the focus ring to make focus adjustment. Focus ring LENS RELEASE Finely adjusting the size of an image (Zoom lever) • Rotate the zoom lever to adjust the image size on the screen. Zoom lever LENS RELEASE...

  • Page 40: Adjusting The Tilt Foot

    3. Projecting an Image (Basic Operation) Adjusting the Tilt Foot 1. Lift the front edge of the projector. CAUTION: Do not try to touch the ventilation outlet during Tilt Foot adjustment as it can become heated while the projector is turned on and during its cool down period after it is turned off.

  • Page 41: Correcting Keystone Distortion

    3. Projecting an Image (Basic Operation) Correcting Keystone Distortion When the projector is not exactly perpendicular to the screen, keystone distortion occurs. To overcome it, you can use the "Keystone" function, a digital technology that can adjust for keystone-type distortion, resulting in a crisp, square image. The following procedure explains how to use the [Keystone] screen from the menu to correct trapezoidal distortions.
  • Page 42 3. Projecting an Image (Basic Operation) 5. Repeat steps 2 and 4 to correct keystone distortion. 6. After completing Keystone correction, press the ENTER button. The Keystone screen will disappear. • To perform Keystone correction again, press the 3D REFORM button to display the Keystone screen and repeat above steps 1 to 6.

  • Page 43: Optimizing An Rgb Image Automatically

    3. Projecting an Image (Basic Operation) Optimizing an RGB Image Automatically Adjusting the Image Using Auto Adjust Optimizing an RGB image automatically. Press the Auto Adjust button to optimize an RGB image automatically. This adjustment may be necessary when you connect your computer for the first time. [Poor picture] LASER L-CLICK...

  • Page 44: Using The Laser Pointer

    3. Projecting an Image (Basic Operation) Using the Laser Pointer You can use the laser to draw your audience's attention to a red dot that you can place on any object. CAUTION: • Do not look into the laser pointer while it is on. •...

  • Page 45: Turning Off The Projector

    3. Projecting an Image (Basic Operation) Turning off the Projector To turn off the projector: 1. Press the POWER (ON/STAND BY) button on the projector POWER POWER COMPUTER cabinet or the POWER OFF button on the remote control. The VIEWER VIDEO COMPONENT [Power Off / Are you sure?] message will appear.

  • Page 46: Convenient Features

    Status of LAMP indicator Normal Mode This is the Default setting (100% Brightness). Eco Mode Select this mode to increase the lamp Steady Green light life (approx. 80% Brightness (light output) on NP2000 and approx. 85% Brightness (light output) on NP1000)

  • Page 47: Getting Integrated Help

    4. Convenient Features Getting Integrated Help POWER POWER LASER COMPUTER You get the contents about Help in English, German and VIEWER VIDEO L-CLICK R-CLICK MOUSE COMPONENT FREEZE S-VIDEO Japanese. ASPECT LAMP MODE AUTO ADJ. VOLUME MAGNIFY PAGE 1. Press the HELP button on the remote control. SELECT DOWN PICTURE...

  • Page 48: Using A Usb Mouse

    4. Convenient Features Using a USB Mouse Using a USB mouse gives you a smooth operation. A commercially available USB mouse can be used. NOTE: There may be some brands of a USB mouse that the projector does not support. NOTE: Do not try to insert the plug of your USB mouse into the LAN port (LAN) of the projector.

  • Page 49: Using The Optional Remote Mouse Receiver

    4. Convenient Features Using the Optional Remote Mouse Receiver The optional remote mouse receiver enables you to operate your computer’s mouse functions from the remote con- trol. It is a great convenience for your computer-generated presentations. Connecting the remote mouse receiver to your computer If you wish to use the remote mouse function, connect the mouse receiver and computer.
  • Page 50 4. Convenient Features Operating your computer’s mouse from the remote control You can operate your computer's mouse from the remote control. PAGE UP/DOWN Button ....scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint on your computer.

  • Page 51: Correcting Horizontal And Vertical Keystone Distortion (Cornerstone)

    4. Convenient Features Correcting Horizontal and Vertical Keystone Distortion (Cor- nerstone) Use the 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right side of the screen longer or shorter so that the projected image is rectangular. Cornerstone 1.
  • Page 52 4. Convenient Features 7. Use the SELECT button to move the projected image frame as shown on the example. Screen 8. Press the ENTER button. Screen 9. Use the SELECT button to select another icon which points in the direction. On the Cornerstone adjustment screen, select [Exit] or press the EXIT button on the remote control.
  • Page 53 4. Convenient Features The adjustable ranges for 3D Reform are as follows: Horizontal Vertical Cornerstone Max. +/– 35° approx. Max. +/– 40° approx. Keystone Max. +/– 27° approx. * The following are conditions under which the maximum angle is achived: •...

  • Page 54: Making Freehand Drawings On A Projected Image (Chalkboard)

    4. Convenient Features Making Freehand Drawings on a Projected Image (ChalkBoard) The ChalkBoard feature allows you to write and draw messages on a projected image. NOTE: Selecting another source will quit the ChalkBoard function. NOTE: The ChalkBoard feature is available only when a USB mouse is used. To display the ChalkBoard tool bar, click the middle button on your mouse or select [ChalkBoard] from the menu.

  • Page 55: Preventing Unauthorized Use Of The Projector

    4. Convenient Features Preventing Unauthorized Use of the Projector Assigning a keyword prevents the projector from being used by unauthorized individuals. Assigning a Keyword for the first time 1. Press the MENU button. The menu will be displayed. 2. Press the SELECT button to highlight the [Setup] submenu and press the ENTER button.
  • Page 56 4. Convenient Features 4. Press the SELECT button four times to highlight [Security]. 5. Press the ENTER button to display the Security screen. 6. Press the SELECT button once to highlight the Keyword entry box and press the ENTER button. The Software keyboard will be displayed.
  • Page 57 4. Convenient Features 7. Enter an alphanumeric keyword using the Software keyboard For example, to enter “1234”, follow the steps 7-1 to 7-4 below. NOTE: • Please make a note of your keyword. • Do not use spaces (SP) in your keyword. 7-1.
  • Page 58 4. Convenient Features Checking If Security is enabled Turn off the projector and turn it back on to check if the Security function is enabled. 1. Press the POWER (ON/STANDBY) button. The [Power Off / Are you sure?] message will appear. Press the ENTER button or the POWER (ON/STANDBY) or the POWER OFF button again.
  • Page 59 [OK] and press the ENTER button. The Security Function is now disabled. NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code upon proof of ownership.

  • Page 60: Operation Using An Http Browser

    IP address of the projector has been set in the “HOSTS” file of the computer being used. Example 1: When the host name of the projector has been set to “pj.nec.co.jp”, http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL.
  • Page 61 4. Convenient Features Structure of the HTTP Server Power: This controls the power of the projector. On ....Power is switched on. Off ....Power is switched off. Volume: This controls the volume of the projector...... Increases the volume adjustment value......
  • Page 62 4. Convenient Features Source Select: This switches the input connector of the projector. Computer1 ..Switches to the COMPUTER 1 IN connector. Computer2 ..Switches to the COMPUTER 2 IN connector. Computer3 ..Switches to the COMPUTER 3 IN connector. Component ..

  • Page 63: Using The Projector To Operate A Computer Connected On A Network (Desktop Control Utility 1.0)

    4. Convenient Features Using the Projector to Operate a Computer Connected on a Network (Desktop Control Utility 1.0) When Desktop Control Utility 1.0 on the included User Supportware 3 CD-ROM is installed on the computer, that computer can be operated using the projector over a network. For example, say you have a PowerPoint file on a computer in your office that you want to use for a presentation at a meeting.
  • Page 64 4. Convenient Features Operations on the Computer 1. Connect the computer to the LAN and make the required settings. 2. Install Desktop Control Utility 1.0 on the computer. • For instructions on installing and operating the software, see the "User Supportware 3 User's Guide" (PDF) contained on User Supportware 3 CD-ROM.
  • Page 65 4. Convenient Features Operations on the projector – Connecting to the computer 1. Make the LAN settings on the projector. Make the LAN settings at [Setup] → [Installation] → [LAN Mode] in the menu. ( → page 89) 2. Connect a commercially available USB mouse to the projector. ( → page 38) 3.
  • Page 66 4. Convenient Features 9. Input the password you made a note of in the previous Step 6 in “Operations on the Computer”. 10. Input the password and click [OK]. The password input window is turned off. 11. Click the PC search icon The PC search window appears.
  • Page 67 4. Convenient Features The following operations are available only with buttons on the projector cabinet or the remote control. Disconnect icon ....Use to cut off communications with the computer. Shift icon ......Select this icon and press the ENTER button to set the shift lock mode. Select this icon and press the ENTER button again to cancel the shift lock mode.

  • Page 68: Using The Viewer

    Both PNG and GIF format support non-interlaced images only. “Index” file is a file created using the Ulead Photo Explorer 8.0 contained on the supplied NEC User Supportware 3 CD-ROM. See the supplied “User Supportware 3 User’s Guide” for installing the Ulead Photo Explorer 8.0 on your computer.

  • Page 69: Saving Data To A Pc Card Or Usb Memory Device

    5. Using the Viewer Saving data to a PC card or USB memory device There are two ways to save your data to a PC card or USB memory device. Using Ulead Photo Explorer 8.0 Install Ulead Photo Explorer 8.0 from the supplied User Supportware 3 CD-ROM to your computer. Use Ulead Photo Explorer 8.0 to create PowerPoint files or graphic data on your computer and save the files to a PC card or USB memory device.

  • Page 70: Operating The Viewer Function From The Projector (Playback)

    5. Using the Viewer Operating the Viewer Function from the Projector (playback) This section describes the operation for showing slides created using the Viewer function with the projector. It is also possible to make slides directly from the images projected with the projector. Projecting slides (Viewer) Preparation: Store JPEG or BMP files (JPEG, BMP, non-interlaced GIF or non-interlaced PNG files) in a PC card or USB memory inserted into your PC.

  • Page 71: Viewer Window Elements

    5. Using the Viewer Viewer Window Elements Thumbnail/file name Number of files Slot 1 3 Files RECYCLED List of folders PICTURE 0000.jpg 0001.jpg 0002.jpg Highlight Scroll bar Cursor (orange) Information 1/3 0000.jpg 60KB 08/21/2005 06/29 263KB select : ENTER Highlight ........Indicates the selected folder or drive. List of folders ......

  • Page 72: Setting Option For Viewer

    5. Using the Viewer Setting Option for Viewer Play Mode: Manual ....Views a slide manually when the Viewer source is selected. Auto ...... Plays back slides automatically when the Viewer source is selected. Interval: Specifies interval time between 5 and 300 seconds. Start: Specifies start screen when the Viewer source is selected.

  • Page 73: Exiting Viewer

    5. Using the Viewer Exiting Viewer To exit Viewer, switch to another input such as Computer 1, Computer 2, Computer 3, Component, Video, S-Video or LAN. * To switch to another input, there are two ways: * Press the COMPUTER 1, COMPUTER 2, COMPUTER 3, COMPONENT, VIDEO, S-VIDEO or LAN button on the remote control.

  • Page 74: Changing Background Logo

    Once you have changed the background from the NEC logo to another, you cannot return the logo to background even by using [Reset]. To put the NEC logo back in the background logo, repeat the above steps. The NEC logo file...

  • Page 75: Using On-Screen Menu

    6. Using On-Screen Menu Using the Menus 1. Press the MENU button on the remote control or the projector cabinet to display the menu. Submenu Submenu window Main menu Currently available buttons NOTE: The commands such as , ENTER, EXIT in the gray bar show available buttons for your operation. 2.

  • Page 76: Menu Tree

    6. Using On-Screen Menu Basic menu items are indicated by Menu tree shaded area. Factory default settings are indicated by the gray shaded area. Menu Item Source Computer 1, Computer 2, Computer 3, Component, Video, S-Video, Viewer, LAN, Entry List Adjust Picture Mode...
  • Page 77 6. Using On-Screen Menu Menu Item Setup Installation Orientation Desktop Front, Ceiling Rear, Desktop Rear, Ceiling Front Screen Screen Type: 4:3, 16:9 / Position LAN Mode Built-in Profiles: Profile 1, Profile 2 DHCP: On, Off IP Address Subnet Mask Gateway DNS Configuration Reconnect PC Card...

  • Page 78: Menu Elements

    6. Using On-Screen Menu Menu Elements Slide bar Highlight Close button Help button Radio button Check box Solid triangle Cancel button OK button Menu windows or dialog boxes typically have the following elements: Highlight ....Indicates the selected menu or item. Solid triangle ..

  • Page 79: Menu Descriptions & Functions [Source]

    Ulead Photo Explorer 8.0 for NEC contained on the CD-ROM. See the supplied NEC Wired and Wireless Network Setup Guide for installing the Ulead Photo Explorer 8.0 for NEC. See page for viewing slides. Selects a signal from the LAN port (RJ-45) or the NEC optional wireless LAN card plugged into the projector's card slot.

  • Page 80: [Entry List]

    6. Using On-Screen Menu [Entry List] Use the SELECT buttons on your remote control or the projector cabinet to select the signal and press the ENTER button on the remote control or the projector cabinet to display the [Entry Edit Command] screen. Entering the Currently Projected Signal into the Entry List 1.

  • Page 81: Entry Edit Command

    6. Using On-Screen Menu [Entry Edit Command] You can edit signals on the [Entry List]. Load ...... Enables you to select a signal from the list. Store ..... Enables you to store the currently projected signal. Cut ......Enables you to remove a selected signal from the list and place it on the "clipboard" in the projector. Copy ......

  • Page 82: Menu Descriptions & Functions [Adjust]

    6. Using On-Screen Menu Menu Descriptions & Functions [Adjust] [Picture] [Mode] This function allows you to determine how to save settings for [Detail Settings] of [Preset] for each input. Standard : Saves settings for each item of [Preset] (Preset 1 through 6) Professional : Saves all the settings of [Picture] for each input.
  • Page 83 6. Using On-Screen Menu [Detail Settings] This will provide you with three pages of menus that provide more detailed settings. [General] Selecting Reference Setting [Reference] This feature allows you to use color correction or gamma values as reference data to optimize for various types of images.
  • Page 84 6. Using On-Screen Menu [Brightness] Adjusts the brightness level or the back raster intensity. [Contrast] Adjusts the intensity of the image according to the incoming signal. You have two options: Manual and Auto. NOTE: The Auto Contrast function will not work when the menu or a message is displayed [Sharpness] Controls the detail of the image for Video (not valid for RGB and digital signals).

  • Page 85: [Image Options]

    6. Using On-Screen Menu [Image Options] Adjusting Clock and Phase [Clock/Phase] This allows you to manually adjust Clock and Phase. Clock ..... Use this item to fine tune the computer image or to remove any vertical banding that might appear. This function adjusts the clock frequencies that eliminate the horizontal banding in the image.
  • Page 86 6. Using On-Screen Menu Adjusting Horizontal/Vertical Position [Horizontal/Vertical Position] Adjusts the image location horizontally and vertically. Masking Unwanted Area [Blanking] This feature allows you to mask any unwanted area of the screen image. Selecting Overscan Percentage [Overscan] Select overscan percentage (0%, 5% and 10%) for signal. Projected image Overscaned by 10% NOTE: You cannot select [0%] for some input signals.
  • Page 87 6. Using On-Screen Menu Selecting Aspect Ratio [Aspect Ratio] Screen Type 4:3 Screen Type 16:9 Aspect Ratio allows you to select the best Aspect mode to display your source image. When screen type 4:3 is selected for the source, the following selections will display: 4:3 ......

  • Page 88: [Video]

    6. Using On-Screen Menu [Video] Turning On/Off 3 Dimension Separation [3D Y/C Separation] This function turns on or off the 3 dimensional separation feature. Off ....... Turns off the function. Still ....Recommended for a still image. Normal .... The projector detects and corrects the image automatically. Movie ....

  • Page 89: [Sound]

    6. Using On-Screen Menu Setting Telecine Mode [Telecine] Use 3:2 pull down correction to eliminate jitter and artifacts in video. NOTE: This feature is available only when [Deinterlace] is turned on and an SDTV signal is selected. Off ........Turns off the Telecine mode. 2-2/2-3 Auto ..

  • Page 90: Menu Descriptions & Functions [Setup]

    6. Using On-Screen Menu Menu Descriptions & Functions [Setup] [Basic] Selecting Keystone Mode [Keystone] This feature allows you to correct keystone distortion. Selecting this item will display the Keystone setting menu. You can correct vertical distortion manually from the menu. (→ page 31) Changes will be saved even when you turn off the projector.
  • Page 91 (approx. 80% Brightness (light output) on NP2000 and approx. 85% Brightness (light output) on NP1000). NOTE: If the projector is overheated in Normal mode, there may be a case where the Lamp mode will be forced into the Eco mode to protect the projector.

  • Page 92: [Menu]

    6. Using On-Screen Menu [Menu] Selecting Menu Color [Color Select] You can choose a color for the menu. Turning On / Off Source Display, Message and Time [Display Select] Source ....This option turns on or off input name display such as Computer 1, Computer 2, Computer 3, Component, Video, and No Input to be displayed on the top right of the screen.
  • Page 93 6. Using On-Screen Menu Setting a Password [Menu Lock] / [Logo Lock] A password can be set for your projector to avoid operation by an unauthorized person. When [Menu Lock] is set, changing the menu from Basic to Advanced will display the Password input screen. When [Logo Lock] is set, doing any one of the following two operations will display the Password input screen.
  • Page 94 6. Using On-Screen Menu [Security] The Security function enables you to protect your projector so that the projector will not project a signal unless you enter a keyword. There is also an option to lock the projector by using a registered PC card* or USB memory* as a protect key.
  • Page 95 3. Enter your keyword in the Release Code input screen. You can view the projected image. NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code. See more information at the end of this section.
  • Page 96 The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric charac- ters). NOTE: NEC or your dealer will provide you with your Release Code in exchange for your registered keyword and Request Code. See more information at the end of this section.

  • Page 97: [Installation]

    6. Using On-Screen Menu NOTE: What is PJLink? PJLink is a standardization of protocol used for controlling projectors of different manufacturers. This standard protocol is established by Japan Business Machine and Information System Industries Association (JBMIA) in 2005. The projector supports all the commands of PJLink Class 1. Setting of PJLink will not be affected even when [Reset] is done from the menu.
  • Page 98 6. Using On-Screen Menu Selecting Aspect Ratio and Position for Screen [Screen] Screen Type ... Select one of two options: 4:3 Screen or 16:9 Screen for the screen to be used. See also [Aspect Ratio]. (→ page 77) Position ....This feature allows you to adjust the vertical position of the image when 16:9 has been selected for the screen type.
  • Page 99 * Last digit of the model code varies depending on which country you live in. For more information, visit our Website. • To use wireless LAN, insert the NEC optional wireless LAN card (NWL-100*) into the PC Card slot. (→ "Inserting and Removing a PC Card” on page 21)
  • Page 100 6. Using On-Screen Menu To receive error messages or information on the remaining lamp life via e-mail: 1. On the [Mail] tab, select [Alert Mail] and press the ENTER button. A check mark will be placed. 2. Set [Sender's Address], [SMTP Server Name] and [Recipient's Address]. Select [OK] and press the ENTER button.
  • Page 101 6. Using On-Screen Menu [PC Card] Profiles (for PC Card): To execute a wireless LAN easily using Image Express Utility 2.0, select [Easy Connection]. Up to two settings for the optional wireless LAN card can be stored in memory of the projector. Select [Profile 1] or [Profile 2] and then do settings for [DHCP] and the other options.
  • Page 102 6. Using On-Screen Menu [Advanced] menu [Network Type] (required for wireless only) Site Survey: Displays a list of available SSIDs for wireless LAN on site. Select an SSID which you can access. To select an SSID, highlight [SSID] and use the SELECT to select [OK] and press the ENTER button.
  • Page 103 6. Using On-Screen Menu [WEP] (required for wireless only) Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption, specify WEP key. Disable ....Will not turn on the encryption feature. Your communications may be monitored by someone. 64bit ......
  • Page 104 6. Using On-Screen Menu Using Software Keyboard to enter an encryption key 1. Select one of [Key 1], [Key 2], [Key 3] and [Key 4] and press the ENTER button. The software keyboard will be displayed. 2. Use the SELECT button to select one key and press the ENTER button.
  • Page 105 6. Using On-Screen Menu [Mail] Alert Mail: Checking this box enables Alert Mail feature. This option notifies your computer of an error message via e-mail when using wireless or wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the projector.
  • Page 106 6. Using On-Screen Menu [Projector Name] Specify a unique projector name. Press to display the software keyboard and type in. Up to 16 alphanumeric characters can be used. After entering a name, select [OK] and press the ENTER button. Using Software Keyboard 1 to 0 and Characters ..

  • Page 107: [Options]

    6. Using On-Screen Menu [Options] Setting Auto Adjust [Auto Adjust] This feature sets the Auto Adjust mode so that the RGB image can be automatically or manually adjusted for noise and stability. You can automatically make adjustment in two ways: [Normal] and [Fine]. Off ......
  • Page 108 6. Using On-Screen Menu Selecting Signal Format [Signal Select] Computer 1/2 Allows you to set [Computer 1] and [Computer 2] to automatically detect an incoming RGB or component source such as a computer or DVD player. However there may be some RGB and component signals that the projector is unable to detect.

  • Page 109: [Tools]

    6. Using On-Screen Menu [Tools] Selecting the ChalkBoard [ChalkBoard] This option displays the ChalkBoard tool bar. The ChalkBoard feature allows you to write and draw messages on a projected image. (→ page 44) NOTE: The ChalkBoard feature is available only when a USB mouse is used. Using Off Timer [Off Timer] 1.
  • Page 110 6. Using On-Screen Menu NOTE: • Before setting the Program Timer, make sure that the [Date, Time Preset] feature is set. ( → page 96) • Make sure that the projector is in the stand by condition with the Main Power Switch on. •...
  • Page 111 6. Using On-Screen Menu 5. Set the Active option. • Use the SELECT button to select [Active] and press the ENTER button. A check mark will be placed in [Active]. 6. Complete the settings. • Use the SELECT button to select the [OK] button and press the ENTER button. On- time or off-time will be set.
  • Page 112 6. Using On-Screen Menu Delete the programmed settings 1. On the Program Timer screen, use the SELECT button to select a program you want to delete and press the ENTER button. • The [Command] screen will be displayed. 2. Use the SELECT button to select the [Delete] button and press the ENTER button.

  • Page 113: Menu Descriptions & Functions [Information]

    6. Using On-Screen Menu Menu Descriptions & Functions [Information] Displays the lamp and the projector usage hours, the status of the current signal and settings and LAN settings. This dialog box has seven pages. The information included are as follows: [Usage Time] Lamp Life Remaining (%) Lamp Hours Used (H)

  • Page 114: [Source

    6. Using On-Screen Menu [Source Page1] Input Terminal Signal Type Video Type Source Name Entry No. [Source Page2] Horizontal Frequency Vertical Frequency Sync Type Sync Polarity Scan Type...

  • Page 115: [Lan Built-In]

    6. Using On-Screen Menu [LAN Built-in] This page shows information on settings for the LAN port (RJ-45) IP Address ..... Indicates the IP address of the projector when the LAN port (RJ-45) is used. Subnet Mask ..Indicates the subnet mask of the projector when the LAN port (RJ-45) is used Gateway ....

  • Page 116: [Lan Wireless]

    6. Using On-Screen Menu [LAN Wireless] This page shows information on settings for WEP key for encryption. SSID ...... Indicates the identifier (SSID) for your wireless LAN. Mode ..... Indicates that [Easy Connection], [Infrastructure] or [802.11 Ad Hoc] is selected for your communication method WEP ......

  • Page 117: Menu Descriptions & Functions [Reset]

    6. Using On-Screen Menu Menu Descriptions & Functions [Reset] Returning to Factory Default The Reset feature allows you to change adjustments and settings to the factory preset for sources by the following methods: [Current Signal] Resets the adjustments for the current signal to the factory preset levels. All the items in [Adjust] can be reset.

  • Page 118: Maintenance

    7. Maintenance This section describes the simple maintenance procedures you should follow to clean the filters and replace the lamp. Cleaning or Replacing the Filter The air-filter sponge keeps dust and dirt from getting inside the projector and should be cleaned after every 100 hours of operation (more often in dusty conditions).

  • Page 119: Cleaning The Cabinet And The Lens

    7. Maintenance 2. Gently peel off the filter (sponge) and replace it with the new one. The filter is attached self-adhesive tape. Peel off a release paper before use. 3. Reinstall the new filter cover. • Slip the filter cover back until it snaps into place. 4.

  • Page 120: Replacing The Lamp

    Eco mode) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.
  • Page 121 3. Insert a new lamp housing until the lamp housing is plugged into the socket. CAUTION Do not use a lamp other than the NEC replacement lamp NP01LP. Order this from your NEC dealer. Secure it in place with the two screws.
  • Page 122 7. Maintenance 4. Reattach the lamp cover. Slip the lamp cover back until it snaps into place. 5. Connect the supplied power cable, turn on the Main Power switch and turn on the projector. 6. Finally, select the menu → [Reset] → [Clear Lamp Hours] to reset the lamp life remaining and lamp usage hours.

  • Page 123: Using Optional Lenses

    8. Using Optional Lenses Five optional lenses are available for the NP2000/NP1000. See the information described on this page to buy the appropriate lens for your screen size and throw distance. See page for installing the lens. Table of Throw Distances and Screen Sizes for Optional Lenses...

  • Page 124: Lens Shift Adjustable Range

    8. Using Optional Lenses Lens Shift Adjustable Range The top right diagram shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point. The projector has a lens shift feature that allows you to move the image vertically or horizontally.

  • Page 125: Replacing With Optional Lens

    8. Using Optional Lenses Replacing with Optional Lens CAUTION • Do not give a shock or excessive load to the projector or the lens components as the projector and lens compo- nents contain precision parts. • When shipping the projector with the optional lens, remove the optional lens before shipping the projector. The lens and the lens shift mechanism may encounter damage caused by improper handling during transportation.

  • Page 126: Using Anti-Theft Screw

    8. Using Optional Lenses Using the anti-theft screw to prevent theft of the lens Tighten the supplied anti-theft screw on the front bottom. Hole of anti-theft screw for lens unit...

  • Page 127: Indicator Messages

    9. Appendix Troubleshooting This section helps you resolve problems you may encounter while setting up or using the projector. Indicator Messages Power Indicator Indicator Condition Projector Condition Note The main power is off – Blinking light Green 0.5 sec On, The projector is getting ready to turn on.

  • Page 128: Troubleshooting

    9. Appendix Common Problems & Solutions (→ "Power/Status/Lamp Indicator" on page 117) Problem Check These Items Does not turn on • Check that the power cable is plugged in and that the power button on the projector cabinet or the remote control is on.
  • Page 129 ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

  • Page 130: Specifications

    - 32.6 mm Lamp NP2000 : 300 W AC (252 W in Eco mode) NP1000 : 280 W AC (252 W in Eco mode) Light Output NP2000 : 4000 lumens (approx.80% in Eco) NP1000 : 3500 lumens (approx.85% in Eco)
  • Page 131 Meets Low Voltage Directive (EN60950-1, TÜV GS Approved) For additional information visit: US : http://www.necvisualsystems.com Europe : http://www.neceurope.com/ Global : http://www.nec-pj.com/ For information on our optional accessories, visit our website or see our brochure. The specifications are subject to change without notice.

  • Page 132: Cabinet Dimensions

    9. Appendix Cabinet Dimensions ON/STAND SOURCE ADJUST AUTO REFORM POWER STATUS LAMP CARD SELECT MENU RIGHT LEFT SHIFT LENS 399/15.7" Unit: mm/inch...

  • Page 133: Screen Size And Projection Distance

    9. Appendix Screen Size and Projection Distance This section should be used when considering the distance to the screen and the screen size. Available projection distances are 1.0 m/41.2 inches for 30" screen to 18 m/718 inches for 500" screen, according to the chart.
  • Page 134 9. Appendix List of Screen Sizes List of Screen Sizes Width (H) Height (V) Screen size inch inch Height Screen size (Diagonal) 30" 24.0 0.46 18.0 40" 31.5 23.6 60" 47.2 35.4 80" 63.0 47.2 100" 78.7 59.1 120" 94.5 70.9 Width 150"...

  • Page 135: Pin Assignments Of D-Sub Computer 1 Input Connector

    9. Appendix Pin Assignments of D-Sub COMPUTER 1 Input Connector Mini D-Sub 15 Pin Connector Signal Level Video signal : 0.7Vp-p (Analog) Sync signal : TTL level Pin No. RGB Signal (Analog) YCbCr Signal Green or Sync on Green Blue Ground Ground Red Ground...

  • Page 136: Compatible Input Signal List

    9. Appendix Compatible Input Signal List Signal Resolution Frequency H. Refresh Rate ( Dots ) ( kHz ) ( Hz ) NTSC – 15.73 60.00 – 15.63 50.00 PAL60 – 15.73 60.00 SECAM – 15.63 50.00 VESA 31.47 59.94 31.48 59.95 35.00 66.67...

  • Page 137: Pc Control Codes And Cable Connection

    9. Appendix PC Control Codes and Cable Connection PC Control Codes Function Code Data POWER ON POWER OFF INPUT SELECT COMPUTER 1 INPUT SELECT COMPUTER 2 INPUT SELECT COMPUTER 3 INPUT SELECT COMPONENT INPUT SELECT VIDEO INPUT SELECT S-VIDEO INPUT SELECT VIEWER PICTURE MUTE ON PICTURE MUTE OFF SOUND MUTE ON...

  • Page 138: Using Software Keyboard

    9. Appendix PC Control Connector (D-SUB 9P) To TxD of PC To RxD of PC To GND of PC To RTS of PC To CTS of PC NOTE 1: Pins 1, 4, 6 and 9 are no used. NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection. NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps.

  • Page 139: Troubleshooting Check List

    9. Appendix Troubleshooting Check List Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently.
  • Page 140 Native resolution: Refresh rate: Video adapter: Other: Projector DVD player Video equipment Signal cable VCR, DVD player, Video camera, Video game or other NEC standard or other manufacturer’s cable? Model number: Length: inch/m Manufacturer: Distribution amplifier Model number: Model number: Switcher...

  • Page 141: Travelcare Guide

    TravelCare - a service for international travelers 6) Problems or damage caused by expendable supplies or devices connected to the product other than those designated by NEC. This product is eligible for "TravelCare", NEC's unique international war- 7) Problems caused by natural consumption, wear or deterioration ranty.
  • Page 142 +966 1 4645064 Fax Line: +966 1 4657912 (Regions Covered) Email Address: bhimji@samir-photo.com Taiwan Alkhobar NEC Solutions Asia Pacific Pte. Ltd Address: P.O.Box 238, Alkhobar 31952, Saudi Arabia Address: 401 Commonwealth Drive, #07-02, Haw Par Telephone: +966 3 8942674 Technocentre, Singapore 149598...
  • Page 143 9. Appendix P-1/ Date: TO: NEC or NEC's Authorized Service Station: (Company & Name with signature) Dear Sir (s), I would like to apply your TravelCare Service Program based on attached registration and qualification sheet and agree with your following conditions, and also the Service fee will be charged to my credit card account, if I don't return the Loan units within the specified period.
  • Page 144 3) Any fault in the attachments or associated products or components (whether or not supplied by NEC or its agents which do not form part of the Product covered by this warranty); 4) Any act of God, fire, flood, war, act of violence or any similar occur- rence;...

This manual is also suitable for:

Np2000

Table of Contents
