JVC CL-S500 Series Operation Manual

JVC CL-S500 Series Operation Manual

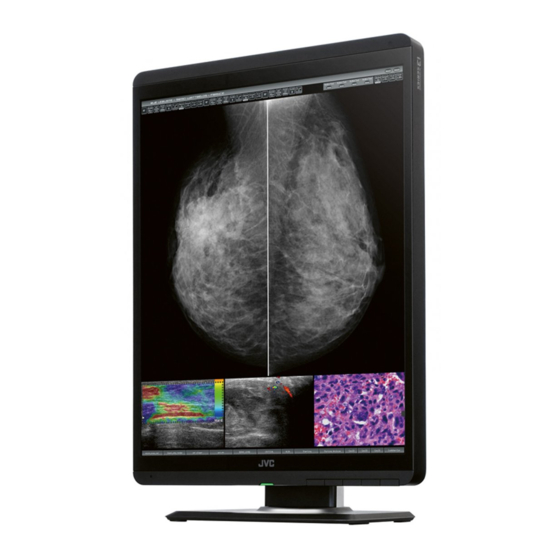

21.3-inch (54 cm) color lcd monitor
Hide thumbs Also See for CL-S500 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
21.3-inch (54 cm) Color LCD Monitor
Operation Manual
Model: CL-S500BG0UA
CL-S500BG0EA
CL-S500BG2UA
CL-S500BG2EA
Important
Please read this "Operation Manual" carefully before use.
Please make sure to read the "Safety precautions" first and keep this "Operation
Manual" in a safe and easily accessible place for future reference.
B5A-2908-40

Advertisement

Table of Contents
loading

Related Manuals for JVC CL-S500 Series

Summary of Contents for JVC CL-S500 Series

  • Page 1 21.3-inch (54 cm) Color LCD Monitor Operation Manual Model: CL-S500BG0UA CL-S500BG0EA CL-S500BG2UA CL-S500BG2EA Important Please read this “Operation Manual” carefully before use. Please make sure to read the “Safety precautions” first and keep this “Operation Manual” in a safe and easily accessible place for future reference. B5A-2908-40...
  • Page 2 Attention! The monitor screen can be rotated horizontally or vertically at 90 degrees. The monitor screen is rotated horizontally by default, rotate it according to your usage. Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved. License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc.

  • Page 3: Table Of Contents

    Contents Before use ............................4 Safety precautions ........................15 Features ............................20 Names and functions of parts .....................22 Reference ............................24 Operating principle ........................24 Cleaning the monitor .......................25 Connector pin assignment ....................26 Technical specification ......................27 After-sales service ........................29 Disposal of electrical and electronic equipment ............30 - 3 -...

  • Page 4: Before Use

    Before use Thank you for purchasing our color LCD CL-S500. Please read this manual carefully for proper use. For your safety This manual contains important information on how to use the product. Please make sure to read the safety precautions first and keep this manual in a safe and easily accessible place for future reference.
  • Page 5 Also, any unauthorized changes or modifications to this monitor would void the user's authority to operate this device. Supplier’s Declaration of Conformity Trade Name: JVC Products: LCD Monitor Model Name: CL-S500BGxUA, CL-S500BGxEA...
  • Page 6 UK Responsible Person JVCKENWOOD U.K. Limited First Floor, Gleneagles, The Belfry, Colonial Way, Watford, Hertfordshire WD24 4WH, UNITED KINGDOM Warning ● This apparatus must be earthed because of Class I equipment. ● This apparatus is not a patient contact equipment. ●...
  • Page 7 EMC performance WARNING • This product requires special EMC precautions and needs to be installed and used according to the following information. • Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
  • Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The model CL-S500 is intended for use in the electromagnetic immunity environment (Home healthcare environment defined in IEC 60601-1-2) specified below. The customer or the user of the model CL-S500 should assure that it is used in such an environment.
  • Page 9 Guidance and manufacturer’s declaration – electromagnetic immunity The model CL-S500 is intended for use in the electromagnetic immunity environment (Home healthcare environment defined in IEC 60601-1-2) specified below. The customer or the user of the model CL-S500 should assure that it is used in such an environment.
  • Page 10 NOTE 1 U is the a.c. mains voltage prior to application of the test level. NOTE 2 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 3 Guidelines regarding conducted disturbances induced by RF fields or radiated RF fields may not apply in all situations.
  • Page 11 Recommended separation distances between portable and mobile RF communications equipment and the model CL-S500 The model CL-S500 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model CL-S500 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model CL-S500 as recommended below, according to the maximum output power of the communications equipment.
  • Page 12 The model CL-S500 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the model CL-S500 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model CL-S500 as recommended below, according to the maximum output power of the communications equipment.
  • Page 13 Label Please read the label containing warnings and cautions carefully before use. Important - 13 -...
  • Page 14 Explanation of symbols These following symbols and labels indicate meanings as below. Caution Mark Indicates the monitor is approved according to the UL & c-UL regulations Indicates complies to the essential requirements of the European Medical Device Regulation (EU) 2017/745 (“MDR”) Indicates this device complies with the requirements of The Medical Devices Regulations 2002 (SI 2002 No 618, as amended) (UK MDR 2002)

  • Page 15: Safety Precautions

    Safety precautions This manual contains important warnings and information to prevent potential personal injury and property damage. The symbols and signs used in this manual and their meanings are as follows. Symbols Indicates a hazard which, if not avoided, could result in death or serious injury.
  • Page 16 Warning Do not disassemble, repair, or alter the monitor. It could cause fire, electric shock, or injury. Servicing of such a monitor may be refused. Or a fee may be charged even within the warranty period. Ask your dealer for repairs. Do not continue using the monitor when failure or abnormality is found.
  • Page 17 The monitor must be grounded. Failure to do so could cause electric shock. When using a 2P plug, ground the monitor before plugging into a wall outlet. To remove the grounding cable, unplug the monitor first. Follow the instructions below in handling the power plug. •...
  • Page 18 Do not place the monitor on its back or use in a place with little ventilation. Heat could build up and damage the cabinet and/or the inner parts. It could result in shortening of life, overheat, and/or fire. Rest your eyes for 10 to 15 minutes per hour. Failure to do so could cause eyestrain.
  • Page 19 Do not set maximum luminance or closer to it when using the monitor in a dim room below 100 lx. It could cause eyestrain. We recommend the factory default. Setting it too low could makes it hard to see the image. Clean inside of the monitor once a year.

  • Page 20: Features

    Features ● 21.3” QSXGA high-definition Color LCD panel A 21.3” (diagonal 54 cm) LCD panel provides clear display of images high resolution of QSXGA (2560 × 2048). ● Daisy-chain via DisplayPort Implemented DisplayPort with 10 bit depth color in addition to DVI input and achieved 1 billion 73 million simultaneous color with 10 bit input.
  • Page 21 ● Human presence sensor Activates “Human presence sensor” function, when leaving your seat, states of the monitor automatically switches into “Stand-by”. It leads to reduce power consumption. ● Reading light It has a LED light to help seeing documents or a keyboard in a dim environment such as reading room.

  • Page 22: Names And Functions Of Parts

    Names and functions of parts ① Human sensor: When leaving your seat, the status of the monitor automatically switches into “Stand-by” due to “Human Sensor”. ② LED indicator Power Mode Power off Normal (Luminance stabilized) Green Luminance stabilizer on Blinking green Calibrating Orange Power save on...
  • Page 23 11 12 13 14 ⑤ LCD luminance sensor Caution Do not push or give a shock to the LCD luminance sensor. It may cause the set luminance level to change and/or the LCD to fail. ⑥ Ambient light sensor ⑦ Reading light: It has a LED light to help seeing documents or a keyboard in a dim environment such as reading room.

  • Page 24: Reference

    Reference Power save function The monitor enters into power save mode after idling for a certain period of time to reduce power consumption. Refer to the workstation instruction manual on how to set it. Digital input This monitor supports digital signal. It is normal for noise to occur during startup, shutdown, and/or at switching resolutions.

  • Page 25: Cleaning The Monitor

    Cleaning the monitor How to care for the cabinet and screen ● When cleaning the monitor, remove the Power cord from the monitor and the wall outlet for your safety. ● Wipe off dust on the cabinet with a soft cloth, and use a cloth lightly moistened with a mild detergent, ethanol or isopropyl alcohol to remove grease.

  • Page 26: Connector Pin Assignment

    Connector pin assignment DVI 24-pin (female) connector for DVI signals Pin # Signal Pin # Signal TMDS Data 2- TMDS Data 3+ TMDS Data 2+ +5V Power TMDS Data 2/4 Shield DVI-D TMDS Data 4- Hot Plug Detect TMDS Data 4+ TMDS Data 0- DDC Clock TMDS Data 0+...

  • Page 27: Technical Specification

    Technical specification CL-S500BG0UA, CL-S500BG0EA, Item CL-S500BG2UA, CL-S500BG2EA for single screen 21.3-inch (54 cm), color, TFT, Anti-glare, IPS Pixel pitch (H × V) 0.165 × 0.165 mm Display area (H × V) 337.92 × 422.4 mm (Portrait) Pixel (H × V) 2048 ×...
  • Page 28 External dimensions for single screen Portrait (vertical orientation) 166.5 80.5 361.5 34.5 +20° -5° 196.5 Landscape (horizontal orientation) 422.5 Unit: mm - 28 -...

  • Page 29: After-Sales Service

    After-sales service Warranty Consult your dealer about the warranty. Requesting repair • Read “Troubleshooting” of the installation manual carefully and check if the problem solves. • If the problem remains, stop using the monitor, unplug it, and consult your dealer. Do not try to repair yourself.

  • Page 30: Disposal Of Electrical And Electronic Equipment

    Disposal of electrical and electronic equipment Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems) Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.
  • Page 31 CL-S500 Operation Manual November 2023 Edition PZZ11-2614D Notes for the Operation Manual • No part of this manual, whether partly or wholly, may be reproduced or copied without authorization. • The content of this manual is subject to change without notice. •...
  • Page 32 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa 221-0022, JAPAN Printed in Japan © 2019 JVCKENWOOD Corporation B5A-2908-40 231109...
