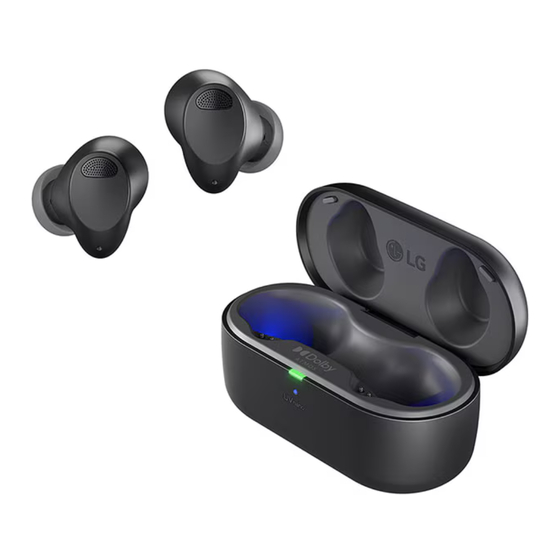

LG TONE Free Owner's Manual
Bluetooth stereo headset
Hide thumbs
Also See for TONE Free:
- User manual ,
- Owner's manual (620 pages) ,
- Owner's manual & warranty information (56 pages)
Related Manuals for LG TONE Free
Summary of Contents for LG TONE Free
- Page 1 OWNER’S MANUAL Bluetooth LG Stereo Headset ® For user safety and convenience, please read the user manual before using the product. Model TONE-T90S www.lg.com Copyright © 2023 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Contents Exploring the Product Connecting to the Bluetooth Charging Case Earbuds 22 Connecting the LG TONE Free App Connecting with Bluetooth for Safety Precautions 23 Safety Notices and Warnings Connecting the Smartphone to Earbuds 25 Precautions when Using the Product... -
Page 3: Exploring The Product
Exploring the Product Charging Case A Mood light: When you open the charging case, the mood light turns on and off. B Case charging port: You can charge a device or use Plug and Wireless mode. C Plug and Wireless mode switch: You can connect analog and USB audio devices and the charging case to listen to the sound through the earbuds. -
Page 4: Earbuds
Earbuds A Microphone B Speaker mesh (microphone) C Touch pad D Earbuds charging terminals Note • Be careful that foreign substances are not over the Earbuds charging terminals. -
Page 5: Connecting With Bluetooth For Use
Connecting with Bluetooth for Use Connecting the Smartphone to Earbuds via Bluetooth a Turn on the Bluetooth function of your smartphone or a device you want to connect. ® b Open the cover with earbuds attached to the charging case. The blue battery status indicator on the front blinks. -
Page 6: Multiple Connections
Multiple Connections If you use the LG TONE Free app, you can connect and use two devices, such as a smartphone and a PC at the same time. a Please activate Multi-Point & Multi-Pairing on the LG TONE Free app. -
Page 7: Listening To Sound With Earbuds
Listening to Sound with Earbuds Wearing Earbuds a Remove the earbuds from the charging case by bending the inside of the earbuds outward, and then wear them to fit tightly into your ears. Note • If you use an ear gel sized to fit your ears, you can improve performance of active noise cancellation (ANC). -
Page 8: Listening To Music
: Touch the left (volume down) or right (volume up) Volume control earbud twice. Next song : Touch the left or right earbud three times. Note • You can change how to use the function in the touch function settings of the LG TONE Free app. -
Page 9: Receiving Phone Call
Receiving Phone Call Function How to Use Receiving calls : Touch the left or right earbud once. Hanging up calls : Touch the left or right earbud twice. Rejecting calls : Touch and hold the left or right earbud. Smartphone call function Function/Status Description Receiving calls/When receiving... -
Page 10: Listening To Ambient Sound/Active Noise Cancellation (Anc)
Listening to Ambient Sound/Active Noise Cancellation (ANC) Listening to ambient sound The listening to ambient sound function makes you hear outside sounds, so that you can be aware about your surroundings and hazards. - Page 11 • If you touch and hold the left or right earbud, you can switch between active noise cancellation (ANC) and listening to ambient sound. • You can set listening to ambient sound or active noise cancellation (ANC) functions in the LG TONE Free app.
-
Page 12: Connecting To An External
Connecting to an External Device for Use (Plug and Wireless Mode) Connecting You can connect the charging case to an analog device such as audio in airplane seat, treadmill, cassette, radio, TV or a USB audio device such as PC to listen to the sound with an earbuds. Connecting with an analog device Function How to Use... -
Page 13: Connecting And Disconnecting With An Analog Device
Connecting and Disconnecting with an Analog Device Connecting with an analog device a Connect the USB-C™ port of the USB-C™ to AUX cable to the charging case. b Connect the AUX terminal to a desired device. c Wear earbuds on your ears. d Slide the Plug and Wireless mode switch to the right to turn on the mode. - Page 14 • If you cannot find a device which has been previously connected, it enters the Connectable mode. Note • The LG TONE Free app cannot be used, and the EQ or touch function settings are retained. • It does not support the call function.
-
Page 15: Connecting And Disconnecting With A Usb Audio Device
Connecting and Disconnecting with a USB Audio Device Connecting with a USB audio device a Connect the USB-C terminal of the included USB Type-C™ Charging and Data cable to the charging case. b Connect the USB-C terminal to a desired device. c Wear earbuds on your ears. - Page 16 Disconnecting with a USB audio device a Push the Plug and Wireless mode switch to the left. b The indicator on the charging case blinks blue. c When disconnected, it is reconnected with the device with which has been previously connected. • If you cannot find a device which has been previously connected, it enters the Connectable mode.
-
Page 17: Charging
Charging Charging by Wire If you connect the charging cable, the charging status shows up on the charging case. Note • The earbuds and charging case are charged at the same time. • The Case charging port of the charging case does not support the power supply function to other devices such as smartphone. -
Page 18: Charging Wirelessly
Charging Wirelessly Place the charging case on the center of the wireless charger. Note • A wireless charger is not provided. • For some wireless chargers, the wireless charging function may not operate. • For wireless charging, it takes a long to charge. • If you charge the device with the earbuds attached and the cover closed, the UVnano LED operates for 10 minutes. -
Page 19: Description On Uvnano
Description on UVnano The charging case has a built-in UVnano LED to keep the earbuds clean. If you charge the device with the earbuds attached and the cover closed, the UVnano LED operates for 10 minutes. * UVnano is a compound word of UV and nanometer, the unit of UV. Note • The UVnano indicator is blue while the UVnano LED is in operation. -
Page 20: Checking Battery Status
Checking Battery Status If you open the charging case, the battery status of the earbuds is displayed. When the earbuds are not attached, the battery status of the charging case is displayed. Battery level state (charger not connected) / Battery status indicator Charging status (charger connected) 20% or less / Charging... - Page 21 Battery status indicator Status Operation Bluetooth search mode The blue battery status indicator blinks. ® Battery 20% or less The red battery status indicator turns on and off. Battery 20% ~ 80% The yellow battery status indicator turns on and off. Battery 80% or higher The green battery status indicator turns on and off.
-
Page 22: Connecting To The Bluetooth App
Connecting to the Bluetooth App Connecting the LG TONE Free App a Search for “LG TONE Free” on Google Play Store or App Store on your smartphone or scan the QR code below to install the LG TONE Free app. -
Page 23: Safety Precautions
Safety Precautions Safety Notices and Warnings The following “Safety Precautions” are to prevent unexpected dangers or damages, so be sure to read them thoroughly. ‘Safety Precautions’ are divided into ‘Warning’ and ‘Caution’. . WARNING: Failure to follow the instructions may result in serious injury or death. >... - Page 24 • Do not disassemble, adjust, or repair the product. > Caution • Do not place the product near excessive heat or flammable material. • The product may be damaged if an incompatible charger is used. • Keep small components of the product away from infants or children. • Make sure that foreign objects do not enter the charger’s connectors (Case charging port and power plug).
-
Page 25: Precautions When Using The Product
• Replacement of a battery with an incorrect type that can defeat a safeguard (for > Caution example, in the case of some lithium battery types). • Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, may result in an explosion. -
Page 26: Things To Check Before Reporting Malfunction
Things to Check before Reporting Malfunction Troubleshooting If you experience the following symptoms while using the product, please check them again. They may not be malfunctions. Symptom Cause and Solution If the power does not • Check the battery level and charge it. turn on If a call cannot be • If your smartphone does not support the hands-free function, you... -
Page 27: Appendix
Appendix Product Specifications General Description Bluetooth V 5.4 (HFP/A2DP/AVRCP) Specifications Earbud: 3.85 V / 51 mAh, Lithium-ion Battery Charging case: 3.85 V / 475 mAh, Lithium-ion Music Play Time ANC Off: Up to 9 & Up to 36 hours* Earbuds & With ANC On: Up to 5 &... -
Page 28: Safety Information
LLC. Radio frequency exposure This Bluetooth LG Stereo Headset is a radio transmitter and receiver. When in operation, it communicates with a Bluetooth-equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2402 to 2480 MHz. -
Page 29: Bluetooth Connection Precautions
Bluetooth connection precautions The following environments affect the range and reception of Bluetooth signals: - When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device. - When equipment that uses 2.4 GHz frequency signals (wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used. -
Page 30: Registered Trademarks And Licenses
0 : Direct current (DC) The spelling errors or inaccurate contents in this user manual are subject to change without prior notice by LG Electronics. The output level shall automatically return to an output level not exceeding RS1 when the power... -
Page 31: Cleaning Guide
Cleaning Guide How to clean the ear gel and multi-function foam If the ear gel or multi-function foam is clogged, the sound or ANC performance may be reduced. You must clean the ear gel and multi-function foam periodically to ensure the best performance of your earbuds.
